Полу-электрический самоподъемный штабелер Аккумуляторный Вилочный Погрузчик Штабелер

Полу-электрический самоподъемный штабелер Аккумуляторный Вилочный Погрузчик Штабелер

Category: Stacker & Reclaimer >>>
Supplier: Zhongshan,Shiliwang,Machinery,Co.,Ltd.

Price:1 685,00 $ - 2 031,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

500kg Portable Battery Powered Self Loading Forklift

This 500kg Portable Battery Powered Self Loading Forklift that was designed for Cargo Vans, Sprinter Vans,
Ford Transit and Ford Transit Connect Vans, Small Cutaway Cube Trucks, Box Trucks.

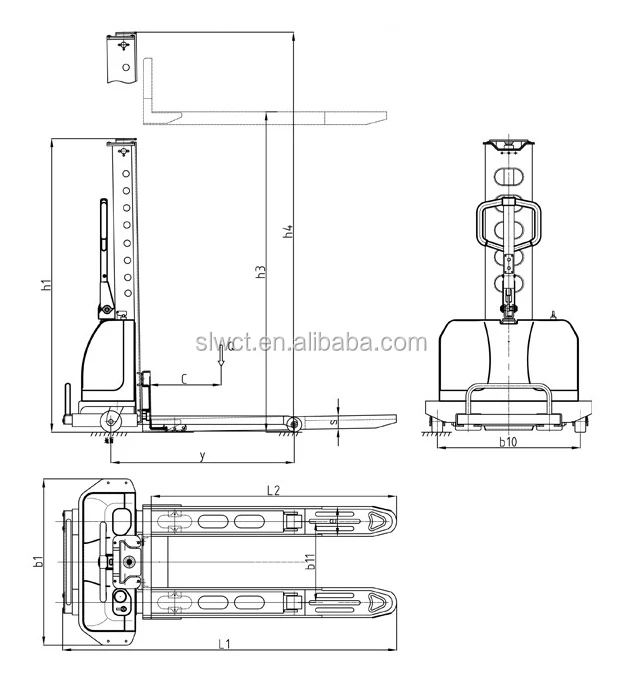

Main specifications

\t Model	\t EG-A	\t EG-B
\t Power	\t semi-electric	\t semi-electric
\t Load capacity (Q)	\t 500kg	\t 500kg
\t Load center (C)	\t 400mm	\t 400mm
\t Lift height (h3)	\t 1100mm	\t 1300mm
\t Lowered height (s)	\t 90mm	\t 90mm
\t Fork size - th/w/l	\t 60 / 150 / 1150mm	\t 60 / 150 / 1150mm
\t Overall fork width	\t 540mm	\t 540mm
\t Mast collapsed height (h1)	\t 1400mm	\t 1600mm
\t Mast extended height (h4)	\t 2700mm	\t 2900mm
\t Turning radius	\t 1120mm	\t 1120mm

Main Features

• Unique design to ensure the stacker can lift itself safely without a load on its forks
• 12V/33Ah maintenance-free battery for stable performance and easy service and maintenance
• High performance pump unit gives fast and stable lift and low noise
• On board Charger for easy charging between deliveries on the vehicles
• Built-in digital battery level gauge
• Key-operated On/Off control for safety and security
• Manual handle for steering
• AC 110V-220V / 50-60Hz battery charger available
• Standard equipped VRLA Battery

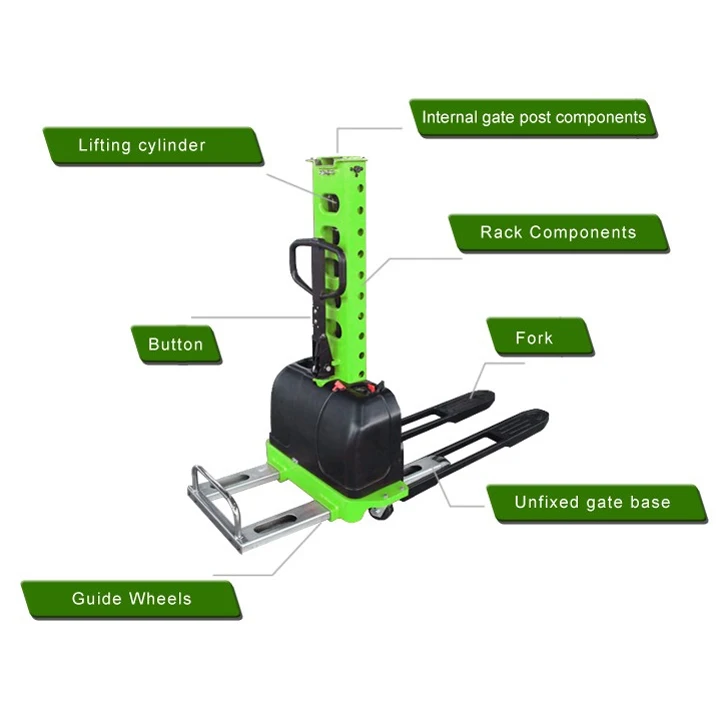

Detailed Images

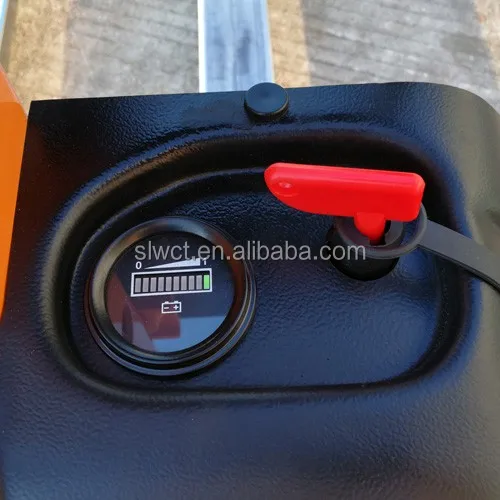

Key-operated On/Off control

Lift & Lower push buttons

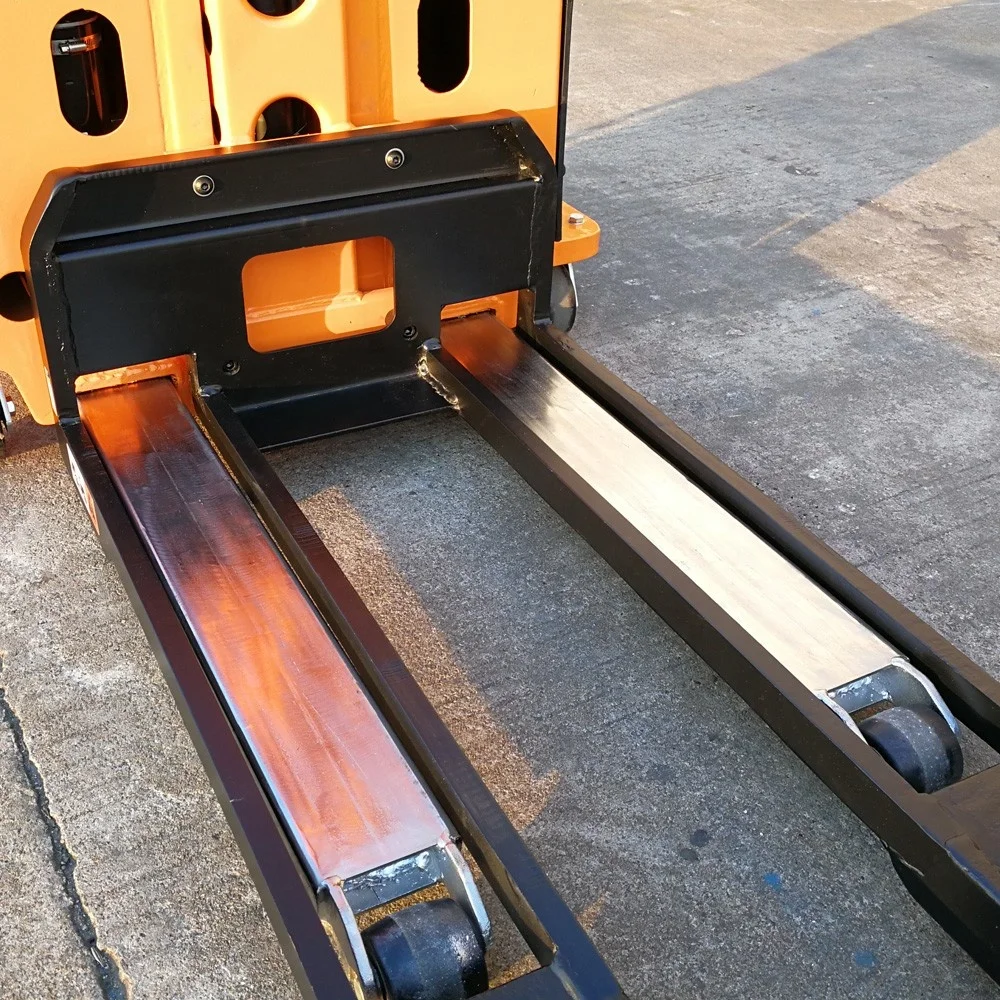

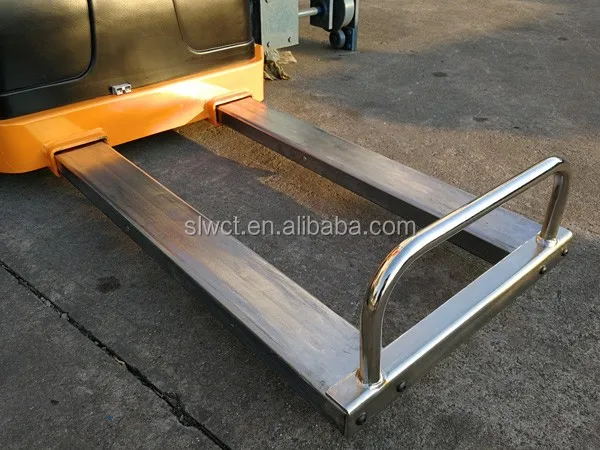

Interim roller at the middle of the legs

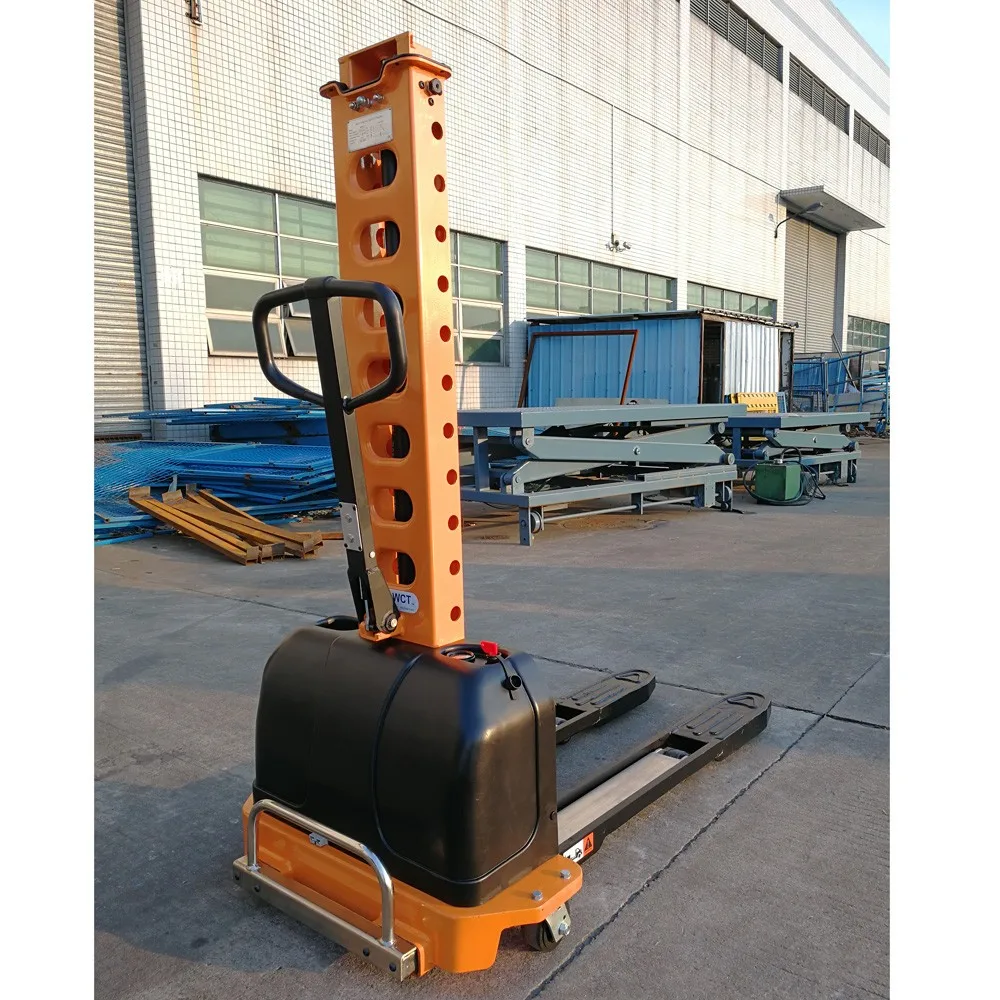

Unique Self-Lift design

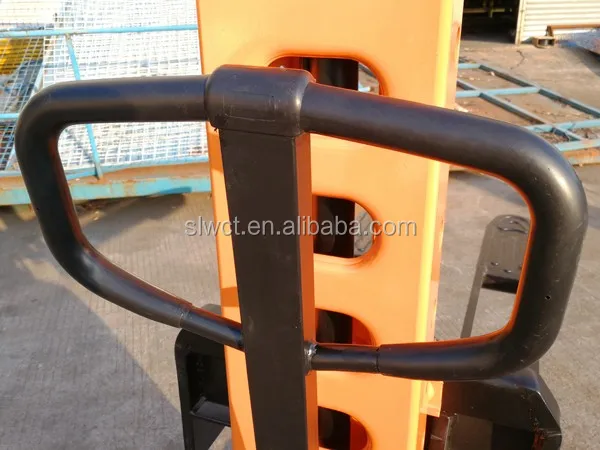

Manual handle for steering

Main Features

Name: Self-Load Semi Electric Stacker
Brand: SLWCT
Original: China
Product Application: Portable Self Loading Stacker Semi Electric Pallet Stacker that was designed for Cargo Vans, Sprinter Vans.
Ford Transit and Ford Transit Connect Vans, Small Cutaway Cube Trucks, Box Trucks.

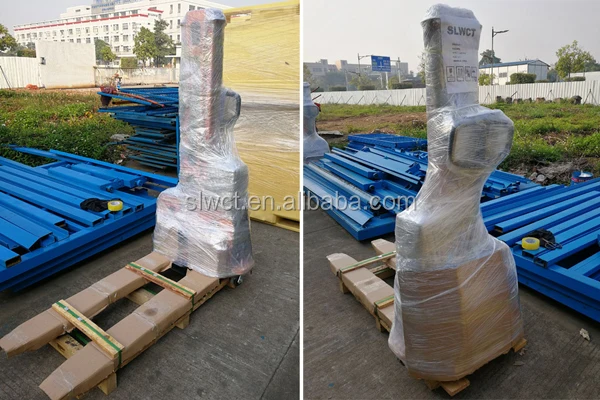

Packing & Delivery

Packing Details

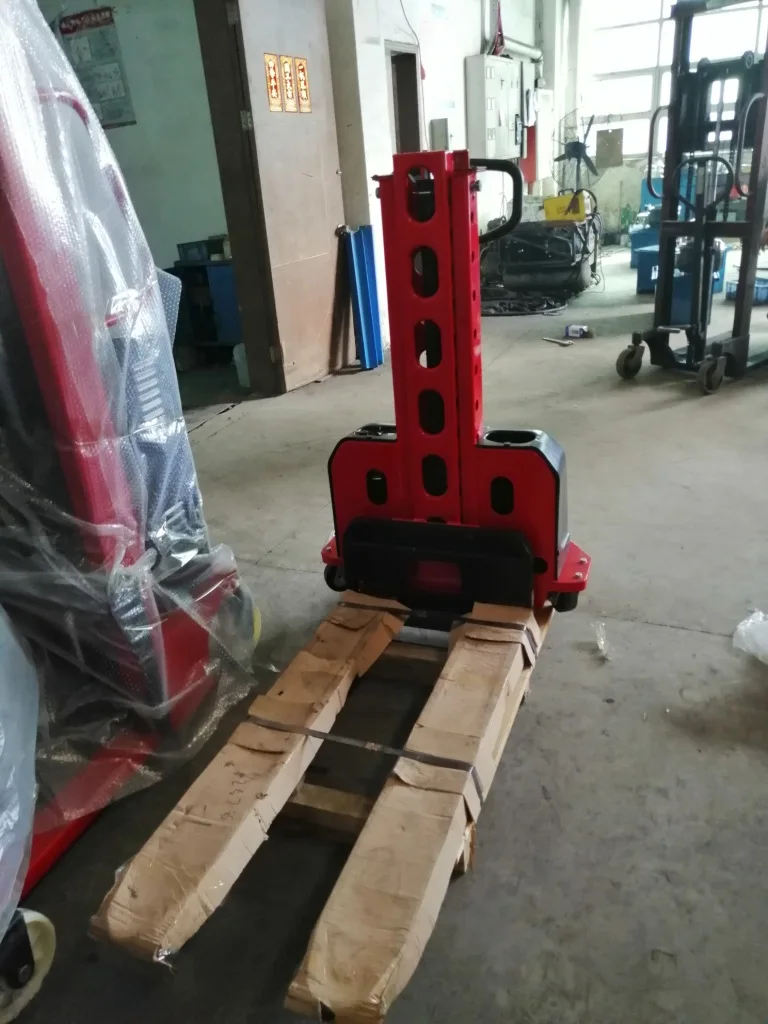

Self-Load Semi Electric Stacker packing with Standard export packaging (Plywood pallet & Cartons)

Size: 1640 (L) * 800(W) * 1600 (H)mm
CBM: 2 CBM

Net weight: 190kg

Gross Weight: 200kg

Semi Electric Stacker EA-C

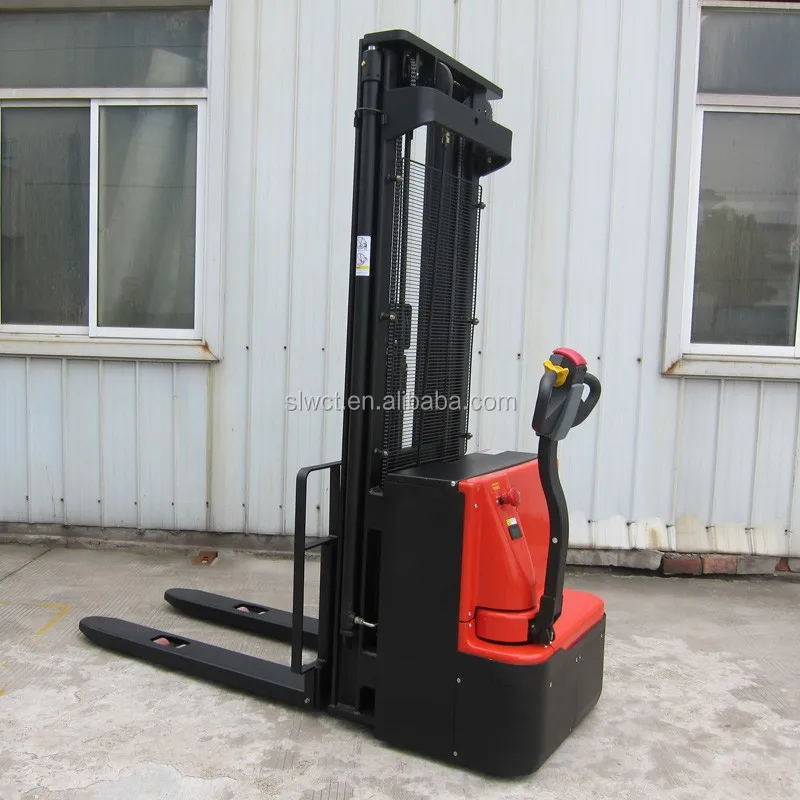

Full Electric Stacker EW-A

Stand-on Electric Stacker ES-H

Certifications

FAQ

Q: Are you factory?
A: Sure, we are factory direct sales, our factory located in Maxin Industrial Zone, No.12, Xingpu Road East, Huangpu Town, Zhongshan, Guangdong, China.

Q: How long the lead time?
A: Generally speaking, our standard models always in stock and the delivery time is 5-7 business days after receiving the customer's deposit.

Q: Can I custom size the Self-Load Semi Electric Stacker?
A: Sure, custom size is available for us;

Such as lifting height, power source, battery and the color

Q: Do you have warranty?
A: Sure, the warranty period for stacker is 12 months, we will provide new parts for free in the warranty period.
