Fumeihua Decorative High-Pressure Furniture HPL Laminate Sheet HPL
US $43.26-$48.29

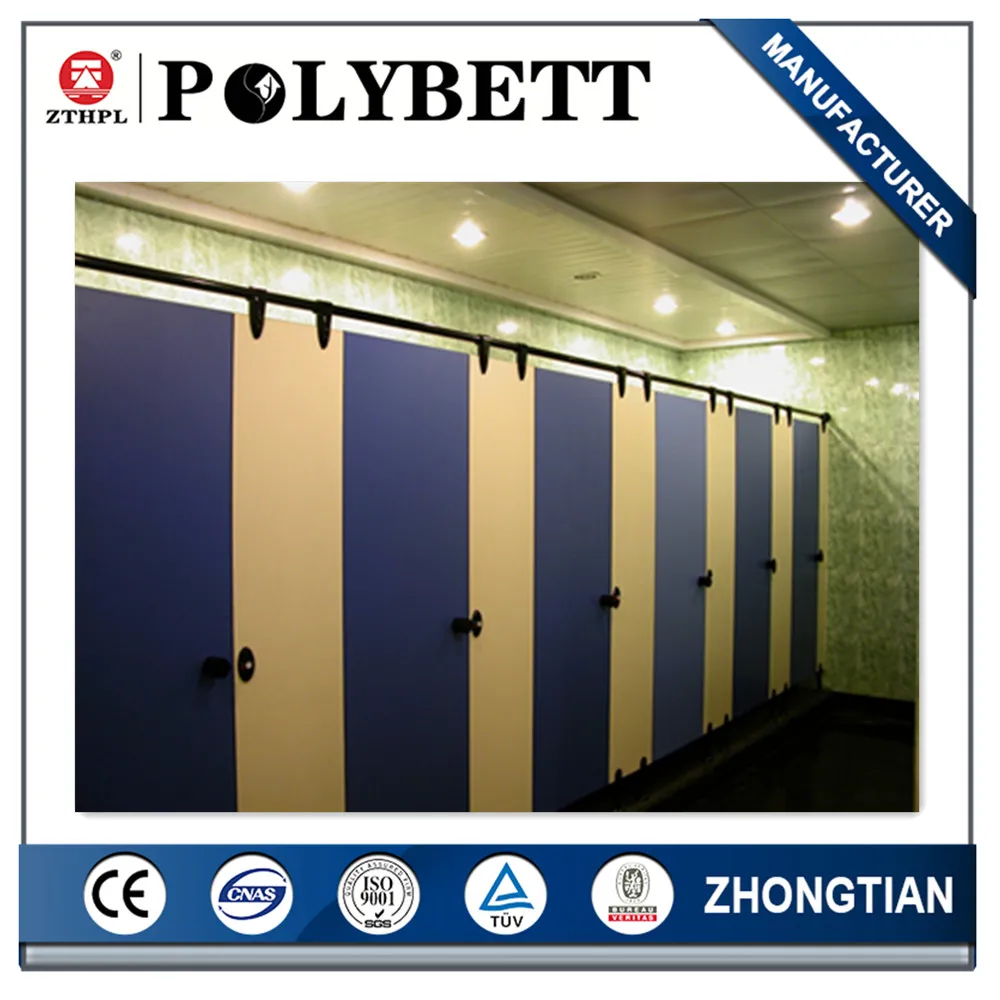

factory price hpl panel for locker and toilet cubicle partition
- Category: Decorative High-Pressure Laminates \/ HPL >>>
- Supplier: Changzhou,Zhongtian,Fire-proof,Decorative,Sheets,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

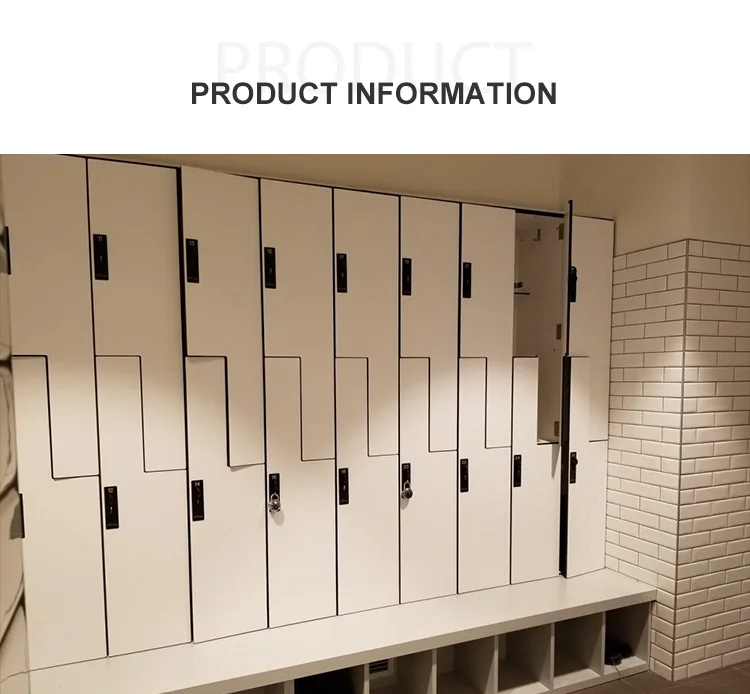

Name | hpl locker |
Material | Phenolic compact laminate |
Color | Solid color, wood grain, marble, flower, metal |
Thickness | 4mm, 6mm, 8mm, 12mm... |
Lock | Digital lock, Key lock, RFID lock |
Size | Standard size for per column (mm): 300W*450D*1900H Others sizes could be customized |
Advantages | 1.easy to install,clean and maintain 2.security, health 3.waterproof and fireproof 4.rust resistant, moth resistant,totally environmental protection 5.a wide range of colors for your choice 6.could be customized according to your request 7.extremely durable 8.shock resistant, impact resistant,scratch resistant 9.free from peculiar smell 10.top quality in terms of material and processing |
Application | High-end fitness clubs, SPA houses, swimming pools, theme parks, spot centers, store counters, schools, hospitals, houses, supermarket, hotel |
Product Feature
Product Display
Application: For family、supermarket、hospital、hotel、office
Related Products

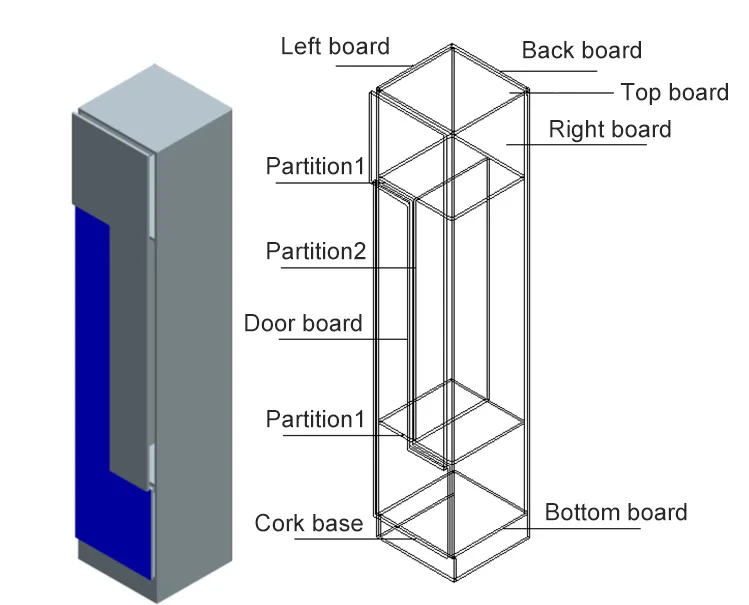

Installation Process
We provide you with installation process demonstration
1.Install left &right board and back board;
Connect left &right board and back board with M4*12Round head screw,Stainless corner fastener.
Accessory and tools needed:M4*12Round head screw,Stainless corner fastener and electronic hand drill.
2.Install two pcs of partition1 and top& bottom board.
Firstly,connect partition 1 and back board with M4*25 wafer head self tapping screw, then separately connect the left &right board with M4*12Round head screw,Stainless corner fastener。Same ways to install the top& bottom board.
Accessory and tools needed:M4*12Round head screw, M4*25 wafer head self tapping screw, Stainless corner fastener and electronic hand drill.
3.Install the cork base bottom board.
Connect the cork base and left&right side board,bottom board with M4*12Round head screw,Stainless corner fastener.
Accessory and tools needed:M4*12 Round head screw, Stainless corner fastener and electronic hand drill.
4.Install clothes rail and flange
Put the clothes rail through the holes of the partition2, and cooperate with each other to determine the position of the flange. Then Install clothes rail and flange.(Mention: while installing the door board,need to move partition2 to make it easy.)
Accessory and tools needed:clothes rail and flange, M4*12 Round head screw,electronic hand drill.
5.Install the door board with hinge(pay attention to adjust the crack between the door and side board.)
Accessory and tools needed: Hinge, M4*12 Round head screw,electronic hand drill.
6.Install partition2
Connect partition2(top&bottom and back part) and partition 1,back board with M4*25 wafer head self tapping screw.
Accessory and tools needed:M4*25 wafer head self tapping screw,electronic hand drill.
7.Install the door lock.
Accessory and tools needed:door lock, M4*12 Round head screw,electronic hand drill.
Connect left &right board and back board with M4*12Round head screw,Stainless corner fastener.
Accessory and tools needed:M4*12Round head screw,Stainless corner fastener and electronic hand drill.
2.Install two pcs of partition1 and top& bottom board.
Firstly,connect partition 1 and back board with M4*25 wafer head self tapping screw, then separately connect the left &right board with M4*12Round head screw,Stainless corner fastener。Same ways to install the top& bottom board.
Accessory and tools needed:M4*12Round head screw, M4*25 wafer head self tapping screw, Stainless corner fastener and electronic hand drill.
3.Install the cork base bottom board.
Connect the cork base and left&right side board,bottom board with M4*12Round head screw,Stainless corner fastener.
Accessory and tools needed:M4*12 Round head screw, Stainless corner fastener and electronic hand drill.
4.Install clothes rail and flange
Put the clothes rail through the holes of the partition2, and cooperate with each other to determine the position of the flange. Then Install clothes rail and flange.(Mention: while installing the door board,need to move partition2 to make it easy.)
Accessory and tools needed:clothes rail and flange, M4*12 Round head screw,electronic hand drill.
5.Install the door board with hinge(pay attention to adjust the crack between the door and side board.)
Accessory and tools needed: Hinge, M4*12 Round head screw,electronic hand drill.
6.Install partition2
Connect partition2(top&bottom and back part) and partition 1,back board with M4*25 wafer head self tapping screw.
Accessory and tools needed:M4*25 wafer head self tapping screw,electronic hand drill.
7.Install the door lock.
Accessory and tools needed:door lock, M4*12 Round head screw,electronic hand drill.
About Us
Set up in 1998, Changzhou Zhongtian Fire-proof Decorative Sheets Co., Ltd. (Zhongtian) is one of the largest Chinese manufacturers of high pressure laminate locker. Zhongtian owns two brands: Zhongtian and Zhongtian Polybett. Zhongtian Polybett is a high-end decoration brand which was built on the 20th anniversary of the founding of Zhongtian.
Our Service
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are factory.
2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q:What is your terms of payment?
A: 1.T/T 30% as deposit, and 70% pay against the copy of B/L.
2.L/C at sight.
3.D/P at sight.
5.Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
A: We are factory.
2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q:What is your terms of payment?
A: 1.T/T 30% as deposit, and 70% pay against the copy of B/L.
2.L/C at sight.
3.D/P at sight.
5.Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
