95L 110L SJ165 EVA Powder Granulating Line Granulation Machine

Share on:

Price:RUB 3,670,468.80 - RUB 9,176,172.00
Price in USD:Details


Product Overview


Air Cooling 600-650kg/h EVA SJ165 Plastique Machine de Granulation

Product Description

This granule line is specialized for making EVA granules. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.


Detailed Images



eva compounding machine 1

Technical Parameter
                                                  SJΦ165 EVA Air Cooling Granule Line
No. Item Description Specification
1 Kneader(optional) Model  X(S)N-95L
    Capacity 95L
    Actuating motor power 132kw
2 Bucket conveyer for EVA Material  Stainless
    Motor Power 1.5kw
    Bucket dimension 700*600*300mm

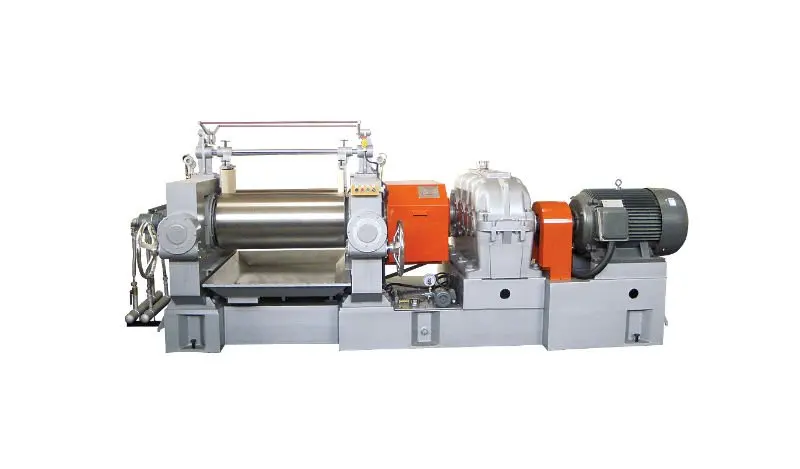

3 Mixing roller(optional) Model  XK-450
    Diameter of roller 450mm
    Main motor power 55kw
2 Main extruder Screw  dia Φ165mm
    Screw Speed 0-50r/min
    Main motor power 75kw (all with inverter)
    Feeder motor power 7.5kw (all with inverter)
    Cutter motor power 2.2kw
    Heat power 15kw
    Gear box oil bath lubrication,hardened gear reducer
    Cutting system air cooling
    Auto thermo control 5 zones
    Screw/barrel material 38CrMoAIA
    Barrel cooling system water cooling
    Granule diameter 3-5mm
    Overall dimension (L*W*H) 5000*2000*1600mm
    Weight  3200kg
3 Whirlwind cooler a. Cooling tank diameter  Φ650*1set
    b. Cooling tank diameter  Φ850*2sets
4 Cooling conveyer Length and width 4200*610mm
    Thermal Design Power 4.5kw
    Material Stainless
5 Blender Capacity  1500L
    Spindle speed 10r/min
    Motor power 15kw-4
6 Air machine Motor power 5.5kw
    Screw speed  2880r/min
7 Air machine Motor power 7.5kw
    Screw speed  2880r/min
