Product Overview
Description
500mW High Power 2.4GHz 300mbps Outdoor Access Point,wisp outdoor access point 3 kw
Product Description
Description:

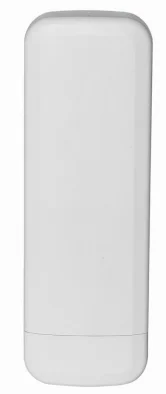

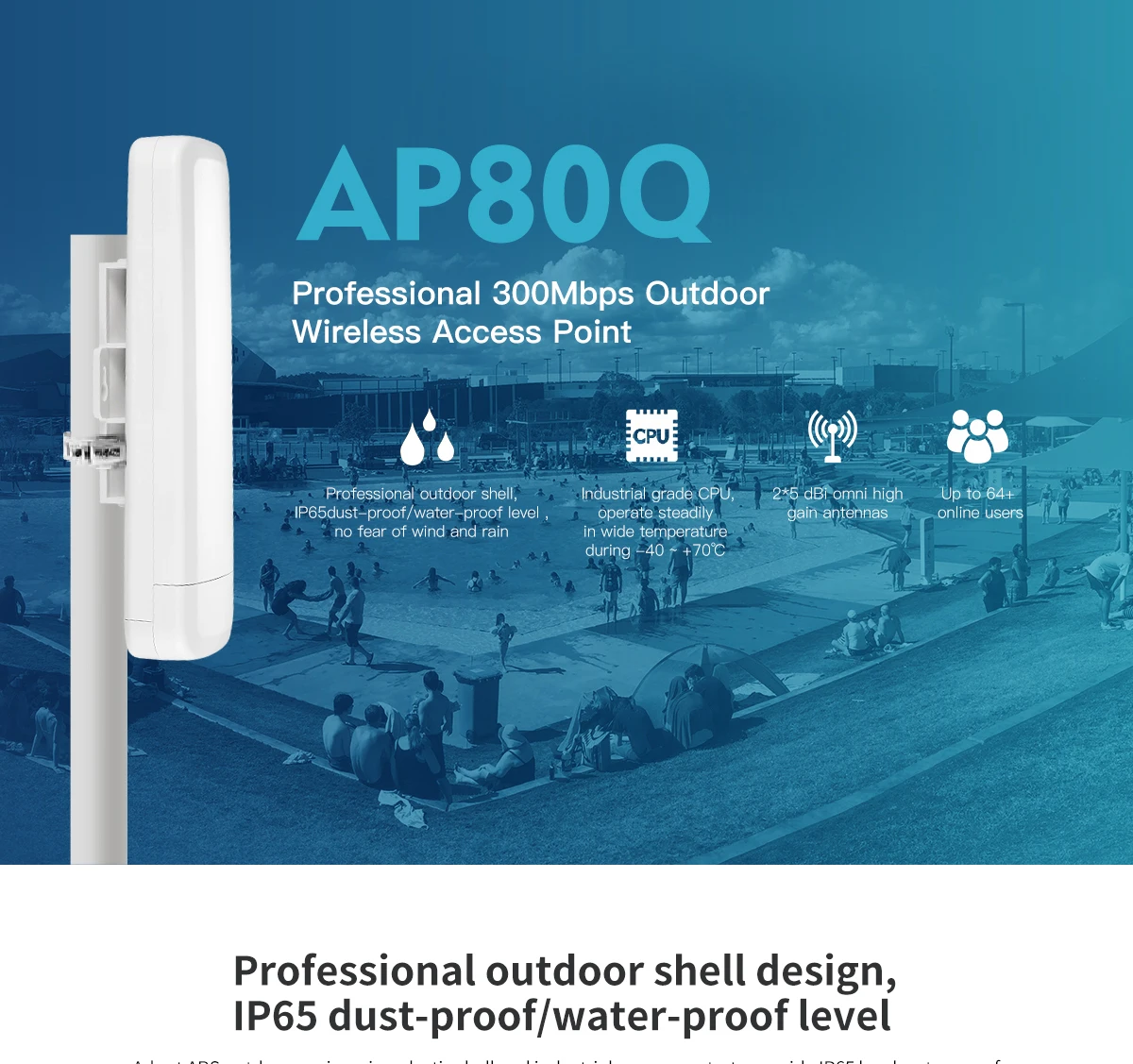

AP80Q is an 300Mbps high power outdoor wireless access point with omni 5dBi antenna; It Comply with IEEE 802.11b/g/n standard, adopt Qualcomm chipset, 16MB flash, 64MB SDRAM, 5dBi omni antenna, 500mW high power, more than 200 meters Wi-Fi range, good choice for outdoor Wi-Fi signal coverage.

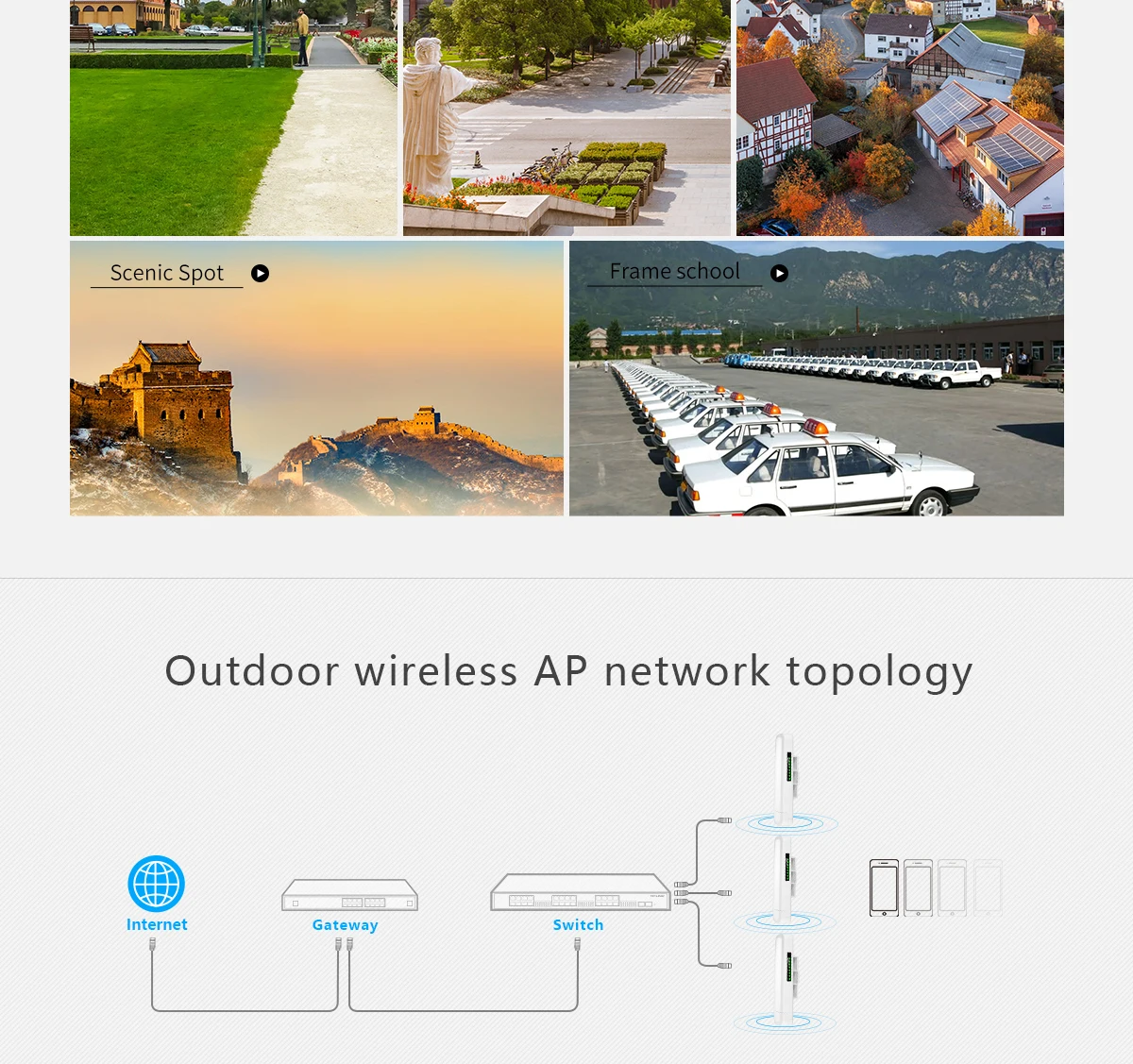

With AP, Router and Wi-Fi Repeater operation mode, it can transmit Wi-Fi signal in a certain place for outdoor users, or can bridge the exist Wi-Fi signal to extend the range.

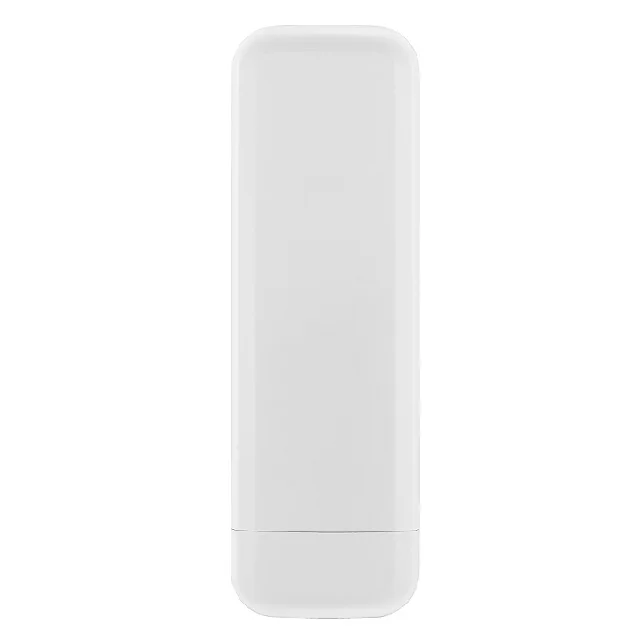

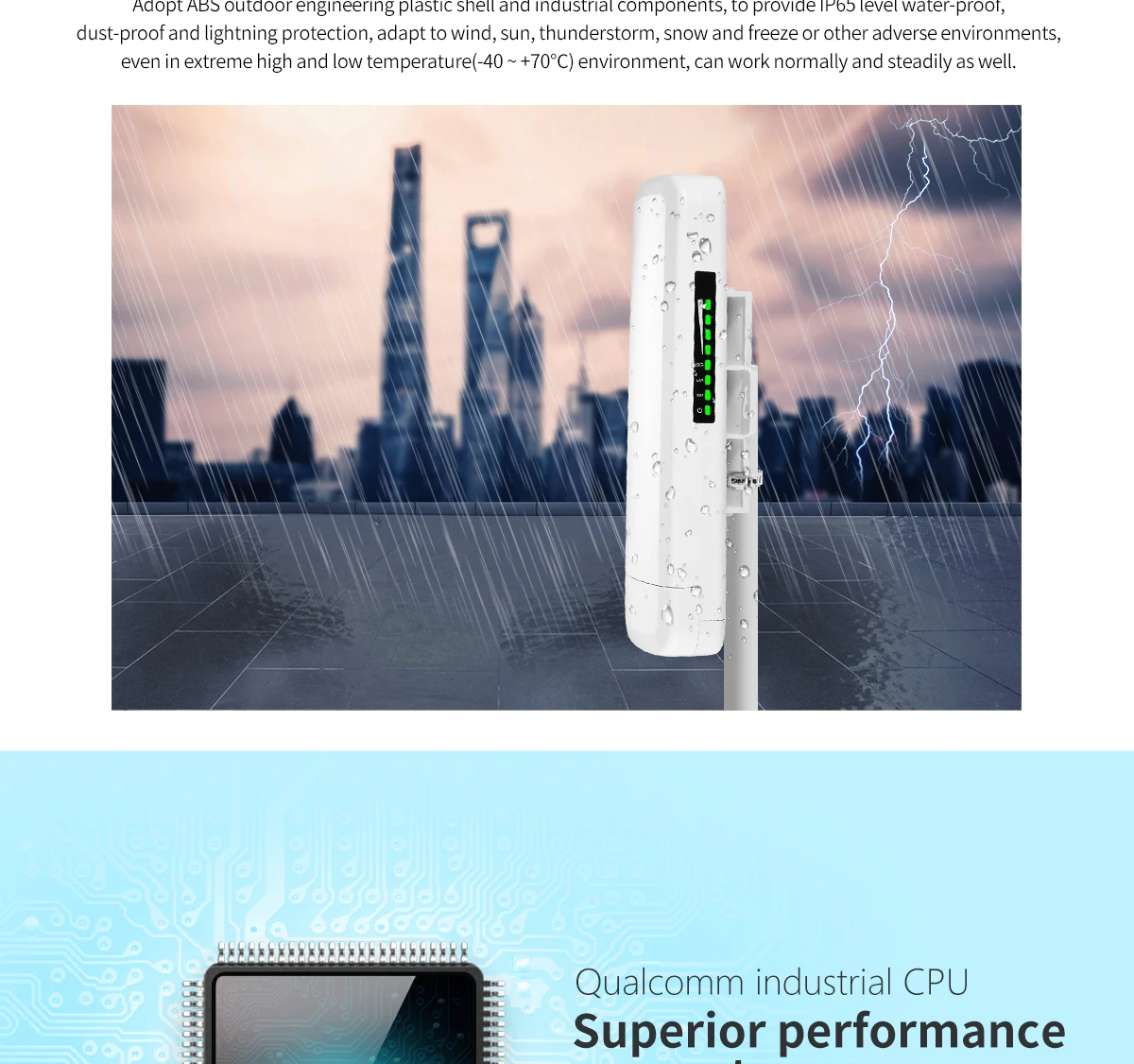

AP80Q with ABS waterproof, dustproof and sunscreen shell, temperature adaptive and board protective,suit for outdoor Wi-Fi networking projects.
Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby, save much human work and cost.
AP80Q support special frequency from 2.312GHz to 2.4835GHz, total 27 channels to avoid the Wi-Fi Interference, to guarantee the stable wireless connection.

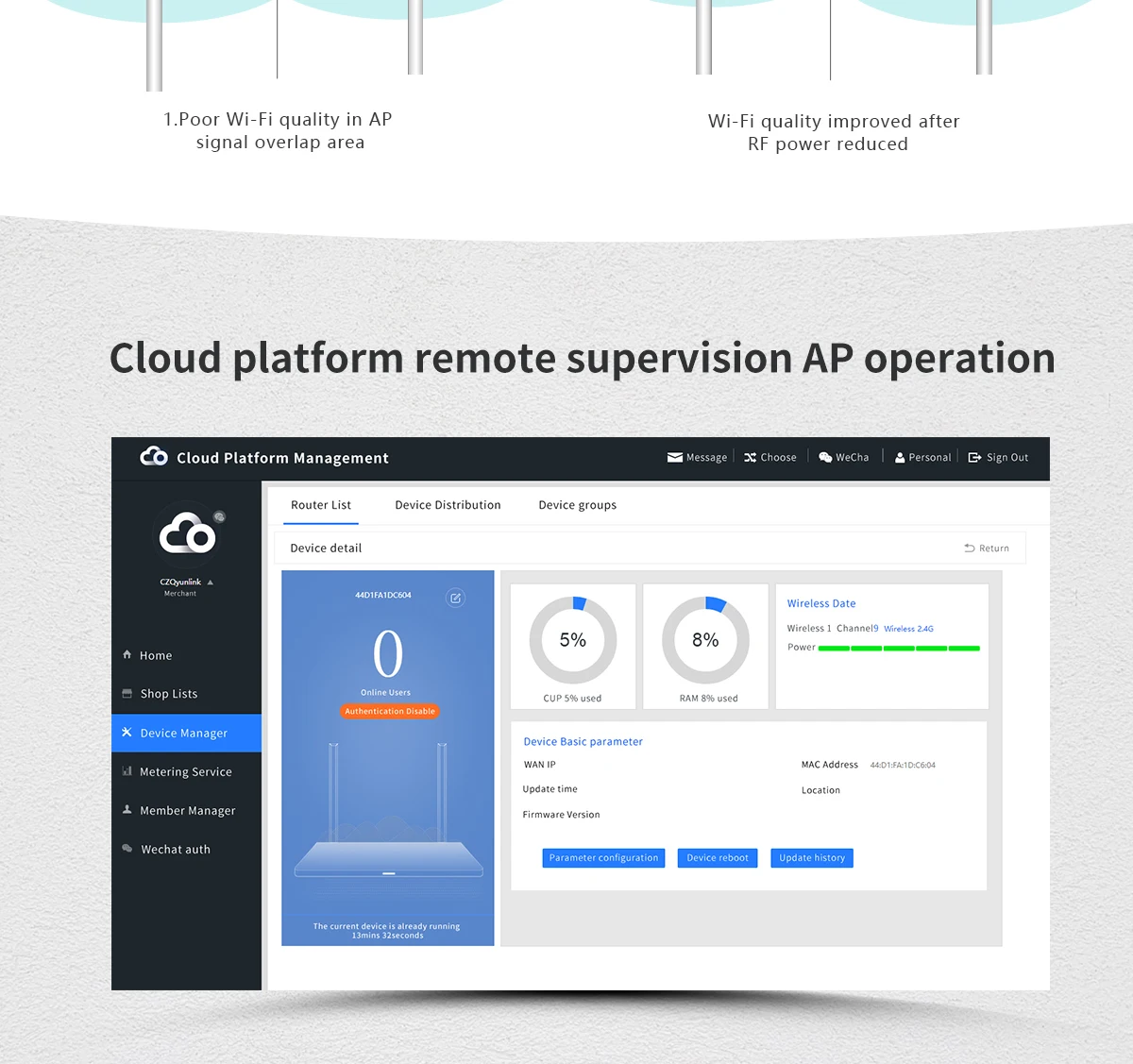

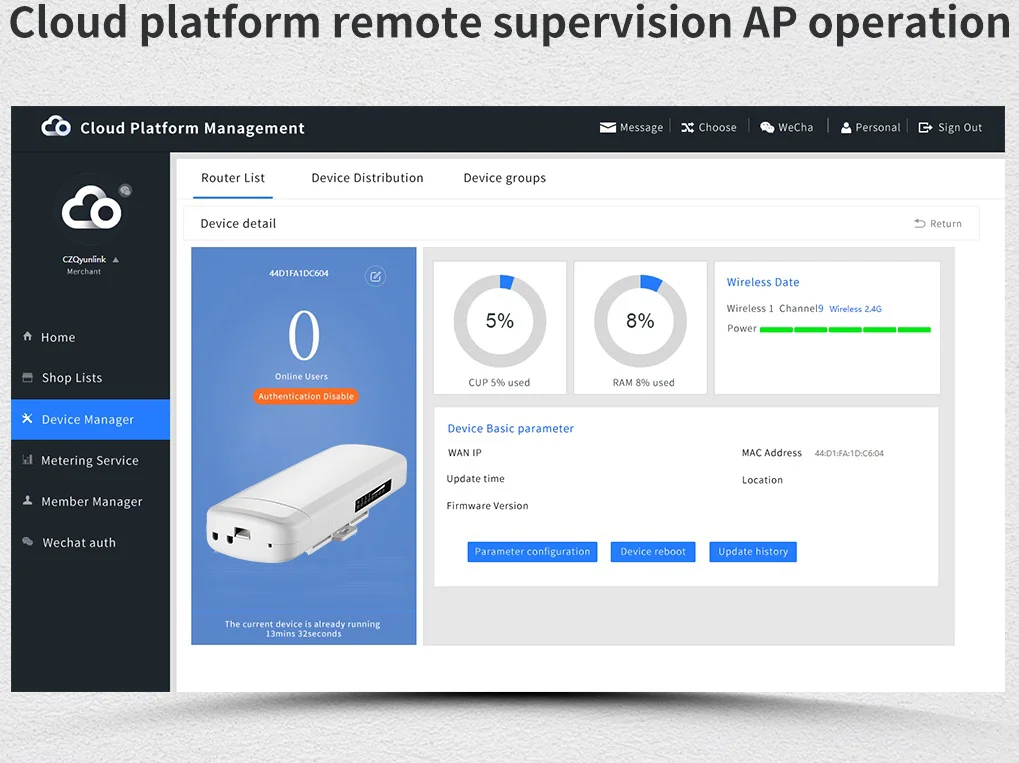

What’s more, AP80Q support multi SSID(up to 4), each SSID comply with IEEE 802.1Q VLAN, then AP80Q work with our AC controller, easy to be configure and setup centrally, what’s more, it support Captive Portal Authentication, easy to do ads or ask for login before get inter
Specification: | |
Hardware: | |

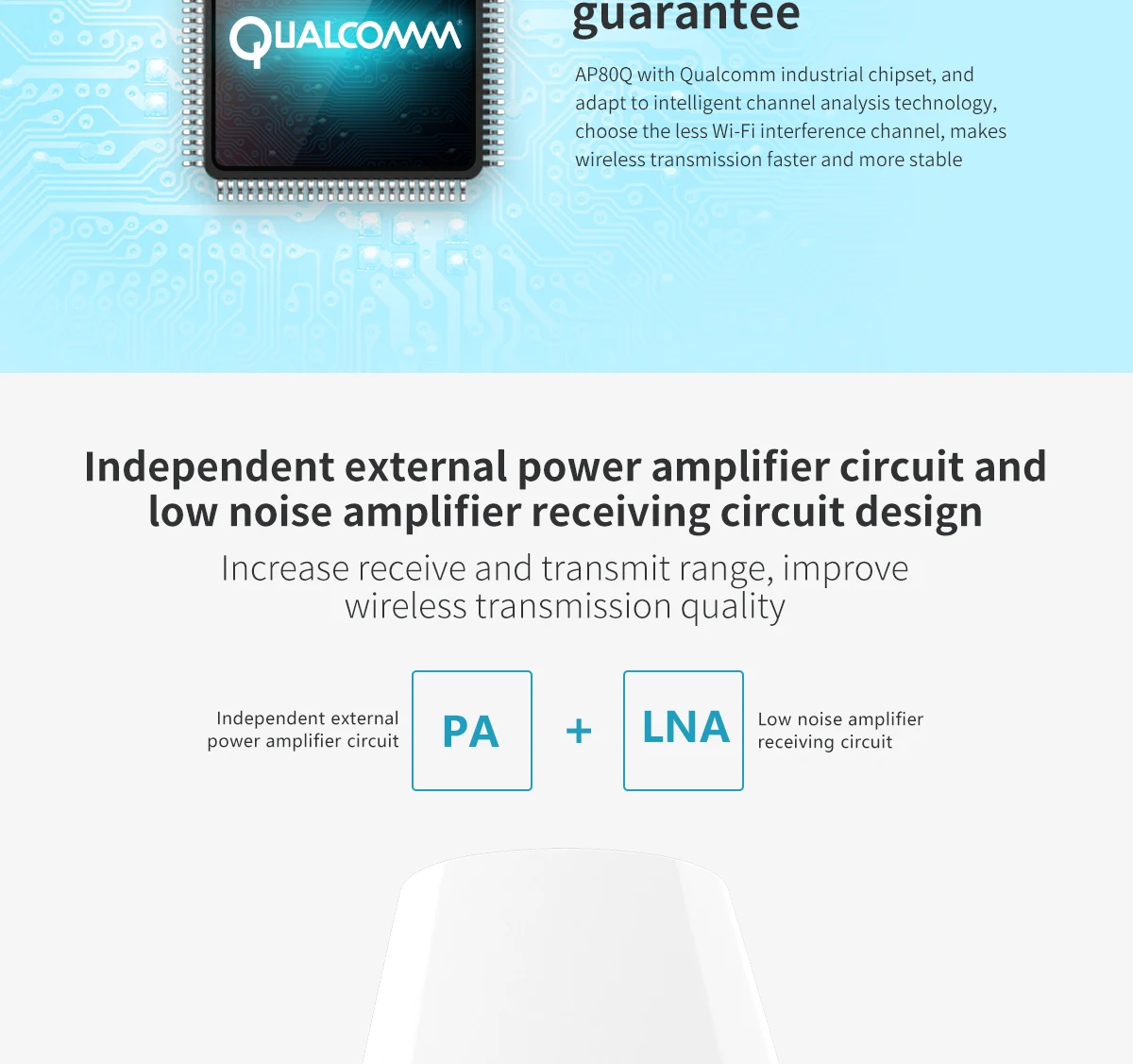

Chipset | Qualcomm QCA9531 |
Wireless | 802.11N, 2T2R 300M MIMO Technology |
Memory | 64MB |
Flash | 16MB |

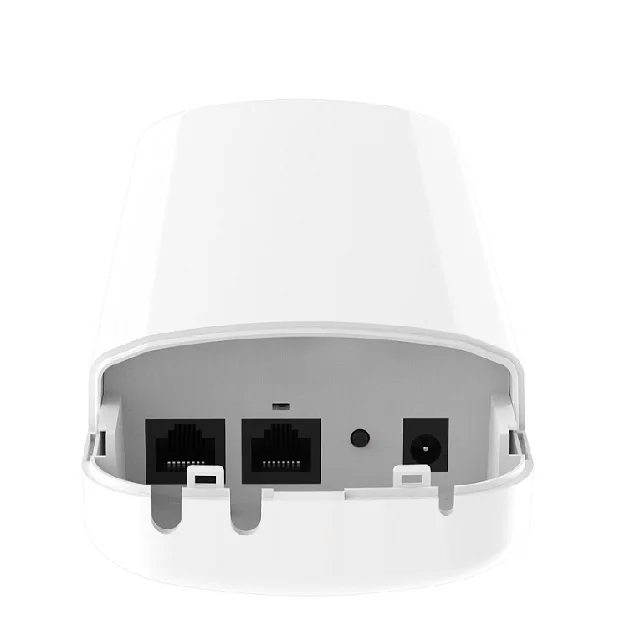

Interface | 2 10/100 Mbps RJ45 Port, support 12~24V PoE |
1 Reset Button | |
1 DC Jack, 12V Power Supply | |
Antenna | 5dBi omni Antenna |
LED Light | POWER WIFI WAN LAN S1(GPIO9) S2(GPIO14) S3(GPIO11) S4(GPIO12) |
Size | L 257mm , W: 87mm, H: 38 mm |
Power | 12V(POE 24V)/1A;110V/220V |
RF Data | |
RF Data | 802.11b/g/n: |
2.312GHz to 2.4835GHz | |
Korea, Japan, ETSI, FCC | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Data Rate | 300 Mbps |
Receive Sensitivity | 802.11n: -88dbm@MCS0,-70dbm@MCS7 802.11g: -88dbm@6Mbps;-70 dbm@54Mbps 802.11b: -94 dbm@1Mbps; -85 dbm@11Mbps |

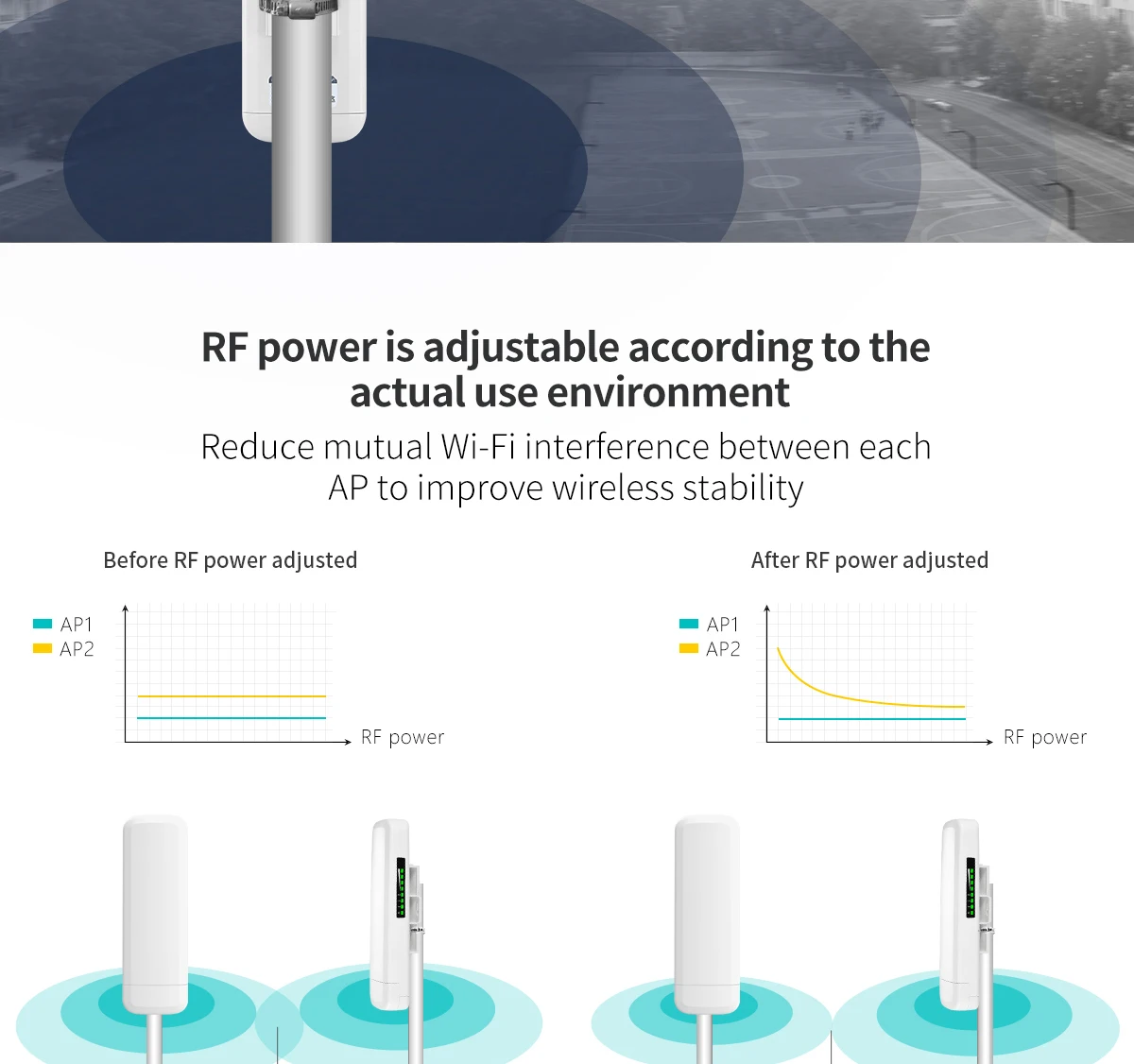

RF Output Power | 802.11n:24±2 DB 802.11g:24±2 DB 802.11b:26±2 DB |
EVM | 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
Firmware | |
Operation Mode | Gateway/AP/WiFi Repeater/WISP |
Protocol/Standard | IEEE 802.3(Ethernet) |
IEEE 802.3u(Fast Ethernet) | |
IEEE 802.11b/g/n(2.4G WLAN) | |
Wireless | Auto-Channel selection |
Distance Control (802.1x Ack timeout) | |
Multiple SSID (4 SSID) | |
BSSID | |
Security | WEP Encryption-64/128/152 bit |
WPA/WPA2 Personal (WPA-PSK using TKIP or AES) | |
WPA/WPA2 Enterprise (WPA-EAP using TKIP) | |
Hide SSID | |
System Setting | Web-based configuration (HTTP/Telnet) |
Firmware upgrade | Upgrade firmware via web browser or TFTP |
Administration | Admin Password can be configured |
System monitoring | Status in hand , useful statistic and Event log |
Log | Supports local logs, logs host, logs file export |
Reset | Reset or factory defaults |
Backup | Restore settings & configuration of the device to local file |
Physical Property | |
Temperature | Working: -20°C~55°C |
Storage: -40°C to 70°C | |
Humidity | 5%~95% (typical) |
Package: |
AP80Q unit
|
24V /1A PoE Adapter |
User Manual |
LAN Cable |
