H 1107 Clean room clothing esd garment anti static worker clothes dress
- Category: >>>
- Supplier: Shanghai Hanyang Clean Technology Co. Ltd.
Share on (1600156398147):
Product Overview
Description
Detailed Images
MPORTANT NOTES
If you order directly, we usually ship the products out in 48 hours, for the quantity below 200 pieces.
We usually ship the products out in 10 days, for the quantity between 200 pieces to 500 pieces.
This type is NOT for autoclavable high temperature sterilization.
If you need autoclavable cloth, please contact us or send inquiry to us.
Thanks for the support.
Other details:
Place of Origin:Jiangsu, China
Brand Name:Hanyang Clean
Model Number:H-1107

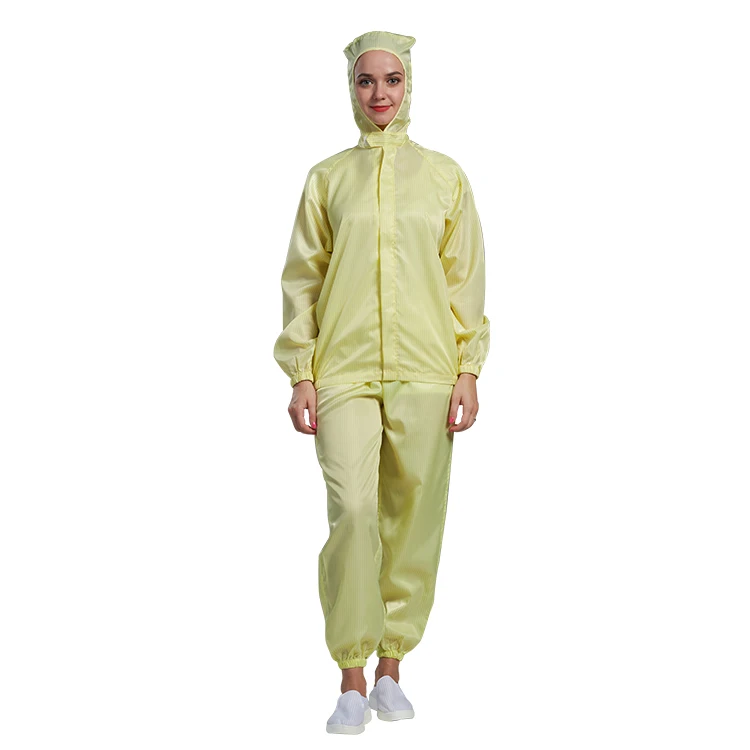

Product name:ESD Anti-static coverall

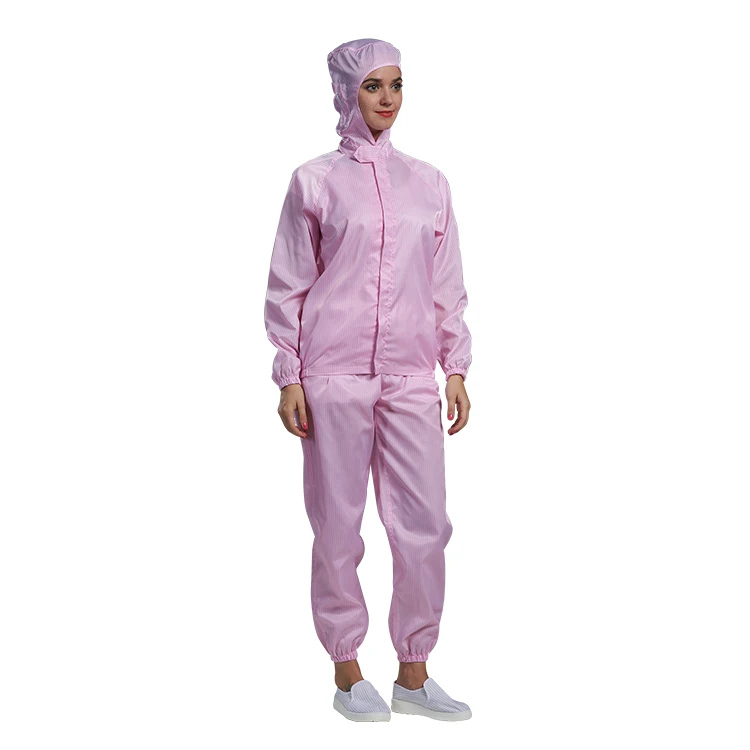

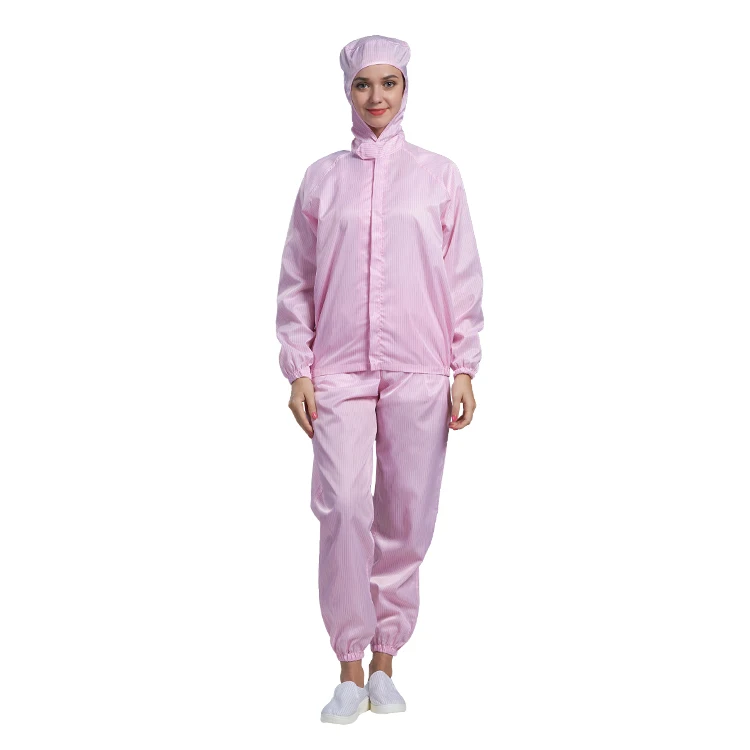

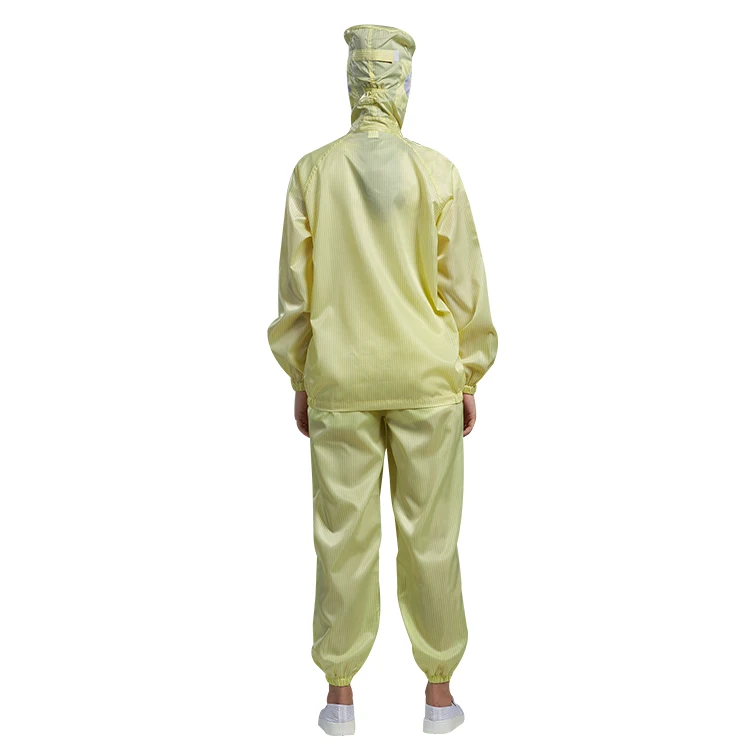

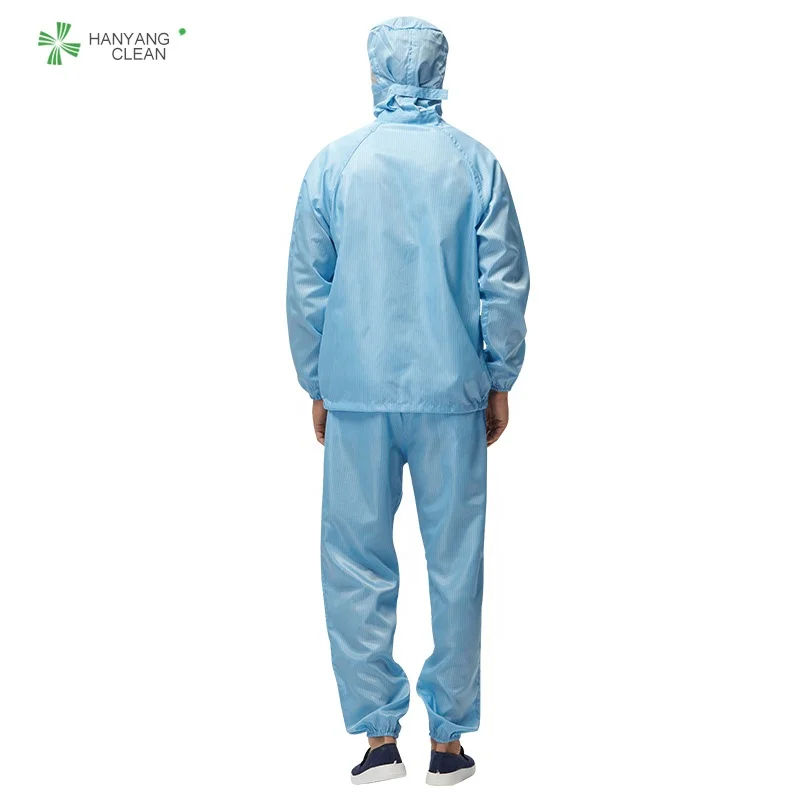

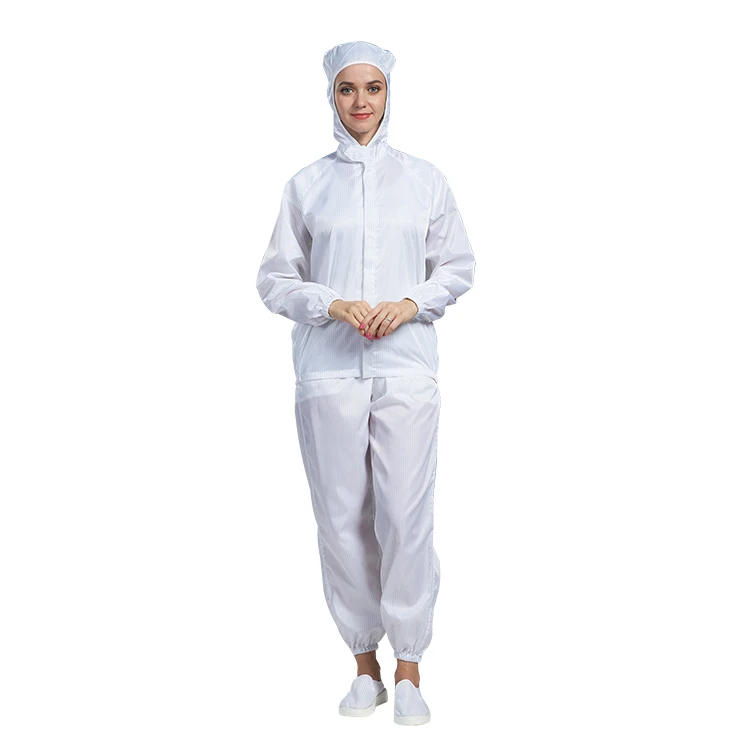

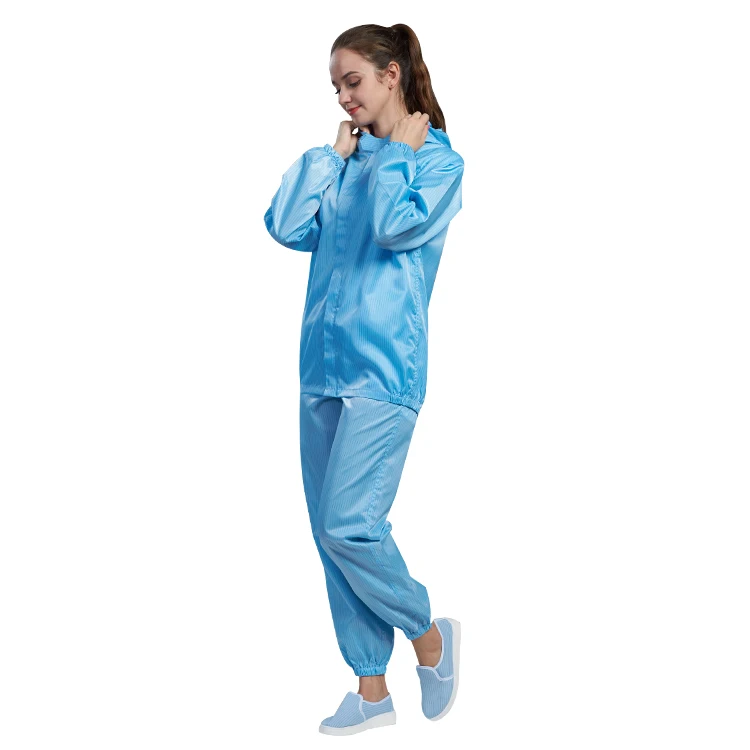

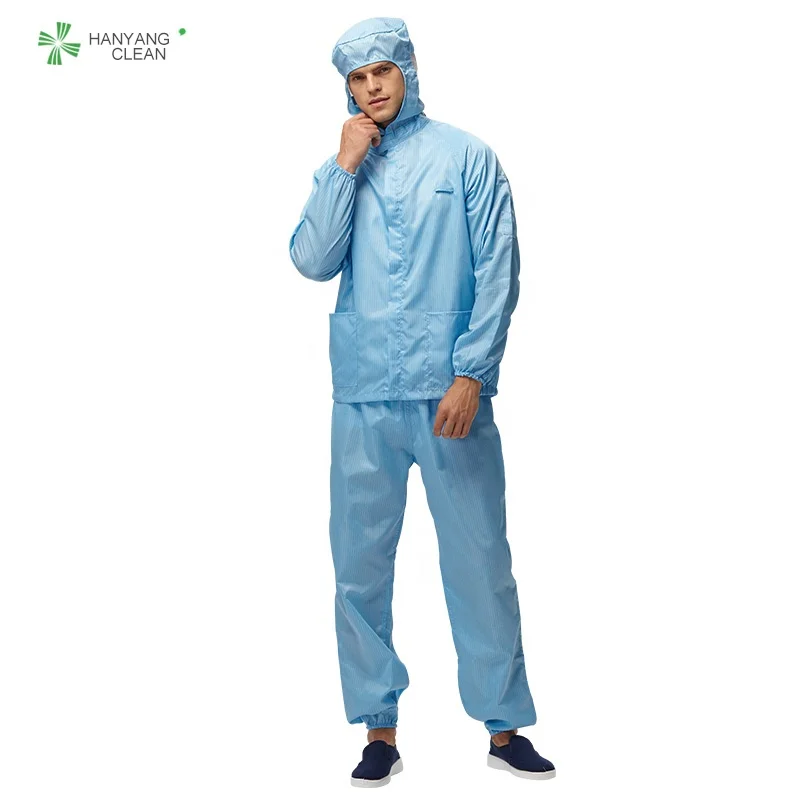

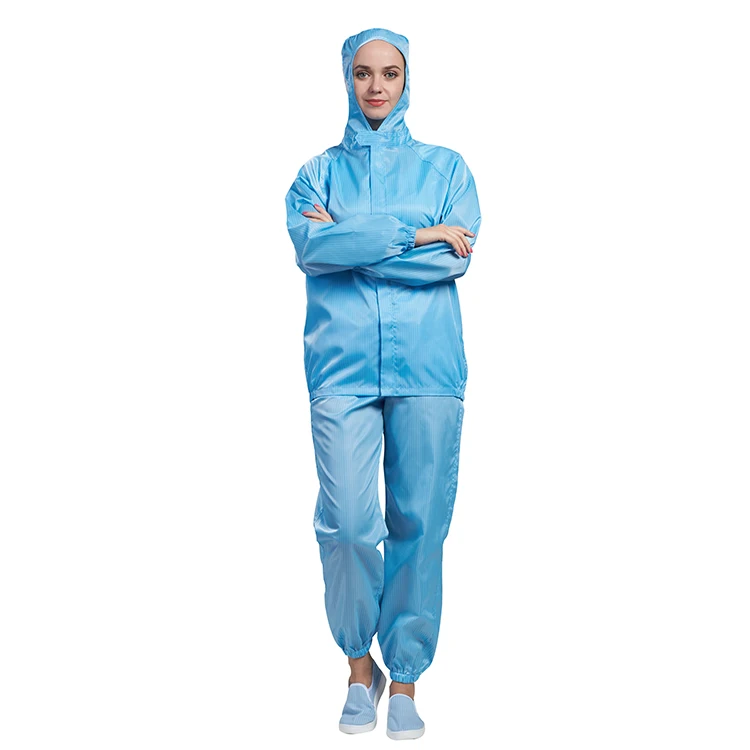

Details: Split design Hooded Jacket, adjustable velcro fasten
straight pulling zipper,elastic sleeve and pant cuff,elastic side waist
Material: 99%Polyester& 1% Carbon Conductive Fiber
Yarn:100DX100D 5mm strip Conductive fiber interval
Color:White, Blue or Customized
Style: Unisex design
Surface Resistance:10e6~10e10 Ω, 1.2MC/M density
Friction voltage:<500V
Standard :GB 12014-2019
Performance grade:10000/100000 degree or C/D level
Function:ESD Protective,dust-proof
Size:From S to 4XL,customized
Feature:comfortable,Excellent barrier of particulate,cleanness,autoclavable
Application: Pharmaceuticals,Electronics,Biotechnology,Solar
Logo: print or embroidery accepted
Size
| Jackets Sizes | ||||||||
| Sizes | S | M | L | XL | 2XL | 3XL | 4XL | 5XL |
| Position/Model | 156-160 | 161-165 | 166-170 | 171-175 | 176-180 | 180-185 | 185-190 | 190-195 |
| Center of back | 68 | 70 | 72 | 74 | 76 | 78 | 80 | 82 |
| Breast Width/2 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 |
| Bottom Hem | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 |
| Sleeve Length(From shoulder point) | 73 | 75 | 77 | 79 | 81 | 83 | 85 | 87 |
| Sleeve Width/2 | 23.5 | 24.5 | 25.5 | 26.5 | 27.5 | 28.5 | 29.5 | 30.5 |
| Sleeve Opening/2 | 9 | 9 | 9.5 | 9.5 | 10 | 10 | 10.5 | 10.5 |
| Pants Sizes | ||||||||
| 1/2 Legs Mouth | 10.5 | 11 | 11.5 | 12 | 12.5 | 13 | 13.5 | 14 |
| 1/2 Waist Width | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 |
| 1/2 Hip Width | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 |
| 1/2 Crotch | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 |
| Pants Length | 98.5 | 101 | 103.5 | 106 | 108.5 | 111 | 113.5 | 116 |
Technical Parameter
| Specifications | 100D 48F*100D 48F(100D materials) | Technical Requirements | Test Results | Single determination |
| 75D 72F*75D 72F(75D materials) | / | / | / | |
| Weight (g) | ≈ 110g/m2(100D);≈ 105g/m2(75D) | / | / | UP TO STANDARD |
| Density(b/cm) | 165*80 b/cm(100D);158*92 b/cm(75D) | |||
| Electrical Resistance | 106-109(ESD stripe), 106-108(ESD grid) | |||
| Electrostatic dissipation time | less 0.5s from5000V to 50V(Adapt to Class100) | |||
| Resistance Value | Surface Resistance:106-107Ω;point to point impedance:≤108Ω | |||
| Charge(µC/set) | / | Grade A<0.20;Grade B:0.20-0.60 | 0.18 | |
| Environment Temperature:20℃±5℃; Relative Humidity:35%±5% | Environment Temperature:20.1℃;Relative Humidity:35.1% | |||
| Static wire gap | 5mm(100D);4.5mm(75D) | / | / | |
| Cleanroom Class standard | Antistatic Stripe material:Class 1000 Antistatic Grid material:Class 100 | / | / |
