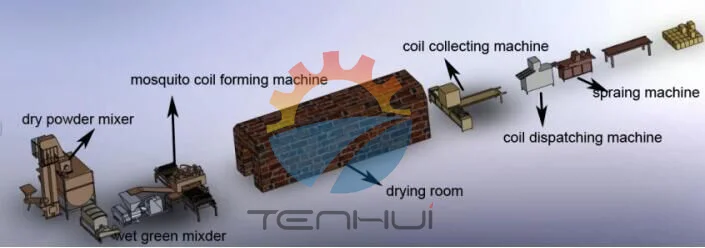

Automatic Mosquito Coil Machine Production Line

Automatic mosquito coil stamping machine/mosquito incense coil machine/mosquito repellent stamping machine

Part 1. Mosquito Coil Mixing Machine

1. Large mixing (dry powder homogenization pool combination); The various raw materials mixed evenly, ready to enter a wet billet stirring.

Model : THJB -2000A

Machine Include :Screw elevator ,Screening power machine ,

                Spiral discharging machine(Pneumatic Valve Switch )

                 Electronic Metering Tank(Pneumatic Valve Switch ).

Size : 6000mmx3500mmx3500mm

Power :20KW

Operator: 1 person

Automatic mosquito repellent making machine/mosquito coil punch machine/mosquito coil making machine

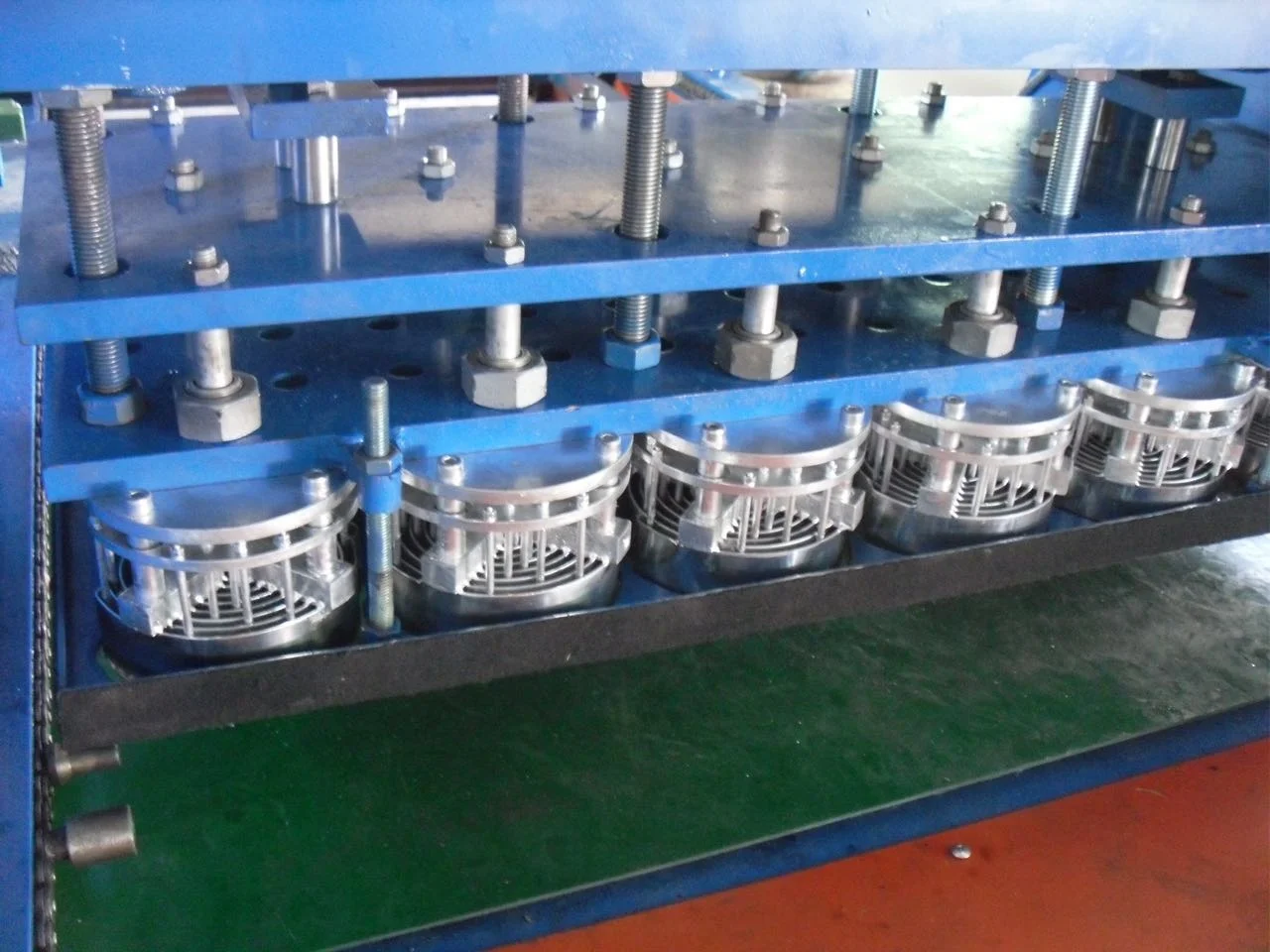

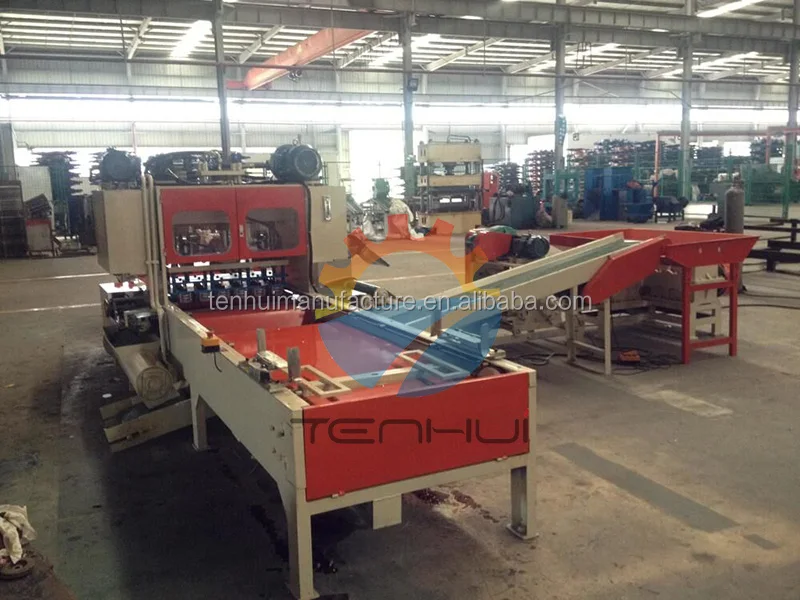

Part 2. Mosquito Coil Making Machine

The wet billet into the molding machine squeeze material facilities, through two extrusion, into the fine billet body into a strip shape, and then by the punching into mosquito-coated wet blank. (Configuration: feeder machine feeding trough for extrusion machine)

Model : THWXJ -18

Size :5300mmx5500mmx1700mm

Power :26.5KW

Stamping Frequency :18-20time/minute

Operator:3-4 person

Automatic mosquito coil stamping machine/mosquito incense coil machine/mosquito repellent stamping machine

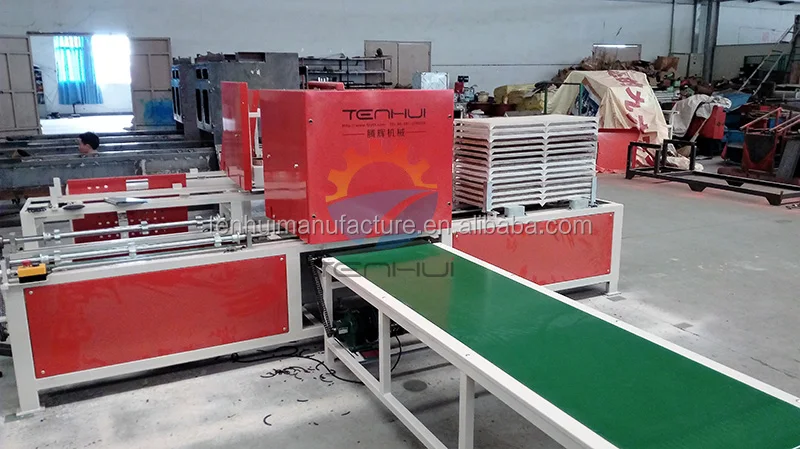

 Part 3. Mosquito Coil Collecting Machine

Automatic collection of mosquito - repellent incense made by drying oven

Model : THSXJ -3.5

Size :3900mmx300mmx1500mm

Power :3.5KW

Closed Screen Frequency:20-30screen/minute

Operator:3-4 person

Automatic mosquito coil stamping machine/mosquito incense coil machine/mosquito repellent stamping machine

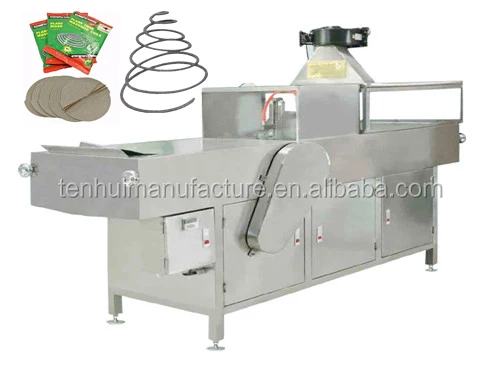

Part 4. Mosquito Coil Spray Insecticide Machine

1)  Connect with the tablet machine, and the mosquito coil is automatically put into the spray machine and sprayed with a layer of medicine on the surface of the mosquito coil.

2)Model : THPYJ -1.5

3)Size : 1600mmx600mmx1200mm

4)Power :1.5KW

Automatic mosquito repellent making machine/mosquito coil punch machine/mosquito coil making machine

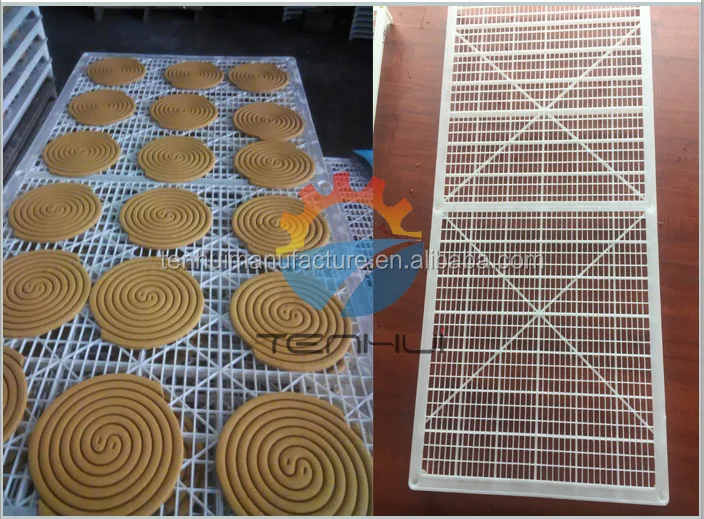

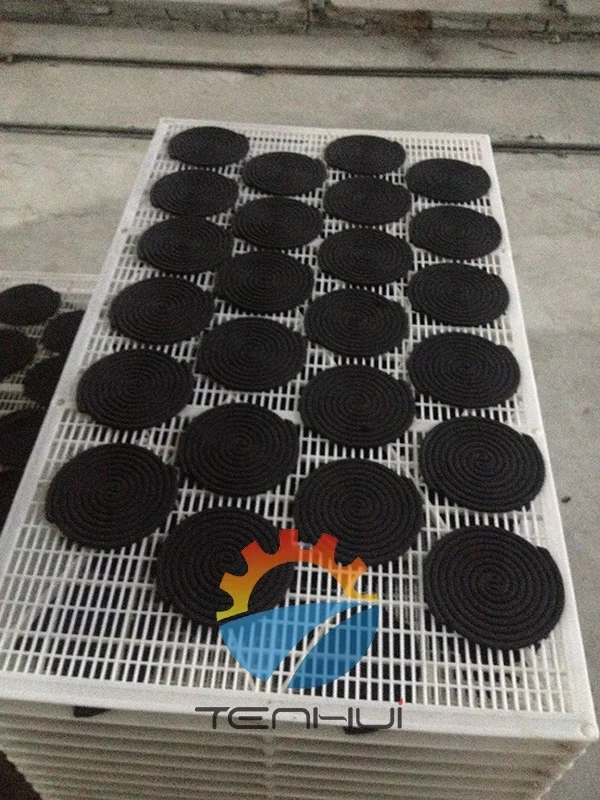

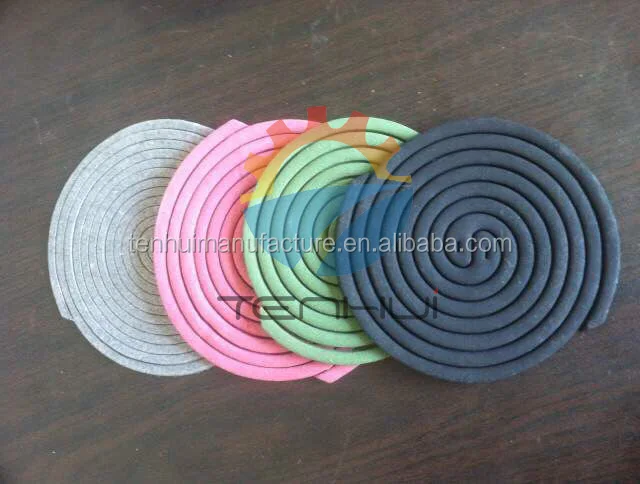

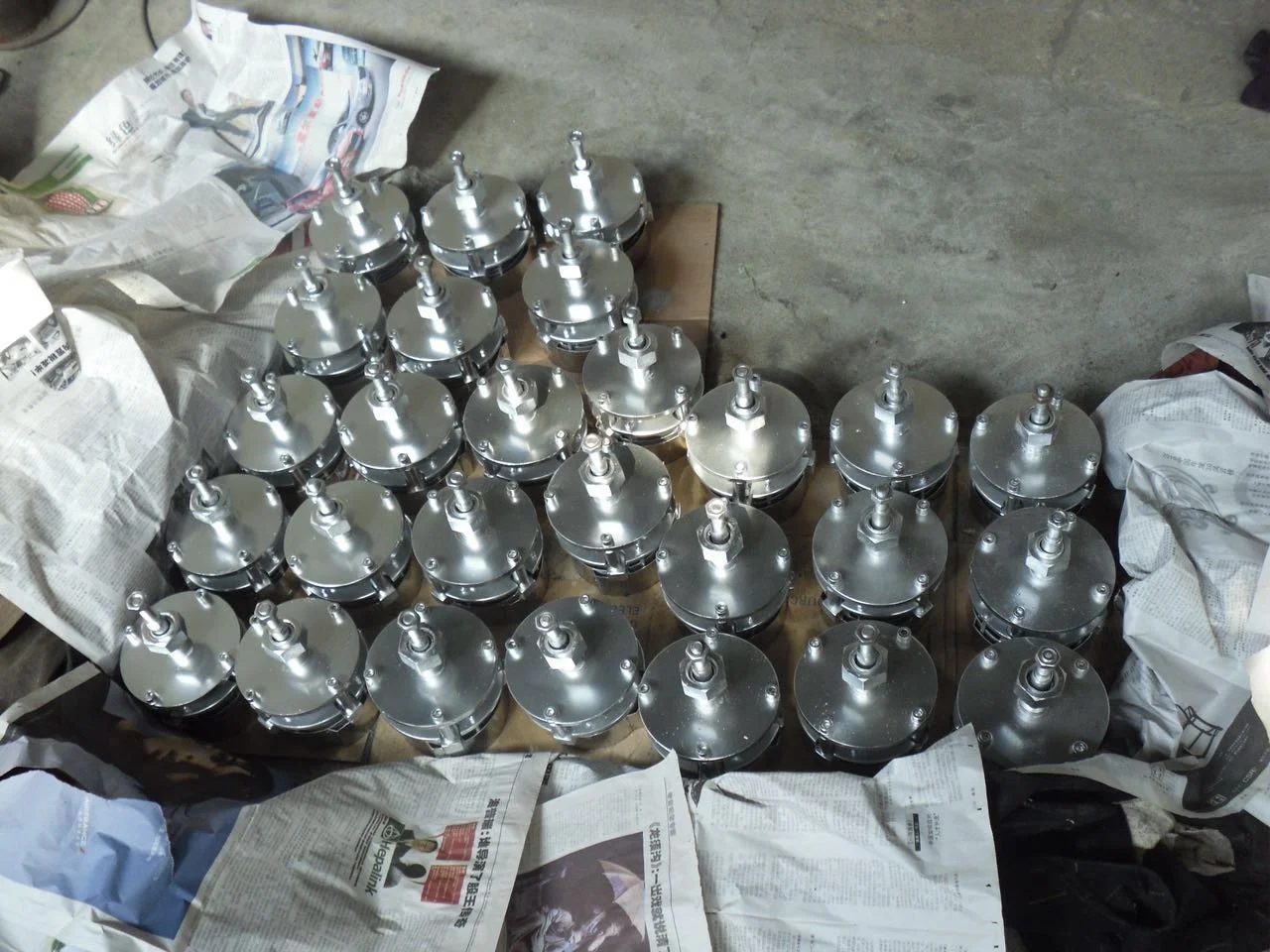

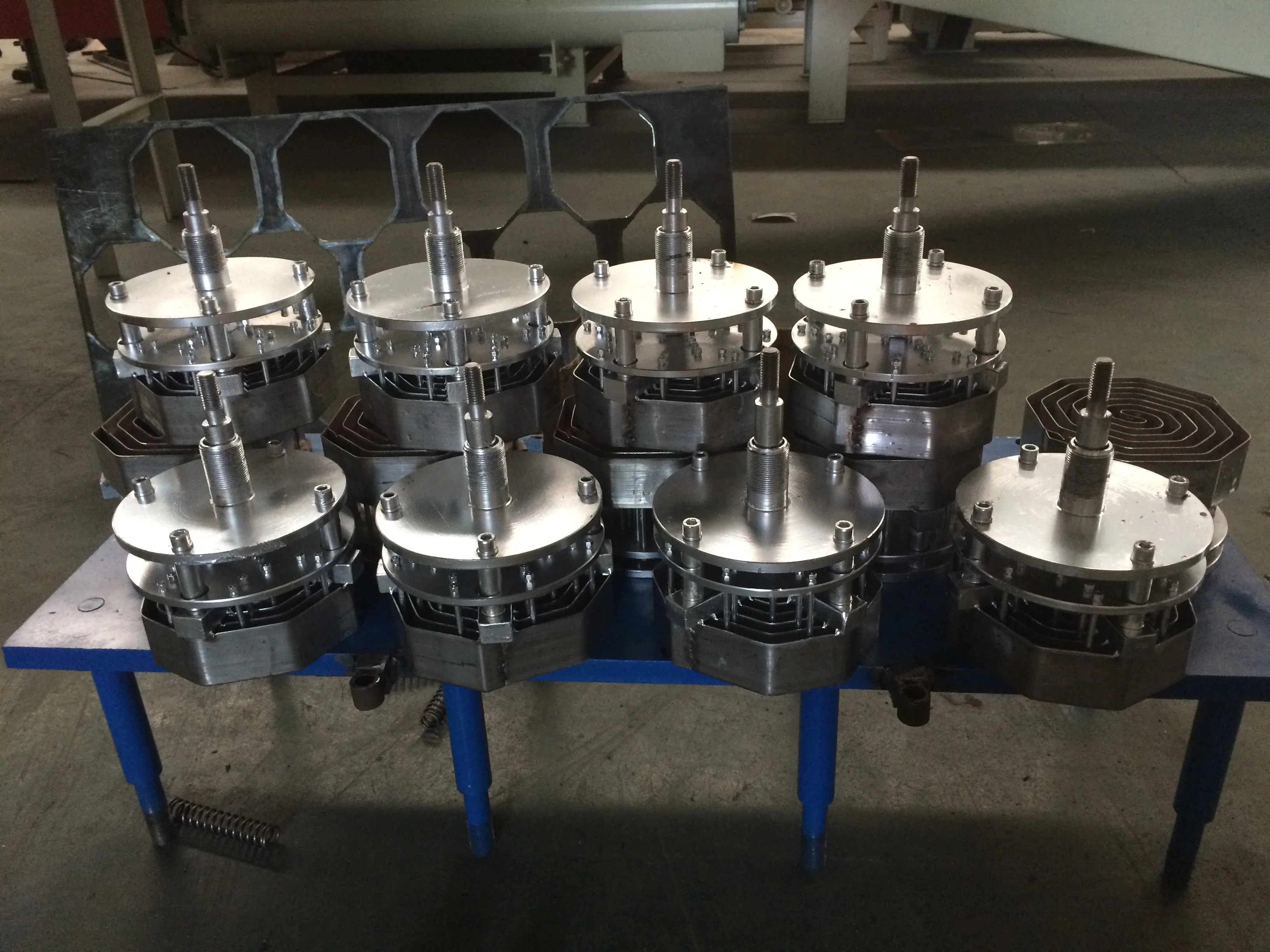

Product Show of Automatic mosquito coil stamping machine/mosquito incense coil machine/mosquito repellent stamping machine
