Roller glass coating machine
US $10000-$13000
automatic flat glass sandblasting machine vertical manufacturing glass processing machinery
- Category: >>>
- Supplier: Foshan Global Jinfeng Machinery Co. Ltd.
Share on (1600156622845):
Product Overview
Description
Our Company
Global Jinfeng Machinery Co., Ltd.
Global Jinfeng Machinery Co., Ltd. is a professional manufacturer and trading enterprise for glass machines and parts and some building materials, located in Foshan,Guangdong province south of China with convenient transportation access and close to Shenzhen and Hongkong seaport.We have 10 years of experience in glass processing machinery industry. Our company mainly manufactures the glass processing machines, such as the glass tempering machine, glass cutting machine, glass grinding and polishing machine, and the glass washing machine for vertical and horizontal, the horizontal and vertical sandblast machines, drilling machines and sand belt machine, glass high temperature bending machine and the glass inner and outer round grinding beveling machine and so on.
Product Information

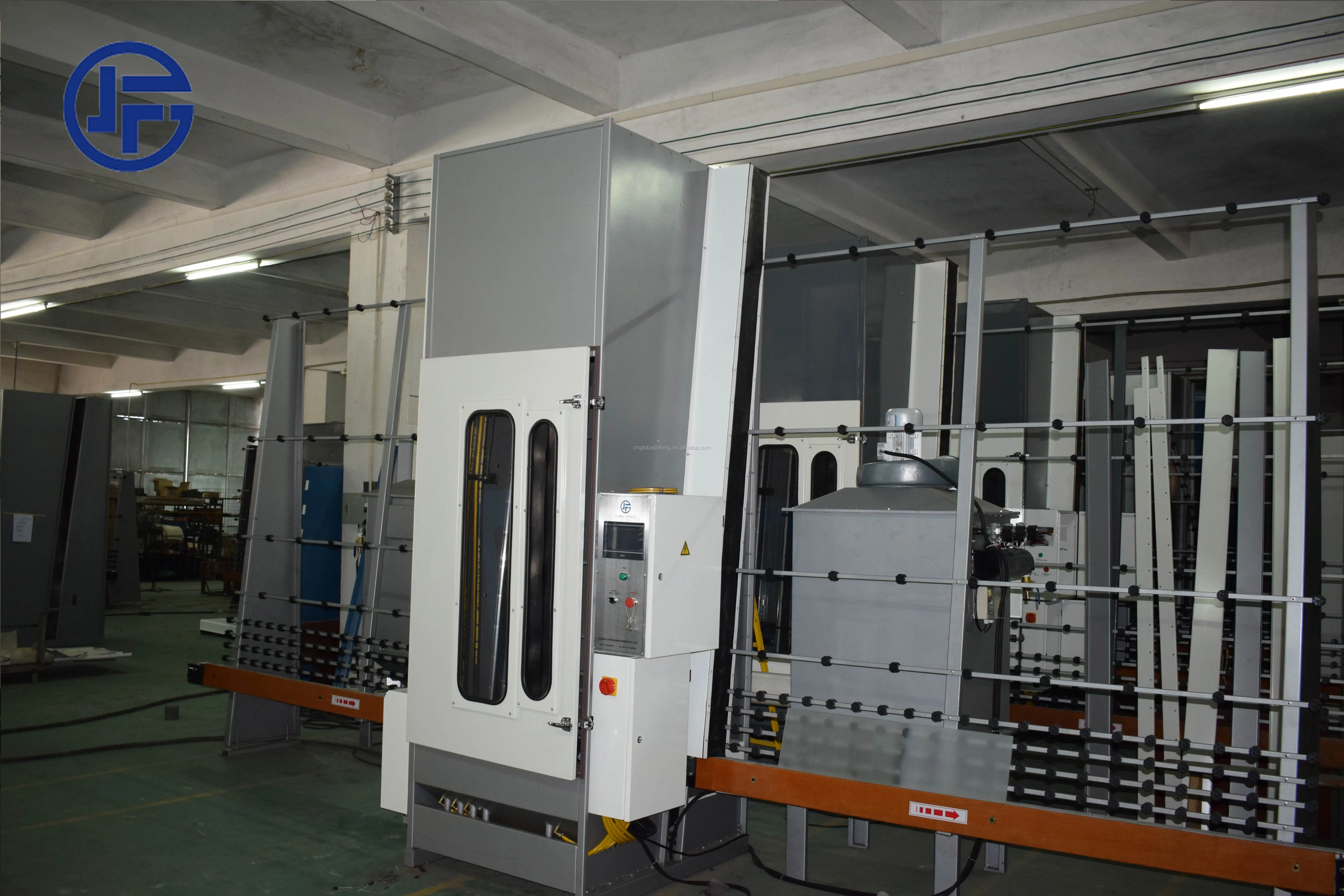

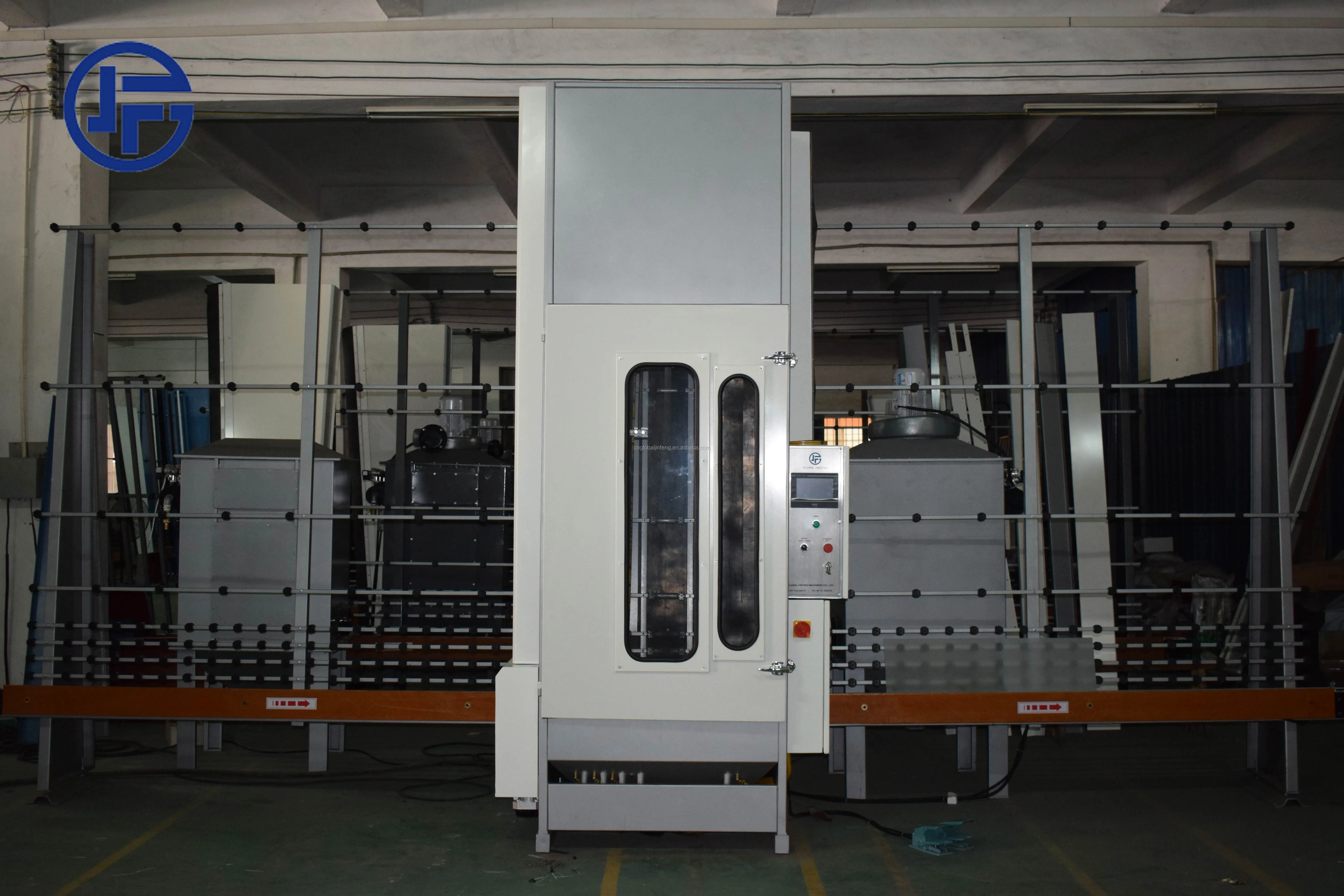

Vertical glass blasting machines are used to blast the surface of the glass. It consists of three parts: the input, the blasting room and the dust collection box. The delivery belt is composed of the infeed belt, outfeed belt, and lifting belt.
The sandblasting speed | 20-25㎡/h |
Power | 3.5kw |
Glass thickness | 3-50mm |
Working pressure | 0.6-0.8Mpa |
Compressed air consumption | 3m³/min 22kw |
Automatic gun | 3pcs |
Manual gun | 1pc |
Abrasive material | Aluminium oxide |

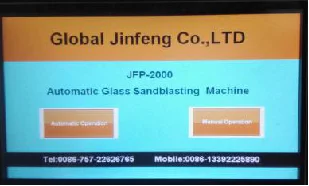

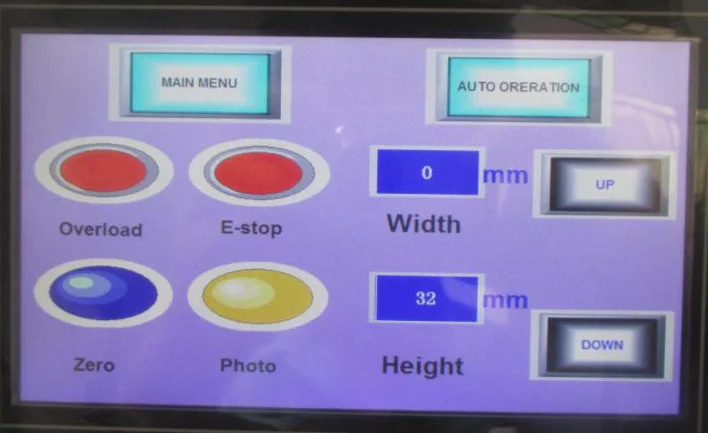

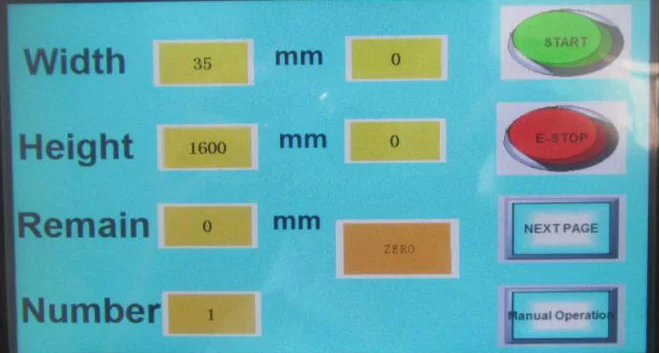

The vertical glass blasting machine automatic control system consists of a touch screen and PLC. The PLC panel can display the operation,height, width and position of the sandblasting. It is easy for operation.

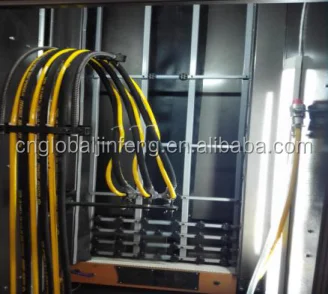

Is the automatic sand blasting gun. It is a combination of air gun and sand gun. The matching air compressor makes the negative pressure suck the aluminium oxide and sandblasting.

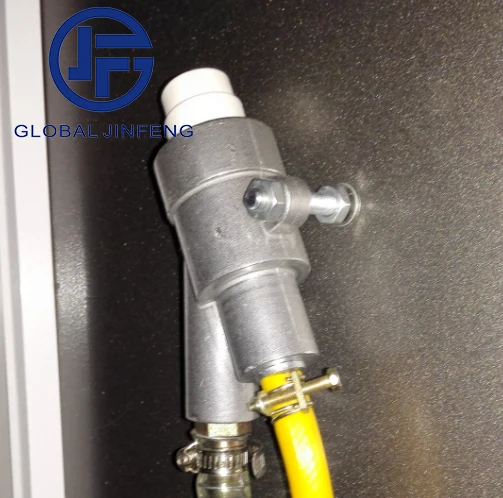

Is the manual sand blasting gun. When the glass is automatically blasted, there is a small flaw in the glass, which can be supplemented by it.

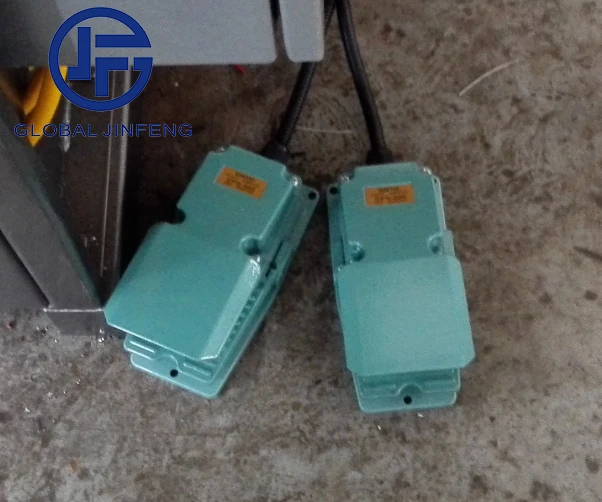

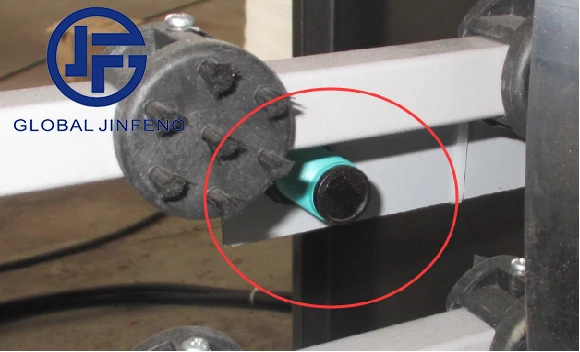

Pedals for Manual gun and delivery conveyor which are used to control manual blasting guns and conveyor belt separately.

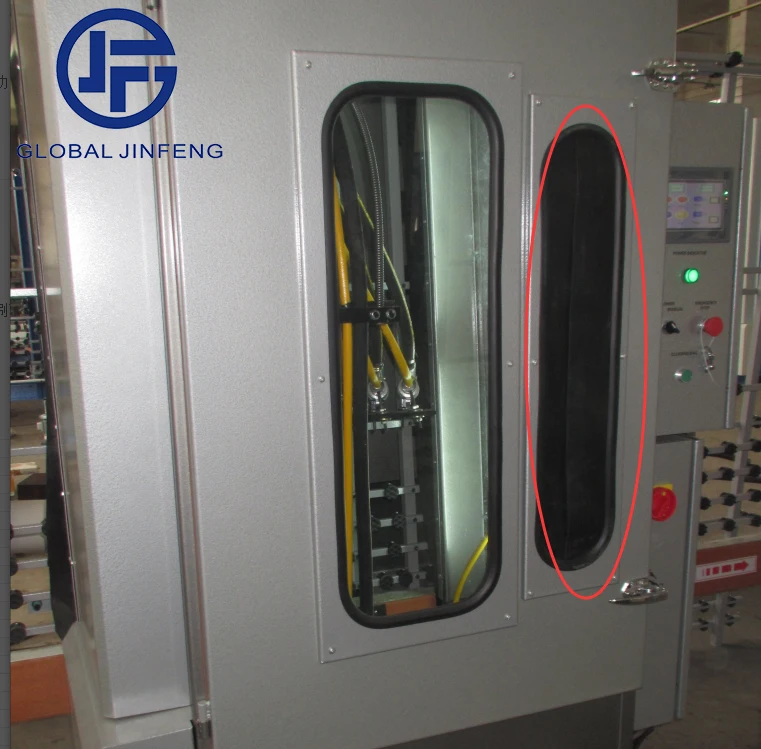

The brush prevents the dust in the blasting room from overflowing.

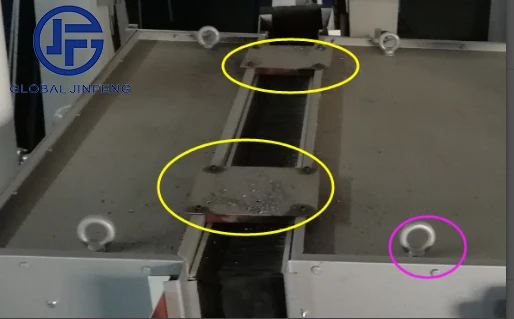

Violet are the charm holes and are used to move the machine.

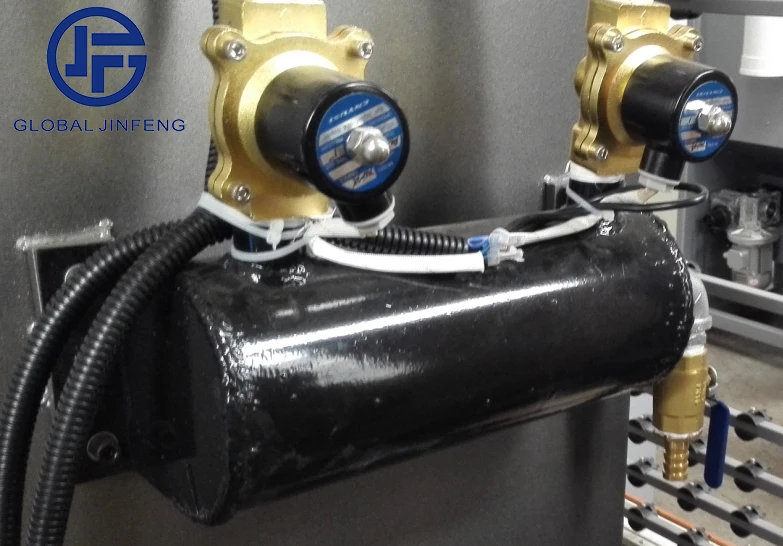

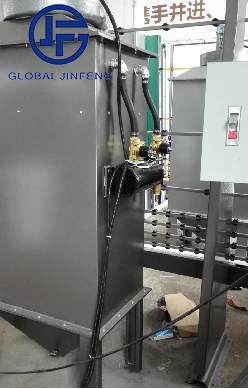

The dust collection box the dust generated during the blasting process and has a timing function. It cleans the dust on the filter element by pumping it inward.

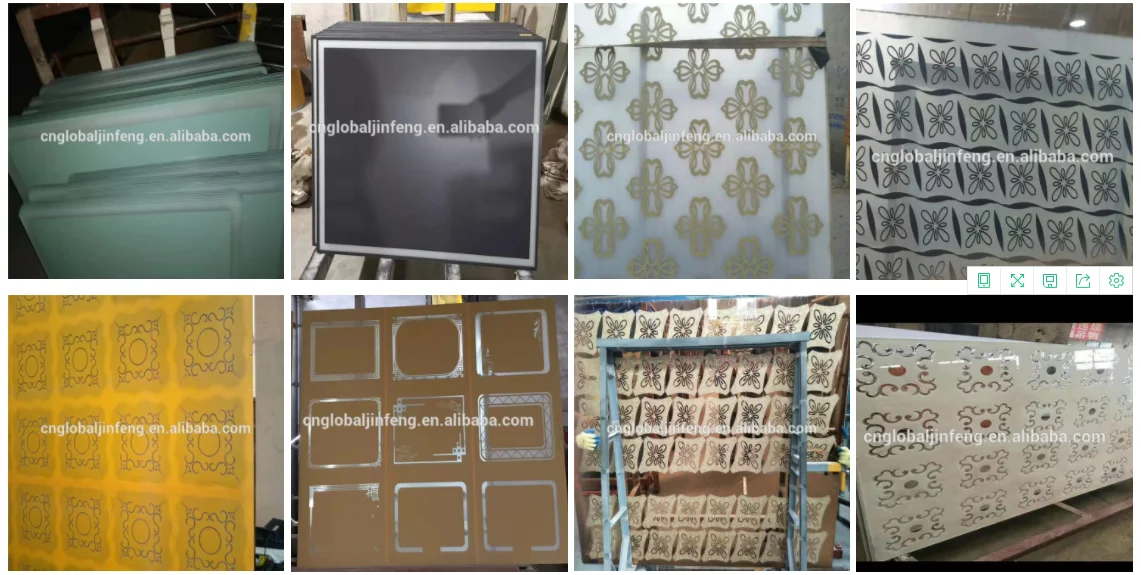

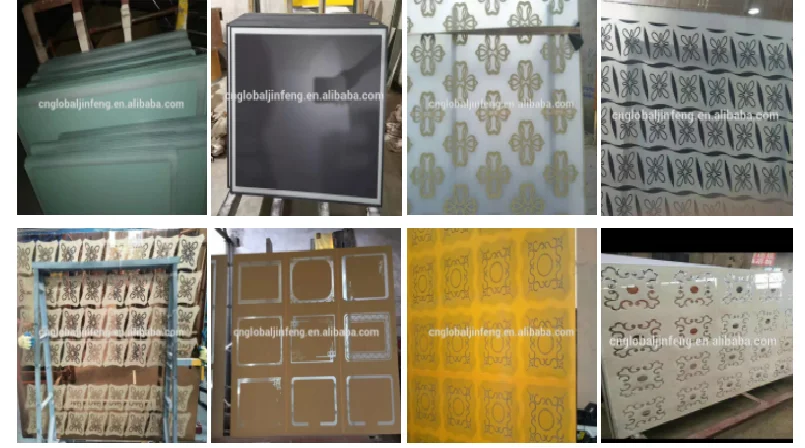

Glass effect
Combined with the use of the engraving machine and sandblasting protective film, different sandblasting effects can be created..
Packing & Delivery

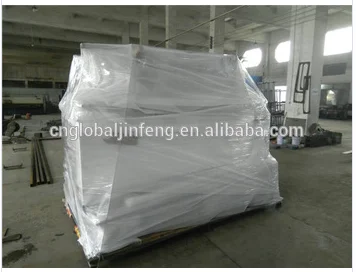

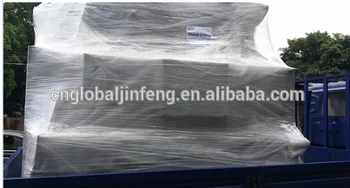

Because the extemal dimensions of the vertical glass blasting machine is large, it is generally wrapped in the wrap film and iron frame，which is moisture-proof and dust-proof, saving packaging material costs and reducing packaging volume.
Exhibition
Beijing exhibition
Mexico exhibition
India Exhibition
