Integrated Intel® Atom D425/1.8G single-core processor, TDP 10W
chipset
Using Intel® 82801HBM Express Chipset
RAM
1* DDR3 SODIMM memory slot, support 800MHz memory, maximum support 2GB
Show
Integrated Intel® GMA3150 graphics
1*VGA, 1*LVDS display output, LVDS supports single 18bit
The internet
1* RTL8105E 100M network card, support Wake on LAN/PXE function (support Gigabit network card, need to be customized)
Store
2* SATA2.0 hard disk interface, the transmission speed can reach 3Gbps.
1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 3Gbps
Audio
Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out
Expansion slot
1* PCI slot.
1* Mini-PCIE slot, support WIFI module

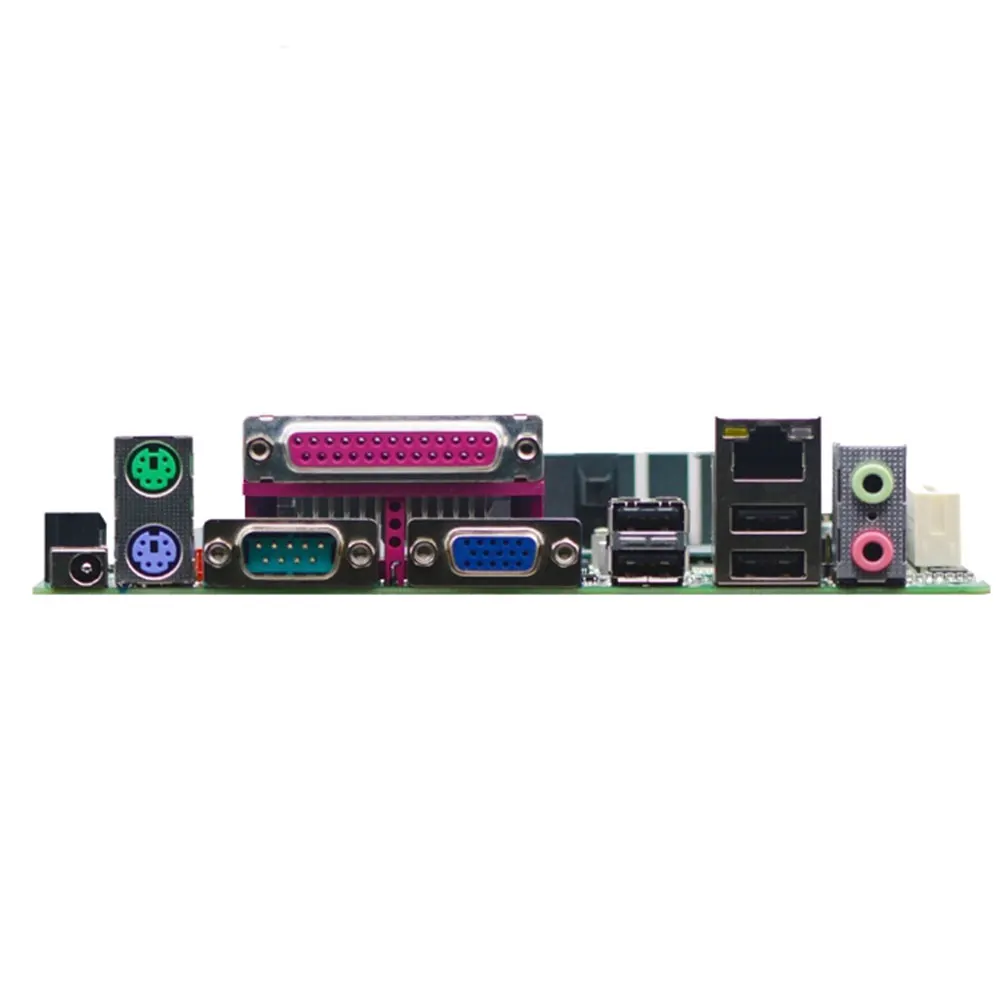

Backplane I/O interface
1* PS/2 keyboard and mouse connector
4* USB2.0 interface
1* RJ-45 network interface
1* Double-layer standard audio interface, support MIC, Line out
1* Printer interface
1* VGA port
1* RS232 serial port, the 9th pin supports 5V/12V charged function
Built-in I/O interface
4* USB2.0 interface, 2*5pin
1* RS232 serial port, of which COM1/COM2 supports charged function,
1* Front audio interface 2*5pin
1* Front panel function button and indicator port 2*5pin
1* PS/2 mouse keyboard interface 1*6pin
1* JVGA1 pin 2*5pin, same signal as VGA1 interface
1* LVDS interface 2*10pin, support single channel 18Bit
1* LVDS backlight power supply interface, 1*6pin
1* 4pin ATX power connector, support 12V power input and output
2* Hard disk power supply interface 1*4pin
Fan interface
1* 3pin CPU fan interface, 1*3pin system fan interface
BIOS
8Mb Flash ROM
Watchdog
Support hardware reset function (256 levels, 0~255 seconds)
operating system
Windows 7/Linux
Power type
DC12V power supply
Operating temperature
-10℃~60℃
Storage temperature
-20℃~70℃
Working humidity
5%-95% relative humidity, non-condensing
Size
170mm x 170mm
Company Profile
Shenzhen Inctel Technology Co.,Ltd. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
1. As a professional manufacturer and supplier of mini pc over 10 years,we win our customers with good quality,best service and competitive price. 2.Our products are 100% original and have strict QC inspection before shipment. 3.Professional and efficient sales team serve for you diligently 4.Sample order is welcomed and will be delivered within 3 days. 5.We are Alibaba assessed 7 years Gold Supplier and more than 10 years industrial experience. 6.We support Trade Assurance to ensure On-time shipment and product quality. 7.We provide OEM service according to your requirements. 8.We provide 3 Years maintenance warranty for our products.
✈✈Actual delivery time: most customers receive within 7-15 working days. 1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid. 2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door. 3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods,hope you can kindly understand it, thanks. 4. e-EMS: it is for Russia and some other countries. 5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information , pls noticed. It's better to choose EMS or DHL , more faster and safe . 6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you. 7. If you don't accept above terms, pls do not buy it, thanks.
FAQ
1. Can you put my brand name (logo) on these products? Yes,.We can support OEM/ODM service, the process of customization is following: 1) provide your specific requirement. 2) our design engineer draw the design draft. 3) you confirm the design draft. 4) we start produce it.
2. What payment method do you accept? T/T, Western Union, PayPal, Escrew, Alibaba Trade Assurance order payment; Money Gram, Cash, L/C, etc.
3. What is the Minimum Order Quantity (MOQ)? We can sell one piece of sample for your testing.
4. What is the lead time of your products? 1-2 days for one sample, 7-15 working days for a large quantity.
5. How many years for the product warranty? 3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions.
6. What are the shipping methods for it? We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea, etc.
7. What kinds of customization can you do? We can do the products as per your configuration of CPU, RAM, hard disks, WiF, I/O ports, color, size, customized OS, logo, etc.
8. Can you equip the devices with related products or services? Yes, we can offer you mouse and keyboard combo, HDMI cable, genuine Windows 10 license, external CD-ROW, USB Hub, Bluetooth dongle, etc.
9. What is HS code of Partaker mini pc? 8471494000
