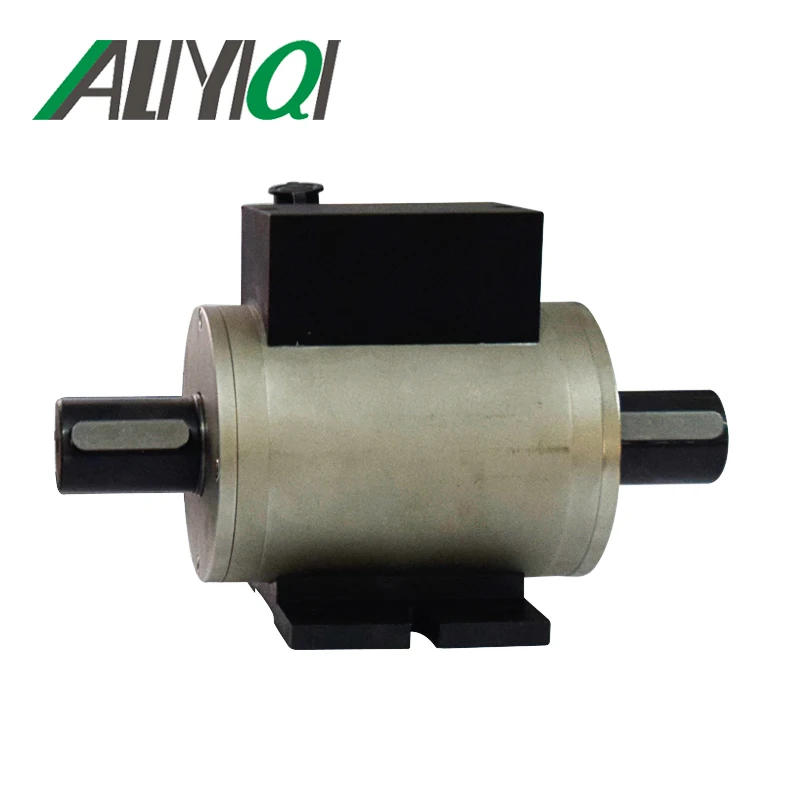

ADN series of dynamic torque tester is to test and detect a variety of dynamic torque design and manufacture of an intelligent design equipment.

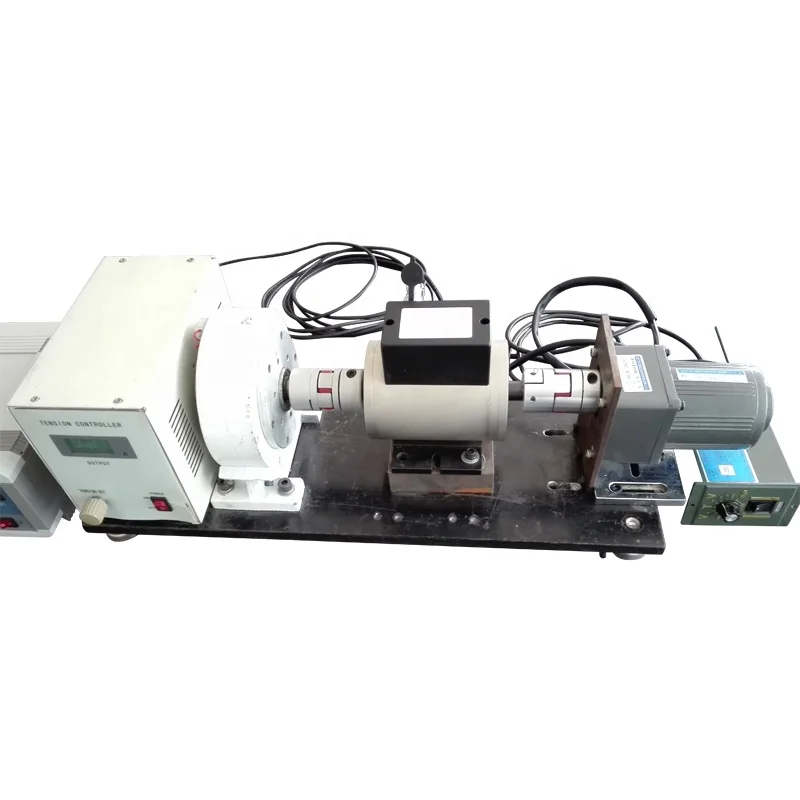

Used to detect a variety of motors, reducer output torque, speed, power of high-precision test equipment. Widely used in a variety of motors, machinery manufacturing, scientific research institutions and other industr
Used to detect a variety of motors, reducer output torque, speed, power of high-precision test equipment. Widely used in a variety of motors, machinery manufacturing, scientific research institutions and other industr

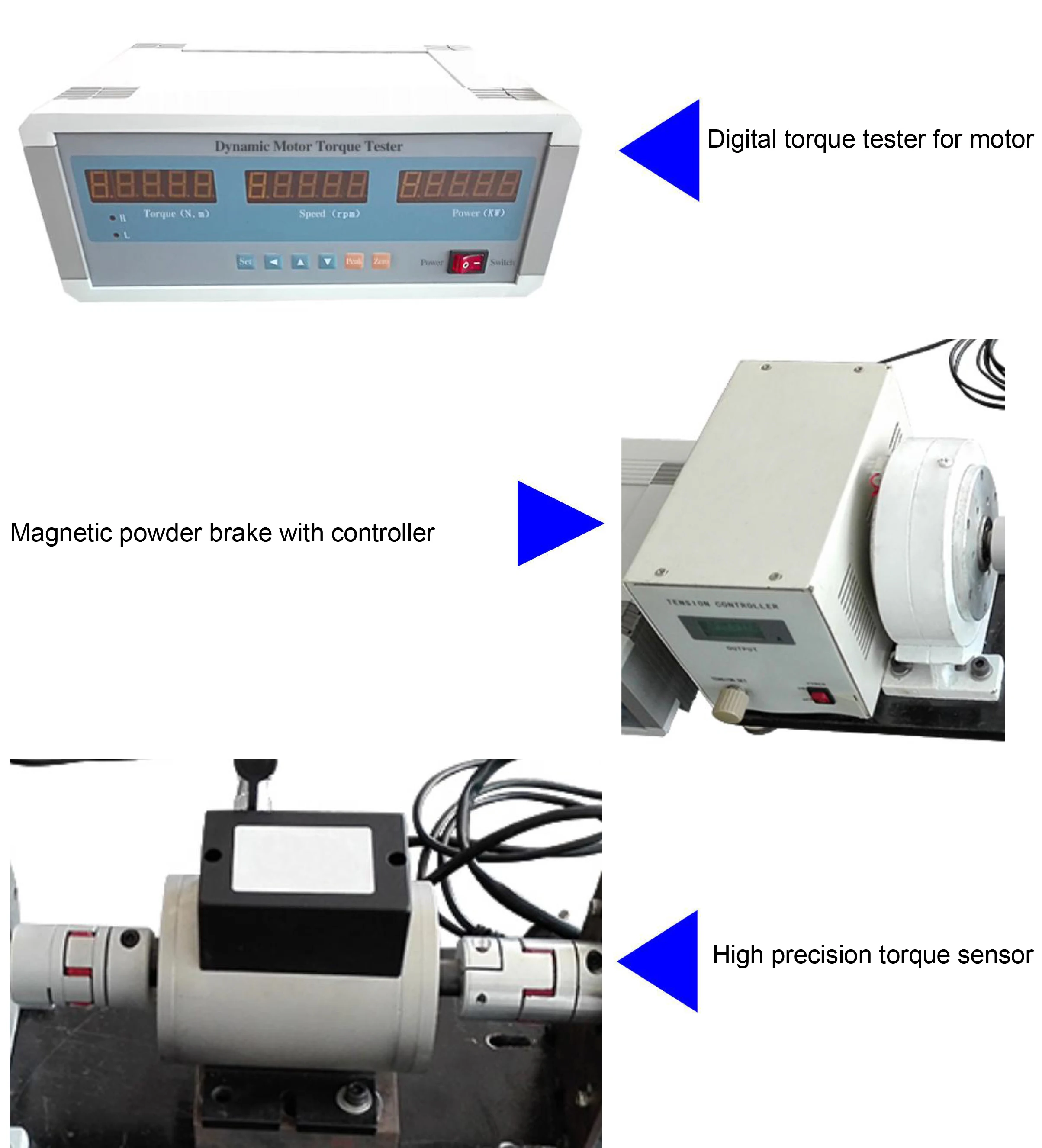

Structure
Feature:
1, the signal output waveform square wave amplitude optional 5V / 12V.
2, boot 5 minutes to enter the working state, without preheating process.
3, high precision detection, good stability, strong anti-interference.
4, without repeatedly zero to continuously measure the positive and negative torque.
5, small size, light weight, easy to install.
6, the sensor can be used independently from the secondary instrument, as long as the socket pin to provide ± 15V (200mA) power supply.
7, you can output impedance and torque is proportional to the square wave or pulse wave frequency signal.
2, boot 5 minutes to enter the working state, without preheating process.
3, high precision detection, good stability, strong anti-interference.
4, without repeatedly zero to continuously measure the positive and negative torque.
5, small size, light weight, easy to install.
6, the sensor can be used independently from the secondary instrument, as long as the socket pin to provide ± 15V (200mA) power supply.
7, you can output impedance and torque is proportional to the square wave or pulse wave frequency signal.

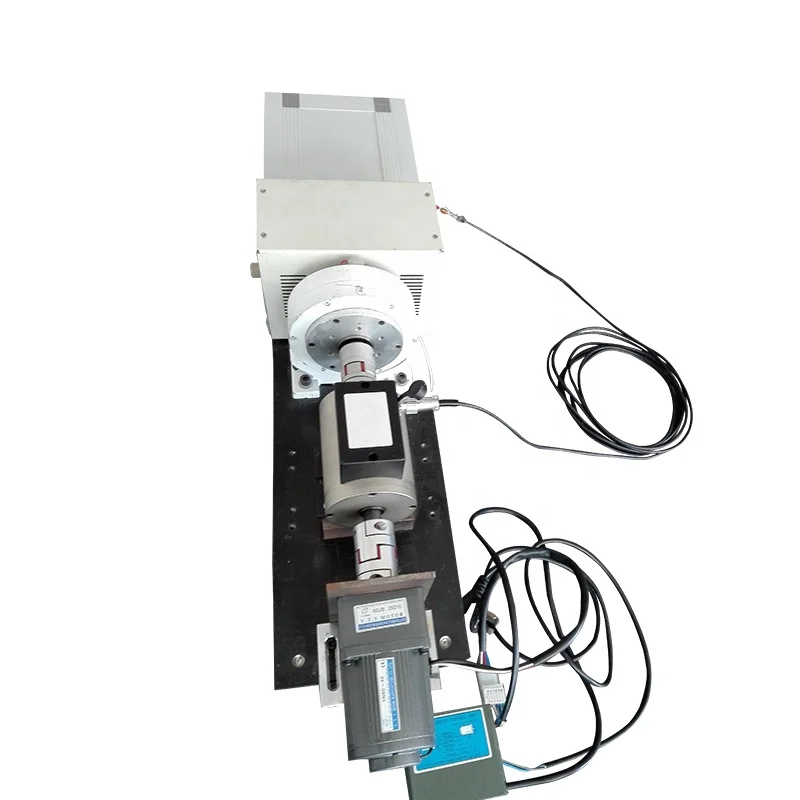

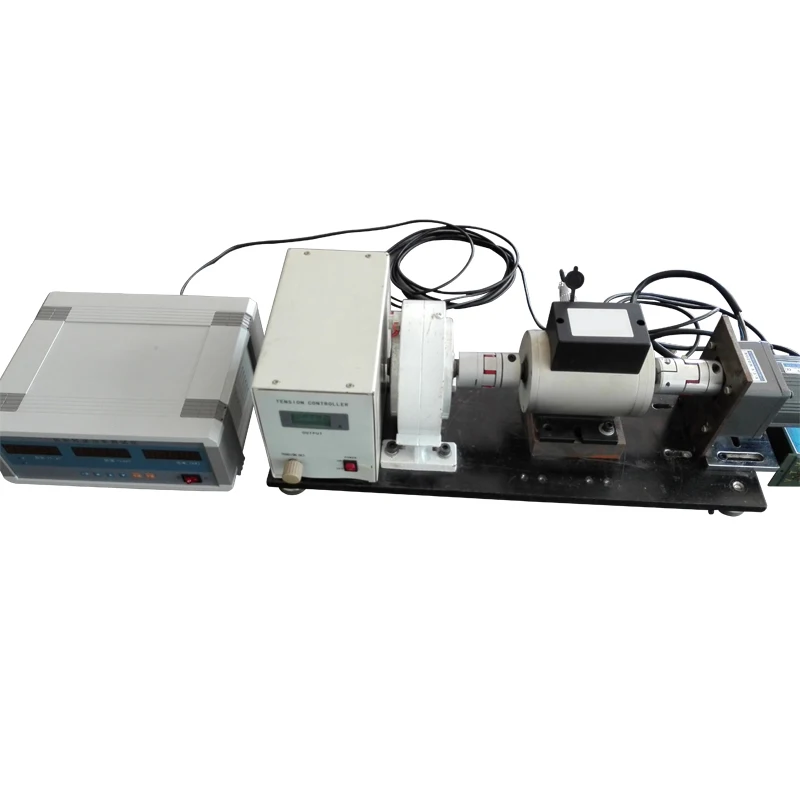

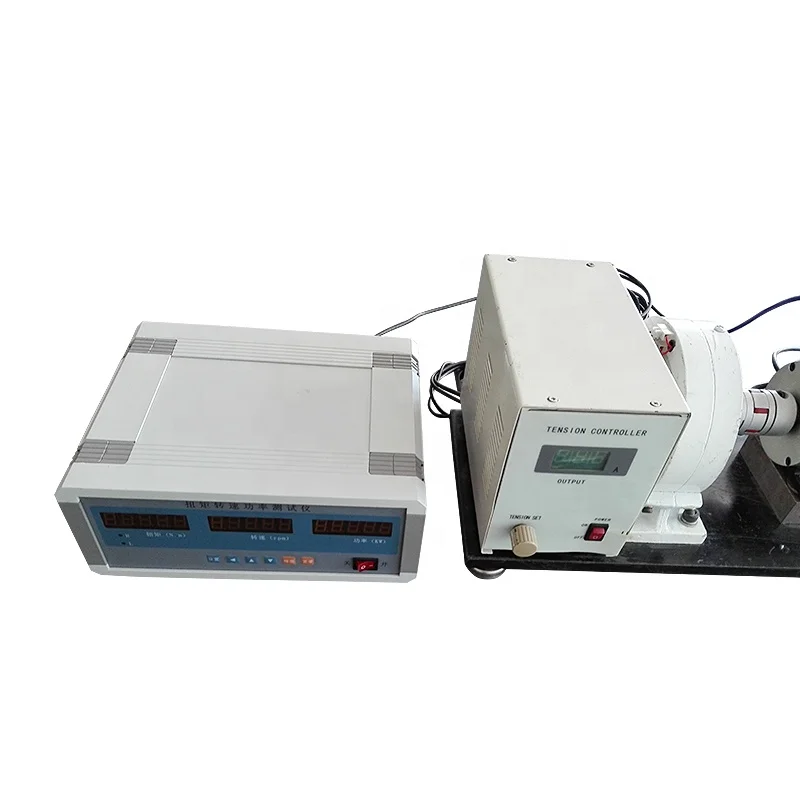

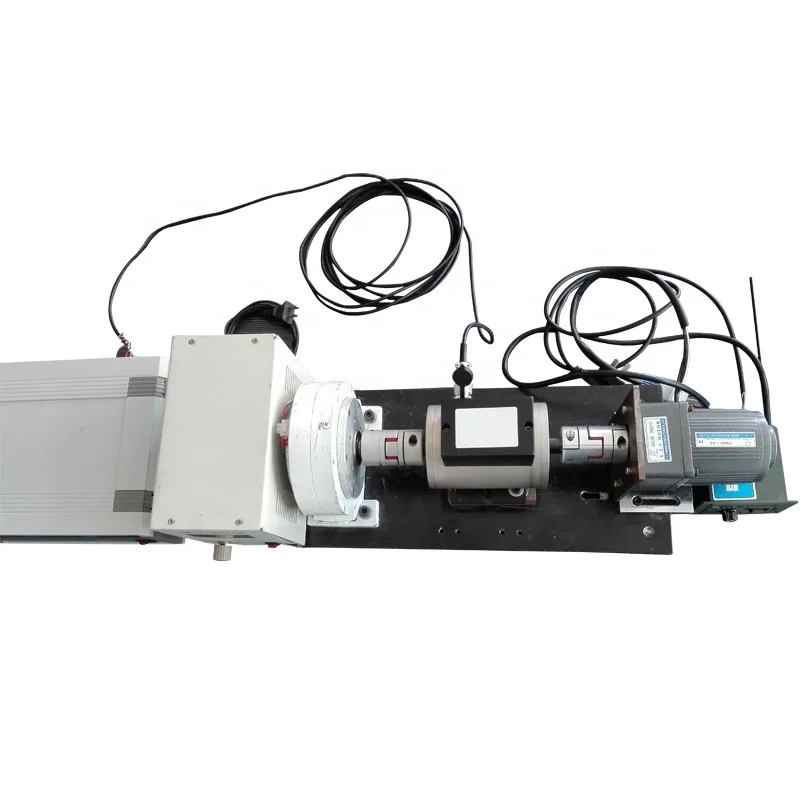

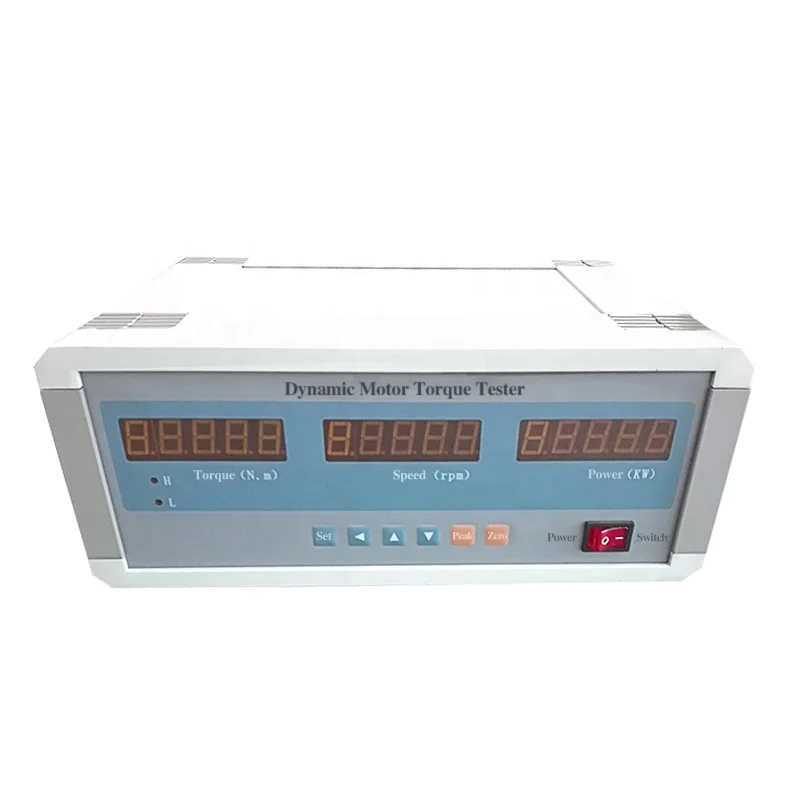

More Details Photos
Specification
5N.m~50N.m Dynamic Torque Meter Tester:
Model | ADN-5 | ADN-10 | ADN-20 | ADN-30 | ADN-50 | ||||
Max load value | 5N•m | 10N•m | 20N•m | 30N•m | 50N•m | ||||
Load division value | 0.001N•m | 0.01N•m | |||||||
Maximum speed | 6000rpm | ||||||||
Accuracy | ±1% | ||||||||
Power supply | ±15VDC | ||||||||
Torque accuracy | ＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S3 | ||||||||
Frequency Response | 100μs | ||||||||
Nonlinear | ＜±0.2%F•S | ||||||||
Importance | ＜±0.1%F•S | ||||||||
Backlash | ＜±0.1%F•S | ||||||||
Zero when the drift | ＜±0.2%F•S | ||||||||
Zero drift | ＜±0.2%F•S/10℃ | ||||||||
Output impedance | 350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option) | ||||||||
Insulation resistance | 5000MΩ | ||||||||
Static Overload | 120%、150%、200%(option) | ||||||||
Operating temperature | -10～50℃ | ||||||||
Storage temperature | -20～70℃ | ||||||||
Voltage | ±15V±5% | ||||||||
100N.m ~ 500N.m Dynamic Torque Meter Tester :
Model | ADN-100 | ADN-200 | ADN-300 | ADN-500 | |||
Max load value | 100N•m | 200N•m | 300N•m | 500N•m | |||
Load division value | 0.1N•m | ||||||
Maximum speed | 6000rpm | ||||||
Accuracy | ±1% | ||||||
Power supply | ±15VDC | ||||||
Torque accuracy | ＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S3 | ||||||
Frequency Response | 100μs | ||||||
Nonlinear | ＜±0.2%F•S | ||||||
Importance | ＜±0.1%F•S | ||||||
Backlash | ＜±0.1%F•S | ||||||
Zero when the drift | ＜±0.2%F•S | ||||||
Zero drift | ＜±0.2%F•S/10℃ | ||||||
Output impedance | 350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option) | ||||||
Insulation resistance | 5000MΩ | ||||||
Static Overload | 120%、150%、200%(option) | ||||||
Operating temperature | -10～50℃ | ||||||
Storage temperature | -20～70℃ | ||||||
Voltage | ±15V±5% | ||||||
1000N.m~5000N.m Dynamic Torque Meter Tester :
Model | ADN-1000 | ADN-2000 | ADN-3000 | ADN-5000 | |||
Max load value | 1000N•m | 2000N•m | 3000N•m | 5000N•m | |||
Load division value | 1N•m | ||||||
Maximum speed | 4500rpm | 3000RPM | |||||
Accuracy | ±1% | ||||||
Power supply | ±15VDC | ||||||
Torque accuracy | ＜±0.5%F•S、＜±0.35%F•S、＜±0.1%F•S350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option) | ||||||
Frequency Response | 100μs | ||||||
Nonlinear | ＜±0.2%F•S | ||||||
Importance | ＜±0.1%F•S | ||||||
Backlash | ＜±0.1%F•S | ||||||
Zero when the drift | ＜±0.2%F•S | ||||||
Zero drift | ＜±0.2%F•S/10℃ | ||||||
Output impedance | 350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω(option) | ||||||
Insulation resistance | 5000MΩ | ||||||
Static Overload | 120%、150%、200%(option) | ||||||
Operating temperature | -10～50℃ | ||||||
Storage temperature | -20～70℃ | ||||||
Voltage | ±15V±5% | ||||||
10KN.m~200KN.m Dynamic Torque Meter Tester :
Model | ADN-10K | ADN-15K | ADN-30K | ADN-50K | ADN-100K | ADN-200K | |||||
Max load value | 10KN·m | 15KN·m | 30KN·m | 50KN·m | 100KN·m | 200KN·m | |||||
Load division value | 0.01KN·m | 0.1KN·m | |||||||||
Maximum speed | 3000rpm | 2000rpm | 1500rpm | 1000rpm | |||||||
Accuracy | ±1% | ||||||||||
Power supply | ±15VDC | ||||||||||
Torque accuracy | ＜±0.5%F•S、＜±0.3%F•S、＜±0.1%F•S（可选） | ||||||||||
Frequency Response | 100μs | ||||||||||
Nonlinear | ＜±0.2%F•S | ||||||||||
Importance | ＜±0.1%F•S | ||||||||||
Backlash | ＜±0.1%F•S | ||||||||||
Zero when the drift | ＜±0.2%F•S | ||||||||||
Zero drift | ＜±0.2%F•S/10℃ | ||||||||||
Output impedance | 350Ω±1Ω、700Ω±3Ω、1000Ω±5Ω（option） | ||||||||||
Insulation resistance | 500MΩ | ||||||||||
Static Overload | 120%、150%、200%（option） | ||||||||||
Operating temperature | －10～50℃ | ||||||||||
Storage temperature | －20～70℃ | ||||||||||
Voltage | ±15V±5% | ||||||||||
