Bafang G510 Electric Bicycle Mid Engine two battery belt drive Fat Tire Ebike with Bafang Inner 5 Speed Hub
- Category: >>>
- Supplier: Changzhou Zhihong Electric Technology Co. Ltd.
Share on (1600156827811):
Product Overview
Description
Product Description
Bafang G510 Electric Bicycle Mid Engine two battery belt drive Fat Tire Ebike with Bafang Inner 5 Speed Hub
Product Parameters
Model | MD1000 |
Motor | G510 BAFANG motor |
Frame | High quality 6061 aluminum alloy 19.5inch |
Charing time | 5hours |
Disc Brake | Tektro E725 4 Piston Hydraulic Disc Brake |
Front Fork | KKE air suspension front fork or (Upgrade to RST, add extra $150) |
Battery | 48v15ah or 48v30ah |
Charging Time | 5hours |
Mileage | 70KM per charge with 25km/h with pedal |
Spoke | front 13g ,rear 13g |
Front and rear hub | F150mm /Rear 200mm |
Headset | Aluminum Alloy, 700mm Length |
Kickstand | Heavy duty aluminum side kickstand |
Wheel | 26*4.5 Kenda Tire |
Saddle | comfortable sport type |
Transmission | Bafang IGH automatic gear hub 5 speeds + Gates Belt Drive |
Max Speed | 55km/h |
Details Images
G510 Mid Motor
1000W G510 Mid Motor with 160 NM Torque sersor
Throttle
Thumb Throttle
Hydraulic brake system
4 Piston Hydraulic Disc Brakes
Handlebar
Handlebar
kickstand
High quality Heavy duty aluminum side kickstandDisks
203mm front and rear disks
Battery
15AH or 30AH li- battery for choosen (LG cells)
Tires
26*4.5 Kenda Tires

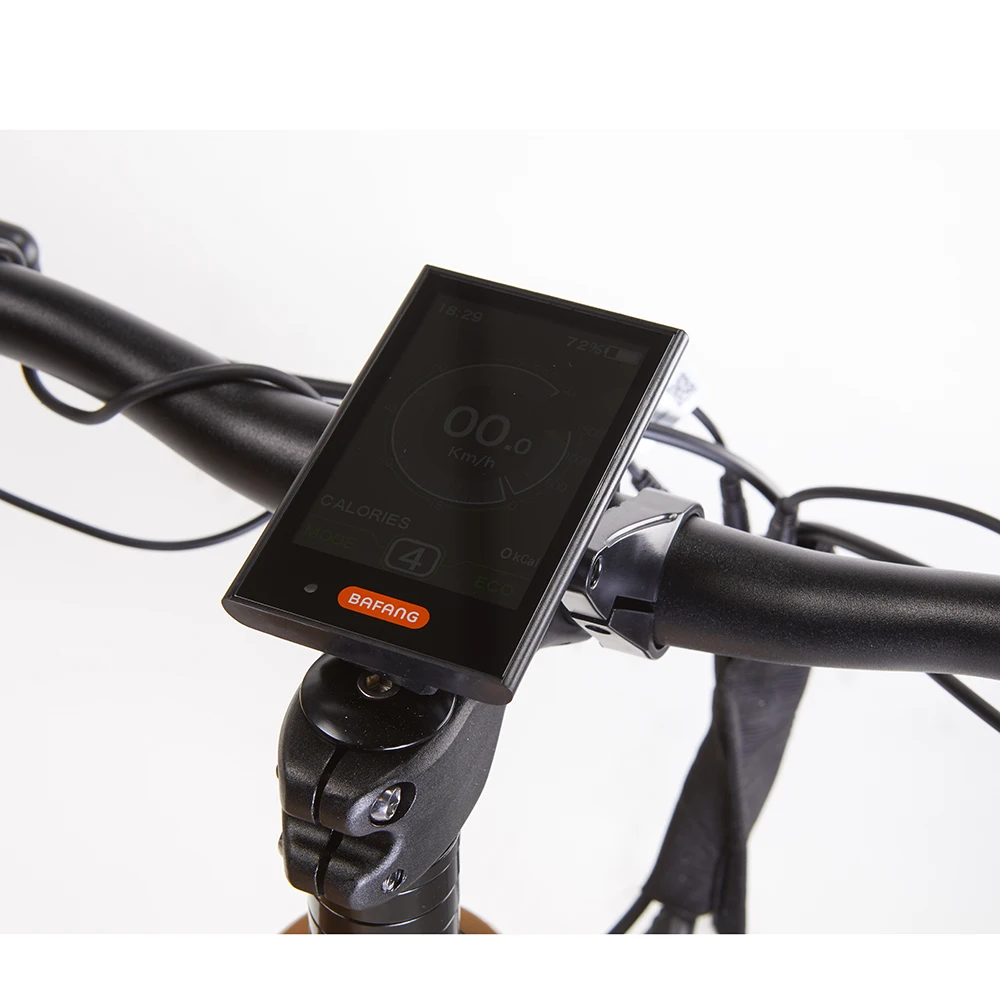

Colorful display
Bikonit Customized, Fixed LCD, Backlit, Adjustable Brightness (Double Tap Info Button, + and - and Info Buttons to Navigate, Hold + to Toggle Between Sport Mode and Eco Mode, Hold - to Enter Walk Mode, Hold Light Icon to Toggle Headlight and Backlight
Drive
Gates Belt Drive
Bafang Inner 5 Speed
The Bafang automatic gear hub has precise shift points and there is no need for an additional shifter and shift cable.
Specificaiton:
1.Motor:48V/1000w BAFANG G510 motor
2.PAS: 1:1 intelligent pedal assistant system
3.Battery: 15AH or 30AH li- battery for choosen (LG cells)
4.Charger:48v/5A 100-240v AC smart Dpower
5.Front fork: KKE AIR suspension
6.Tyre:26*4.5 Kenda Tires
7.Front Brake: Tektro725 FRONG 203MM ROTOR
8.Rear Brake: Tektro725 REAR 203mm ROTOR
9.Display: Bafang DPC18 Display
1.Motor:48V/1000w BAFANG G510 motor
2.PAS: 1:1 intelligent pedal assistant system
3.Battery: 15AH or 30AH li- battery for choosen (LG cells)
4.Charger:48v/5A 100-240v AC smart Dpower
5.Front fork: KKE AIR suspension
6.Tyre:26*4.5 Kenda Tires
7.Front Brake: Tektro725 FRONG 203MM ROTOR
8.Rear Brake: Tektro725 REAR 203mm ROTOR
9.Display: Bafang DPC18 Display
10.Saddle: comfortable sport type
11. Transmission: Gates Belt Drive
12. Front hub: 150mm Hub Spacing, 9mm Axle with Quick Release Skewer
13.Rear Hub: Bafang IGH automatic gear hub 5 speeds
14. Kickstand: black,26"adjustable rear side, with screw
15. Seat post length : 250 mm
16. Handlebar: Aluminum Alloy, Mid-Rise, Aluminum Alloy, 700mm Length, Low Rise
17. Charing time: 5 hours for one battery , 6 hours for two batteries
11. Transmission: Gates Belt Drive
12. Front hub: 150mm Hub Spacing, 9mm Axle with Quick Release Skewer
13.Rear Hub: Bafang IGH automatic gear hub 5 speeds
14. Kickstand: black,26"adjustable rear side, with screw
15. Seat post length : 250 mm
16. Handlebar: Aluminum Alloy, Mid-Rise, Aluminum Alloy, 700mm Length, Low Rise
17. Charing time: 5 hours for one battery , 6 hours for two batteries
18.Range:70kms/ 43.5miles for one Battery,120kms /74.5miles for two batteries
TWO OPTIONS OF DRIVE (BELT DRIVE & CHAIN DRIVE)
Bafang Internal geared 5 speeds, American Gates Belt Drive
SRAM 9 speeds, normal Chain Drive
Price for each Optional part:
Trailer | Front & Rear Rack | Front Lamp | One More Battery | 48v5A Charger | GPS | RST Fork |
$200 | $40 | $10 | $300 | $40 | $70 | $150 |
Certifications
Product packaging
Our factory
FAQ
Q: Can you provide us samples to test quality and market in advance ? is it free or extra ?
A: Yes, we definitely could provide you the sample for test quality , however you need to pay the sample cost and courier.
Q:Can you change configuration for me?
A:No problem, we can change configuration based on your request.
Q: What about your warranty?
A: Motor: 12 months
Battery: 12months
Other parts: 12months
Q. How to control quality?
A: At Leili TECHNOLOGY, each ebike and e-bike kit will be test 100%, our QA will check products as CHANGZHOU professional requirement, and sign an independent certificate for each product, so we confirm LEILI products are 100% good before shipping.
Q:What's your payment term?
We accept T/T, L/C,Western Union and PayPal.
Sample order: 100% paid in advanced.
Formal order: 30% as deposit,70% balance need to paid before shipment.
Q: How long is your delivery time?
A: Generally it is 3~7days if the goods are in stock. or 35~45 days after the sample is confirmed and advance payment is received, The specific delivery time depends on the items and the quantity of your order.
Q: What is the transportation?
A:Depend on customer's request. Normally, sample order we suggest ship by express. Bulk order can ship by sea
We have a professional manufacturer of ebike which located at changzhou ,we can provide you high quality products at reasonable price with good after-care service ,For more information, welcome to contact us~
