Product Overview

Description

Pakistan Mosquito Coil Mold /Mosquito Coil Stamping Mold in PK

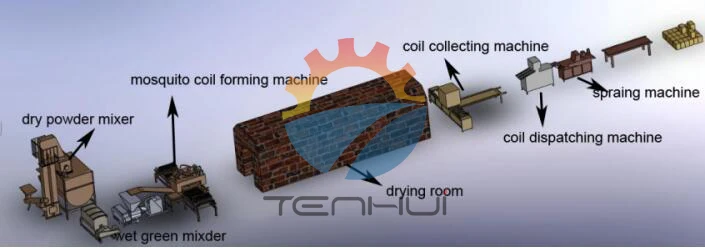

Automatic Mosquito Coil Production Equipment Process







Pakistan Mosquito Coil Mold /Mosquito Coil Stamping Mold in PK



Part 1. Mosquito Coil Mixing Machine



1. Large mixing (dry powder homogenization pool combination); The various raw materials mixed evenly, ready to enter a wet billet stirring.





Model : THJB -2000A

Machine Include :Screw elevator ,Screening power machine ,

                Spiral discharging machine(Pneumatic Valve Switch )

                 Electronic Metering Tank(Pneumatic Valve Switch ).

Size : 6000mmx3500mmx3500mm

Power :20KW

Operator: 1 person



    2. Wet mixing; Mix the mixture of various raw materials and the cooked starch mixture to form the wet billet into the molding machine.(Configuration: boiling machine, steam boiler).

Specific operation method :Mix the starches and cold water, then boil the starch, then mix the mixture with the mixture of the ingredients and the cooked starch.



Model:THBJ-50

Size:φ900mmx1700mm

Power:4KW



Wet billet mixer

Model:THBJ-200 B

Size:2500mmx1300mmx1600mm

Power:16.5KW

Operator:1 person



Pakistan Mosquito Coil Mold /Mosquito Coil Stamping Mold in PK

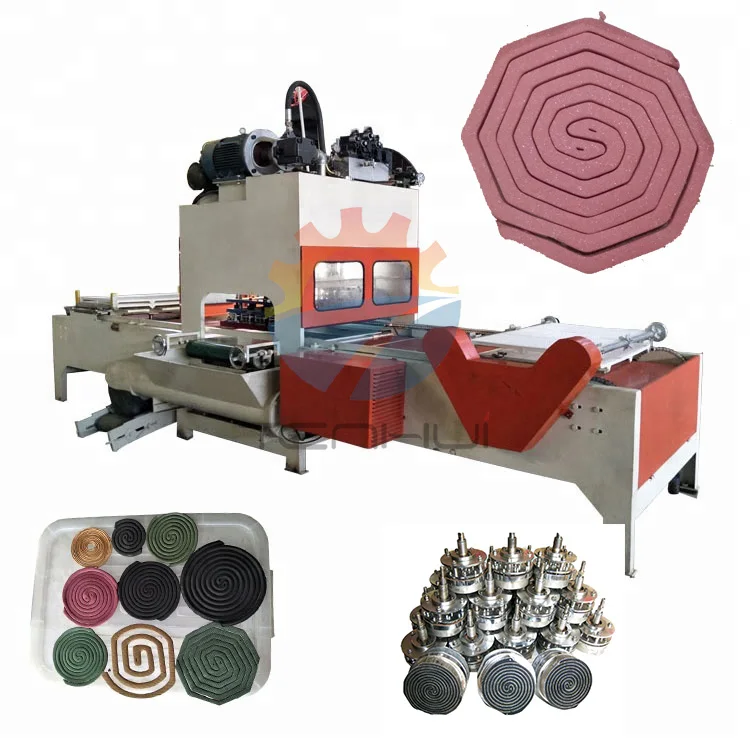

Part 2. Mosquito Coil Making Machine

The wet billet into the molding machine squeeze material facilities, through two extrusion, into the fine billet body into a strip shape, and then by the punching into mosquito-coated wet blank. (Configuration: feeder machine feeding trough for extrusion machine)



Model : THWXJ -18

Size :5300mmx5500mmx1700mm

Power :26.5KW

Stamping Frequency :18-20time/minute

Operator:3-4 person

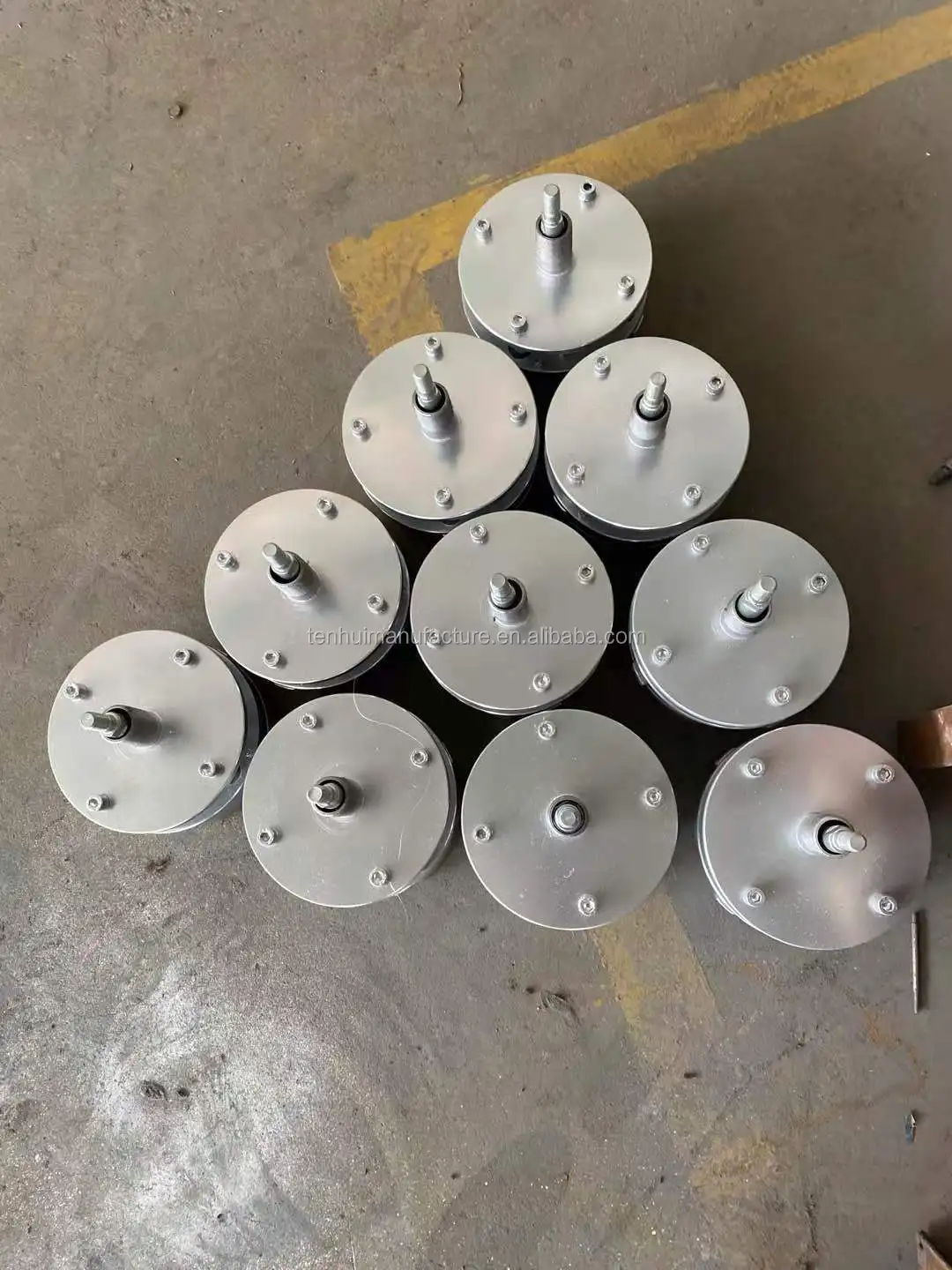

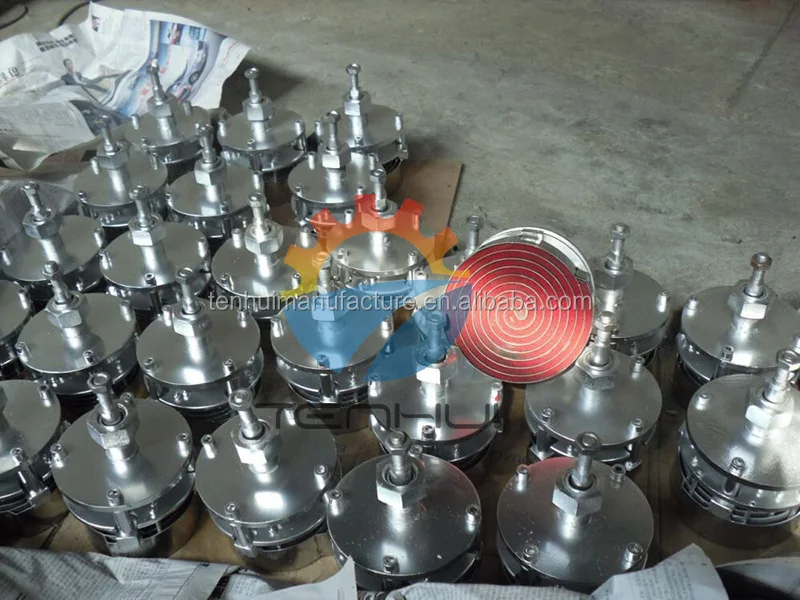

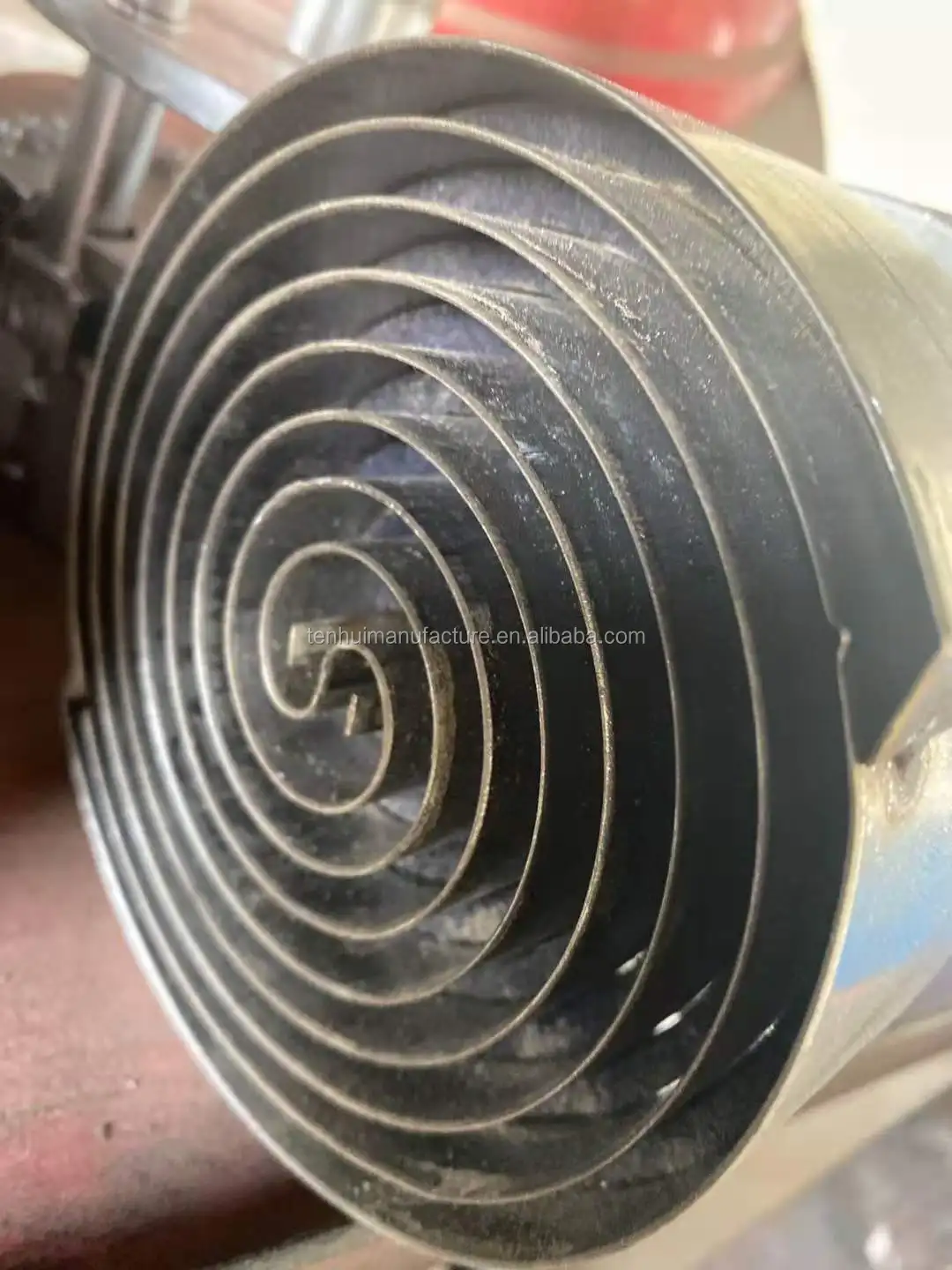

 Stainless Steel Mosquito Coil Making Mold /Mosquito Coil Stamping Mold
