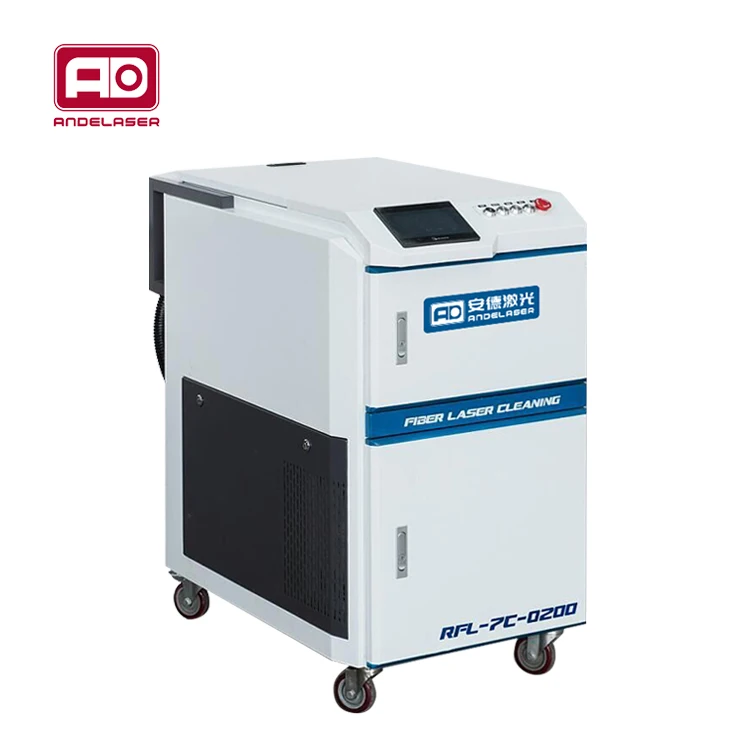

Best Price Handheld Pulse Fiber Laser Cleaning Paint Machine Portable Mini Laser Rust Removal Machine
- Category: >>>
- Supplier: Ande Laser Intelligent Equipment (Guangdong) Co. Ltd.
Share on (1600157299367):
Product Overview
Description
Best Price Handheld Pulse Fiber Laser Cleaning Paint Machine Portable Mini Laser Rust Removal Machine
Product Description
SPECIFICATION

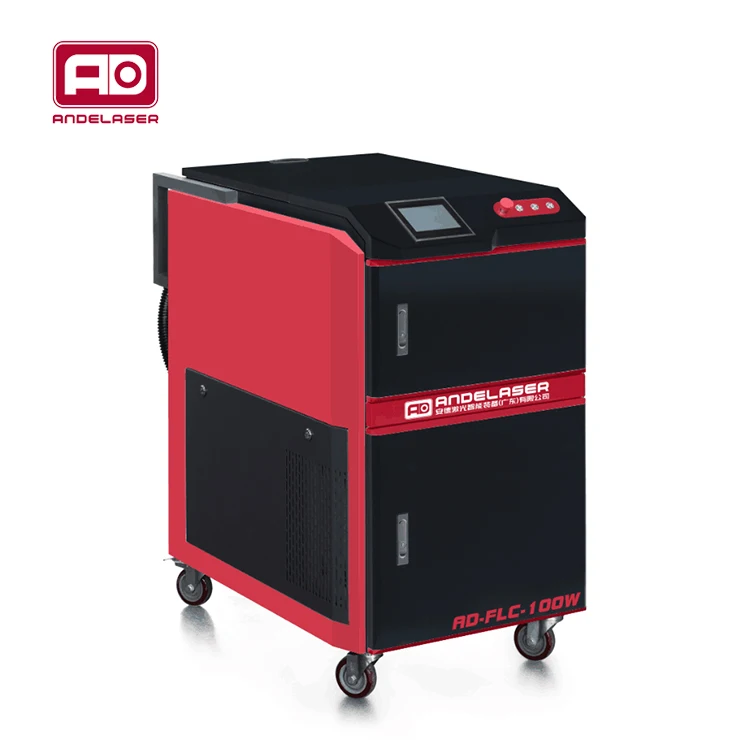

| MODEL | AD-FLC |
| Supply voltage | Single phase 220V±10%,50/60Hz AC |
| Power Consumption | 3200W (Include water chiller) |
| Condition | Flat ground, vibration free, no impact |
| Working temperature | 0℃~40℃ |
| Working environment | Humidity ≤80% |
| Machine size | 1100mm×700mm×1150mm |
| Weight | 290Kg |
| Cable length | 5m |

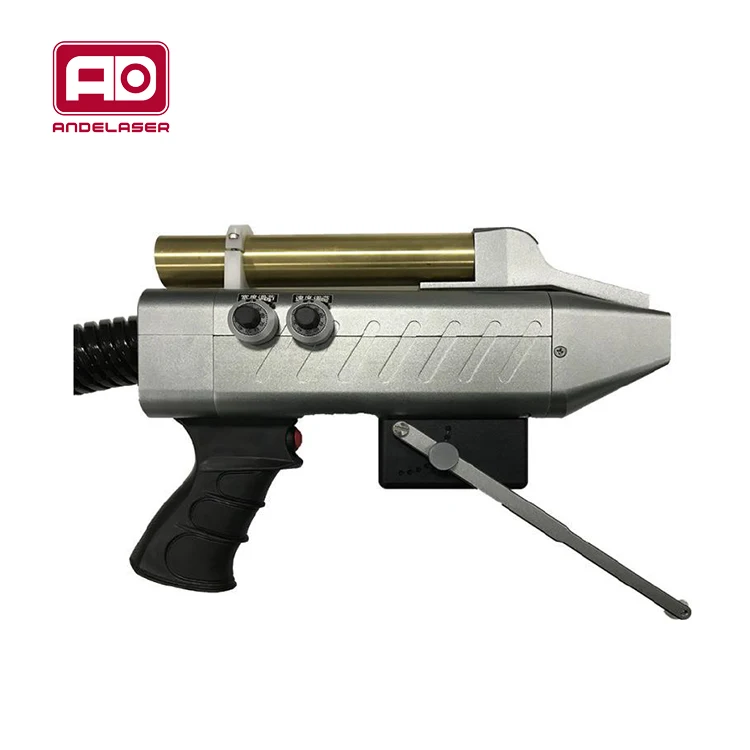

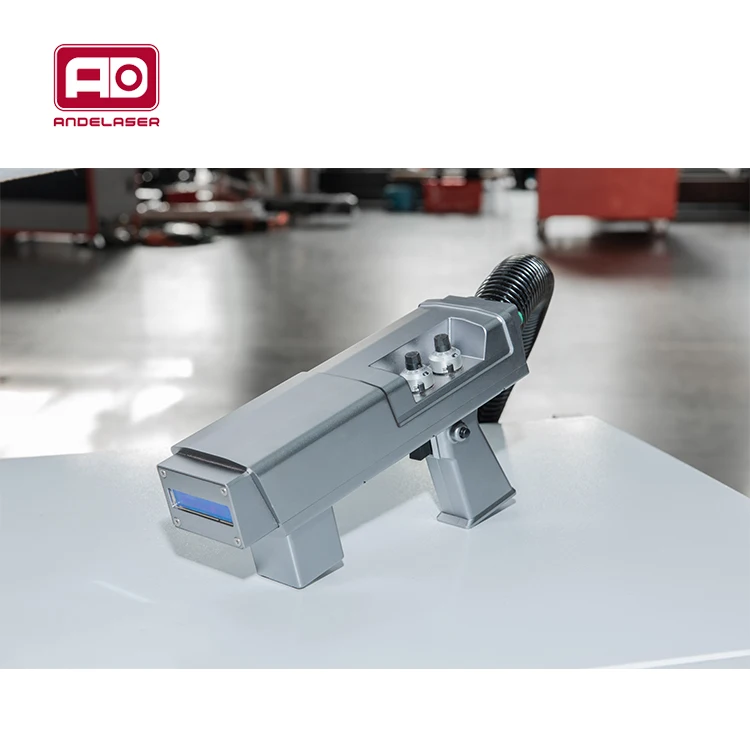

| Cleaning head weight | 3Kg |
| Scan width | 10-80mm |
| Motion type | Hand-held |
| Average laser power | ≥300W |
| Output power instability | <5% |
| Power regulation range (%) | 10-100(Gradient adjustable) |
| Pulse width(ns) | 130-160 |
| Center wavelength(nm) | 1064±5 |
| Repeat frequency (KHz) | 20-50(Gradient adjustable) |
| Max single pulse energy(mJ) | 12.50 |
| Max peak power(kW) | 96 |
| Fiber core(μm) | 100 |
| Cleaning efficiency (m2/h) | 15 |
| Focal length (mm) | 100/160 (optional) |
| Cooling way | Water cooling |

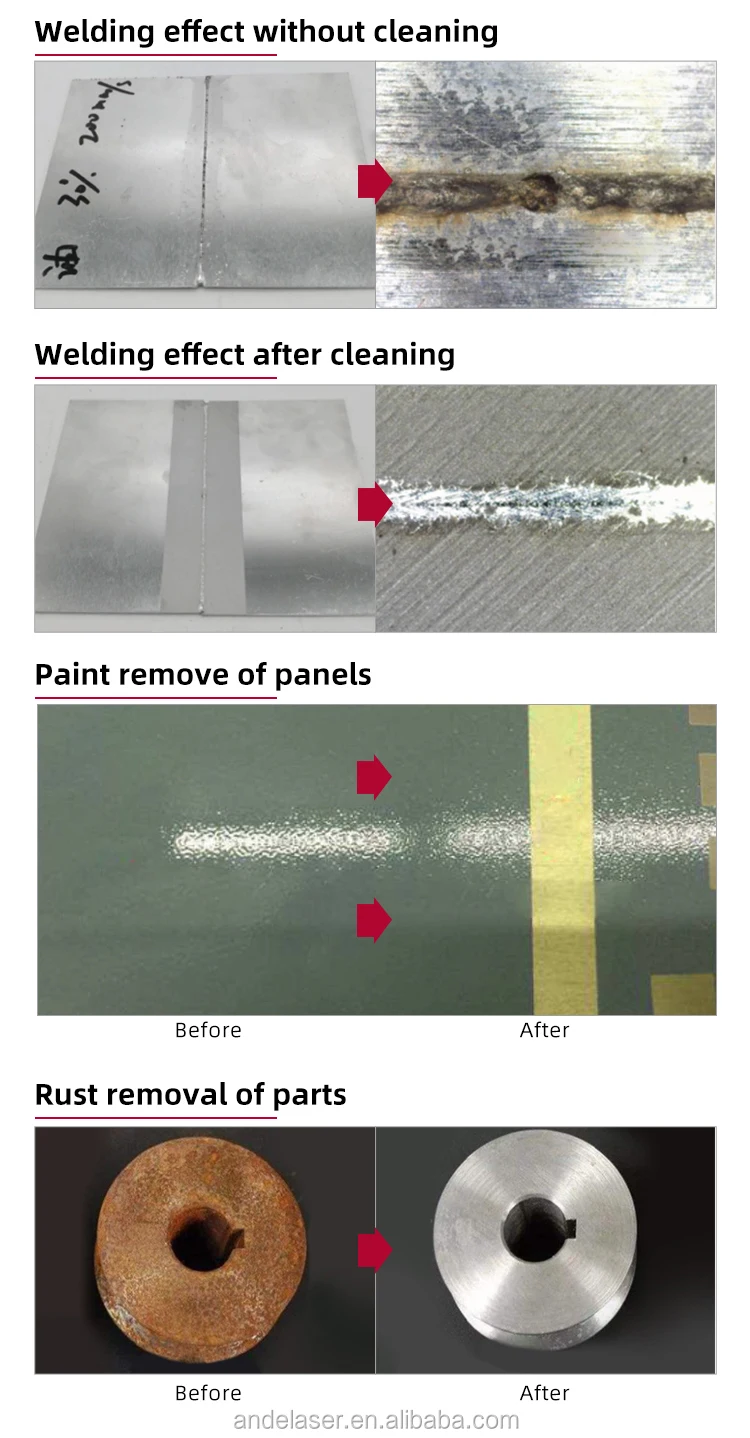

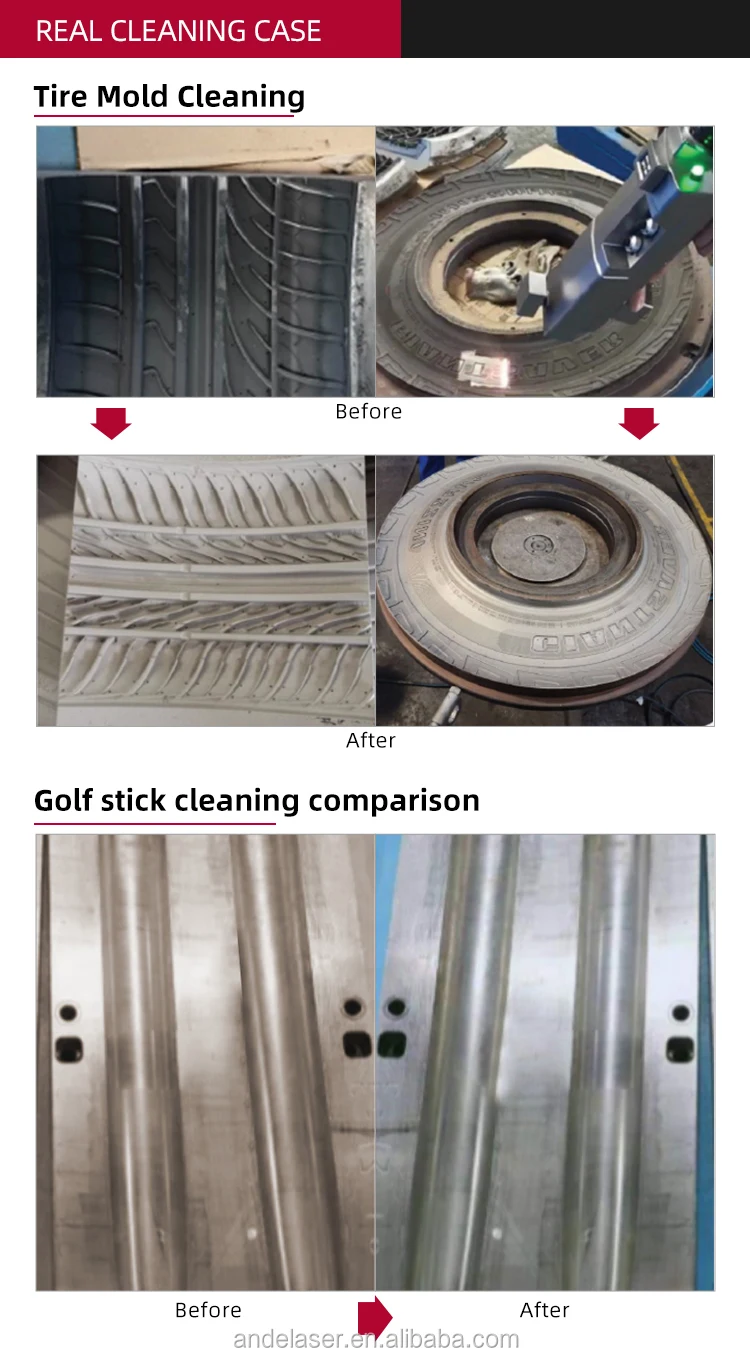

Real Cleaning Case
Application Industry
