Customized single end external wiring heater electric big power cartridge heater dry burning type high temperature heating tube

Share on:

Price:$7.00 - $8.00
Price in USD:Details


Product Overview


Product Description


Professional L-shaped PTFE Electric Immersion Cartridge Heater for industrial equipment heating

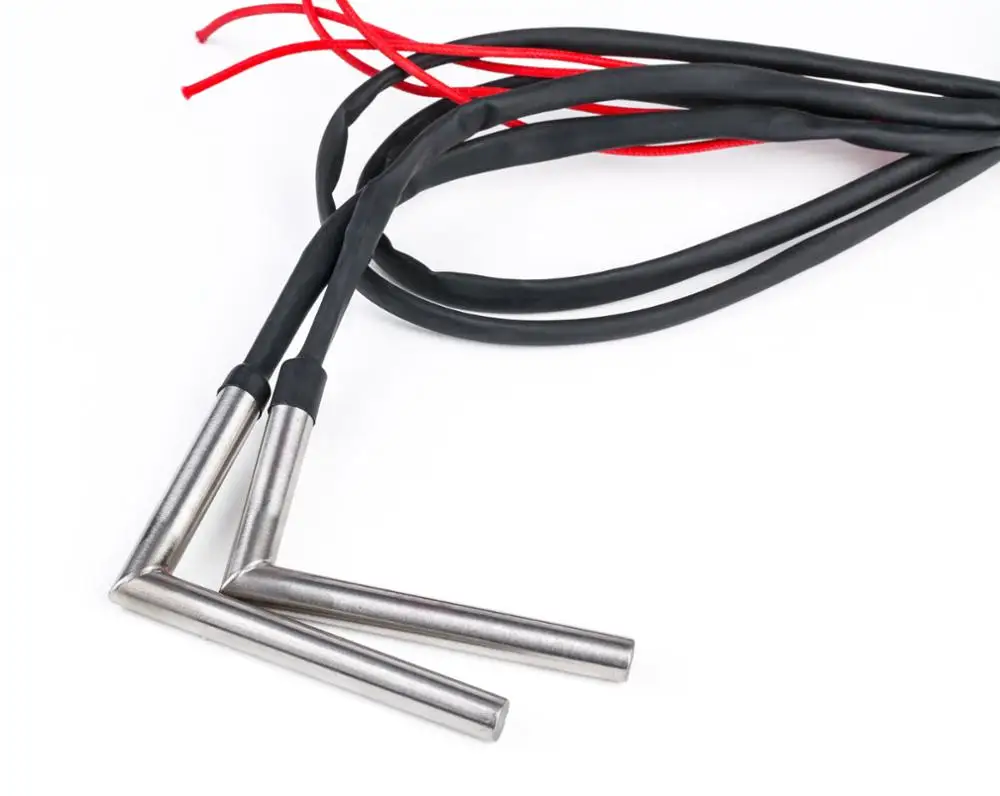

MICC L-shaped Teflon(PTFE) Electric Immersion Cartridge Heater for industrial equipment heating





Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,

that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.



· Injection moulding - Internal heating of nozzles

· Hot runner systems - Heating of manifolds

· Packaging industry - Heating of cutting bars

· Packaging industry - Heating of hot stamps

· Laboratories - Heating of analytical equipment

· Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

· Telecommunications: Deicing, Enclosure Heater

· Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,

· Food Service: Steamers, Dish Washers,

· Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

Technical data

Industrial heater

Immersion cartridge water heater with thermocouple

Resistance heating wire

NiCr 80/20 wire


stainless steel 304,321,316, Incoloy 800, Incoloy 840

Maximum temperature

800 degree Celsius

Wattage Tolerance

+5%, -10%

Resistance tolerance

+10%, -5%

Voltages available

380V,240V, 220V,110V,36V,24V or 12V

Length tolerance

±1 mm

Diameter tolerance


Standard Cold Zone


Delivery time

7-10 working days

Insulation resistance (cold)

≥ 500 MΩ

Maximum leakage current (cold)

≤ 0.5 mA

Thermocouple Location

type J

type K


MICC L-shaped Teflon(PTFE) Electric Immersion Cartridge Heater for industrial equipment heating


1.Low MOQ: It can meet your promotional business very well.

2.OEM Accepted : We can produce any your design as long as you provide us the drawing.

3.Good Service : We treat clients as friend.

4.Good Quality :We have strict quality control system .Good reputation in the foreigner market

5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract)
