Product Overview
Description

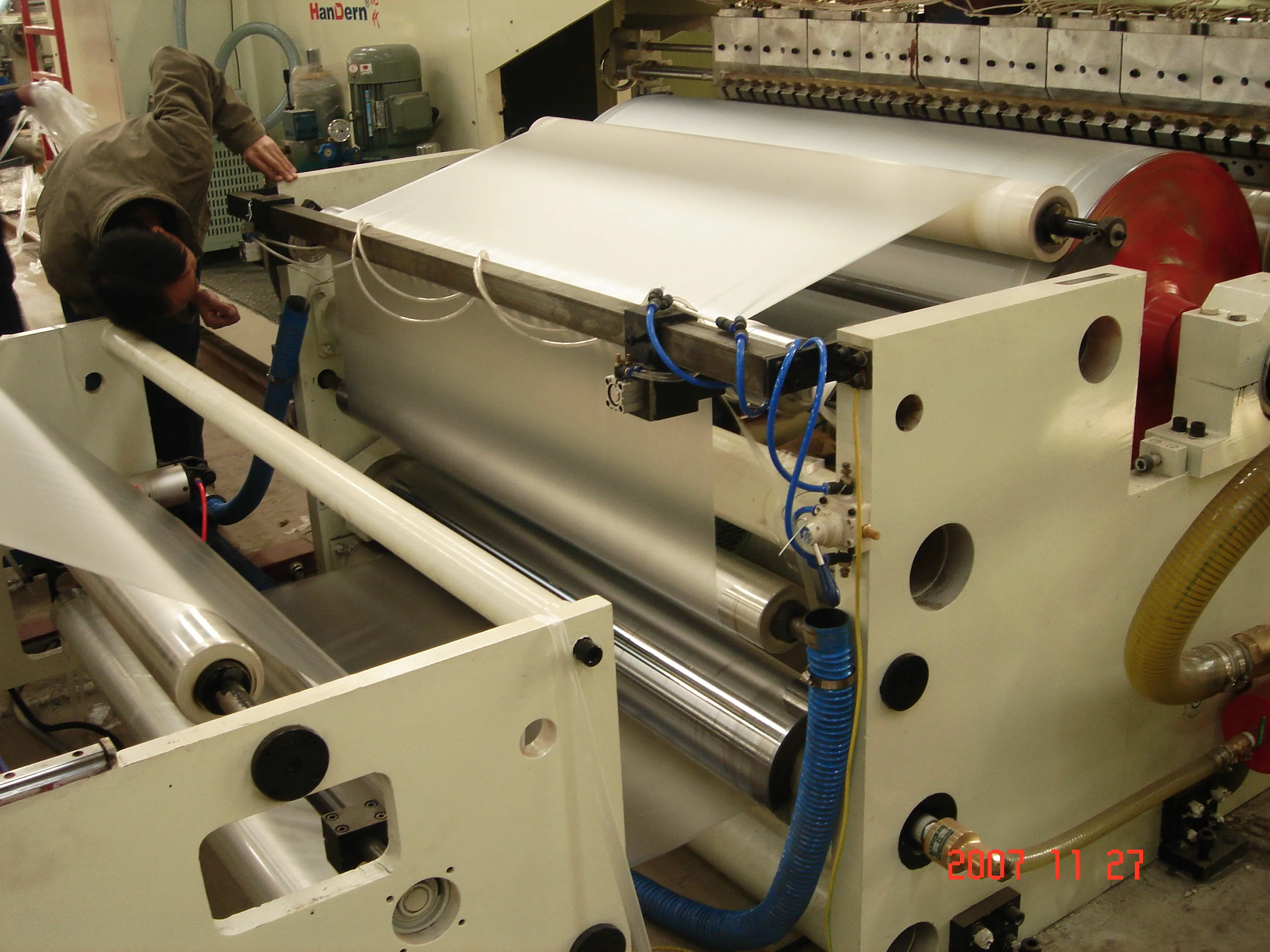

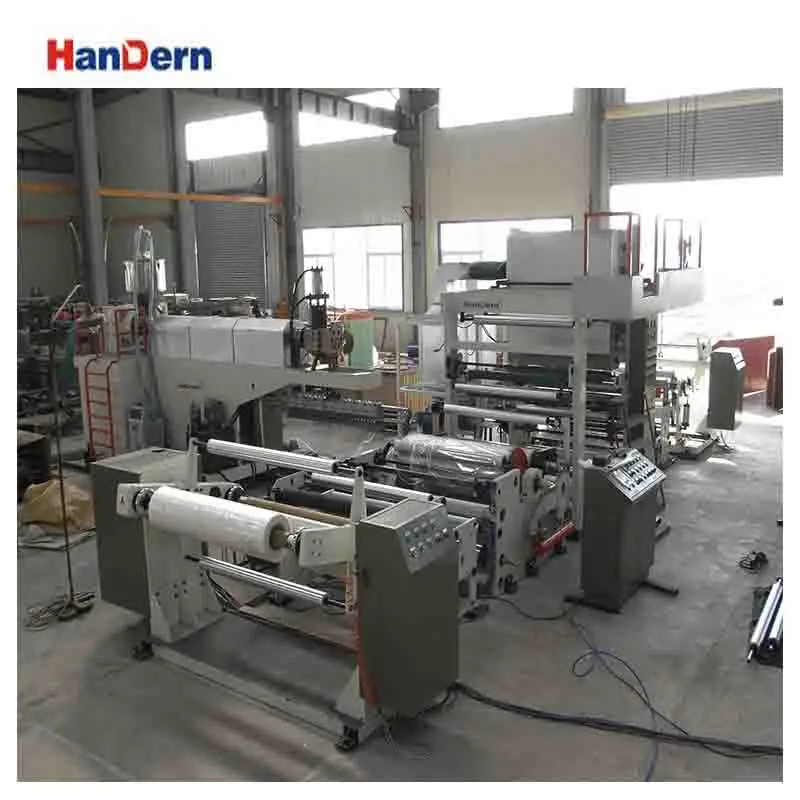

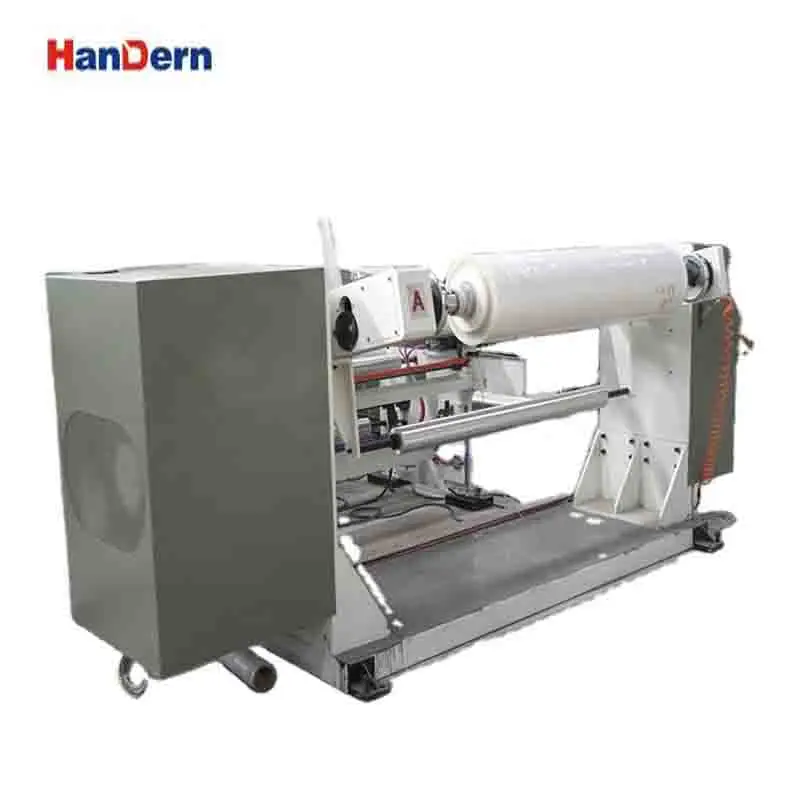

Extrusion Coating Lamination Compound Machine EVA Extrusion Coating Lamination Compound Machine 1200 Extrusion Coating Lamination Compound machine
Product Description
Technical Specifications
Paper plastic laminating machine | Techniacal specification |
Laminate Width | 800~1200mm |
Maximum Mechanical Speed | 150m/min |
Extruder Motor | 47~75kw |
Extruder | HL-90 or HL-100 |
Maximum Extrusion Output | 260kg/h |
Resin | LDPE, PP, EVA,LLDPE |
Laminating Thickness | 0.012-0.07mm |
Thickness Uniformity | ≤±5% |
Maximum Diameter of Unwound Roll | 800mm |
Substrate | BOPP, BOPET, BOPA, CPE, CPP, thin paper (50~300g/m2) |
Drying | Gloss roller, floor-standing or horizontal drying oven |
Tension Control | Automatic tension control |
Control Method | Imported PLC system, human-machine interface |
Drive | AC digital vector control (variable frequency drive) |
Components
1.the unwinding unit2.coating unit
3.drying unit
4.lamination unit
5.auxiliary unwinding unit
6.extrusion die
7.winding unit
8.control unit
Fully computer control ensures high production efficiency and extrusion lamination quality.
Process
1)the thermoplastic resin is heated to temperature above the melting point.2)the molten plastics are pushed through an extrusion die to form a thin hot film
3)laminating the film over a kind of pre-coated base material.
The resultant laminate is totally odorless.
Raw resin of Automatic Thermal Laminating Machine:LDPE, LLDPE, EVA, EAA, and other laminating resin.
The substrate wound onto the primary unwinding roller:usually BOPP (15-60um) or BOPET (12-50um).
Applications
Paper: Kraft paper, air-laid paper, and cardboard lamination to produce book packaging, snack packaging, duct tape for trash bag;
BOPP, BOPET, BOPA, and other plastic film lamination;
Non-woven fabric lamination, PE, PP stretch film extrusion lamination;
Aluminum foil and PE stretch film lamination;
BOPP, BOPET, BOPA, and other plastic film lamination;
Non-woven fabric lamination, PE, PP stretch film extrusion lamination;
Aluminum foil and PE stretch film lamination;

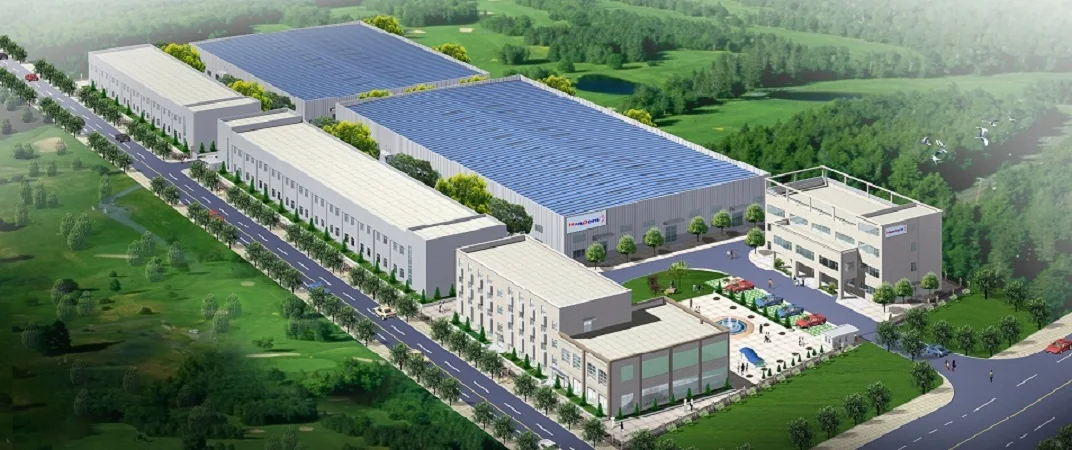

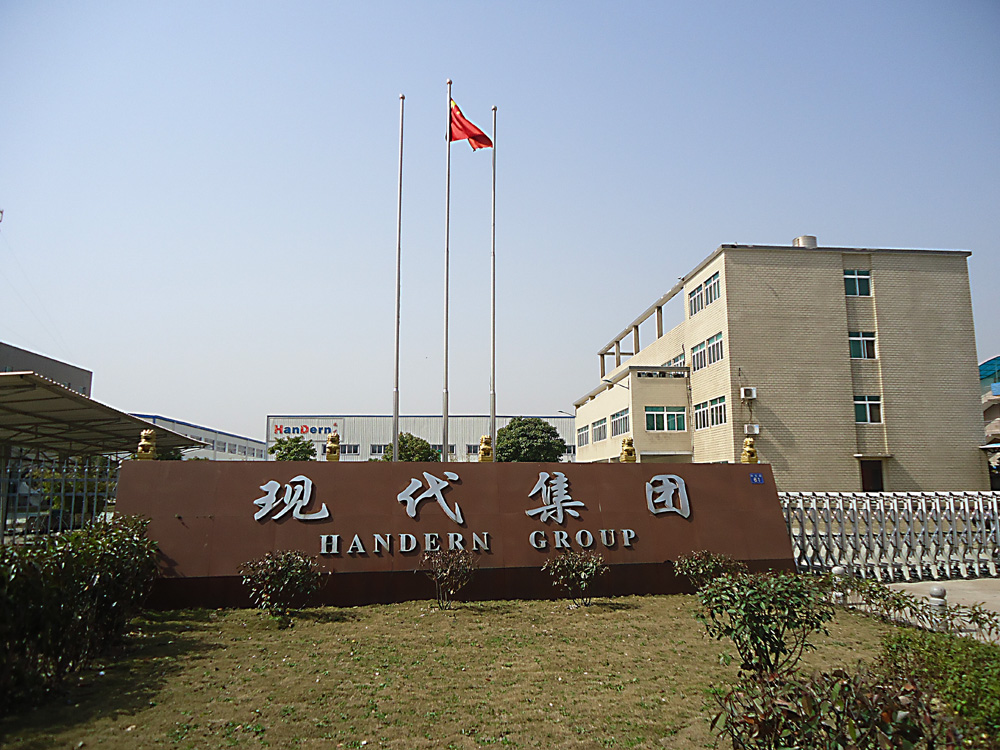

Company Profile
Wuhan Handern Machinery Co., Ltd established in 1989, is a Sino-Japanese joint venture high-tech enterprise, specialized in plastic machinery R&D, manufacturing and sales with over 30 superior technical talents and skillful trained operator.
Handern are devoted to develop and manufacture all kinds of plastic sheet and film extrusion line since its establishment. Our products are widely applied to electronics,packaging,machinery, light industry etc.
Our products have been selling well over twenty provinces in domestic market, and exported to many abroad countries including UK, Brazil, Serbia,Australia, Russia, Vietnam, Korea, Japanese, India Mexico, Canada and so on.
Handern are devoted to develop and manufacture all kinds of plastic sheet and film extrusion line since its establishment. Our products are widely applied to electronics,packaging,machinery, light industry etc.
Our products have been selling well over twenty provinces in domestic market, and exported to many abroad countries including UK, Brazil, Serbia,Australia, Russia, Vietnam, Korea, Japanese, India Mexico, Canada and so on.
Exhibition

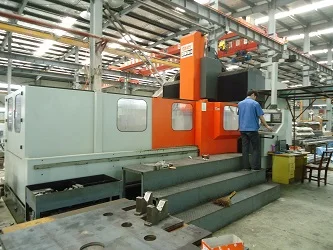

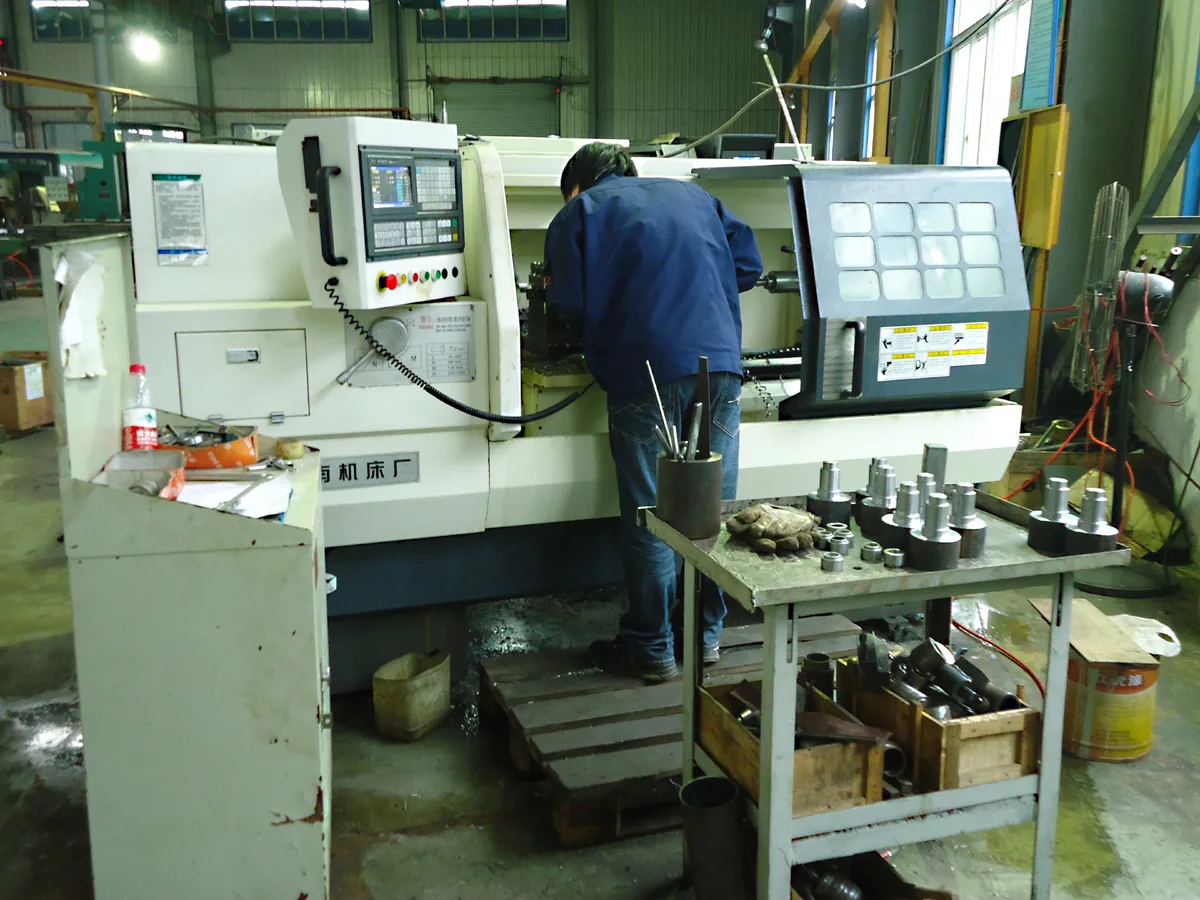

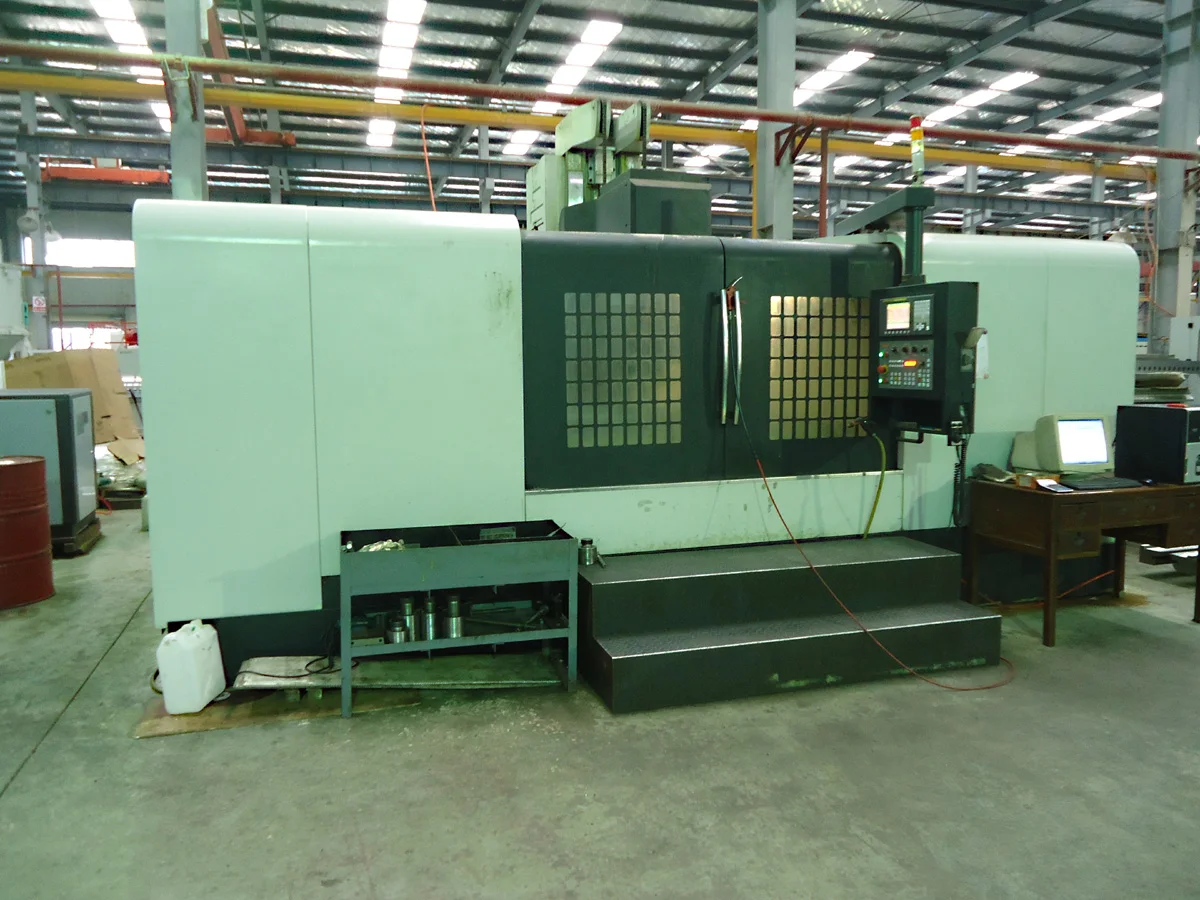

Production equipment
Packaging & Shipping
Wooden case is available for paper plastic film fabric laminating machine
Our Services
Supply the complete drawings for installing the machine and send one or two technicians to buyerto install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer's company.The buyer should prepare all the condition such as water, workspace, power, air, etc, according t the using condition of the machine, before our engineers arrival.
Quality Control System
certificate
