fcc nrf52840 low energy iot wireless ble 5.0 cheap zigbee pcb tracking small bluetooth module supplier
- Category: >>>
- Supplier: Shenzhen Thingoo Co. Ltd.
Share on (1600157488482):
Product Overview
Description
Certifications
Thingoo module can save your money up to US$8000!
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product
that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product
that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000
Product Description

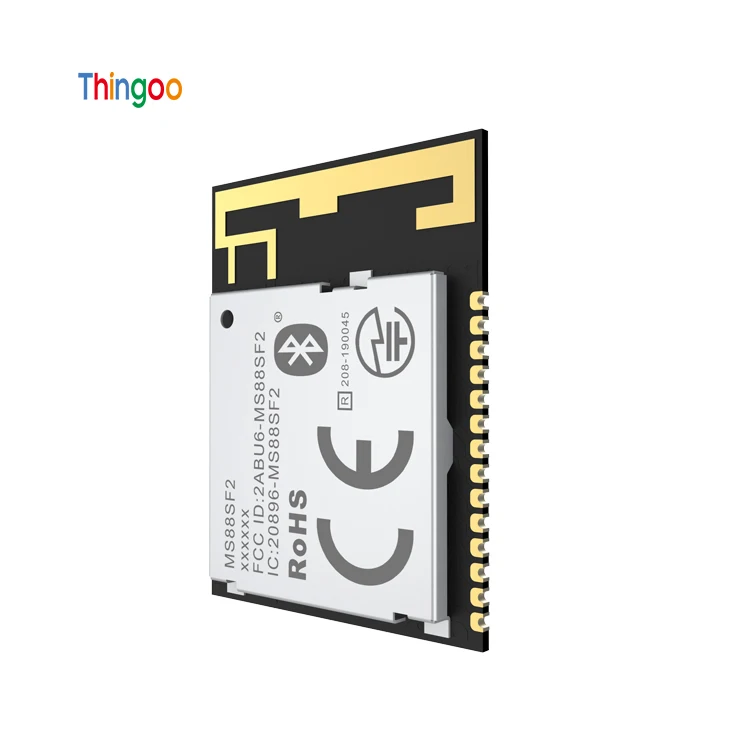

Advance nRF52840 5.0 BLE Module
MS88SF21
The module has multi GPIO and excellent RF performance.

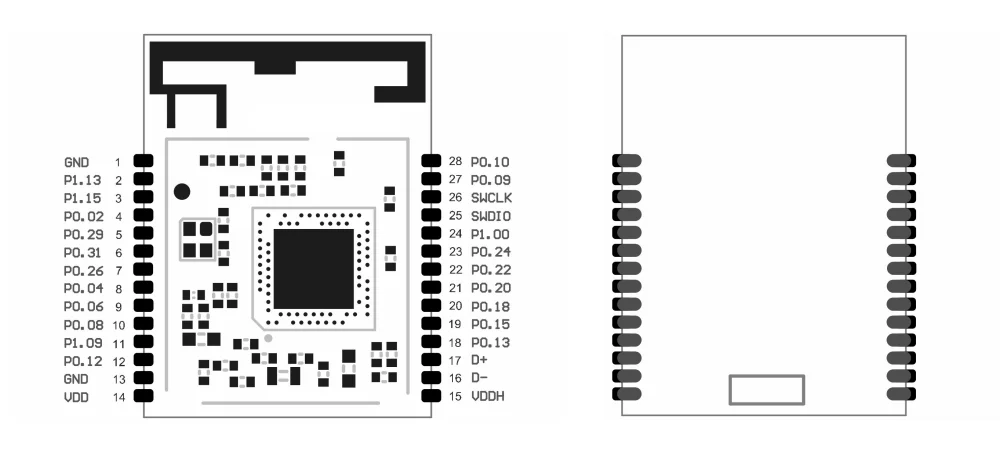

Pin description
The definition of GPIO can refer to Nordic chipset specification of nRF52840.
Features
Frequency: | 2402 to 2480 MHz | ||||||
Max Output Power: | +8dBm | ||||||
Single Power Supply: | 1.7V~5.5V | ||||||
Transmitt Range: | 120 meters | ||||||
GPIO Quantity: | 20 | ||||||

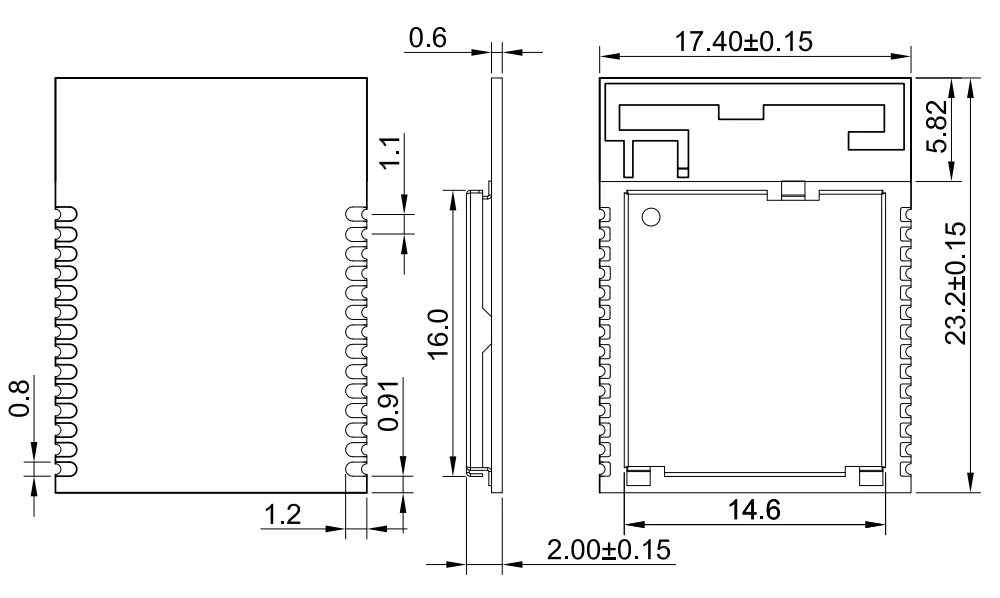

Module Size: | 23.2mm*17.4mm*2mm | ||||||
Operating Temperature Range: | -40 to 85 degree Cesius | ||||||
Flash Memory and RAM: | 1M Flash and 256 KB RAM | ||||||
MCU: | ARM Cortex-M4F 32-bit processor with FPU, 64MHz | ||||||
Antenna Type: | PCB | ||||||
Shield: | Metal Shield | ||||||
