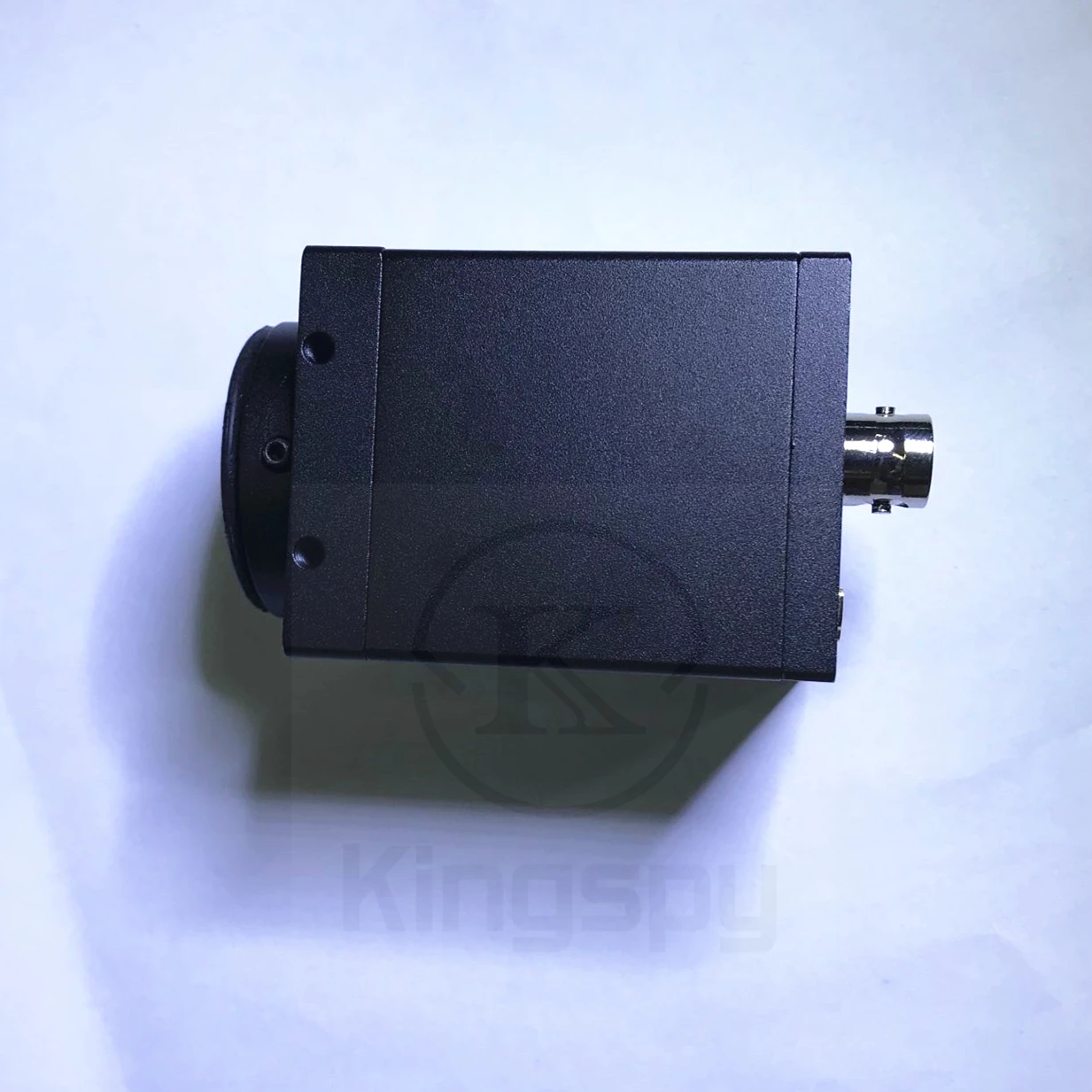

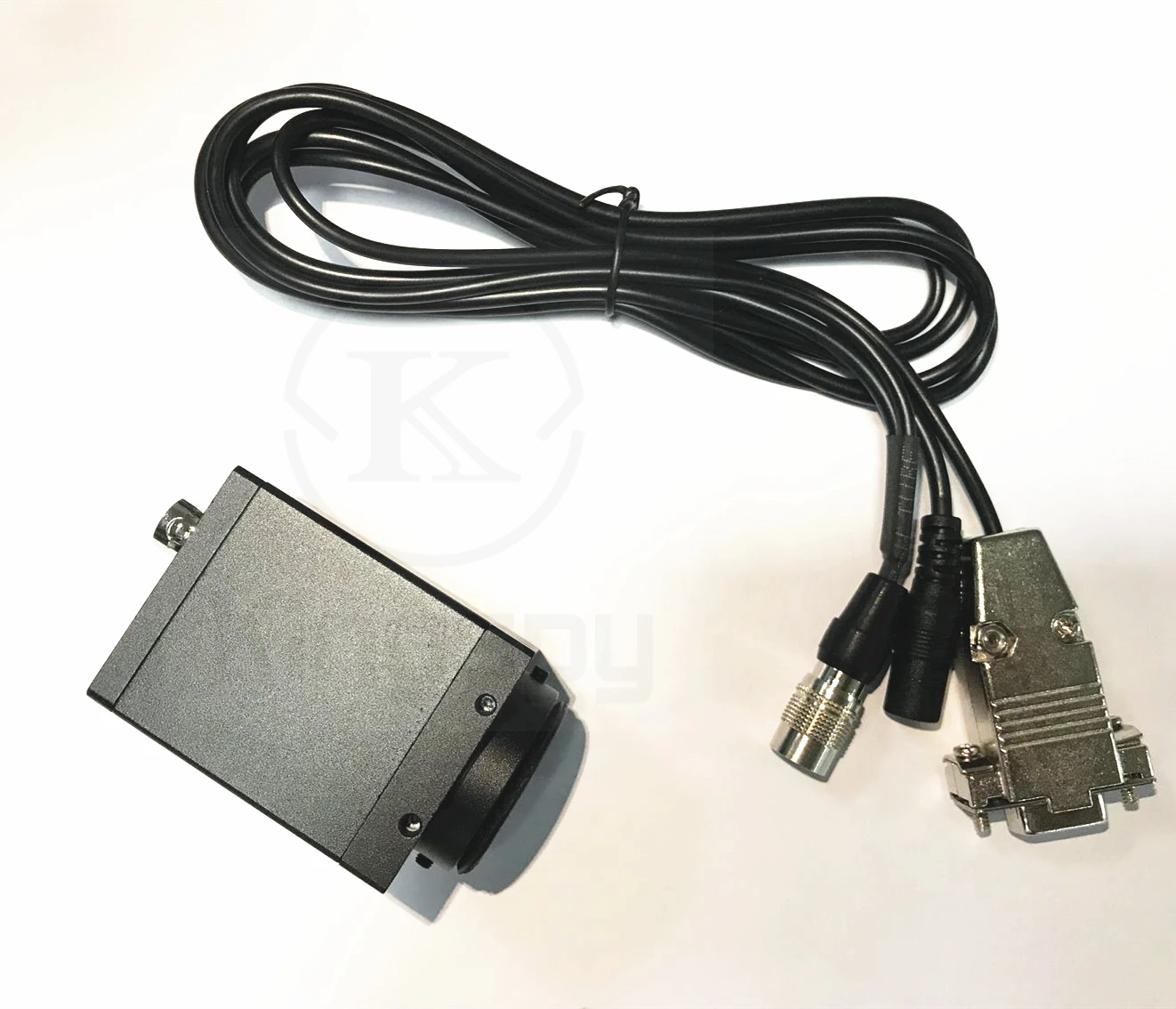

781F+IMX385 WDR LUX Video Live EX HD-SDI 1080P 60fps 1/1.8 Security Box High Resolution Industrial Camera for Microscope
Specification:
| Image Sensor | Color 1/2” Sony IMX385 CMOS Sensor |
| Total Pixels | 1952 (H) * 1241 (V) Approx. 2.42 Mega Pixel |
| Effective Pixels | 1945 (H) * 1225 (V) Approx. 2.38 Mega Pixel |
| Scanning System | Progressive |
| Resolution | Digital: 1080P (60fps/30fps) |
| Min-Illumination | Color: 0.00001Lux, Color: DSS: 0.000001Lux. |
| Video Output | Digital Output: EX-SDI (1080p); Analog Output: HD-ADH (1080P), CVBS (960H) |
| S/N Ratio | More than 42dB (AGC off) |
| ACE & WDR | Off/Low/Middle/High; WDR SNR: 120dB |
| Lens | |
| Brightness | 0-20 |
| AGC | 0-10 steps |
| Sens-up | Off/X2/X4/X8/X16/X32 |
| Shutter Speed | AUTO/MANUAL (1/50\\60-1/60,000 sec) |
| Defog | Off/On, Low/Middle/High |
| Shading | Off/On |
| BLC | Off/BLC |
| Day & Night | Off/HLC |
| Color (AWB) | Auto/Color/B&W/EXTERN |
| DNR | Auto/Auto Ext/Preset/manual |
| Mirror | Off/On |
| H-V-REV | Off/On |
| Sharpness | 0-10 Steps |
| Digital Zoom | 1.0X-16.0X |
| Motion | Off/on, Alarm Output |
| Privacy Mask | 24 Masks |
| Language | English/Chinese |
| Power (Max.) Supply | DC12V+-10% less 1.8W |

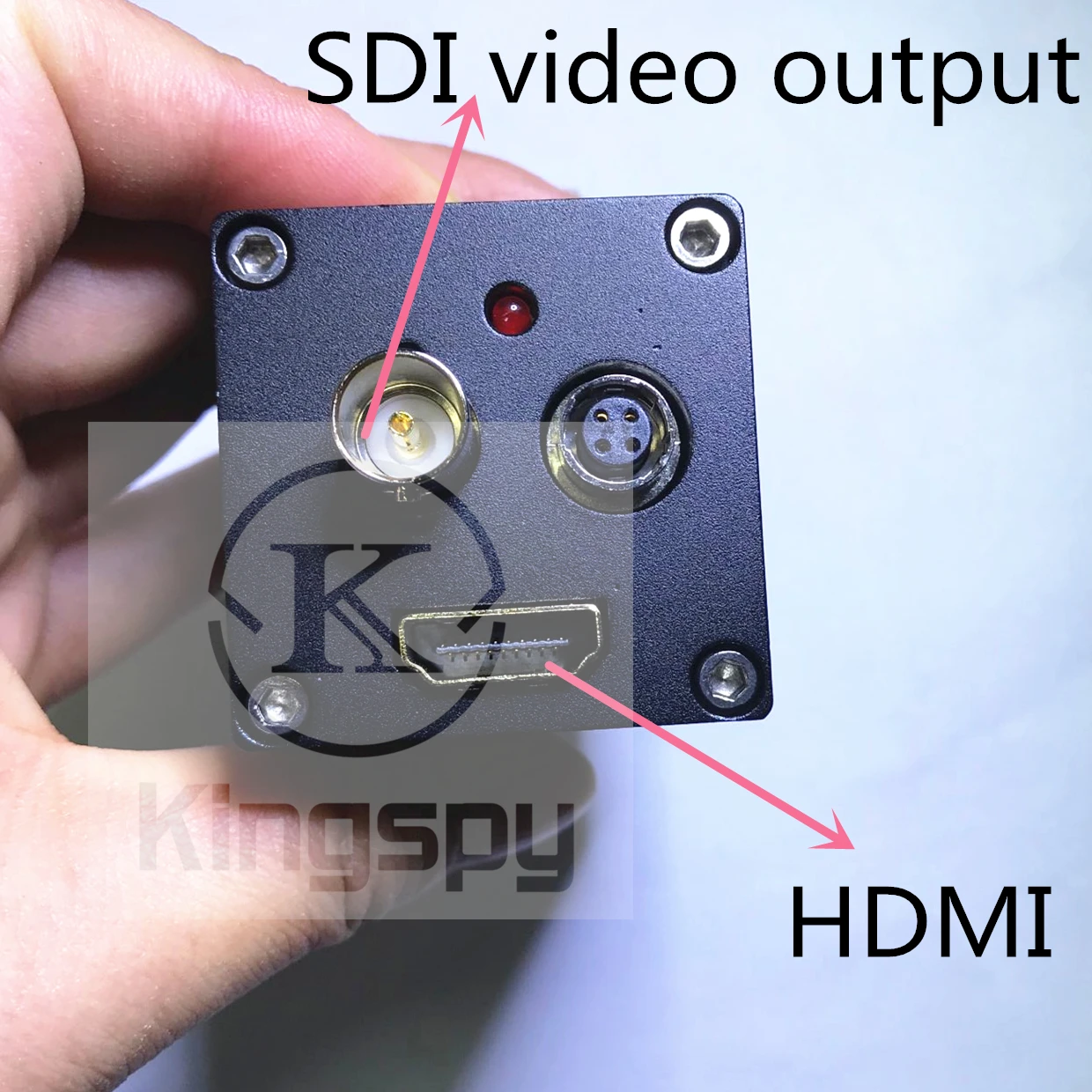

| Video Output | EX-SDI & |
| EX-SDI Distance | BNC Cable 75-3 can transmit 500 meters or above. |

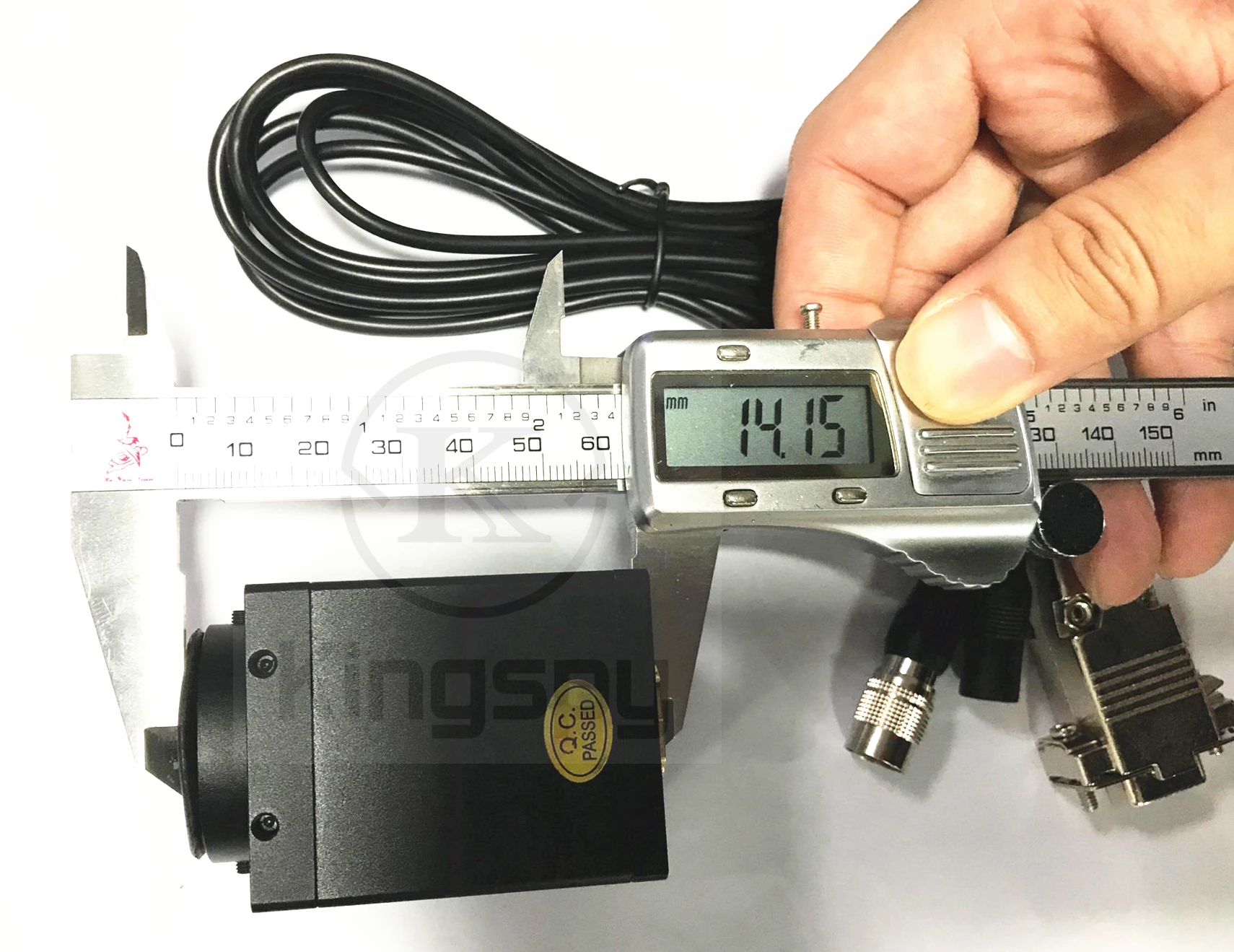

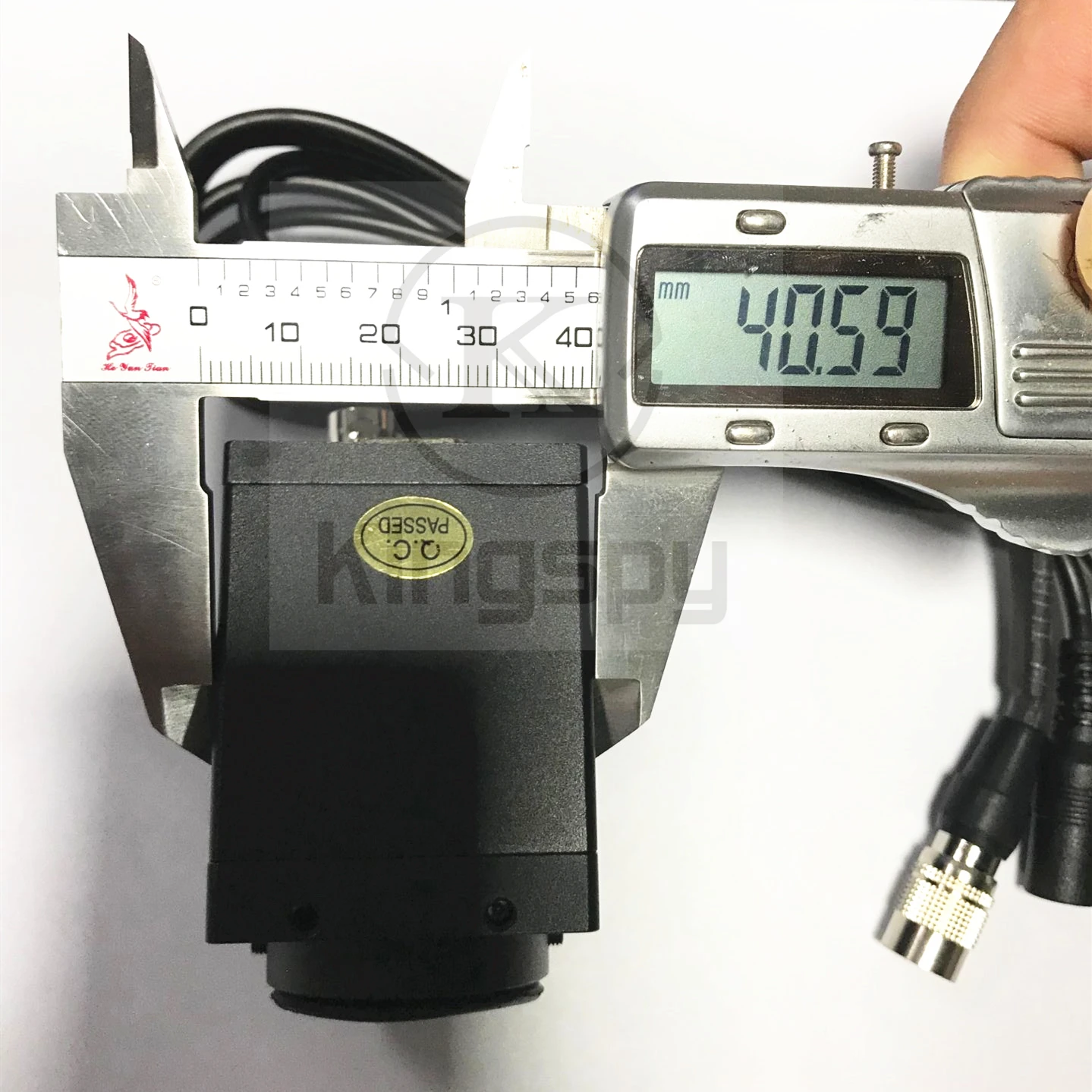

| Size |
This module can work at -40° Celsius.
| 1/2" 2.1 Mega Pixel PanasonicCMOS Sensor |
| 1920x1080P Full HD Resolution |
| HD/EX-SDI video signal output |
| WDR, 3DNR, BLC functions |
| Support Privacy Zone |
| Motion Detection |
| OSD Menu(Support English, Italian, Dutch, French, Spanish,German or Russian) |

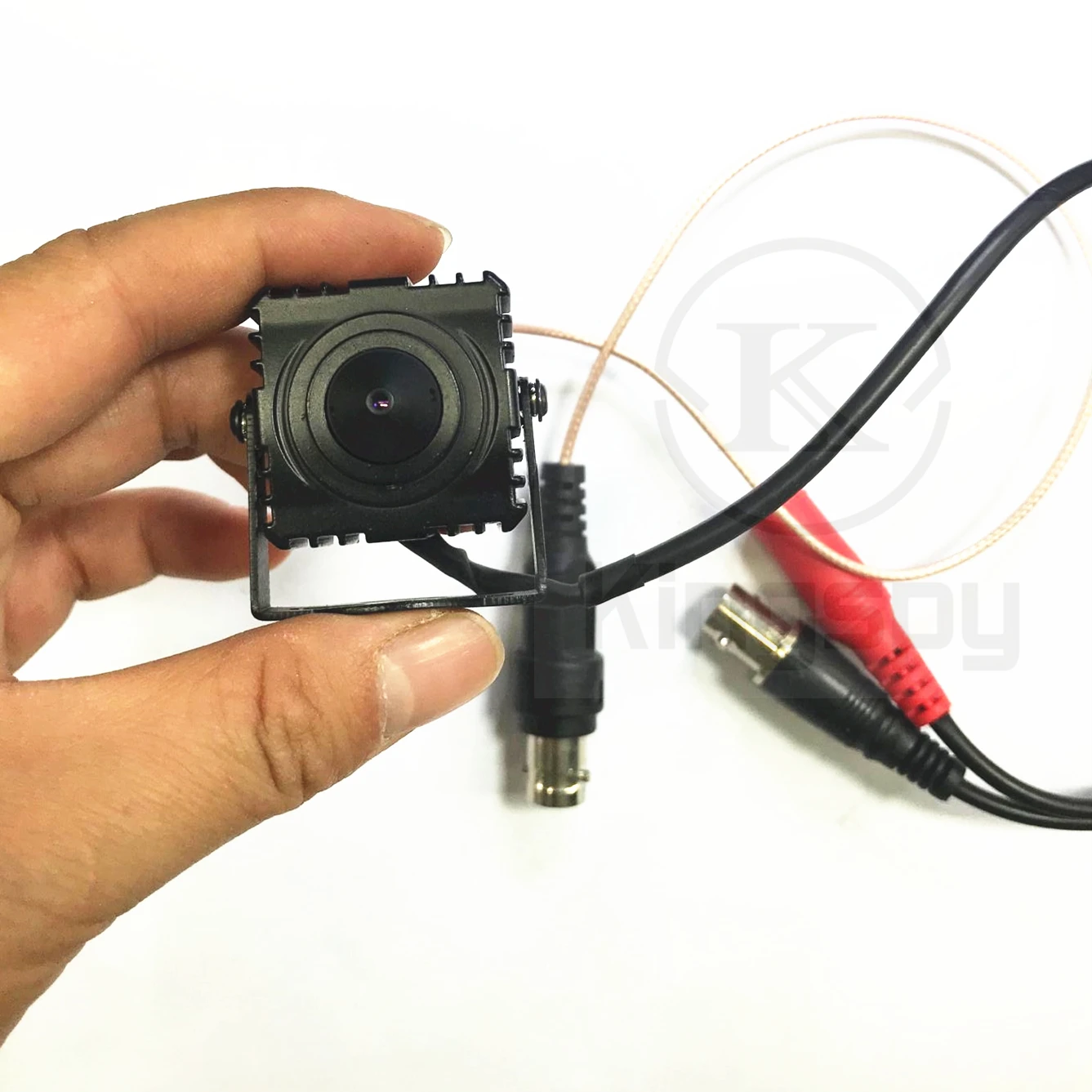

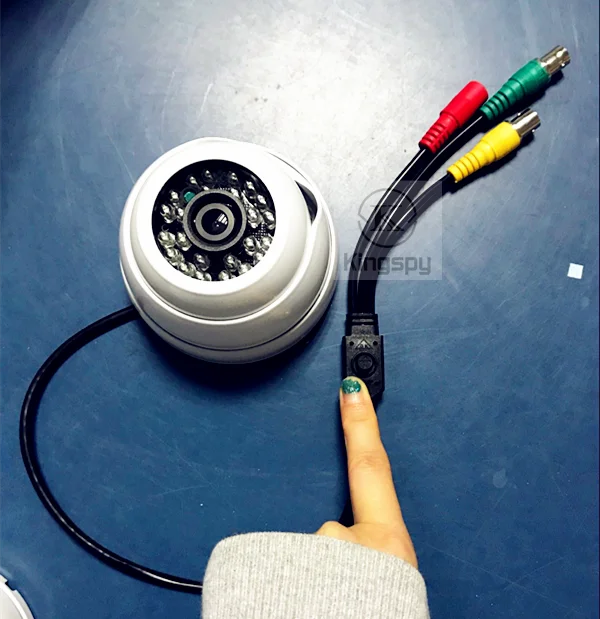

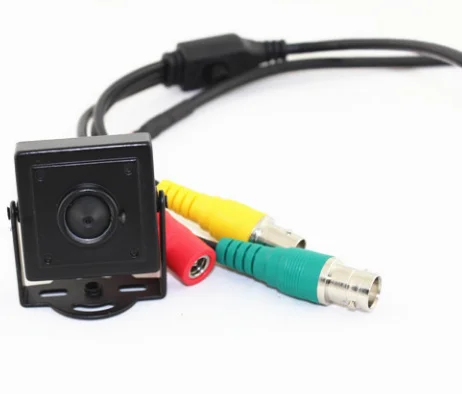

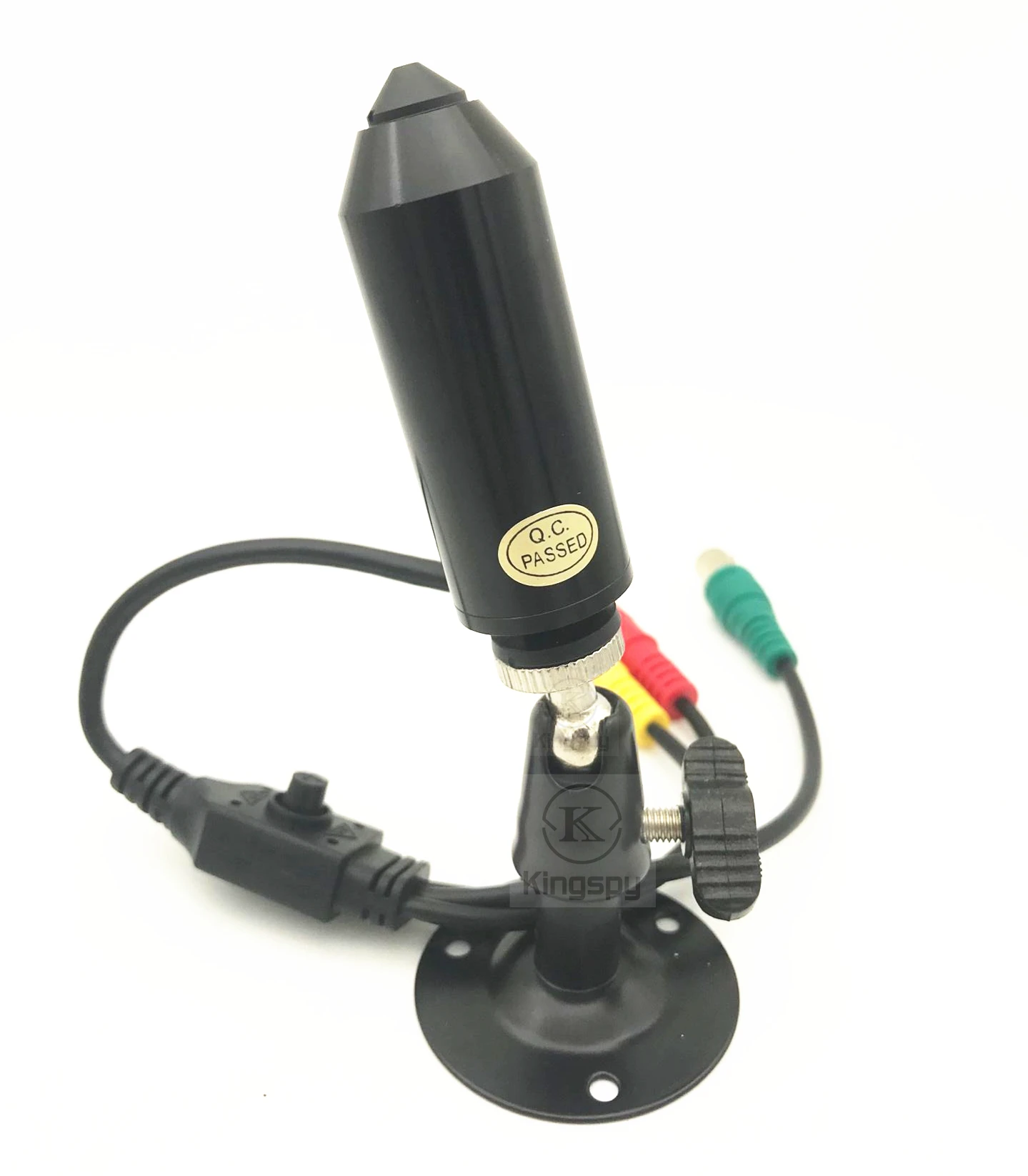

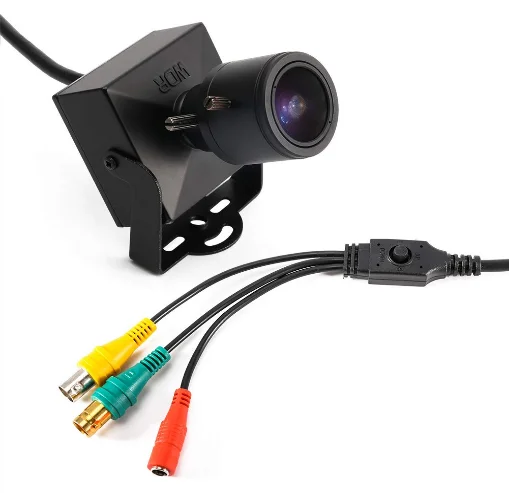

MORE SIMILAR SDI CAMERAS AS BELOW :
