311nm Uvb Lamp Uv Phototherapy Treatment For Vitiligo Psoriasis Dermatitis Eczema

Product Overview

Description

 Indications:

Psoriasis, Vitiligo, Eczema, Chronic eczema, Neurodermatitis, Atopic dermatitis and other skin diseases.

Narrow Band UVB phototherapy is considered a first-line treatment for many conditions such as psoriasis, vitiligo and eczema, is safe enough for pregnant women and children to use, and has none of the serious side effects .

UV lights slow abnormal growth of skin cells and can help create repigmentation.

 Features:

1. Small size and light weight, convenient for patients to carry.


2. Handheld operation, flexible to treat

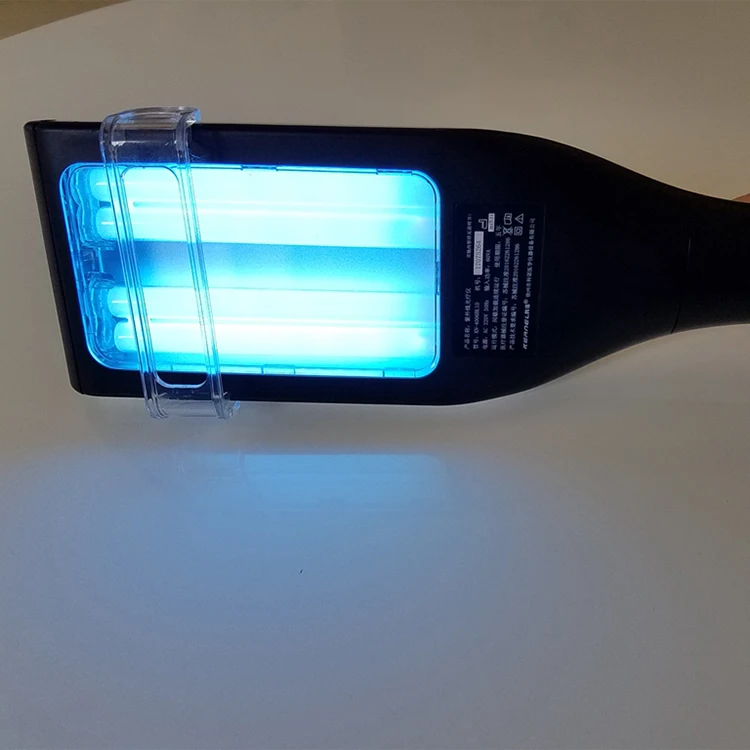

3. Stable and long usage life Phillips special medical 311nm narrow band UVB lamp as light source( 4006BL1D: PL-S 8W/01/4P, 4006BL1: PL-S 9W/01/2P)

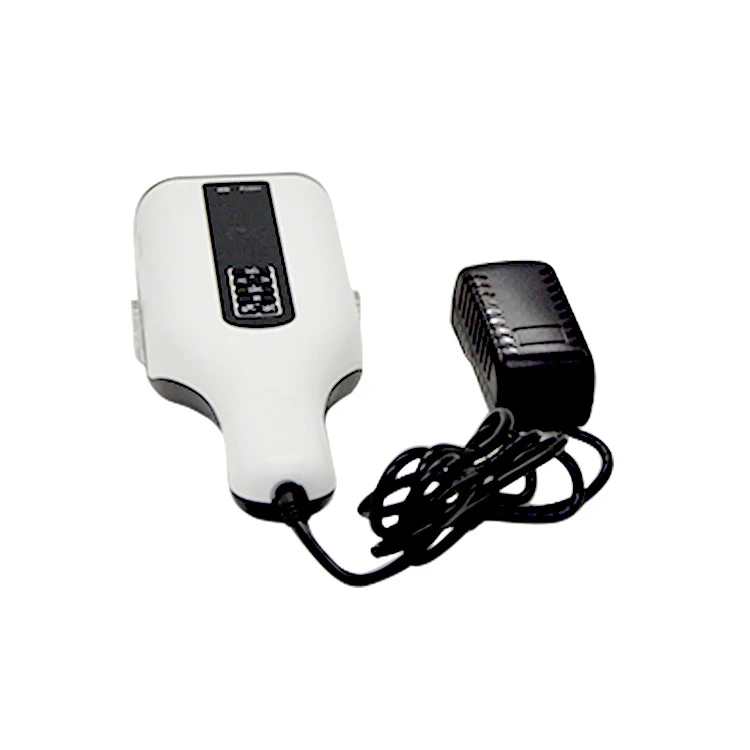

4. AC power supply(KN-4006BL1), DC power supply(KN-4006BL1D)


5. According to the treatment need, patients can choose PUVA or NBUVB lamp


6. Easy operation, suitbale for home use


7. Bluetooth function optional, can interact with smart phone APP and get free treatment consultation


8. Electronic prescription mode is optional. Patient can receive treatment at home as per physician's prescription or download physician's prescription via APP. The APP can control the treatment process and make it more convenient and safe


9. Microcomputer timer function

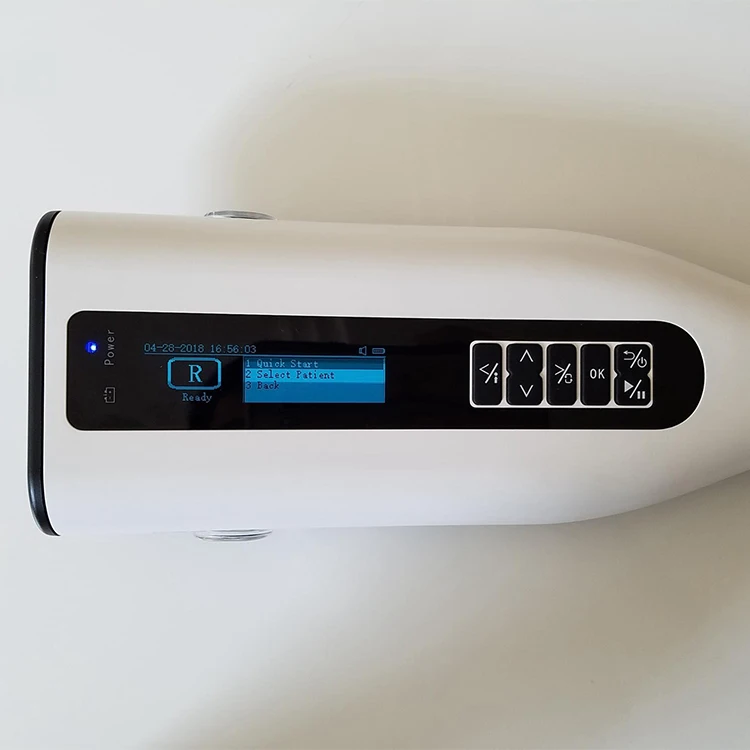

10. The LCD screen direction can be adjusted if needed.


11. Use special optical materials acrylic shield to provide more secure protection


12. Dust-proof and water-proof level up to IP22, easy to use at home


13. Proximity sensor, can fast positioning the work distance to make the treatment more accurate


14. special tool make the replacement of lamp easily.

Basic parameters:

Item Name	UV Phototherapy
Model	KN4006BL1D
UV Wavlength	311nm
Size(L×W×H)	350mm×99mm×46.5mm
Weight	1.2KG
Irradiation Area	100cm2±10%
Bulb	2x PL-S8W/01/4P
Power supply	AC 100-240V 50/60Hz±2%
Bbild-in battery power	DC6~8.4V >3A
Environment scope	-40°C-55°C
Atmospheric pressure	500hpa-1060hpa

Warranty

The lamp comes with 1 year manufacturer's warranty (500 hours for bulbs

How to use UV Phototherapy?



Before treatment: the first step, please take a bath for 15 to 20 minutes to remove skin surface scales;

The second step, patients need to determine the MED.

Note:



1.Intensity of KN - 4006 - B/BL is 6.8 mW/cm

2. MED calculation method for: irradiation time S = dose (J/cm2) * 1000/6.8 (mW/cm2)

Treatment:

Psoriasis:

3 ~ 4 times / week, 15 ~ 20 times / treatment course.

Vitiligo:

2 ~ 3 times / week, need treatment for 30 ~ 50 times or more.

Parapsoriasis:

PUVA, UVA/UVB,NB-UVB: 4 times / week, until histology improvement.

Dose adjustment:



1.   No erythema effect or Previous light erythema effect disappeared	Every time increase 20~ 25% dose.
2.   Mild erythema effect	Same as the last dose or increase 10% dose,if erythema effect disappears,same as A .
3.    Asymptomatic, clear the shinning erythema	Stop treatment for one time, then with the same exposure, later every time by 10% gradually increasing dose.
4    The pain of erythema, or with edema,blister	Stop treatment, until recovery. Reduce the dose half, later every time increased by 10% dose.
