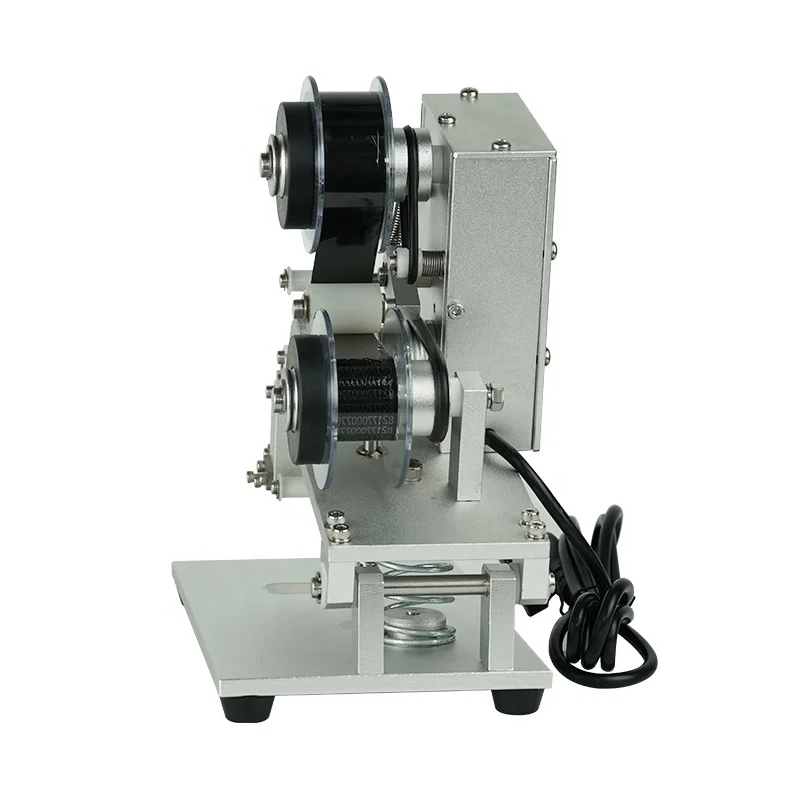

cvv indenting spraying manual laser qr laser automatic batch coding machine
- Category: >>>
- Supplier: Shandong Dongtai Machinery Manufacturing Co. Ltd.
Share on (1600157856700):
Product Overview
Description
inkjet printer manual batch price laser solid egg printer key cutting bar stickers ink coding machine
Product Description
Product introduction: inkjet coding machine is suitable for all kinds of plastic film, composite film plastic bag, aluminum plastic, paper plastic and other composite flexible packaging bags. The colors are clearly contrasted. The factory name, trademark and production date, batch number, etc. can be changed as needed.

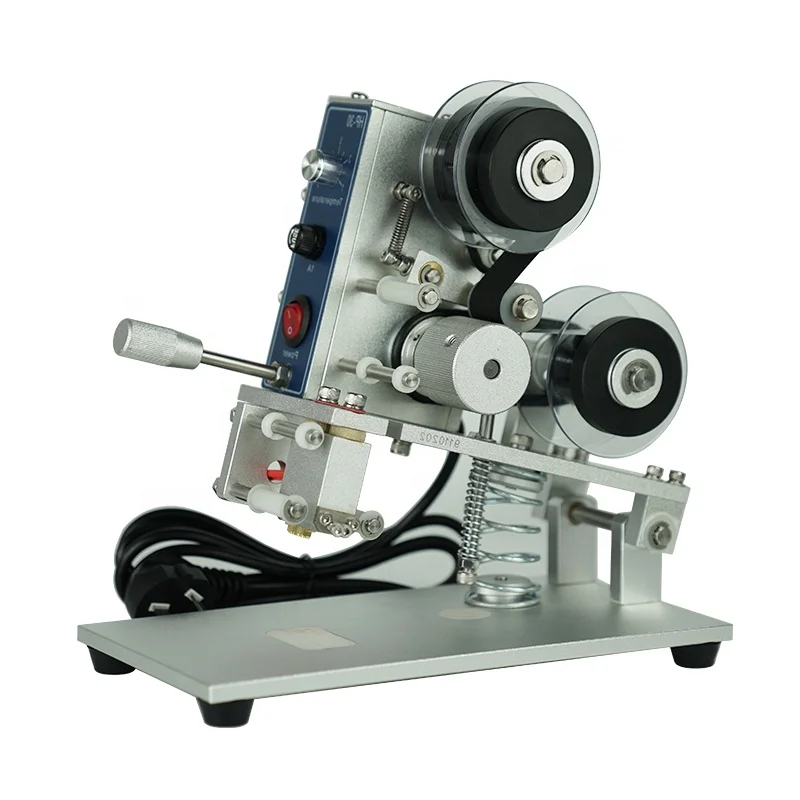

Product name | code printing machine |
Speed | 90 times/minute |
Printing area | three rows of 13*35, about 21 movable type |
Movable type | Arabic numerals, both Chinese and English |
Power supply | 220V/50Hz |
Heating tube | 50W/220V |
Size | 240×240×140mm |
Weight | 2.8kg |

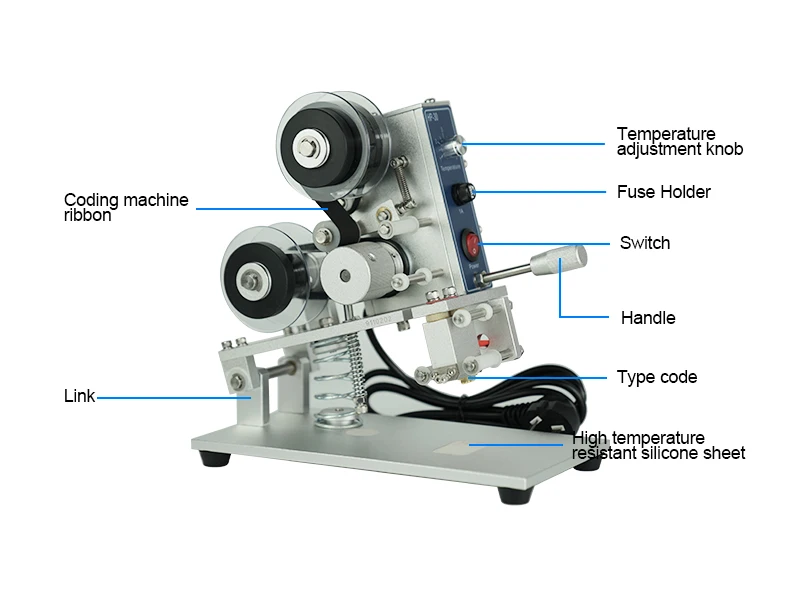

Show details
Easy to operate：
Especially suitable for food, medicine and other industries, the bar code printing machine uses thermal printing tape to avoid ink contamination, and to ensure hygiene and cleanliness of hands and machinery.
Clear printing:
The key code machine uses thermal printing tape, which does not dry, and prints clearly. Any packaging material OK-PT, PR, OPP, CPP heat shrinkable label, aluminum foil, paper, etc.
Convenient word changing:
The special word changing structure is adopted to make the movable loading and unloading particularly convenient. The date coding machine is easy to use, reasonable design, precise processing, and high quality quality to make users at ease and easy to maintain.
Solutions to common failures of code printing machine:
(1) The code printing machine does not work
1. Check whether the switch of the handheld inkjet coding machine is turned on. 2. Check whether the fuse is blown and the encoder of the encoder is normal.
3. Check whether the wiring of each part is normal. 4. Whether the air inlet and air inlet pipe are connected properly.
(2) The code printing machine can work, but cannot print fonts
1. Adjust printing temperature and printing pressure. 2. Check whether the ribbon is installed incorrectly. 3. Check whether the distance between the belts used for recycling carbon is too small.
(3) The handwriting of the inkjet coding machine is too weak
1. Adjust the printing temperature. 2. Increase printing pressure and air inlet pressure.
(4) The handwriting is too thick or the printed materials are in danger of puncture
1. Lower the printing temperature. 2. Reduce printing pressure and air inlet pressure.
(5) Carbon take away
1. Check whether each ribbon guide is deformed, and then tighten it again. 2. Check the position of each ribbon guide rod and ribbon cassette fixing button.
3. Check the tension of the brake belt of the code printing machine.

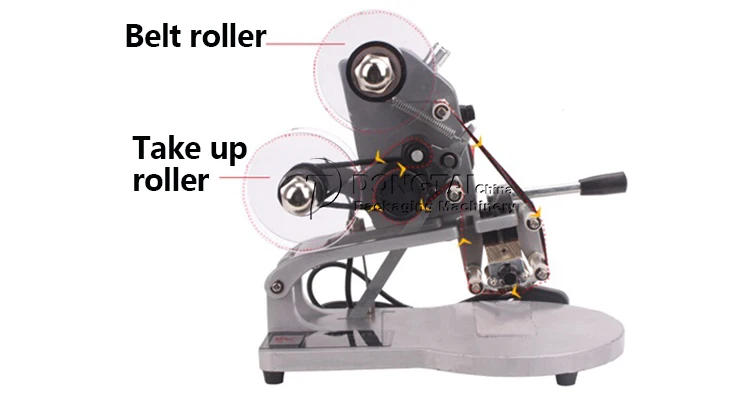

(6) The ribbon is not running
1. Loosen the ribbon brake adjusting screw.
(7) The distance between the batch coding machine regenerated ribbons becomes larger
1. Check if the ribbon is installed correctly. 2. Check whether the adjusting screw of the ribbon travel distance is tightened and positioned.
(1) The code printing machine does not work
1. Check whether the switch of the handheld inkjet coding machine is turned on. 2. Check whether the fuse is blown and the encoder of the encoder is normal.
3. Check whether the wiring of each part is normal. 4. Whether the air inlet and air inlet pipe are connected properly.
(2) The code printing machine can work, but cannot print fonts
1. Adjust printing temperature and printing pressure. 2. Check whether the ribbon is installed incorrectly. 3. Check whether the distance between the belts used for recycling carbon is too small.
(3) The handwriting of the inkjet coding machine is too weak
1. Adjust the printing temperature. 2. Increase printing pressure and air inlet pressure.
(4) The handwriting is too thick or the printed materials are in danger of puncture
1. Lower the printing temperature. 2. Reduce printing pressure and air inlet pressure.
(5) Carbon take away
1. Check whether each ribbon guide is deformed, and then tighten it again. 2. Check the position of each ribbon guide rod and ribbon cassette fixing button.
3. Check the tension of the brake belt of the code printing machine.
(6) The ribbon is not running
1. Loosen the ribbon brake adjusting screw.
(7) The distance between the batch coding machine regenerated ribbons becomes larger
1. Check if the ribbon is installed correctly. 2. Check whether the adjusting screw of the ribbon travel distance is tightened and positioned.
The scope of application of the coding machine: date of manufacture, batch number, expiration date, weight, price, size, origin, ingredients, additives, composition, quality indication, card number, registration number, manufacturer, seller, etc.
Applicable packaging materials for the coding machine:
1. Heat shrinkable trademarks of PT, PE, KT, OPP, CPP, aluminum foil, plastic bags, beverage bottles, various plastic composite films, etc.
2. Paper, plastic paper, leather, cloth, packaging containers, bags, plastic products, plastic shells of electronic components.
Applicable packaging materials for the coding machine:
1. Heat shrinkable trademarks of PT, PE, KT, OPP, CPP, aluminum foil, plastic bags, beverage bottles, various plastic composite films, etc.
2. Paper, plastic paper, leather, cloth, packaging containers, bags, plastic products, plastic shells of electronic components.
The batch coding machine adopts stainless steel three-way rotary valve, 0.75kw stainless steel pipeline pump, D0P-B10S41110.1 inch touch screen.
Related Products
Packing and shipping
Coding machine packaging and transportation:
1. The surface is treated with rust prevention,
2. Inner plastic waterproof packaging,
3. Fix the outer layer with thick wood or steel frame, and then pack it with synthetic board. Combined container transportation, or separate container transportation.
transport:
1. The standard plywood box body has better compressive strength and bearing quality.
2. The board area is small, the soil structure is good, and the leakage and water resistance are good.
3. When imported, the plywood box is free of fumigation, and the operation is simple.
2. Inner plastic waterproof packaging,
3. Fix the outer layer with thick wood or steel frame, and then pack it with synthetic board. Combined container transportation, or separate container transportation.
transport:
1. The standard plywood box body has better compressive strength and bearing quality.
2. The board area is small, the soil structure is good, and the leakage and water resistance are good.
3. When imported, the plywood box is free of fumigation, and the operation is simple.
certifications
Printer certificate:
All of our filling machine is made of superior spare parts,the processing line assembled strictly according to ISO9001 regulation,so our equipment fully in accordance with the GMP&ISO standard production and passed CE certification.
Our Factory
Shandong Dongtai Machinery Manufacturing Co., Ltd. is located at No. 3843, Airport Road, Lingang Street, High-tech Zone, Jinan City, Shandong Province. It has five companies. Shandong Dongtai Machinery Manufacturing Co., Ltd. is a manufacturer of chemical intelligent equipment. The factory covers an area of 100 acres. It covers an area of 10,000 square meters and has more than 150 employees. It has obtained ISO9001 quality system certification, ISO14001 environmental management system certification, CE certification and a number of invention patents. For more than ten years, Shandong Dongtai Machinery Manufacturing Co., Ltd. has continued to innovate and develop and keep pace with the times. Provided several generations of advanced smart packaging equipment for many companies, and established industrial smart factories for customers. The tomato sauce pizza crust filling machine is a high-tech enterprise with nearly 100 production lines. It is a member of the World Trade Center and a member of the national and provincial industry associations. So far, its outstanding performance and perfect after-sales service system have won unanimous praise from users.
We provide engineers with one stop service of on-site measurement, design drawings, installation and training. Tailored to your special filling requirements. We provide one-stop service for engineers, including on-site measurement, design drawings, installation and training. Tailored to your special filling requirements.
Product and exhibition
Our machines are located in many countries around the world, and we have a good reputation and end user satisfaction wherever our machines are located.
Dongtai has established a strategic alliance business relationship with partners all over the world in response to international demand. Its products are sold well in Europe, America, Southeast Asia and other countries and regions, and are received at home and abroad with "excellent quality, excellent service and reasonable price". Customers' favor.
FAQ
Q: When was Dongtai Machinery established?
Answer: It started in 2008 and now has about 12 years of experience in the packaging industry.
Q: Are you a trading company or a manufacturer?
Answer: We are a factory. Decades of manufacturing technology and experience, with various patented technology certifications, CE and ISO certifications, and GMP compliance.
Q: How about this quality?
Answer: Using domestic and foreign well-known brand raw materials, the life span exceeds ten years or even longer. (Correct maintenance) All products have a one-year warranty and lifetime maintenance.
Q: Why choose your company?
Answer: We can provide customized services according to customer requirements. We also have a professional R&D team and a quick response sales team. Strictly control every step of the quality assurance and quality control system process.
Q: Can we arrange technicians for overseas debugging?
Answer: Yes, we can provide services as needed, and we also accept you to arrange technicians to study in our factory before shipment.
Q: How long is your delivery time?
Answer: It started in 2008 and now has about 12 years of experience in the packaging industry.
Q: Are you a trading company or a manufacturer?
Answer: We are a factory. Decades of manufacturing technology and experience, with various patented technology certifications, CE and ISO certifications, and GMP compliance.
Q: How about this quality?
Answer: Using domestic and foreign well-known brand raw materials, the life span exceeds ten years or even longer. (Correct maintenance) All products have a one-year warranty and lifetime maintenance.
Q: Why choose your company?
Answer: We can provide customized services according to customer requirements. We also have a professional R&D team and a quick response sales team. Strictly control every step of the quality assurance and quality control system process.
Q: Can we arrange technicians for overseas debugging?
Answer: Yes, we can provide services as needed, and we also accept you to arrange technicians to study in our factory before shipment.
Q: How long is your delivery time?
Answer: The semi-automatic series is 5-7 days. Fully automatic grade series is 15-30 days. All machines will be stored in standard export wooden boxes and cartons.
