22KW ev charger supply with type 1 or type 2 for electric vehicles

Product Overview

Description

Product information



2020 Hot Sale AC EV Charger Piles for Electric Vehicles

The electric vehicle charging system is a high-performance integrated AC charging system designed by the company. The system uses the world's leading high-frequency switching power supply module, monitors the use of industrial-grade CPU chips, human-machine interface using industrial color touch screen.The product has the advantages of high reliability, high efficiency, high security,high availability, beautiful appearance, and excellent technology.

Main feature:

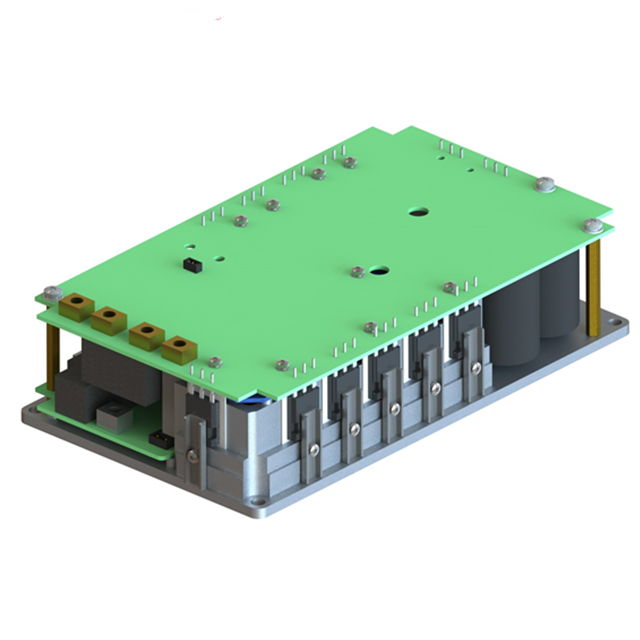

Charging module:
1.Using active power factor compensation technology, rated power factor value of 0.99.
2.With comprehensive soft-switching technology, the rated efficiency is up to 94%.
3.Ultra-low radiation. Advanced electromagnetic compatibility design.
4.The safety specification design complies with UL, CE, NEBS standards.
5.High power density.
6.With output overvoltage hardware protection and output overvoltage software
7.Protection. There are two options for software overvoltage protection: one overvoltage lockout mode and two overvoltage lockout modes.

System:
1.The AC input voltage has a normal operating range of 260Vac to 530Vac.
2.Perfect battery management. With battery low voltage protection, it can realize temperature compensation, automatic voltage regulation, stepless current limiting and other functions.
3.Convenient and simple operation interface, fast maintenance interface
4.Perfect AC side lightning protection design.
5.Complete fault protection and fault alarm function.
6.The system has an insulation fault ground alarm function.
7.Conforms to GBT18487.1-2015, GBT20234.1/2/3-2015, GBT27930-2015

Applications:
This product integrates charger, charging interface, human-computer interaction interface,
communication, billing, etc., for the rapid charging of electric vehicles. Its use of small area,
fast charging time and other characteristics,generally used in various large charging stations,
shopping malls, office buildings and other "instant charge" places.



Technical Parameters:

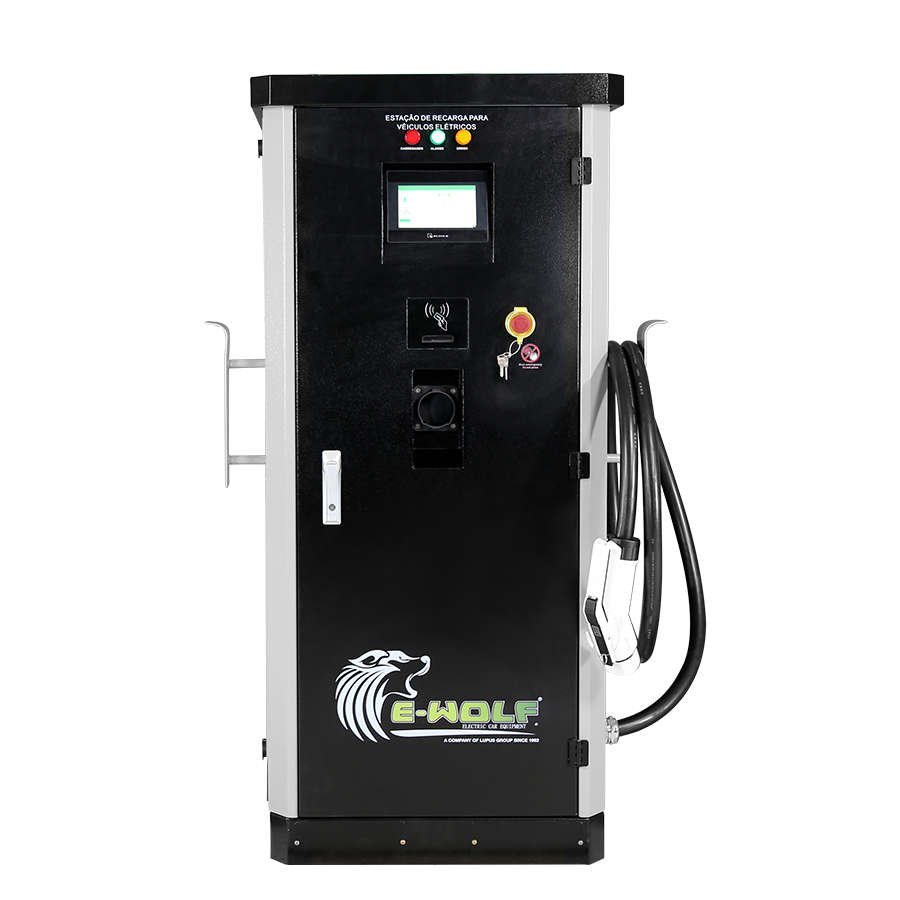

22KW AC Charger with Single nozzle
Structure appearance	Shell Material	Galvanized sheet
	Size	760*350*600(Length*high*width)
	Installation Method	Wall-mounted / Floor-standing
	Route way	Under the line,under the qualifying
	Charging interface	1 piece Type 1 / 2
	Cable length	4 / 5 meters
Enviromental indicator	Applicable Scene	Indoor/Outdoor
	Operation temperature	-35ºC~+55ºC (-20ºC~+35ºC,heating required)
	Storage temperature	-40ºC~+70ºC
	Operating humidity	≤95% non-comdensing
	Altitude	Up to 2000m
	Degree of protection	IP55,IK10
	Cooling method	Strong exhaust air cooling
	Acoustic noise	<55dB
Electrical indicators	Input voltage	400Vac ± 10%
	Output voltage	AC 400V
	Steady flow accuracy	≤ ± 0.5%
	Rated power	22KW
	Average current imbalance	≤ ± 0.3
Features	Safety indicator	Short circuit,over voltage,over current,leakage,over temperature,lighting protection.Ground insulation monitoring.
	Protective measures	Moisture,moid,saly spray,dust, water,sun,wind,anti-theft and so on
	Fractional fees	Peak sub-billing and charging service chargers,consumer transparency
	Human-computer interaction	LED indicator+touch screen
	Payment method	ID card payment
	Communication Interface	Etherbet/Infrared Remote Command, Wireless Remote Command,Wifi,4G
	Other	Single shot uniform charge, double nozzle quick charge
		Emergency stop button,remote upgrade, background monitoring



Product Details

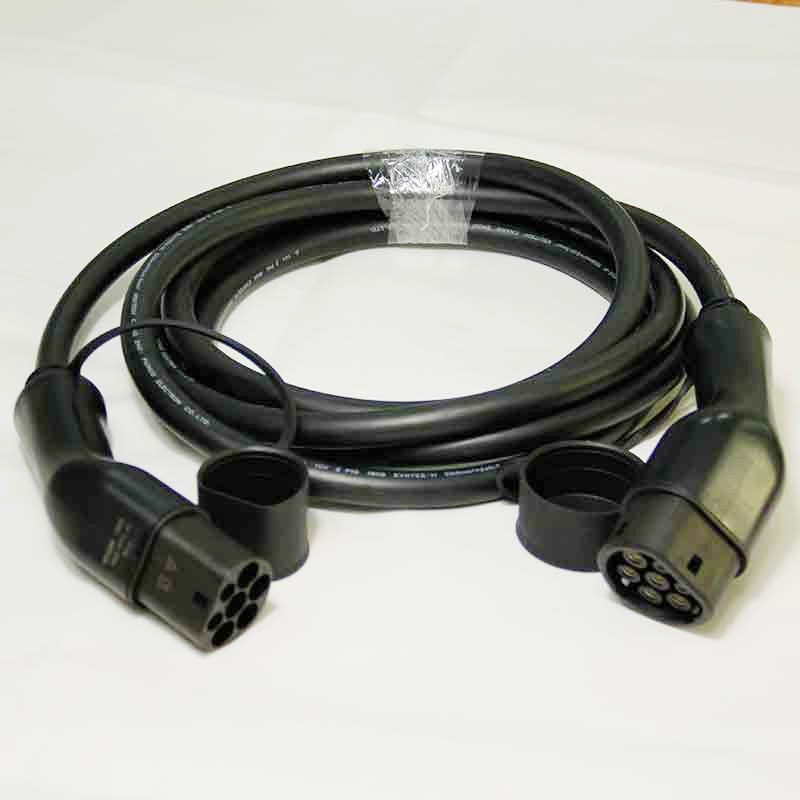

AC Type2 connector

Features
A. Meet 62196-2 IEC 2010 SHEET 2-IIe standard
B. Excellent protection performance, protection level IP54(working condition)
C. Mechanical life: No-load plug in/pull out>5000 times
D. Coupled insertion force: >45n<80n
E. Impat of external fore: Can afford 1m drop and 2t vehicle run over pressure
F. Operation temperature: -30℃ ~ +50℃
G. Case material: Thermoplastic, flame retardant grade UI 94 V-0
H. Contact bush: Copper alloy, silver plating
I. Rated current: 63A
J. Operation voltage: 415V
K. Insulation resistance: >1000mω(DC500V)
L. Terminal temperature rise: <50K
M. Withstand voltage: 2000V
N. Contact resistance: 0.5mω max

Contact Information

Kris Wang

WhatsApp/phone:+8618815010920

WeChat:+8618957652263

www.cnevcharger.com

Tommy Hu

WhatsApp:+8613736915467

www.cnevcharger.com



Packageing&Shipping

Standard Wooden and Carton Box Package.

Two modes of transportation: sea and air.



Company Information

Our Services

Warranty 12 months Free remote technical guidance

All painting body with custom logo

FAQ

1- Are you Factory ?                              Yes

2- Can you use my logo and brand?                Yes
3- Can we visit your factory?                       Yes
4- Do you have after sale service?                  Yes
