4-5T Excavator Hydraulic Metal Scrap Metal Cutting Machine
- Category: >>>
- Supplier: Changzhou,Raymond,International,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Rotation scrap shear can be used in all industrial demolition sites for the cutting and recovery of ferrous materials such as iron sections, pipes, tanks, railway carriages etc. that later may be easily recycled.
1.New Pearcing Tip: Bolted blades on piecrcing tip for fast Replacement.Eliminates time consuming rebuilding of the tip.
2.Double Guide: Twin guide for the movable jaw,ensures perfect alignment.
3.Frontal Blade: The front blade ensure accurate shearing with the tip and can be turned.
4.New Jaw design: New fixed jaw design increase cutting capacity,material is eased to fall away easily.
5.All New Blades: All the blades have been redesigned in a rhomboid shape to reduce stress on the jaw.Each blade can be turned effectively 3 times.The new blade are threaded for easier removal and installation.
6.Central Pin Adjustment Kit: Mantovanibenne have a unique central pivot pin layout. This allows for regular adjustment of the pin to ensure perfect shearing. While fully protected the pin can be removed for maintenance of all related parts.
7.Special Speed Valve: Reduced cycle times Regenerating power when required.Protection for the shear eliminating pressure peaks.
8.Rotating Group with Anticavitation Valve: 360° continuous rotation. Always the best positioning of the shear.
9.All New Cylinders: Increased cylinder size for 20% more power. Forged cylinder rod for a better functionality and
security.Reversed cylinder installation for full rod protection.
10.Unique total shear greasing system: ensuring all moving parts are regularly greased.
2.Double Guide: Twin guide for the movable jaw,ensures perfect alignment.
3.Frontal Blade: The front blade ensure accurate shearing with the tip and can be turned.
4.New Jaw design: New fixed jaw design increase cutting capacity,material is eased to fall away easily.
5.All New Blades: All the blades have been redesigned in a rhomboid shape to reduce stress on the jaw.Each blade can be turned effectively 3 times.The new blade are threaded for easier removal and installation.
6.Central Pin Adjustment Kit: Mantovanibenne have a unique central pivot pin layout. This allows for regular adjustment of the pin to ensure perfect shearing. While fully protected the pin can be removed for maintenance of all related parts.
7.Special Speed Valve: Reduced cycle times Regenerating power when required.Protection for the shear eliminating pressure peaks.
8.Rotating Group with Anticavitation Valve: 360° continuous rotation. Always the best positioning of the shear.
9.All New Cylinders: Increased cylinder size for 20% more power. Forged cylinder rod for a better functionality and
security.Reversed cylinder installation for full rod protection.
10.Unique total shear greasing system: ensuring all moving parts are regularly greased.
Specification

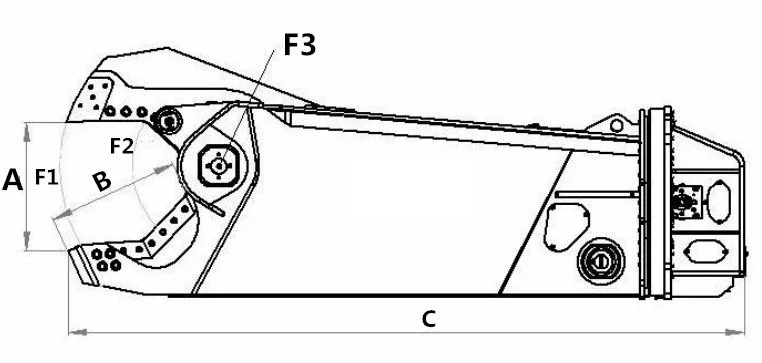

Model | Unit | SH25 | SH130R | SH180R | SH310R | SH410R | SH550R |
Suitable Carrier | T | 4-5 | 13-17 | 18-27 | 28-37 | 38-50 | 50-60 |
Jaw Opening (A) | mm | 195 | 375 | 445 | 565 | 670 | 760 |
Jaw Depth(B) | mm | 200 | 395 | 525 | 630 | 720 | 780 |
Length(C) | mm | 1350 | 2100 | 2700 | 3300 | 3700 | 3950 |
Tool Weight | Kg | 380 | 1220 | 2100 | 3300 | 4700 | 5750 |
Speed Valve | N | Y | Y | Y | Y | Y | Y |
Interchangeable Spare Parts | Y | Y | Y | Y | Y | Y | Y |

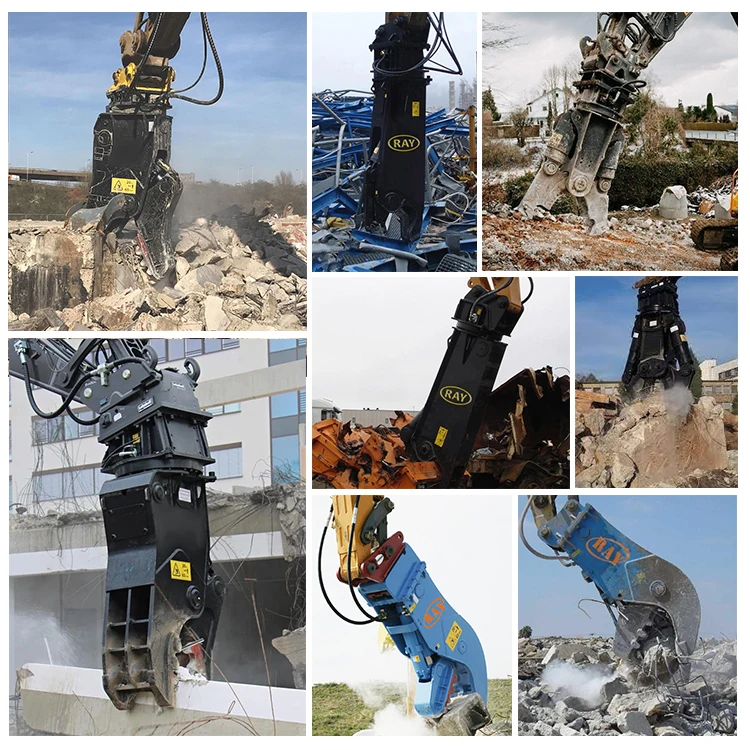

Details Images
Company Profile
RAY ATTACHMENTS includes Changzhou Raymond International Trading Company and Changzhou Raymond Precision Machinery Co.,Ltd. It is a Integrated Company dedicated to production, research and development and sales of construction machinery attachments.with 17 years experience. The main products include earth auger, quick hitch, hydraulic breaker, vibro ripper and other heavy duty equipment. Our company covers an area of more than 20000 square meters and has more than 150 employees, including professional R & D teams and Sales Department. Welcome to visit!
Everybody loves raymond
Exhibition
2014 BAUMA China
2015 CTT in Moscow
2016 CTT in Moscow
2016 BAUMA China
2017 CTT in Moscow
2018 CTT in Moscow
2018 BAUMA China
2019 CTT in Moscow
2019 Mining Indonesia
FAQ
1. Are you manufacturer?
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.
2. Do you have warranty?
Yes.RAY Hydraulic Shear has 12 months warranty.
Warranty starts from the time you receive the machines, not include production and shipping time.
Within warranty, all parts are offered for free. Exceed warranty, all parts are offered at cost prices.
3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.
2. Do you have warranty?
Yes.RAY Hydraulic Shear has 12 months warranty.
Warranty starts from the time you receive the machines, not include production and shipping time.
Within warranty, all parts are offered for free. Exceed warranty, all parts are offered at cost prices.
3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
If any other query, please do not hesitate to send me an inquiry. I will feedback asap.
