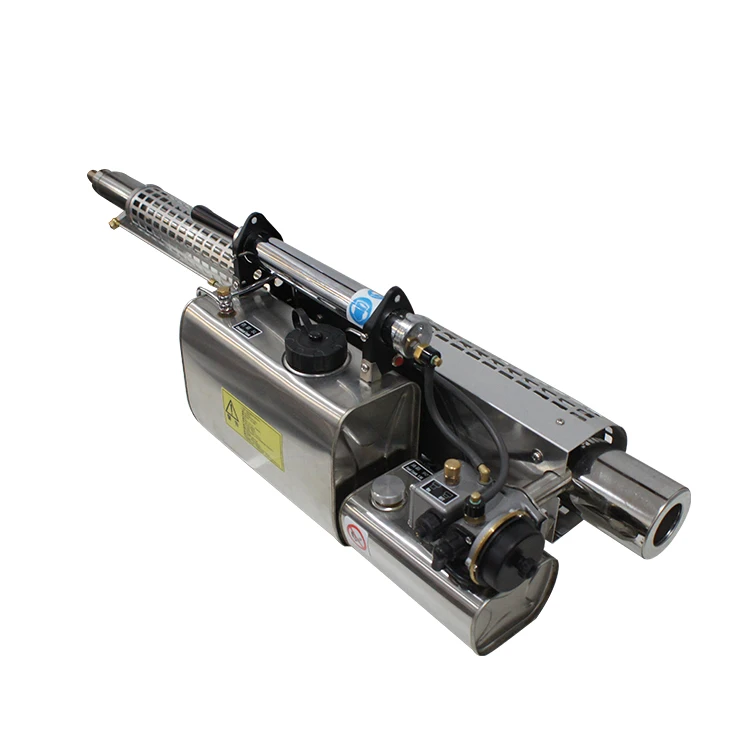

TS 35A Handheld Electric Ulv Cold Fogger thermal fogging machine Portable Thermal Fog Generator

Note
Forbid spray strong corrosive chemicals, such as peroxyacetic acid, if spray occasionally, use clean water clean chemicals tank, then, start up machine spray clean water for clean inside chemicals pipeline.
Announcement
Due to product development and improvement, in future, if the user’s manual has any change, we are sorry will not inform additionally.

Thanks for choosing us, the machine is a powerful high-tech product with super quality and excellent stable performance.
For better operation, maintenance, before using, please study the user’s manual carefully.

WARNING

Do not use nearby flammable or explosible place.
When fill petrol or solution,
Make sure the unit is cooled.
Forbid smoking, flame.
Wear ear protectors when operation.
When spraying,
Do not spray fog if the unit not running normally.
Do not spray to people or livestock.
When operation, forbid touch high temperature parts of the machine, such as fogging tube.
While the unit hot,
Do not transport in closed vehicles.
Do not packing.
When working in closed place,
Operator should wear breathing mask.
Do not leave the unit working alone unattended.
Please note the maximum spraying quantity, do not excess the limit.

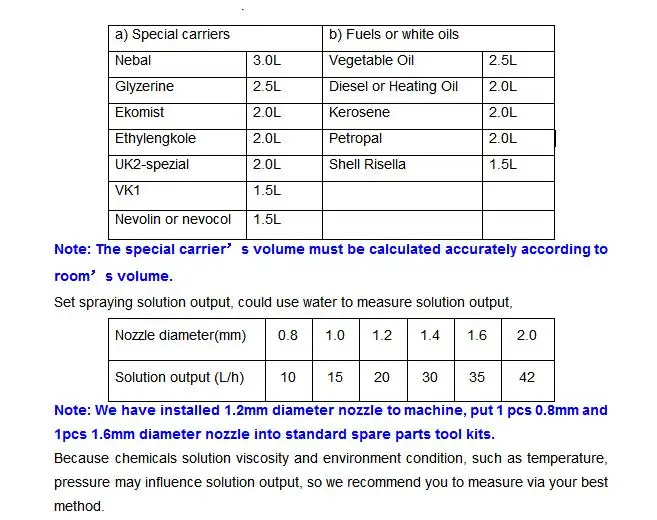

For indoor operation: If the concentrations of some special carriers which have been dispersed as aerosols exceed certain amounts, could incur fire, so the dosage of these combustible materials if used as fogging formulations should not exceed the following maximum concentrations limit per 1,000.00 CBM.

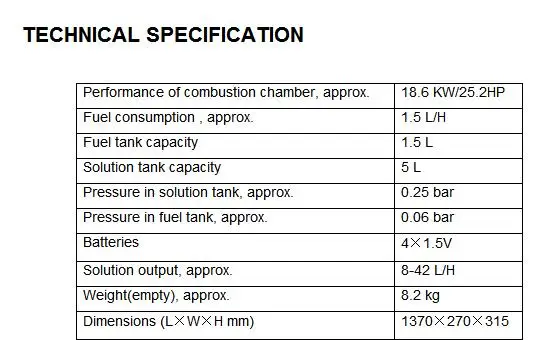

1. The aforesaid technical specification may change when working under different altitudes and temperature condition.
2. Please use #90 gasoline, or any other type regular gasoline or petrol will be ok.
INSTALL Fogging Tube Adapter
When we packing machine, for reduce shipping carton length, we have disassembled fogging tube adapter, check packing carton to find it, then install to fogging tube mouth as below, use lock spring coil to fasten fix it.
Note: Please must install Fogging Tube Adapter, it will help form convective air, to lower temperature, to extend life span.

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
