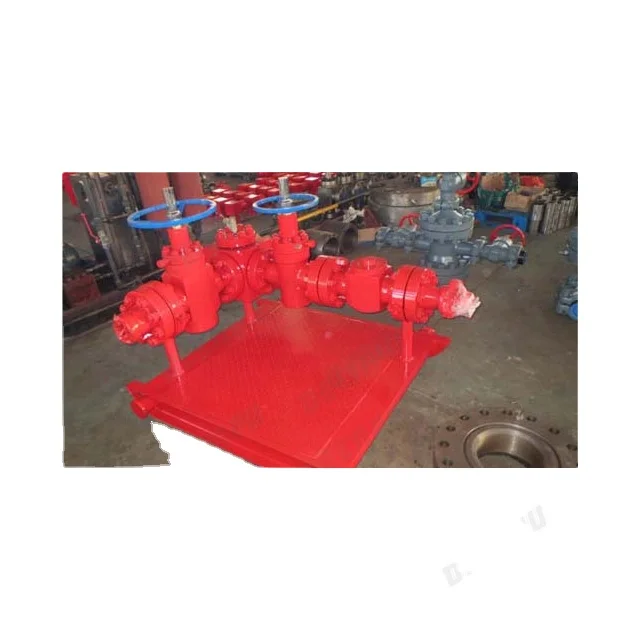

Choke manifold /kill manifold API mud hydraulic choke manifold
- Category: Hydraulic Parts >>>
- Supplier: Jiangsu Deenpu Petrochemical Machinery Co. Ltd.
Share on (1600158236019):
Product Overview
Description
Products Description
The choke and kill manifold (api choke manifold)is a necessary device for successful control on well kick and implementation of oil and gas well
pressure control technologies. It is designed, manufactured and inspected in accordance with API Spec. 16C.
Hydraulic choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges and other components. It is adopted to execute new drilling-well’s technique of balance pressure, which can avoid pollution of oil-layer, improve the speed of drilling and control blowout effectively. One end of the device connects with the side flange of BOP spool. When BOP closes, it can control the finite pressure from casing by adjusting the choke valve’s opening, so balanced drilling can work under minimum
pressure-difference.
Kill manifold consists of check valves, gate valves, line pipes, pressure gauges. In case of increase in well head pressure, the kill manifold can provide a means of pumping heavy drilling fluid into the well to balance bottom hole pressure so that well kick
and blowout can be prevented. In this case, by using blow down lines connected to the kill manifold, the increasing well head
pressure also can be released directly for bottom hole pressure release. or water and extinguishing agent can be injected into the
well by means of kill manifold.
pressure control technologies. It is designed, manufactured and inspected in accordance with API Spec. 16C.
Hydraulic choke manifold consists of choke valves, gate valves, line pipes, fittings, pressure gauges and other components. It is adopted to execute new drilling-well’s technique of balance pressure, which can avoid pollution of oil-layer, improve the speed of drilling and control blowout effectively. One end of the device connects with the side flange of BOP spool. When BOP closes, it can control the finite pressure from casing by adjusting the choke valve’s opening, so balanced drilling can work under minimum
pressure-difference.
Kill manifold consists of check valves, gate valves, line pipes, pressure gauges. In case of increase in well head pressure, the kill manifold can provide a means of pumping heavy drilling fluid into the well to balance bottom hole pressure so that well kick
and blowout can be prevented. In this case, by using blow down lines connected to the kill manifold, the increasing well head
pressure also can be released directly for bottom hole pressure release. or water and extinguishing agent can be injected into the
well by means of kill manifold.
Product Paramenters
Item Name | Choke Manifold | ||||||
Model | JG-35 | JG-35 | JG-70 | JG-105 | |||
Main path and Side path in(mm) | 3 1/8×2 1/16(80×52) 4 1/16×2 9/16(103×65) 4 1/16×3 1/16(103×78) | ||||||
Working Pressure psi (mpa) | 3000(21) | 3000(21) | |||||
5000(35) | 10000(70) | ||||||
Working Temperature ℃ (°F) | P.U -29~121 (-20~250) | ||||||
Working medium | Mud Gas(sulfur-hydrogen) | ||||||
Material grade | EE-FF | ||||||
Item Name | Kill Manifold | ||||
Model | YG-35 | YG-70 | YG-105 | ||
Main path and Side path in(mm) | 3 1/8×2 1/16(80×52) 4 1/16×2 9/16(103×65) 4 1/16×3 1/16(103×78) | ||||
Working Pressure psi(mpa) | 5000(35) | 10000(70) | 15000(105) | ||
Working Temperature°C(°F) | P.U -29~121 (-20~250) | ||||
Working medium | Mud Gas(sulfur-hydrogen) | ||||
Material grade | EE-FF | ||||

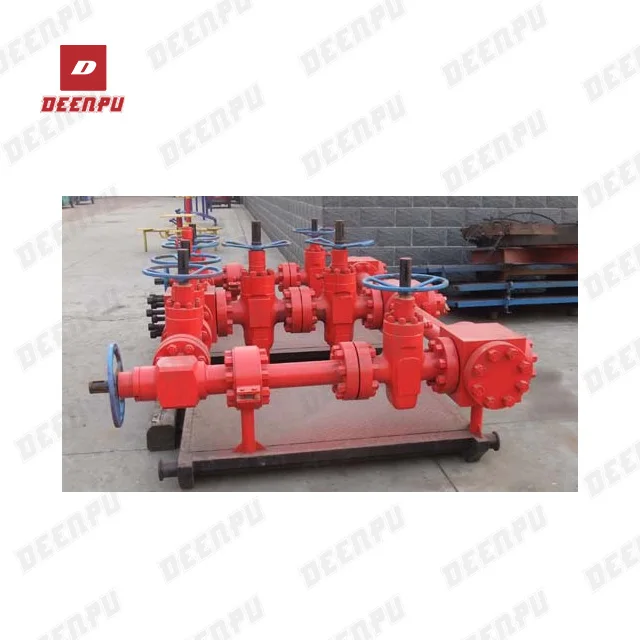

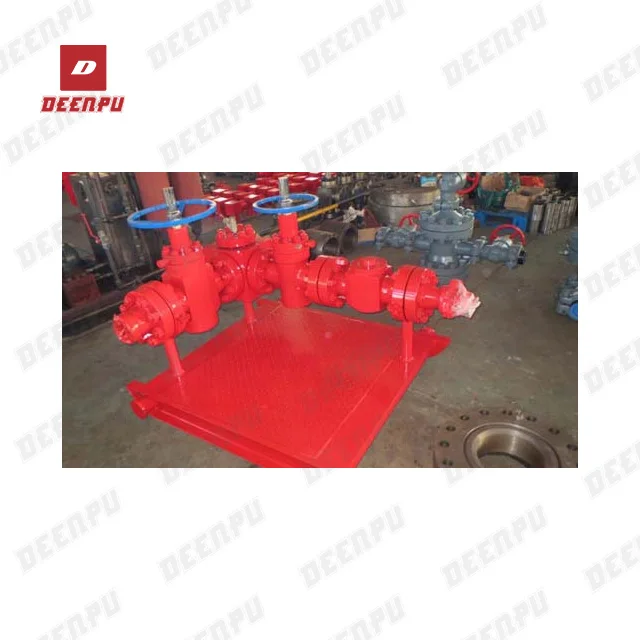

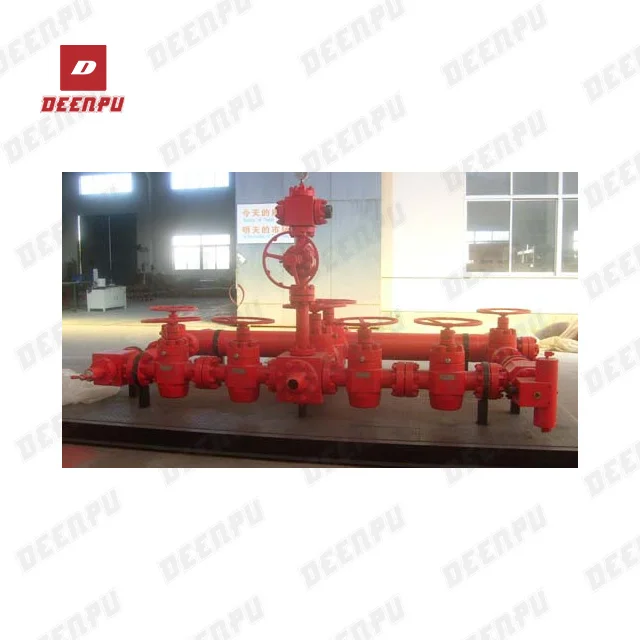

Details Images
Company Profile
COMPANY INTRODUCTION:
Jiangsu Deenpu Petrochemical Machinery Co.,Ltd is located in China Petroleum equipment manufacturing base in yan cheng city private industrial park, Jiangsu. Major Products: blowout preventer and accessories; Choke and kill manifold; Choke and Kill Hose; Control Panel; Wellhead & Christmas Tree; Valves; Test Pump; Bop Control Unit ; Union/ Swivel Joint/ Fitting; Flange; Spool; Packing element; etc
Manufacturing Technique
Organized Machine Process
Advanced Automatic Machine Process
Qualified Finial Shipment Process
