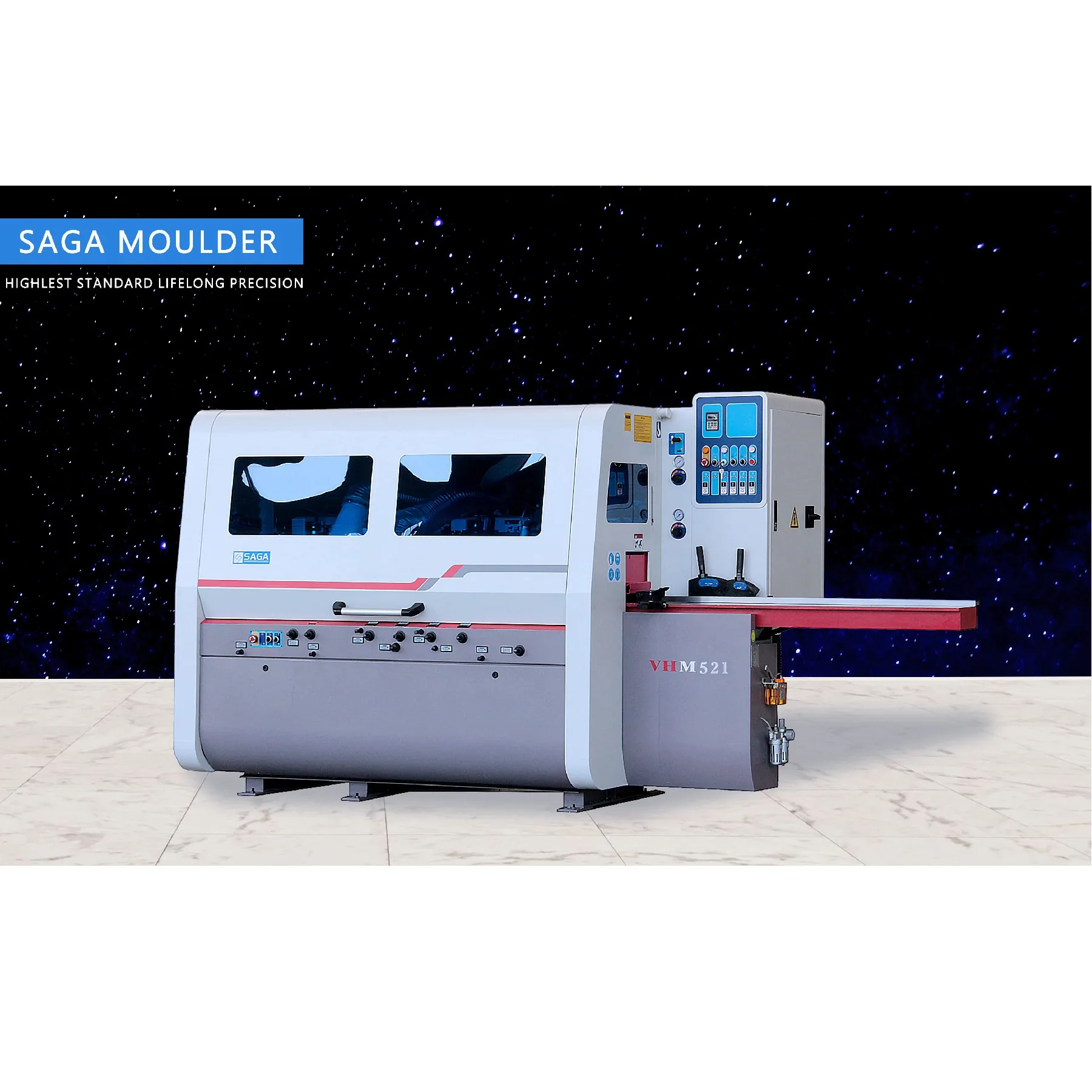

SAGA European standard CE Certified wood planer machine M521 5 spindles 210mm working length wood four side moulder machine
- Category: >>>
- Supplier: Foshan Saga Machinery Co. Ltd.
Share on (1600158366125):
Product Overview
Description
Product Description
M521HEAVT DUTY HGIH PRECISION-Top spindle
SAGA four side moulder is well know as the highest quality life long use and highest precision, if you want a robust heavy duty moulder, SAGA is a wise choice, with whole cast iron body, precise processing and apply premium installation spare, you can expect a perfect moulding finish effect which makes your wood products competitive, what you are interest is a solid heavy duty machine which is running quiet, stable, safe and high precision.
SOLID CAST IRON BODY
What is behind a life long use stable moulder
Solid cast iron with a ageing treatment is key point why SAGA moulder works so stable and
effectively avoid and vibration under heavy duty moulding, all is for a life-long machine.
To avoid any processing error, we process the 3 surface at one cycle, this is reason why SAGA
Moulder gives you a so precise moulding.
Solid cast iron with a ageing treatment is key point why SAGA moulder works so stable and
effectively avoid and vibration under heavy duty moulding, all is for a life-long machine.
To avoid any processing error, we process the 3 surface at one cycle, this is reason why SAGA
Moulder gives you a so precise moulding.
MODEL | M521S | ||
MACHINE PARAMETERS | Working width (mm) | 25-180 | |
Working thickness (mm) | 8-140 | ||
In-feed-table length (mm) | 1970 | ||
Feeding speed (m/min) | 8-36 | ||
Spindle diameter (mm) | φ40 | ||
Spindle revolution speed(r/min) | 6500 | ||
Air pressure (Mpa) | 0.6 | ||
MOTOR POWER(KW) | 1st Bottom spindle | 5.5kw/7.5HP | |
MOTOR POWER(KW) | Right vertical spindle | 5.5kw/7.5HP | |
Left vertical spindle | 5.5kw/7.5HP | ||
1st Top spindle | 7.5kw/10HP | ||
2nd top spindle | 5.5kw/7.5HP | ||
Feeding beam lifting | 0.75kw/1HP | ||
Feeding motor | 4kw/5.5HP (frequency conversion) | ||
Total power | 34.25kw/46.51HP | ||
SPINDLE DIAMETER(MM) | 1st Bottom spindle | φ125 | |
Right vertical spindle | φ125-φ180 | ||
Left vertical spindle | φ125-φ180 | ||
1st Top spindle | φ125-φ180 | ||
2nd top spindle | φ125-φ200mm | ||
REMARK | Feeding wheel diameter(mm) | φ140 | |
Dust outlet diameter(mm) | φ140 | ||
Overall diameter(mm) | 3490*1620*1860mm | ||
Weight(kg) | 2850 | ||
Other models
MODEL | M516 | M518 | ||
MACHINE PARAMETERS | Working width (mm) | 25-160 | 25-180 | |
Working thickness (mm) | 8-120 | 8-130 | ||
In-feed-table length (mm) | 1500 | 1500 | ||
Feeding speed (m/min) | 6-36 | 6-36 | ||
Spindle diameter (mm) | φ40 | φ40 | ||
Spindle revolution speed(r/min) | 6500 | 6500 | ||
Air pressure (Mpa) | 0.6 | 0.6 | ||
MOTOR POWER(KW) | 1st Bottom spindle | 4kw/5.5HP | 4kw/5.5HP | |
MOTOR POWER(KW) | Right vertical spindle | 4kw/5.5HP | 4kw/5.5HP | |
Left vertical spindle | 4kw/5.5HP | 4kw/5.5HP | ||
1st Top spindle | 5.5kw/7.5HP | 5.5kw/7.5HP | ||
2st Bottom spindle | 4kw/5.5HP | 4kw/5.5HP | ||
Feeding beam lifting | 0.55kw/0.75HP | 0.55kw/0.75HP | ||
Feeding motor | 3kw/4HP(Frequency conversion) | 3kw/4HP(Frequency conversion) | ||
Total power | 25.05kw/34HP | 25.05kw/34HP | ||
SPINDLE DIAMETER(MM) | 1st Bottom spindle | φ125 | φ125 | |
Right vertical spindle | φ125-φ160 | φ125-φ160 | ||
Left vertical spindle | φ125-φ160 | φ125-φ160 | ||
1st Top spindle | φ125-φ160 | φ125-φ160 | ||
2nd Bottom spindle | φ125-φ180mm | φ125-φ180mm | ||
REMARK | Feeding wheel diameter(mm) | φ140 | φ140 | |
Dust outlet diameter(mm) | φ140 | φ140 | ||
Overall diameter(mm) | L3170*W1400*H1680 | L3170*W1400*H1680 | ||
Weight(kg) | 2270 | 2270 | ||
MODEL | M521 | M523 | ||
MACHINE PARAMETERS | Working width (mm) | 25-180 | 25-230 | |
Working thickness (mm) | 8-140 | 8-160 | ||
In-feed-table length (mm) | 1970 | 1970 | ||
Feeding speed (m/min) | 8-36 | 8-36 | ||
Spindle diameter (mm) | φ40 | φ40 | ||
Spindle revolution speed(r/min) | 6500 | 6500 | ||
Air pressure (Mpa) | 0.6 | 0.6 | ||
MOTOR POWER(KW) | 1st Bottom spindle | 5.5kw/7.5HP | 7.5kw/10HP | |
MOTOR POWER(KW) | Right vertical spindle | 5.5kw/7.5HP | 7.5kw/10HP | |
Left vertical spindle | 5.5kw/7.5HP | 7.5kw/10HP | ||
1st Top spindle | 7.5kw/10HP | 11kw/15HP | ||
2nd bottom spindle | 5.5kw/7.5HP | 7.5kw/10HP | ||
Feeding beam lifting | 0.75kw/1HP | 0.55kw/0.75HP | ||
Feeding motor | 4kw/5.5HP (frequency conversion) | 5.5kw/7.5HP (frequency conversion) | ||
Total power | 34.25kw/46.51HP | 47.05kw/63.93HP | ||
SPINDLE DIAMETER(MM) | 1st Bottom spindle | φ125 | φ125 | |
Right vertical spindle | φ125-φ180 | φ125-φ180 | ||
Left vertical spindle | φ125-φ180 | φ125-φ180 | ||
1st Top spindle | φ125-φ180 | φ125-φ180 | ||
2nd Bottom spindle | φ125-φ200mm | φ125-φ200mm | ||
REMARK | Feeding wheel diameter(mm) | φ140 | φ140 | |
Dust outlet diameter(mm) | φ140 | φ140 | ||
Overall diameter(mm) | 3490*1620*1860mm | 3490*1620*1860mm | ||
Weight(kg) | 2850 | 3100 | ||

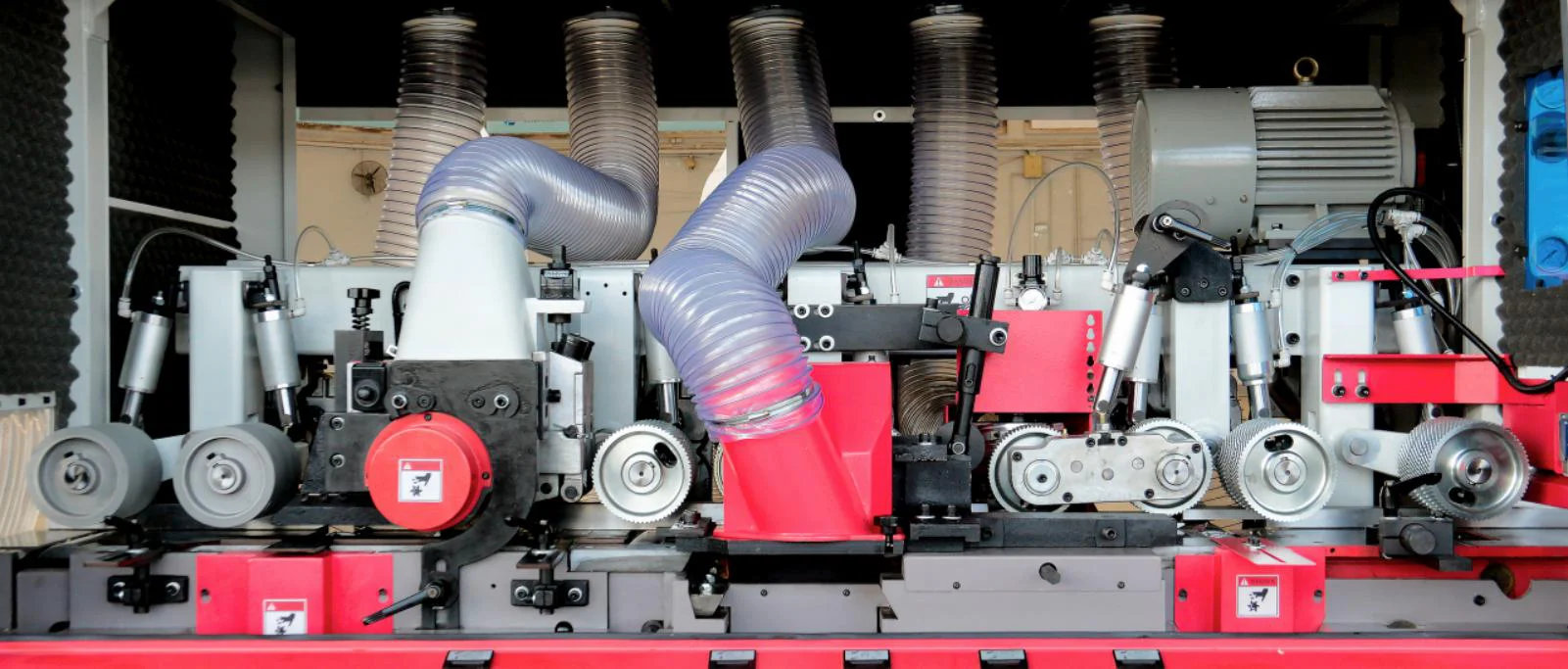

Detailed Images
Top spindle tail clock system(optional) Effectively avoid vibration for big width moulding, this is a patent tech of SAGA moulder
Short material feeding system(standard) is very useful for short material feeding to make moulding more stable
Hard chrome mirror effect feeding table not only unti-rust, but also for a smooth feeding
Silicon rubber roller after the final bottom spindle to well protect finish moulding products
All control is logic design and in a hand reach to use with stop or start of each spindle,feeding speed adjusting, lift or lower of pressure wheels
This moulder got CE approval, all electric spare parts are from Europe with very strict
protection
protection
Tuning of each spindle is all on the front, even there is a quick pressure roller low or raise button and emergence button for easy tuning.
You can easily seen the thickness adjustment of pressure wheel for feeding when you change
feeding thickness
feeding thickness
Urgent stop switch if you feeding a over thickness material, safe and protect the machine
Whole machine inside is cover with noise consumption foam to give you a very quit working
condition
condition
There is a light with in the machine, when you do tuning at dark condition, it will be very friendly useful
The lubrication plant makes your machine running all lubricated and ensure a life long use of all mechanical spare
All professional tools for tuning including various thickens spacers, specialized spanner and precision ruler in standard fitting
Factory&equipments
Standard bulk production
* Professional workers for assembling.
* Strict quality control &management.
* More than 20 years experience on 1 products .

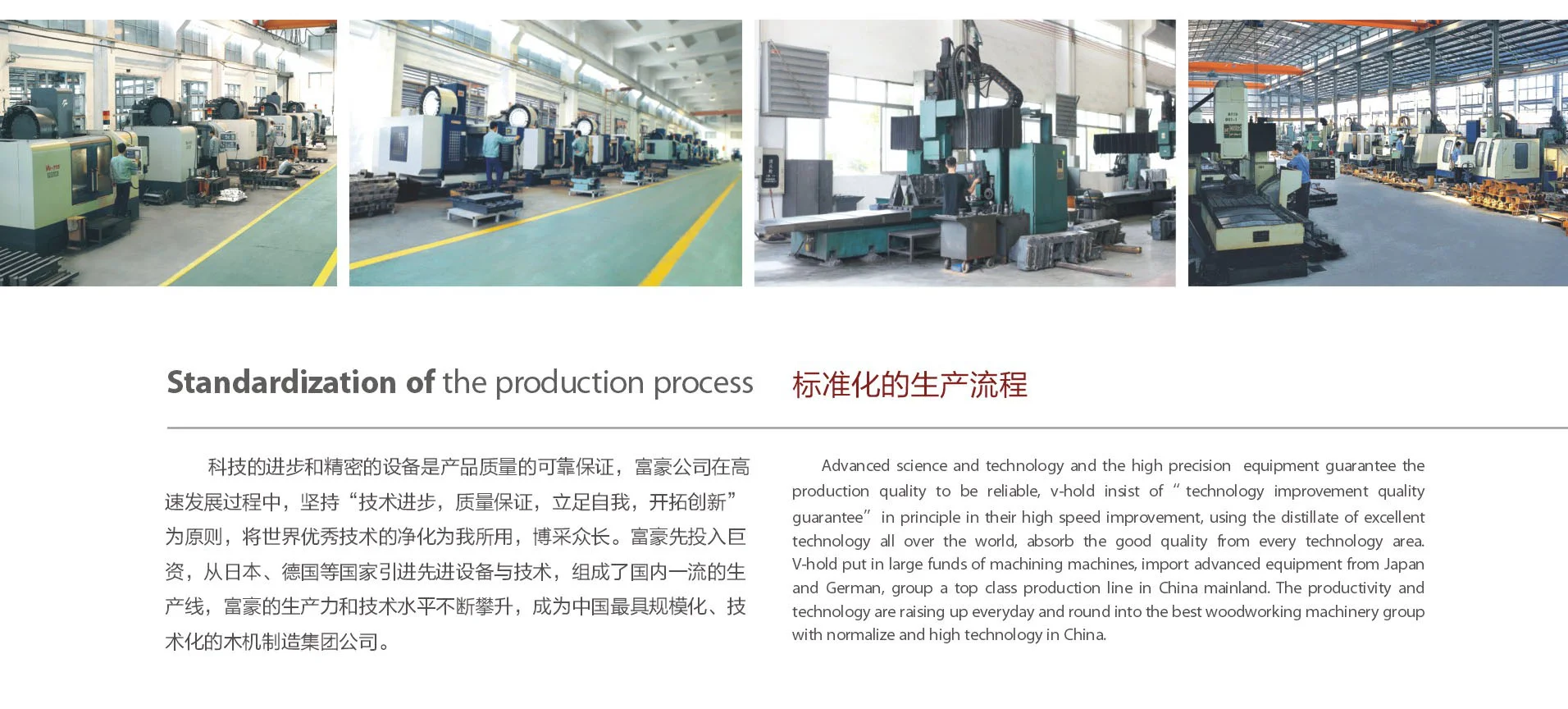

Professional equipment
* Heavy duty metal milling machine.
* Precise metal process machine from Japan.
About Us
Packing & Delivery
Certifications
Related Products
Products Name with link
91.8% Response Rate
91.8% Response Rate
91.8% Response Rate
FAQ
1.What is your price term and payment term?
We offer FOB, CIF, CNF EXW price, we accept TT/LC or other negotiate.
In stock: 100% payment Not in stock: 30-40% deposit for confirm the order, rest is paid before shipment, some customized machine may need 50% deposit.
2.How long for delivery?
Some standard machine or commercial machine, always in stock, for high value machine or customized machine, may takes 30-40days production.
3.After sale and warranty?
Most machine got 1 year warranty except some consumption spare, all spare within warranty period is free for change, in the condition that machine is running according to the manual book(saga got rights for explain).
4.Installation for complex machine
We have 20 years of experience for installation all over the world for big and complex machine, customer response for food and living as well as transport, some area may be served by our agent. For commercial machine, we will do our best to offer installation guiding video.
5.Free spare parts for change
Most of our machine use international standard, especially electric spare parts, if not, we offer free spare parts to avoid any urgent condition to minimize risk of downtime.
6.Safety for the machine and packing
We have mature experience for sea transport packing, for some irregular shape machine, we will do special fix and tight on container to avoid any risk of any broken.
