Large/heavy/40L-60L payload agriculture drone sprayer
US $40000-$50000
Agras t30 gyrocopter agriculture spraying drone helicopter dron fumigador for crops
- Category: Aircraft >>>
- Supplier: Shenzhen,Top-Peak,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Specifications

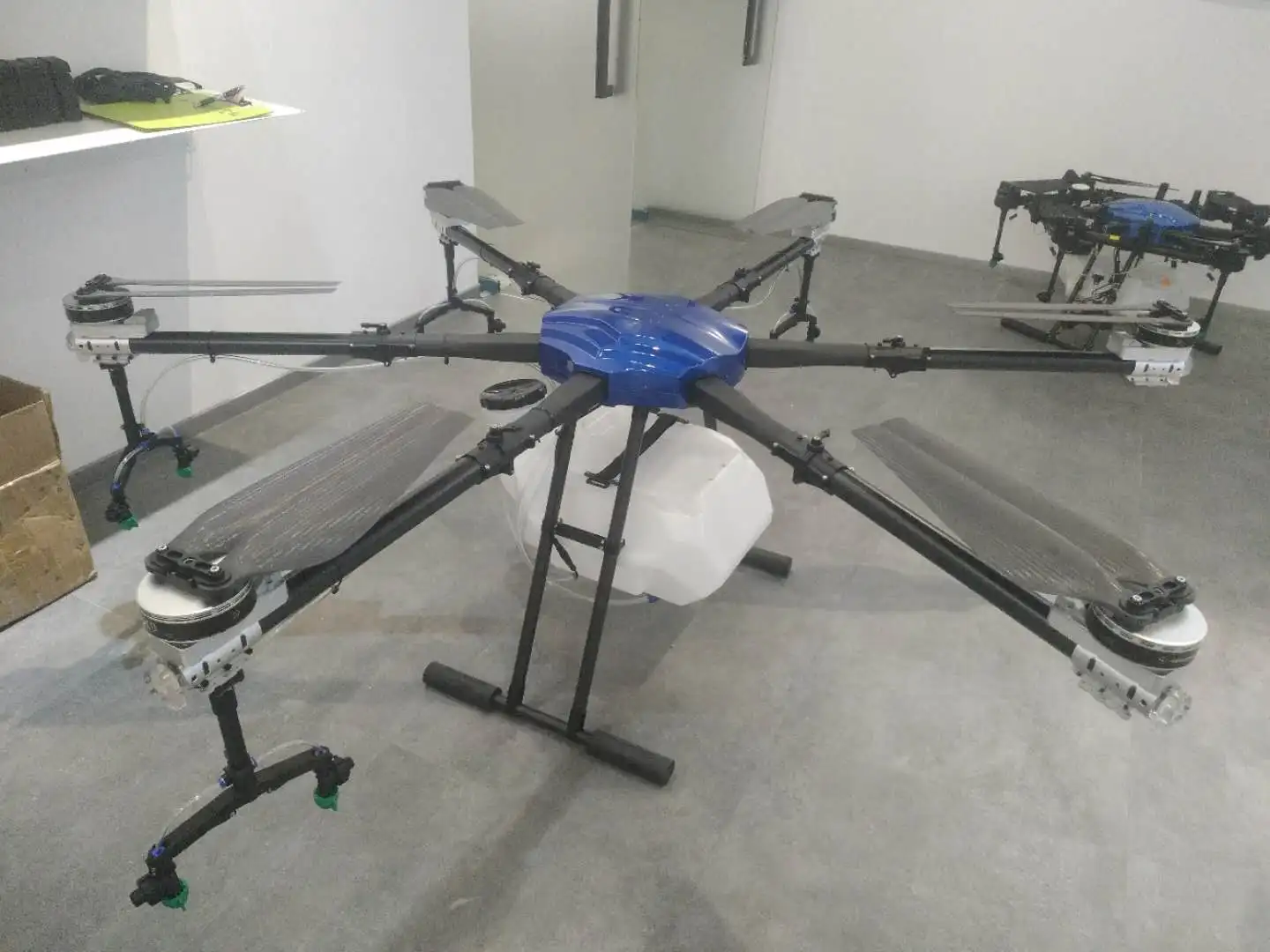

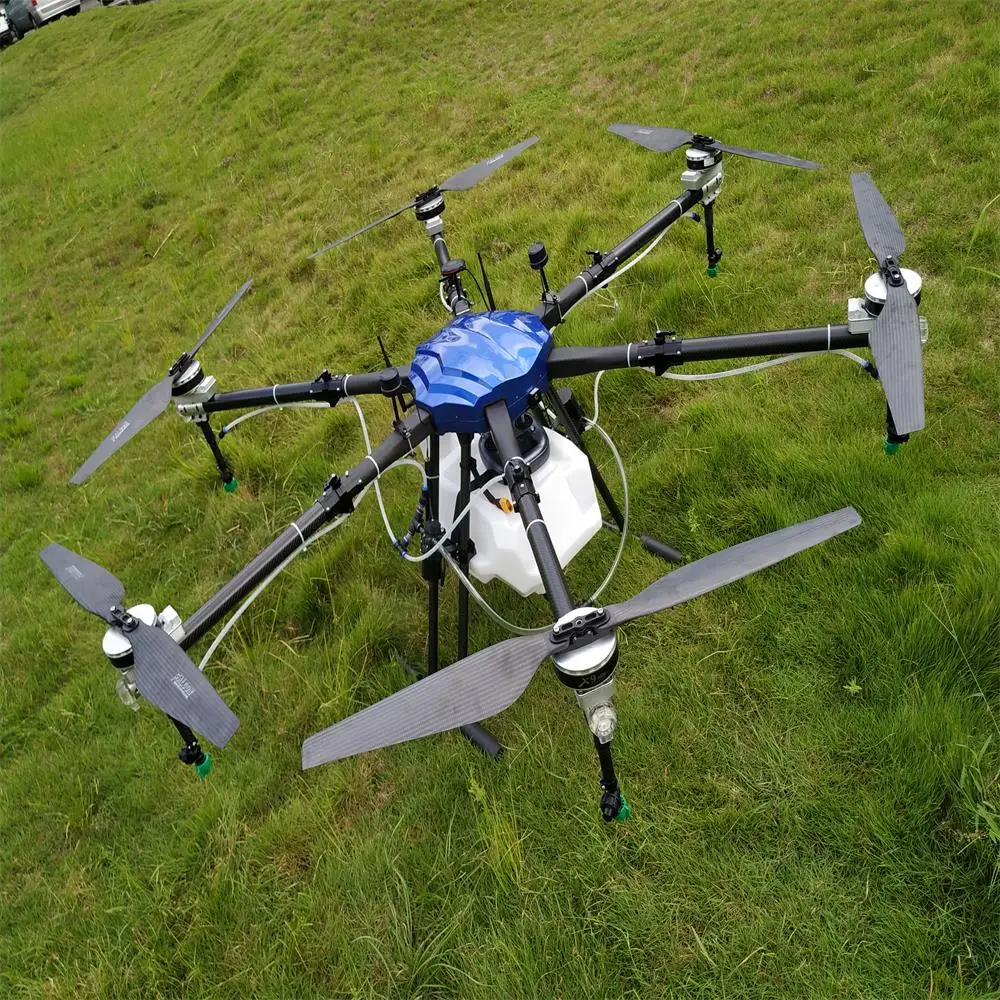

Agras t30 gyrocopter agriculture spraying drone helicopter dron fumigador for crops
| Aircraft Frame | |
| motor quantity | 12 |
| symmertrical motor wheelbase | 1860mm |
| spreaded size | 2000*2000*790mm |
| folded size | 1200*1100*790mm |
| Spray system | |
| tank volume | 25L |
| nozzle model | XR110015VS |
| nozzle quantity | 8 nozzles |
| spray flow rate | 1.8-2.6L/min |
| spray width | 4-6m |
| atomized particle | 130-250um |
| Flight parameters | |
| whole uav weight (without battery) | 18.25kg |
| max take-off weight | 63kg |
| full load flight time | 10 min |
| no-load flight time | 25min |
| max flight speed | 10m/s |
| recommended flight temperature | 0-50°C |
| efficiency | 10-10.5 hectares/hour |

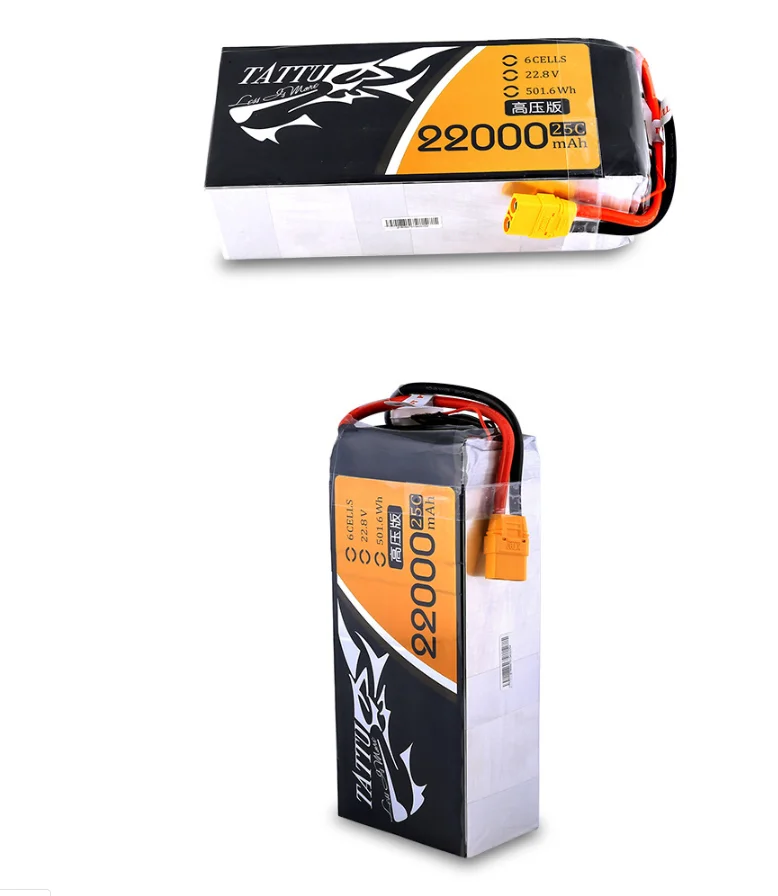

| Battery | |
| voltage | 51.8V (standard) |
| capacity | TATTU 22000 mAh 14S 25C |
| charing time | 20-25mins |
| battery life | 300-500 time |
| size | 174*117*238mm |
| weight | 7.5kg |
| Charger | |
| model | Ev-Peak U6Q |
| out put power | 2400W |
| channel number | four-channel |
| size | 303*150*220mm |
| weight | 6.5kg |

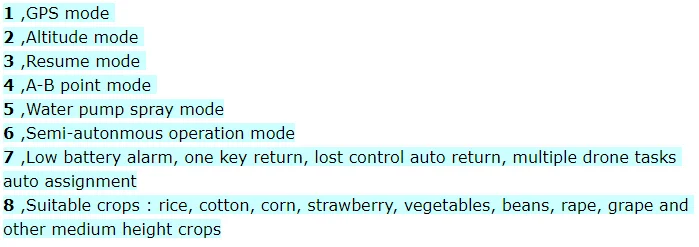

Features Details

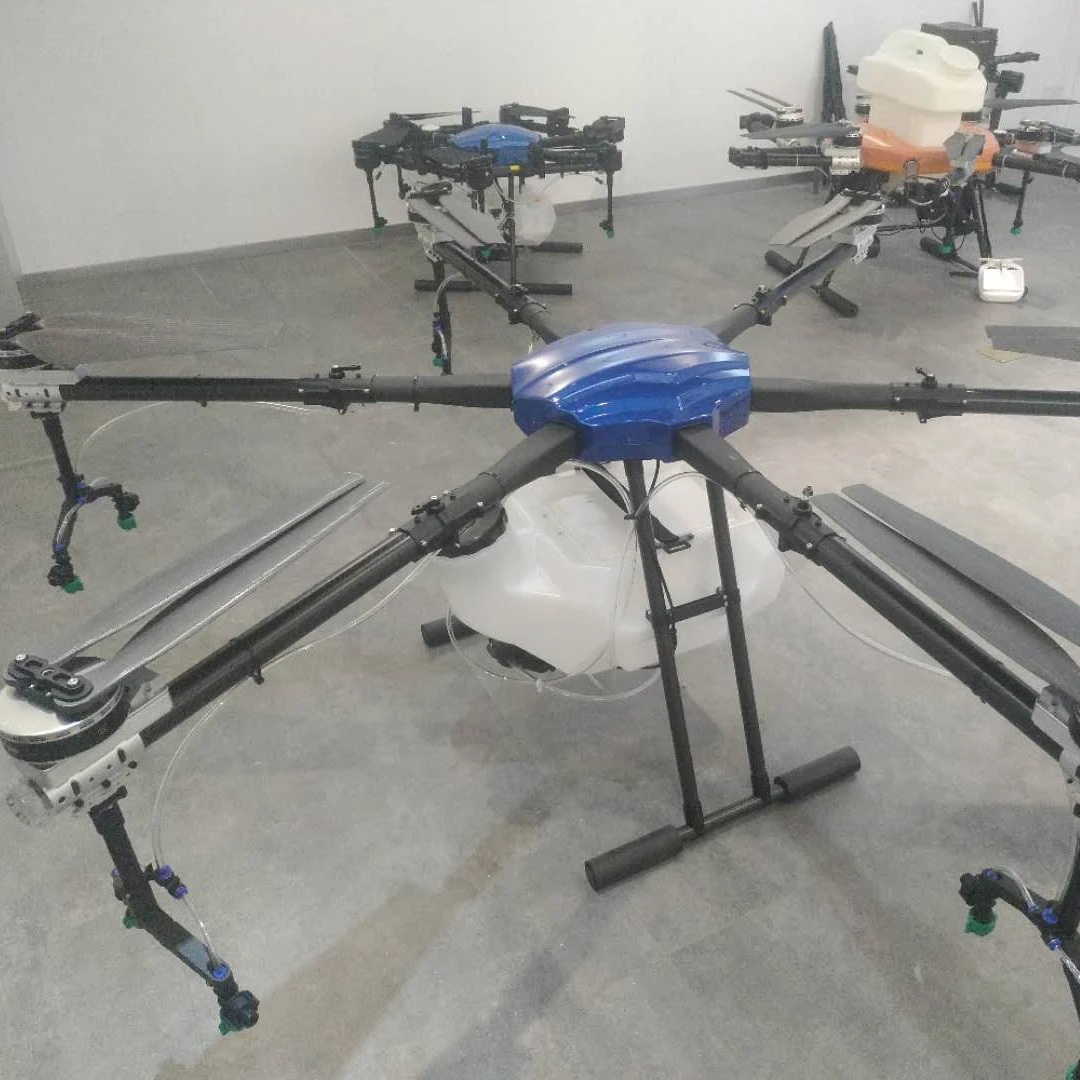

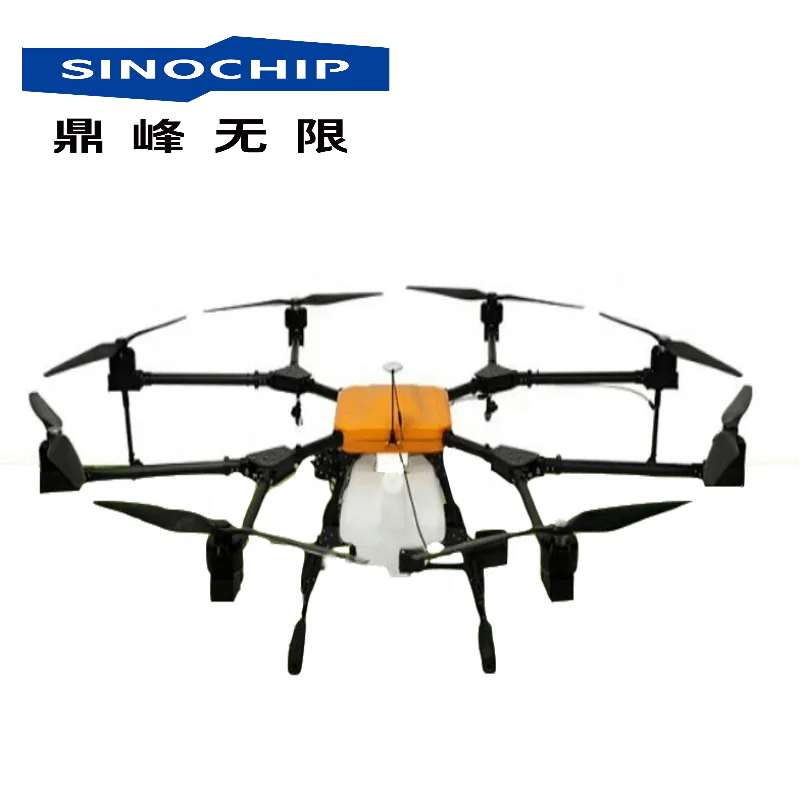

Related product-t30
Our Services
Company Profile
Shenzhen Top-Peak Electronics Co. Ltd is a drone company established on 2011 year . Manufacturing and designing agricultural / toy / photography and police drone . Mainly providing agricultural drone and our products have been exported to 51 cuntries and areas , such as USA, Mexico, Columbia, Brazil, Argentina, Peru, Chile, New Zealand, Australia, Indonesia, Malaysia, India, Thailand, South Africa , North Africa , Middle East , Europe , Russia, Mongolia , ect .

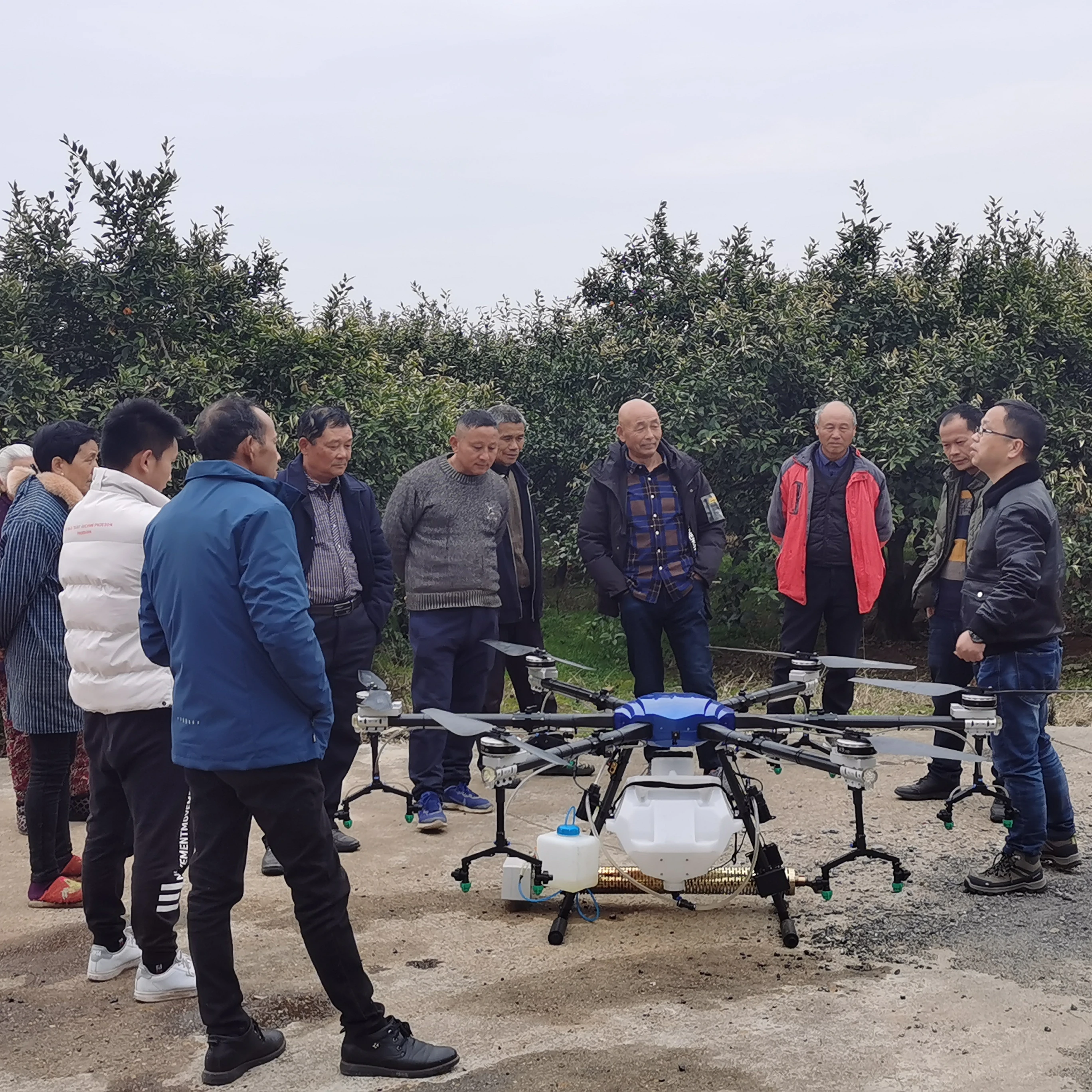

Exhibition

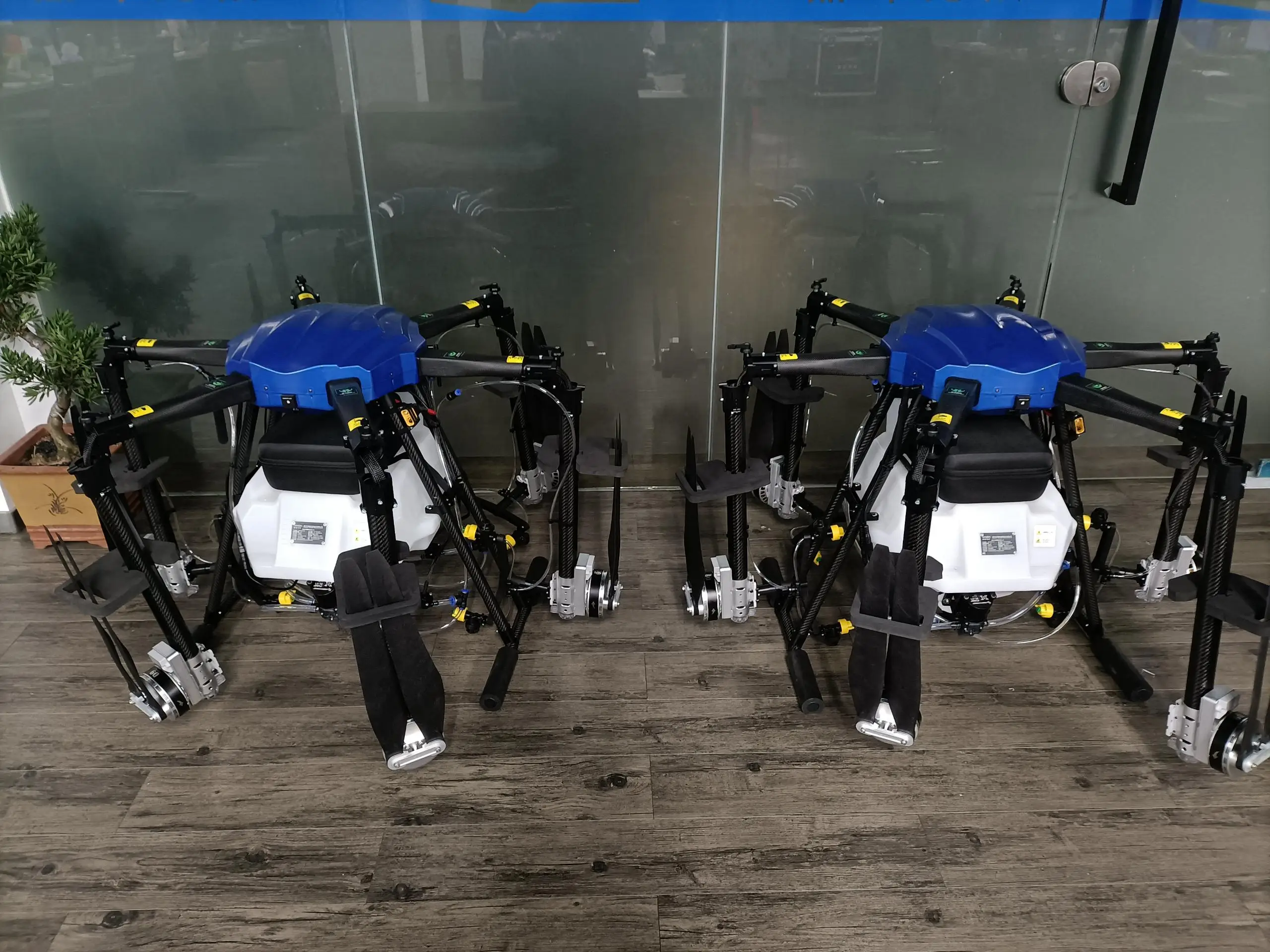

Packing and Shipment
Packing carton :
Shipping way :

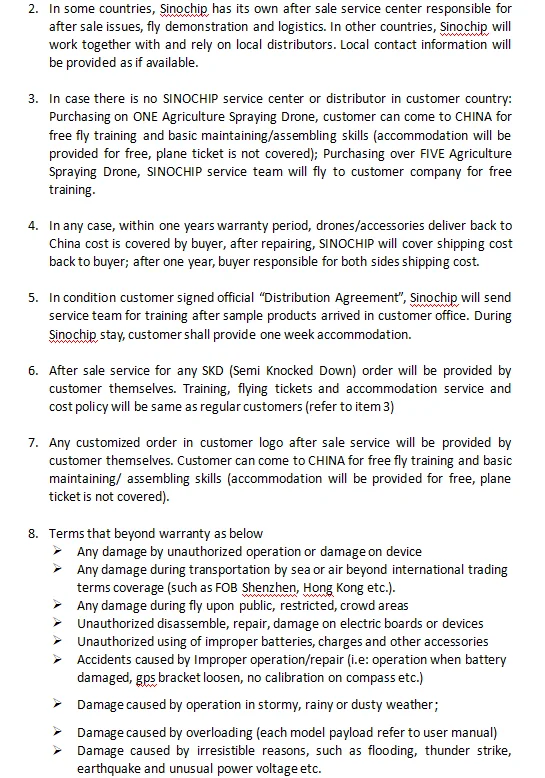

Warranty Details
FAQ
Q1: What is the usual delivery terms?
FOB, CFR, CIF .
Q2: What are the terms of payment?
Western Union, T / T, L / C, Paypal.
Q3: Is your drone equipped with RTK or obstacle avoidance radar in standard?
No,it isn't.We can add for you if you have the needs, but the price will be higher .
Q4: What's the remote controller ?
Standard remote controller is SIYI DK32(without camera )/VD32(with camara).
Q5: Which kind of flight control system does your drone use ?
Standard flight control system : Topxgun (T1-A). Also according to customers ' requirements , DJI N3/A3.Pro ,Boying,JIYI K3A,K++ is available .
Q6 : Can we place OEM orders?
Yes, you can. We can customize the machines according to your needs.
Q7: What is your delivery time?
For dulk order,15-30 working days, for small order, 7-10 working days.
Q8:Can you spilit the drone into several pasts to send ?
Yes, we can. We will make it according to your requirements .
Q9: Do the machines have warranty period?
3-12 months. Different components have different warranty .Please check the warranty details.
Q10: Can I have a sample?
Yes, we will make samples based on your requirements and we will send the samples to you after we receive your payment.
Q11: Is the drone difficult to operate?
It is easy to operate, and we offer the user manual. You can also search "SINOCHIP UAV drone " in YouTube to learn the operation process of the drone.
