No darkroom, no protection, real-time observation;

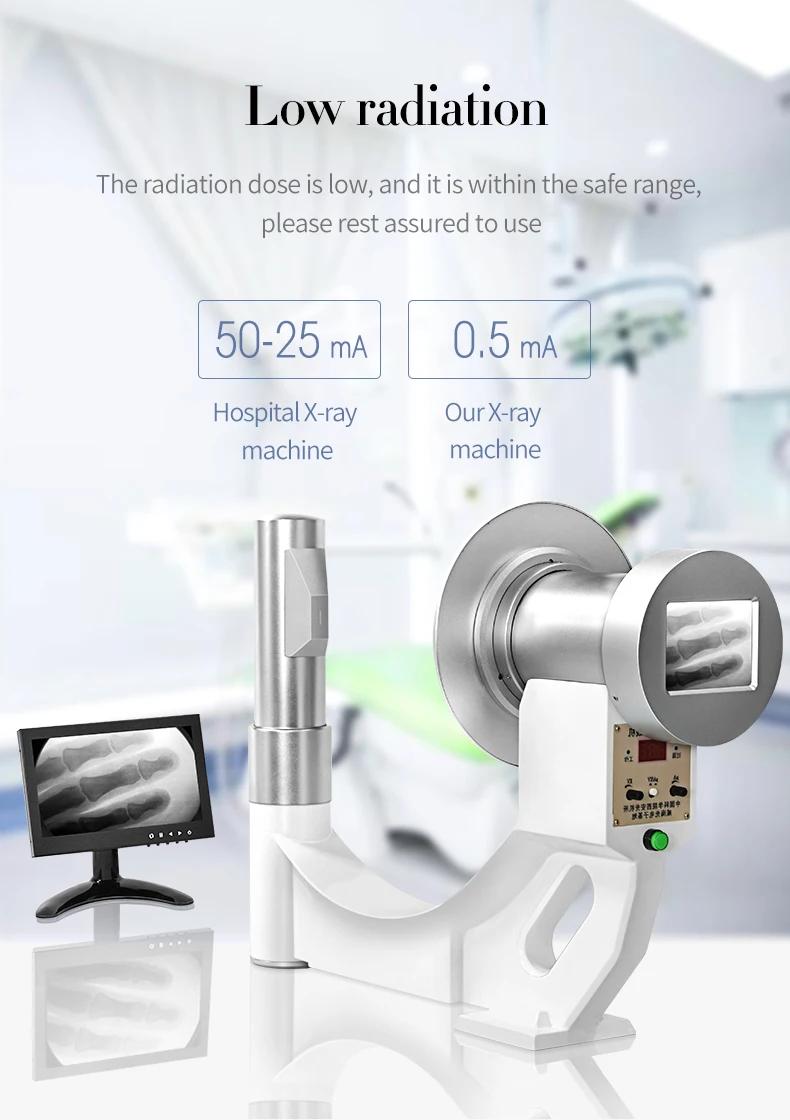

Small size, light weight, easy to diagnose; low radiation dose, safe and reliable protection, to ensure the health of doctors; high sensitivity, high spatial resolution image enhancer. Give you a new visual effect; can be equipped with filming system and TV monitoring system.
Scope of application: It is an indispensable tool for surgeons, especially orthopedic surgeons in various hospitals. It is an emergency examination of the door, emergency department, outpatient visit, ward round and operative fluoroscopy, closed reduction of limb fractures, fixation, needle insertion, and foreign body removal. X-ray fluoroscopy and technical parameters of gynecological birth control rings, especially for newborn infants and young children, when using the sling intramedullary nail or external fixation bracket
1. Field of view: (Φ50mm) for user selection 2. Resolution: 36Ip/cm; 3. Output screen brightness: >6cd/cm2;
4, the maximum spacing: 280mm; 5, tube voltage: 65-80kv; 6, tube target flow: 0.3-0.5mA;
7, contrast: 4%; 8, gray: 7; 9, leakage rays: <5mR / h;
10, host weight: 4.5kg; 11, power consumption: 80W; 12, power: 220VAC.
Fourth, the operation method
1. Remove the main unit from the package and insert the power output plug of the power supply box into the socket on the whole machine;
2. Turn on the power supply plug of the power network to 220V power supply. The green indicator light on the power supply should be on, then put the observed object into the detection range (as close as possible to the imager), and press the main switch with your finger. Foot switch) press the switch button;
3. The instrument will automatically shut down after one minute of operation. After stopping for a few seconds, it can be turned on again and used repeatedly. It can be viewed directly on the display. .
4. After the observation is completed, turn off the power switch, unplug the power cord of the network, then unplug the power cord on the machine, press the screen cover, and put the machine and power cable into the chassis;
1.How long of the warranty period?
Whole machine 1year. In warranty period, We will send the part free to replace
the one that is broken
2.How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us,
then we can use Alibaba Trade Assurance service. it will protect your money
during the whole stage of transaction.
?before?you?pay?the?balance.or 100% L/C at sight .
4.What kind of Transportation could you provide?And are you able to update the
production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,
we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.
And we can give you technical guidance.
