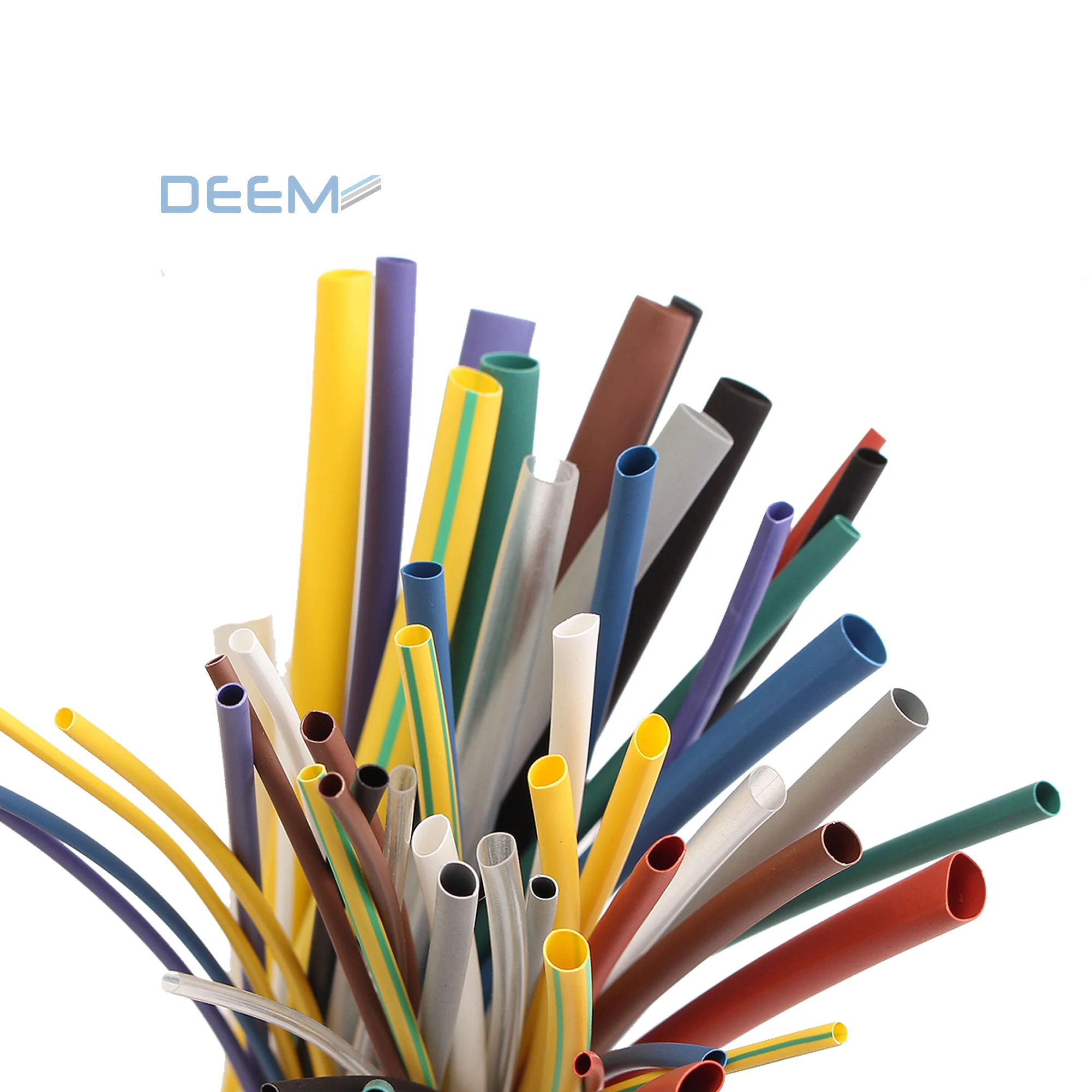

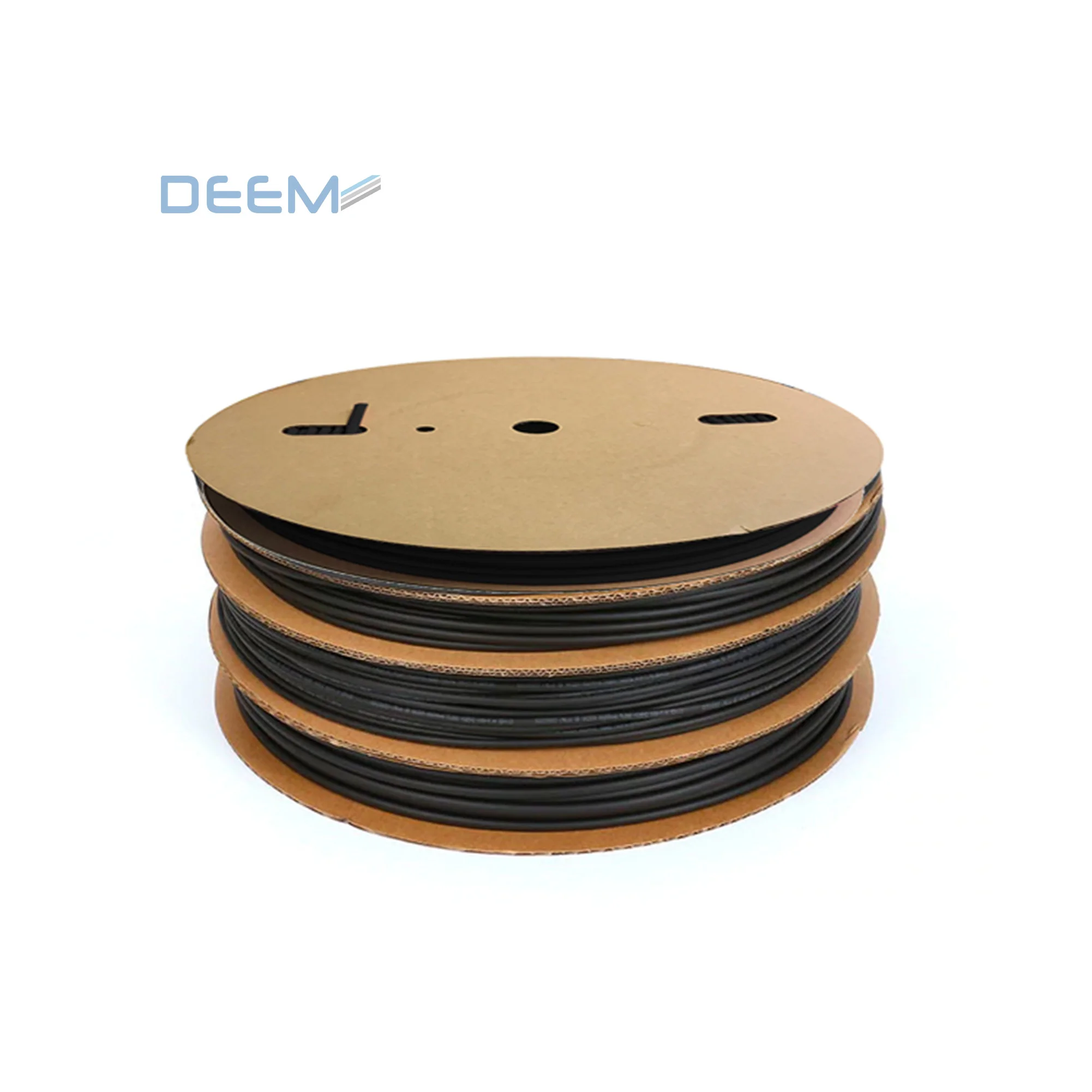

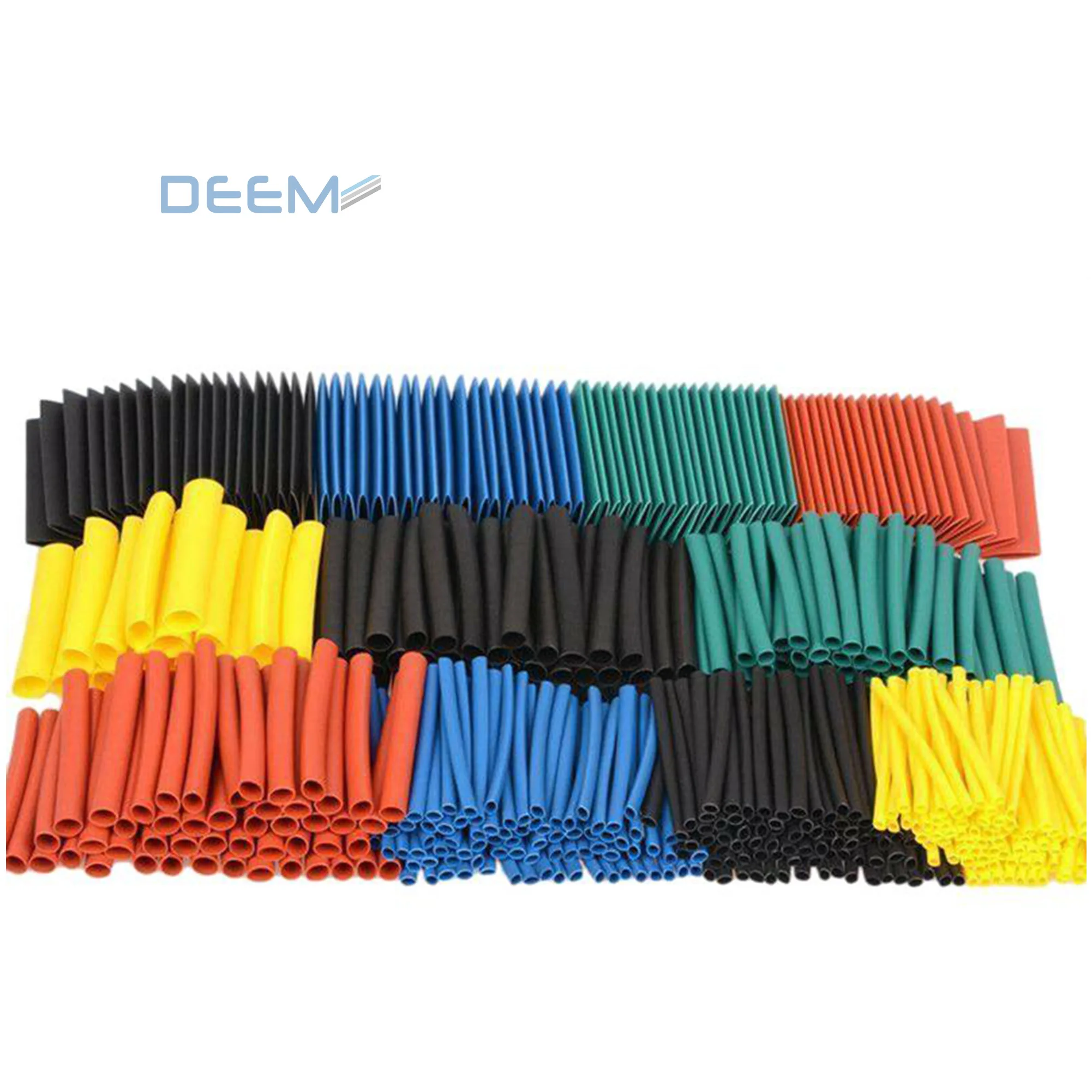

Deem Braided Sleeving Fire Proof Fiberglass Sleeve Heat Shrinkable Tubing Shrinkable Tubes
- Category: >>>
- Supplier: Deem Electronic & Electric Material Co. Ltd.
Share on (1600158796367):
Product Overview
Description
Technical Data
| Property | Test Method | Typical Data |
| Operating temperature | UL 224 | -55°C to + 125°C |
| Tensile strength | ASTM D 2671 | >14 MPa |
| Elongation at break | ASTM D 2671 | 400% |
| Longitudinal shrinkage | UL 224 | 0±5% |
| Eccentricity | ASTM D 2671 | <30% |
| Flammability | VW-1 | Pass |
| Dielectric strength | IEC 243 | >20 KV/mm |
| Volume resistance | IEC 93 | 10 14 Ω.cm |
| Copper stability | UL224 | Pass |
| Heat aging / Tensile strength / Ultimate elongation | 158°C/168h | Unaged / >12 MPa / > 350% |
Dimensions/2x
| Size | As Supplied (mm) | After Recovery (mm) | Standard length m/spool | ||
| DM-T125 3X Inch | Inside Diameter Min. (D) | Wall Thickness Nominal. (T) | Inside Diameter Max. (d) | Wall Thickness nominal. (t) | |
| 1/16 | 1.5/0.5 | 0.15 | 0.5 | 0.45 | 200 |
| 1/8 | 3/1 | 0.18 | 1.0 | 0.55 | 200 |
| 3/16 | 4.5/1.5 | 0.20 | 1.5 | 0.60 | 100 |
| 1/4 | 6/2 | 0.22 | 2 | 0.65 | 100 |
| 3/8 | 9/3 | 0.30 | 3 | 0.75 | 50 |
| 1/2 | 12/4 | 0.35 | 4 | 0.80 | 50 |
| 5/8 | 15/5 | 0.35 | 5 | 0.85 | 50 |
| 3/4 | 18/6 | 0.40 | 6 | 0.89 | 50 |
| 1 | 24/8 | 0.45 | 8 | 1.00 | 25 |
| 1 1/4 | 30/10 | 0.45 | 10 | 1.15 | 25 |
| 1 1/2 | 39/13 | 0.50 | 13 | 1.25 | 25 |
| 2 | 50/16 | 0.75 | 16 | 2.3 | 1 |
| 2 1/2 | 60/20 | 0.80 | 20 | 2.4 | 1 |
| 3 | 70/23 | 0.85 | 23 | 2.4 | 1 |
| 4 | 100/33 | 0.85 | 33 | 2.4 | 1 |
