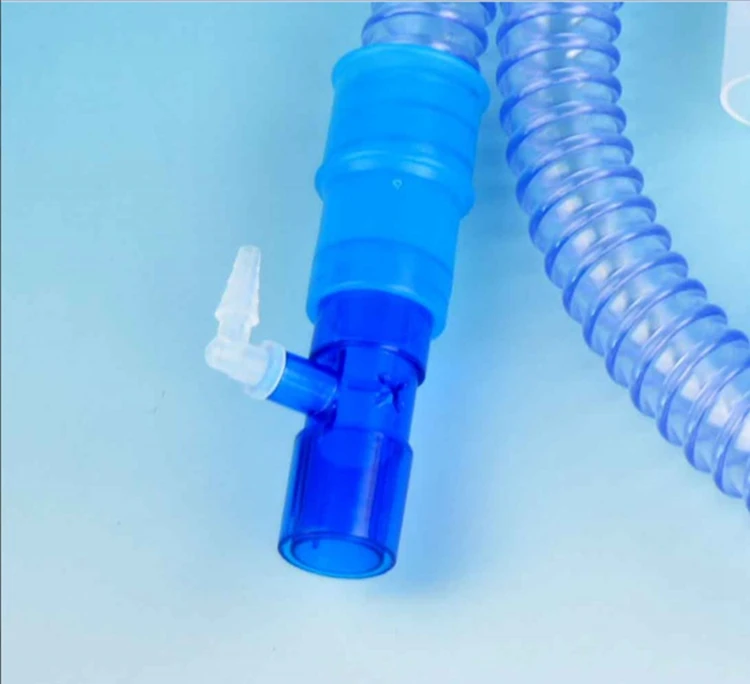

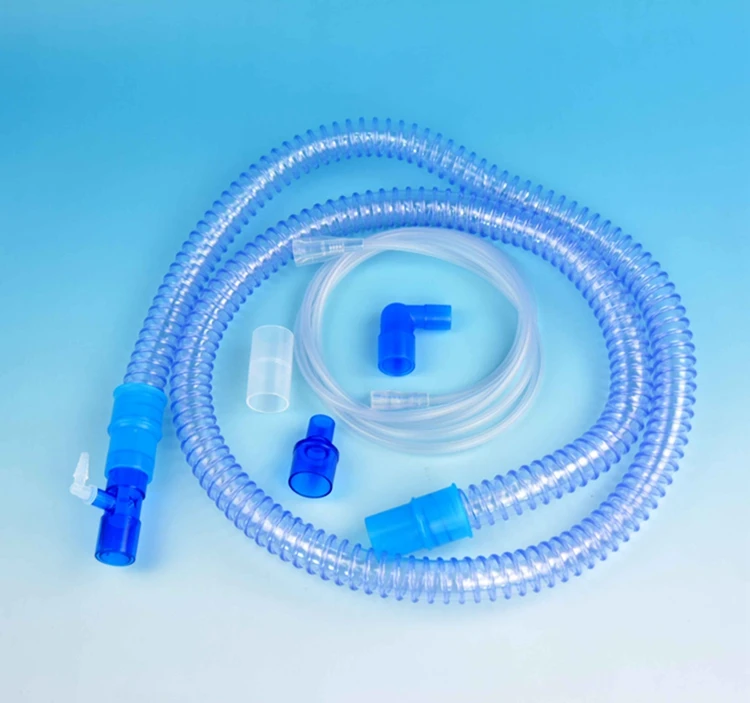

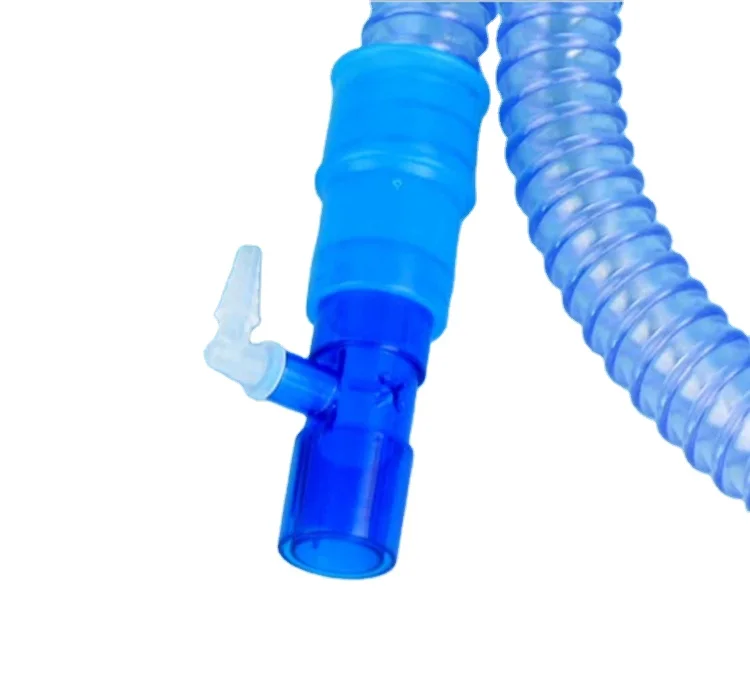

Medical Adult Noninvasive Smoothbore Breathing Circuit with Water Trap
- Category: >>>
- Supplier: Excellentcare Medical (Huizhou) Ltd.
Share on (1600158826611):
Product Overview
Description
Product Description
| Circuit length | 1.2m±10% |
| Limb length | 0.8m±10% |
| Monitor line length | 2.1 m±10% |
| Inside diameter of breathing tube | 21mm±10% |
| Diameter of monitor line connector | ID of both ends are 7.0mm±1.0mm |
| Y piece | 22M/15F Coaxial conical connector |
| Machine end connector | 22mm Female connector |
| Volume of humidifier chamber | 500ml±10% |
| Maximum water level of humidifier chamber | 150ml±30ml |
| Resistance to flow @ 30 LPM | 0.03 hpa/L/min (cm H2O/L/min) |
| Increase in flow resistance with bending @ 30 LPM | 111% |
| Compliance @ 60 hPa | 0.5 mL/hPa (mL/cm H2O) |
| Type (BSF) | Bacterial/viral filter |
| Internal Volume(BSF) | 20ml |
| Bacterial filtration efficiency(BSF) | 99.99% |
| Viral filtration efficiency(BSF) | 99.9% |
| Flow resistance (BSF) | 0.41 at 15L/min |
| Sampling port (BSF) | Lure lock |
| Connector patient side (BSF) | 15F/22M |
| Connector machine side (BSF) | 15M/22F |
| Materials | PP, PE, PVC, ABS, Aluminum |
| Package | 10 pcs/Box |
| Product Description | Adult breathing circuit, double heated wire, 1.2m, humidifier chamber, 0.8m limb,oxygen tube |
More products
Product line
Our company
Certifications
Exhibition
Packaging & Shipping
FAQ
Q1:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing medical consumable more than 12 years.
Q2. About Price:
A: We offer FOB/CFR/CIF/EXW etc.
Q3. What is your delivery time?
Normally,after receiving your deposit, we could finish the production within 7-25days according to your quantity.
Q4. What is your payment methods?
T/T, L/C,Cash,West Union,USD/RMB or others.
Q5. About Sample
A:We provide sample in 1-3 days after confirming with you. The samples cost and freight need to be covered by you.
Q6. Can you customize the products as per our requests?
A:Yes, we offer OEM and ODM services. Silk Print Logo on the product.Customeized products housing.
Q7. Trial Order or Small order:
A: It's no problem if you are a small wholesaler, we would like to grow up with you together.
Q8.Where is the loading port?
A:We can loading as your requestment,Guangzhou,Shenzhen and so on .
Q9. Shipping
We have strong cooperation with DHL, TNT, UPS, FedEx ,SF,EMS, China Air Post and many Forwarder Agency.We also accept that your pointed forwarders..
Q10. About Packing
A: Your packing design is welcomed. We can also design for you. OEM and ODM is available.
