Care Infant Radiant Incubator Hospital Used Standard Newborn Baby Electric Carton Ce White Zhengzhou Treatment 1 Unit Class II

Product Overview

Description

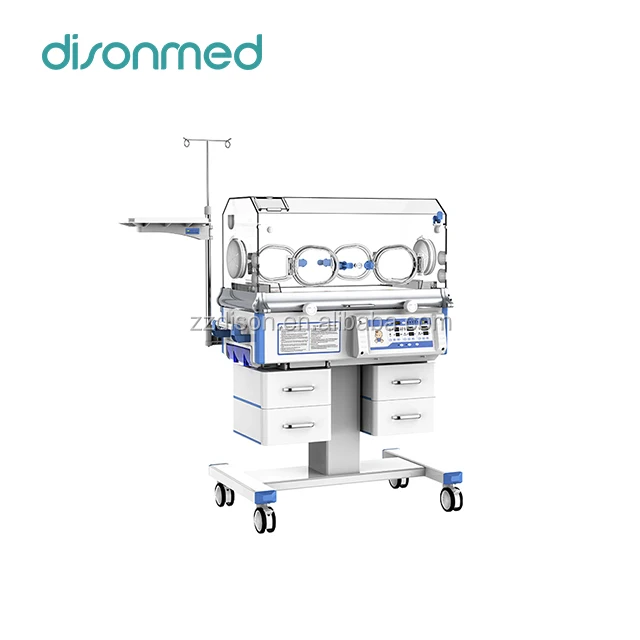

BB-200 infant incubator (Luxurious)
Function features:

BB-200 Luxurious



Microprocessor based servo controlled temperature system



Control modes: Air mode and baby skin mode



Humidity control system



 Integral timer to record therapytime



Set temperature, air temperature, baby skin temperature, humidity, timer and heating power are displayed



separately by LED



Self - testing function, various failure alarms by audible and visual



>37℃ temperature set function



Triple protection for over temperature with separate cut off device, more safety system

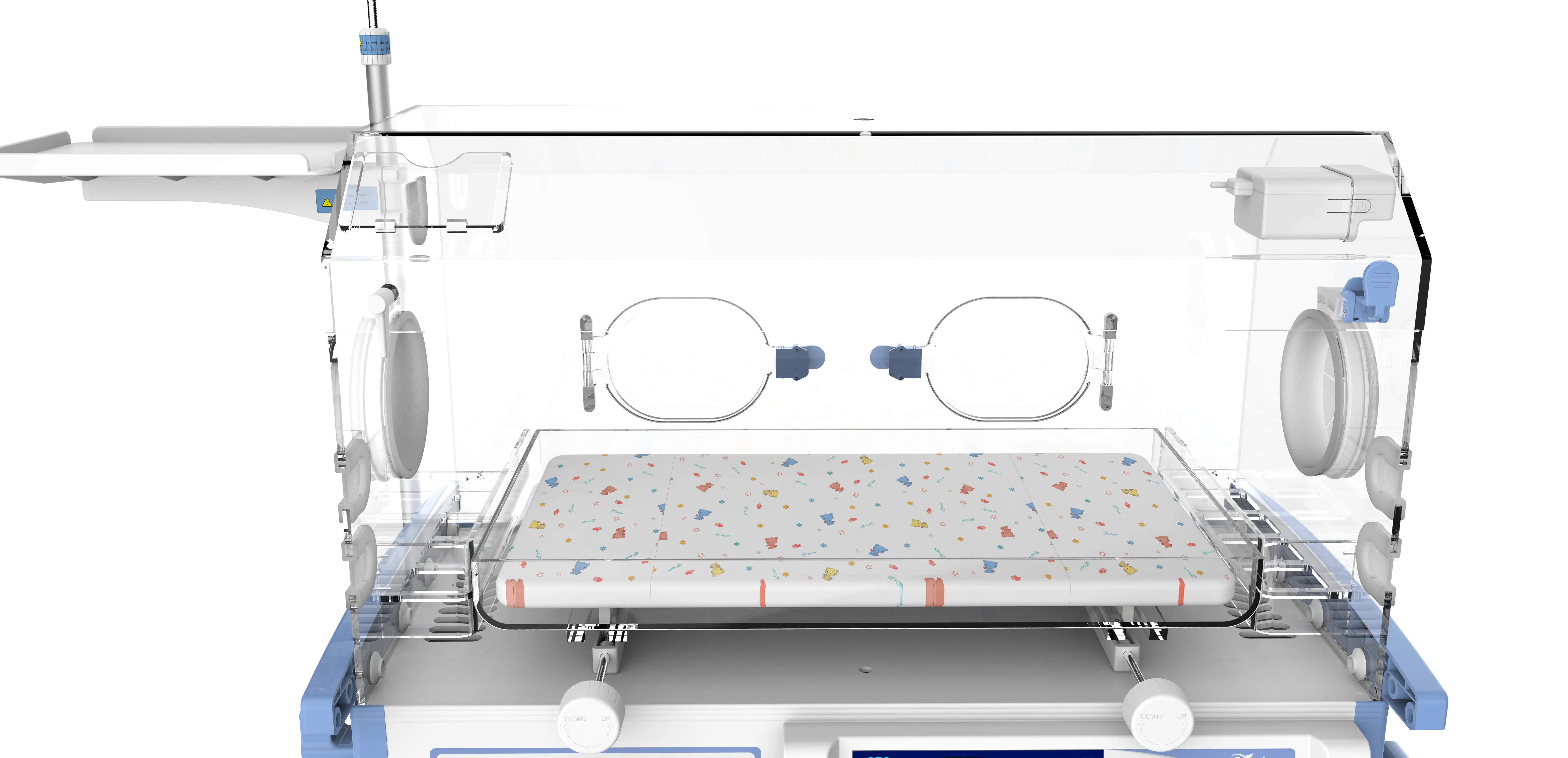

The inclination of infant bed is adjustable

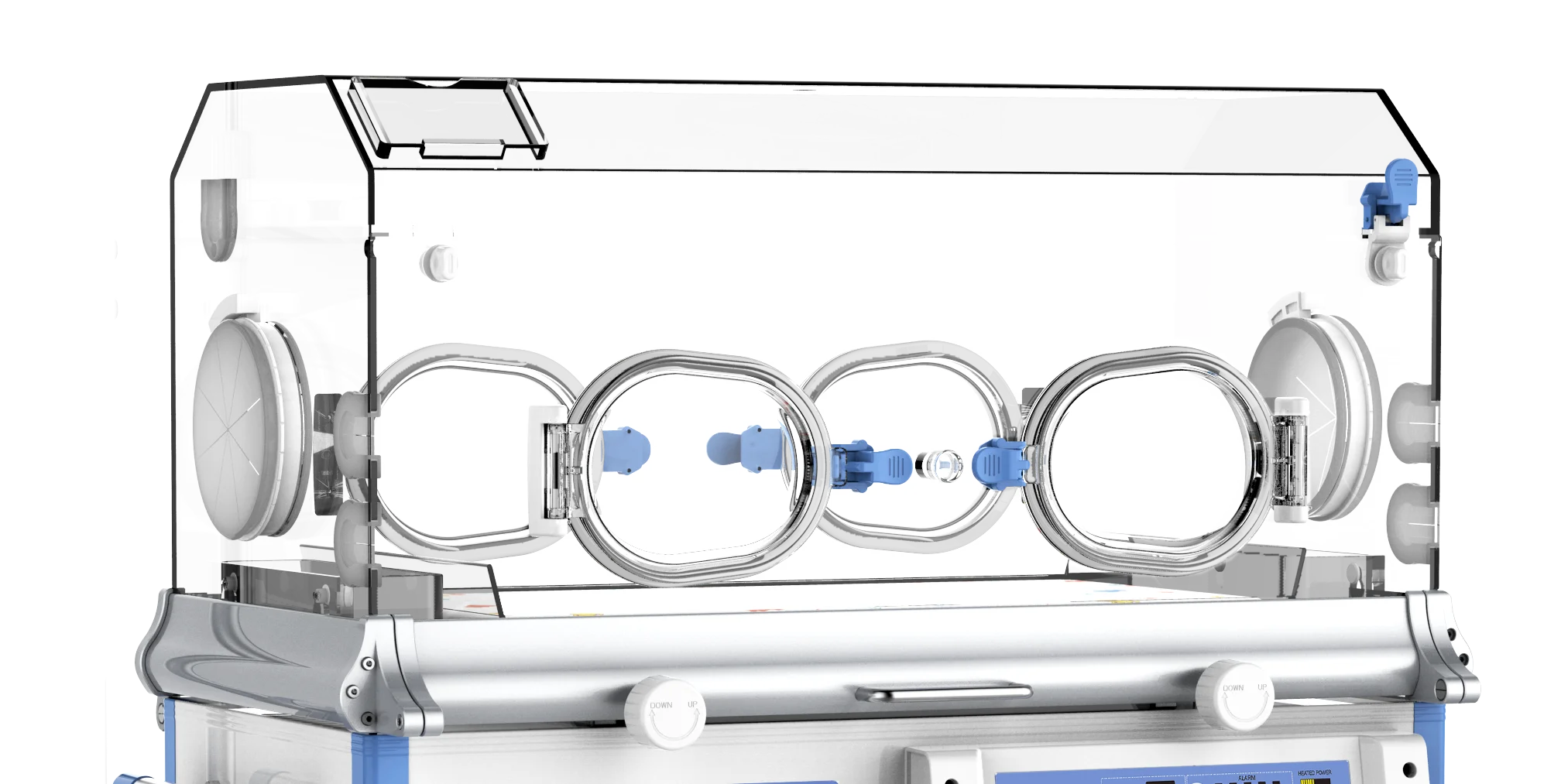

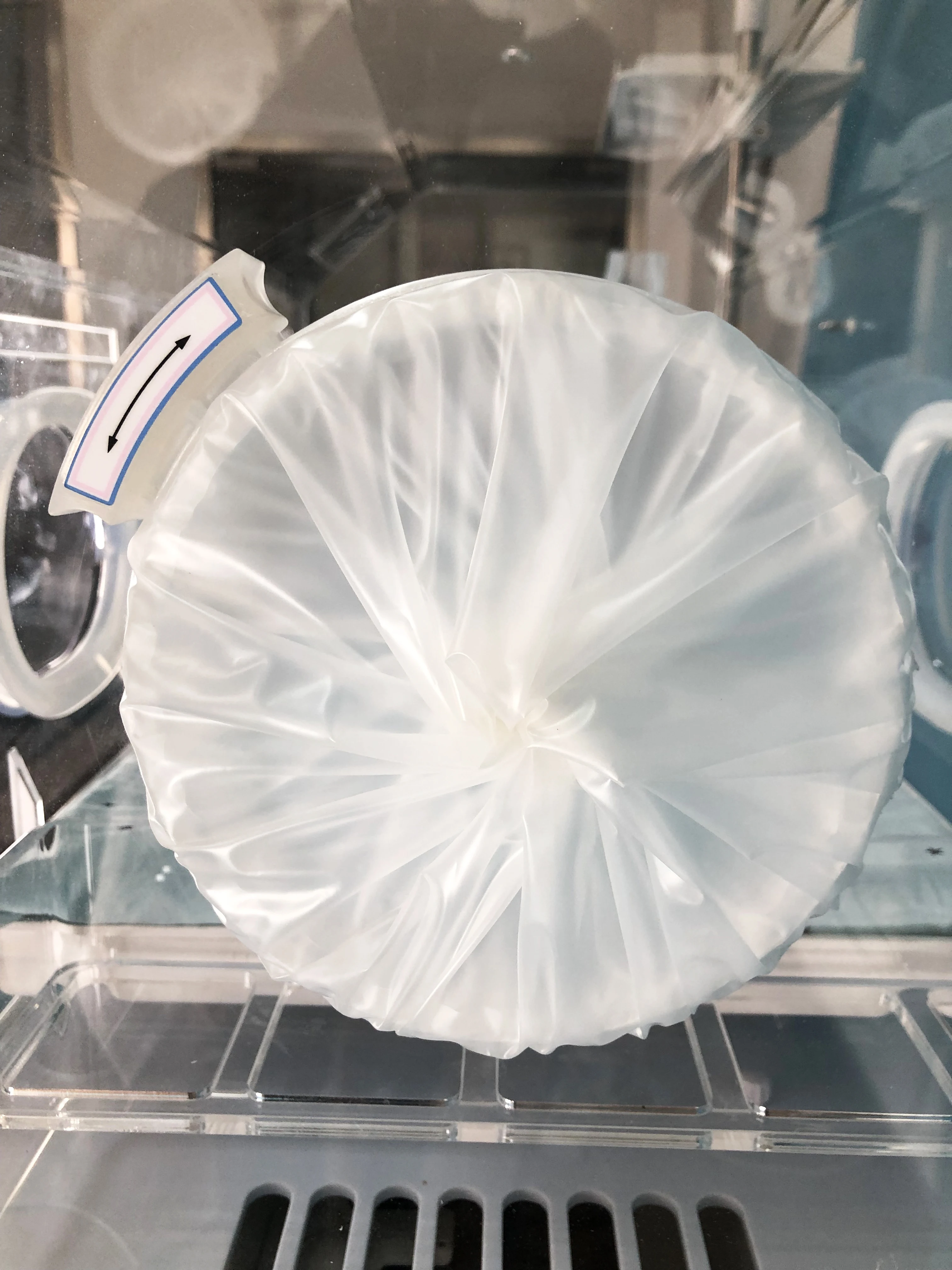

Single wall hood, 4 operating windows and 2 iris ports,5 infusion seals



Independent locking device for front door

Alarm function:

Power failure,over temperature deviation,fan failure,

temperature sensor failure,low water level



RS232 connector, Oxygen inlet ,1 tray



Optional function: X ray cassette Tray;baby weight system ; Electric height adjustable ;



LED phototherapy unit; Air and oxygen blender, Double wall hood.

Technical data:

Power supply : AC110/220V  60/50Hz

Power input : 650VA



Operating conditions:

Environment temperature: 20°C~30°C

Environment relative humidity: 30%~75%RH

Environment air velocity of flow: <0.3m/s

Air Temperature control range:25°C~38°C

Skin temperature control range:32°C~38.5°C

Skin temperature sensor accuracy:+0.3°C

Temperature fluctuation: +0.5°C

Uniformity of mattress temperature: ≤0.8°C

Warm-up time: ≤30min

Internal noise level: ≤50dB

Infant bed tilt angle : +10º

Mattress size: 65cm(L)*37cm(W)

Trough capacity: 1200ml

Air filter:0.5um





Package:

Each unit is packed in two wooden crate

Size (control unit and cabinet):120*70*96CM    N.W.:80KG  G.W.:110KG

                            Hood: 97*56*63CM     N.W.:15KG  G.W.:40KG



Transport and storage

Environment Temp:-10°C--+70°C

Environment Relative Humidity : ≤80%

Atmospheric Pressure: 500~1060Hpa
