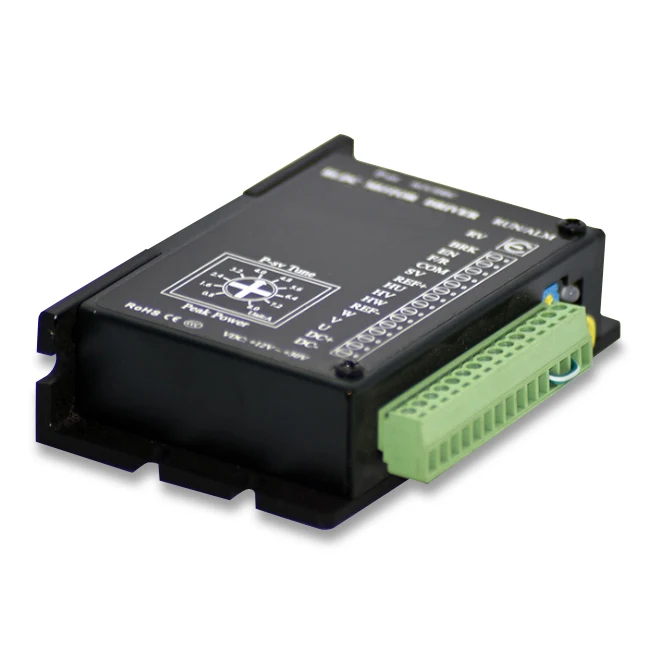

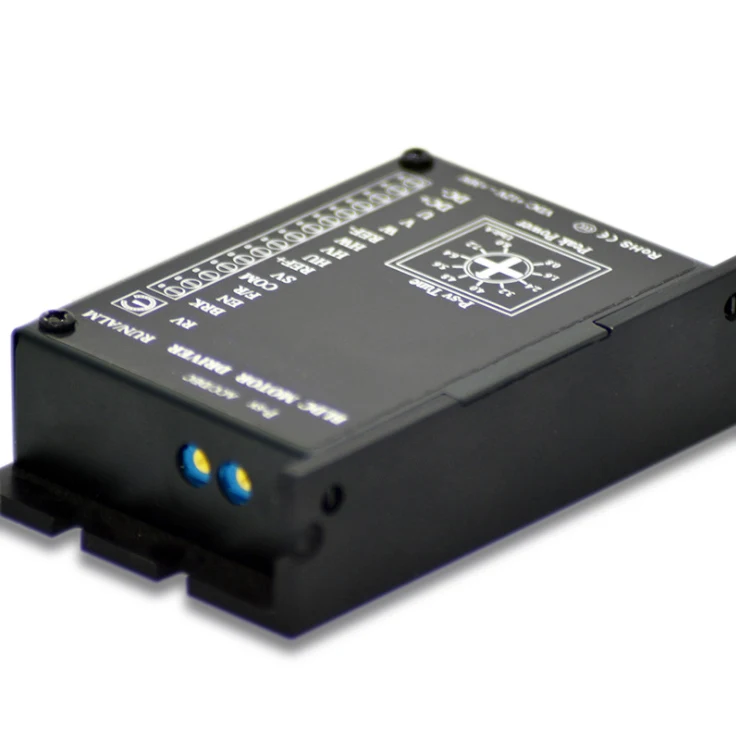

upgrade version Integrated Machine Series Brushless Motor Drive to convertor 24v pwm brushless ac dc motor controller

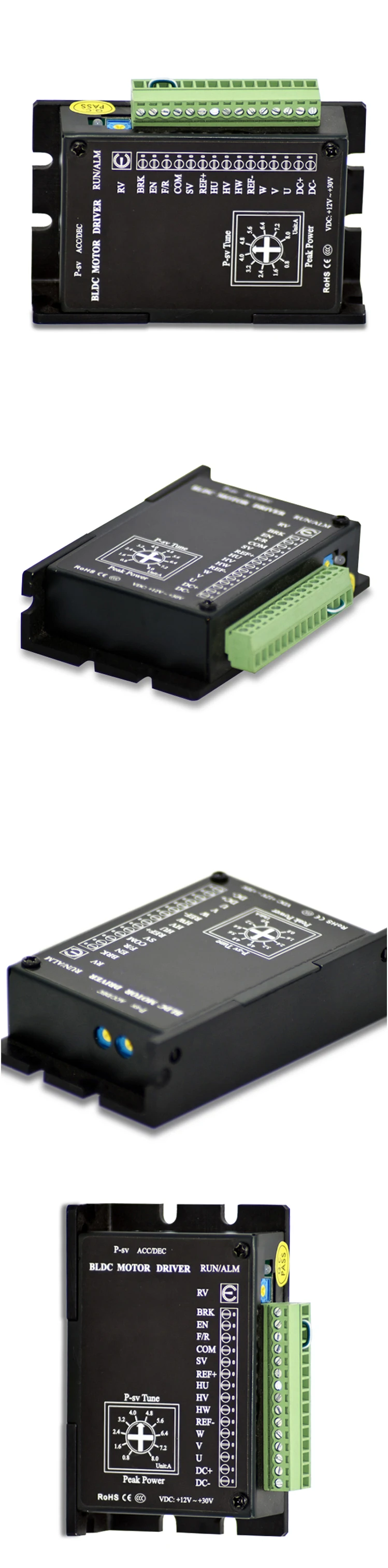

Product Overview

Description

BG BL2408L

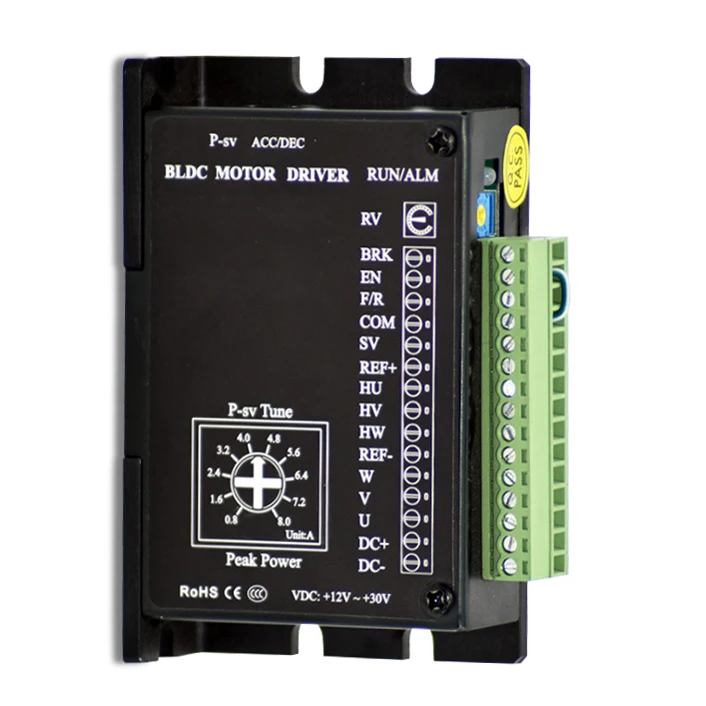

Name	Note
DC+/DC-	DC voltage input (DC 12V~DC 32V)
U,V,W	Motor Phase Line
Hu,Hv,Hw	Hall signal of brushless DC motor
VCC	Hall Power +
SV	1. External speed control potentiometer; 2. Analog signal speed control input; 3. PWM speed control signal input
F/R	When disconnected or high level, the motor rotates forward, F/R and COM are shorted or the low level motor reverses
EN	Stop signal control terminal, the motor will stop slowly when the high level or the port is disconnected, and the low level or the EN and COM will be short-circuited and run normally
BRK	Brake signal control terminal, high level or port disconnection is normal operation, low level or BRK and COM short connection is fast braking
COM	Public port



Electrical Specifications
Projects	Minimum value	Typical values	Maximum value	Unit
Input voltage	12	24	32	VDC
Output current		8		A
Speed control		3000	20000	Rpm
Hall signal	4.5	5	5.5	VDC
Hall drive		20		mA
External speed regulating potentiometer		10		KΩ
Weight	/

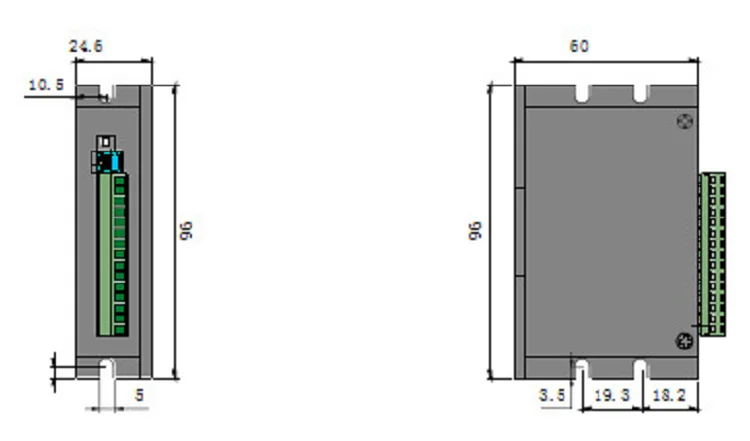

Size	/
Control mode	Square waves
Speed regulation mode	0-5 VDC analog input, 0-100% PWM input (PWM frequency range :[1 Kz-20KHz)
Over-current protection function	Overcurrent protection occurs when the current exceeds the operating current setting value and lasts a set time
Overpressure	An overvoltage protection occurs when the voltage exceeds 30 V
undervoltage	undervoltage protection when voltage is below 10 V
Hall anomaly	Hall signal anomaly
We can also customize products according to customer requirements.

5FZOZI]]DFMAFQF]{S2N1.png" ori-width="750" ori-height="441"/>

42mm DC Brushed Planetary Gear Motor	45mm DC Brushed Planetary Gear Motor	57mm DC Brushless Planetary Gear Motor	57mm  DC Brushless Planetary Gear Motor
63mm Brushed DC Motor	70mm Brushless DC Motor	86mm DC Brushless Planetary Gear Motor	7630 AC Motor

Established in 1994, Ningbo BG Motor Factory is a professional manufacturer of brushless DC motors, brushed DC motors, planetary gear motors, worm gear motors, Universal motors and AC motors. We have a plant area of 6000 square meters, multiple patent certificates, and we have the independent design and development capabilities and strong technical force, with an annual output of more than 1 million units. Since the beginning of its establishment, BG motor has focused on the overall solution of motors. We manufacture and design motors, provide professional customized services, respond quickly to customer needs, and actively help customers to solve problems. Our motor products are exported to 20 countries, including the United States, Germany, Italy, the United Kingdom, Poland, Slovenia, Switzerland, Sweden, Singapore, South Korea etc.
Our founder, Mr. Sun, has more than 40 years of experience in motor technology, and our other engineers also have more than 15 years of experience, and 60% of our staff have more than 10 years of experience, and we can assure you that the quality of our motors is top notch.
The products cover AGV, underwater robots, robots, sewing machine industry, automobiles, medical equipment, automatic doors, lifting equipment, industrial equipment and have a wide range of applications.
We strive for excellence in the quality of each product, and we are only a small and sophisticated manufacturer.
Our vision: Drive the world forward and make life better!

1. How can I use the driver for the first time?
A: After correctly connecting the power line, motor line, and Hall line, the external potentiometer slowly accelerates, and the motor rotates correctly, and then test the enable, direction and other functions in turn. If you are unfamiliar with this product, you should test it for the first time before installing it for actual use.

2. What is the impact of reverse power connection?
A: Will burn the drive immediately.

3. What is the highest voltage of the upper control signal V?
A: The maximum voltage of the speed control signal is 5V, exceeding this voltage will cause the drive to burn.

4. After the driver has been working for a long time, the housing is relatively hot, is it normal?

A: Normally, under normal temperature, working the shell for a long time to 90 degrees will not affect the performance.

5. The power indicator is on, but the motor does not rotate and shakes. What is the reason?
A:It may be that there is an error between the phase line and the Hall line. Please follow the motor manual and reconnect the power to test.

6. Can I adjust the speed of my motor to 6000 with this driver?
A:The maximum speed of the brushless motor is determined by the parameters of the motor itself, and the driver can control the motor speed from 0 to the highest speed.

7. I already have a motor on my hand. How do I connect it after purchasing this driver?
A:You must first determine the definition of the phase line and Hall line of the motor on your hand before wiring. If you are not sure, you need to ask the motor manufacturer. Incorrect wiring will cause damage to the drive.

8. Can I add some functions to this drive or develop new products?
A: Yes, please contact our company.
