Large Gift Square Bottom Paper Bag Making Machine Paper bag Machine Bag Making Machinery
- Category: >>>
- Supplier: Dongguan Sams Technology Co. Ltd.
Share on (1600159254355):
Product Overview
Description
Product Overview

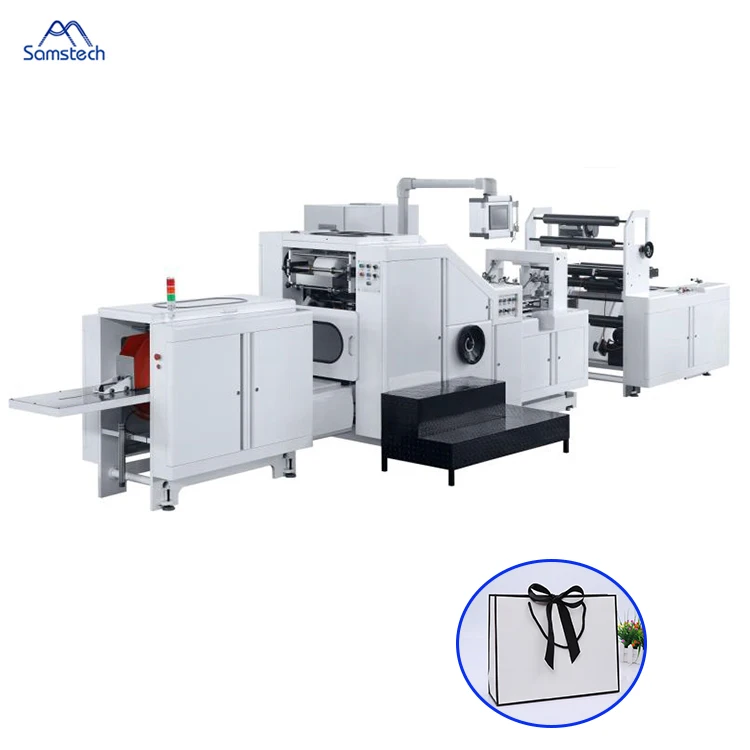

This Full automatic adjustable roll feed square bottom paper bag making machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom creasing, bottom gluing, bottom forming and final product out feed can be completed within one time by this machine. It is ideal equipment for making paper bag for foodstuff bag, shopping bag and so on. Controlled by PLC system, equipped with in-touch screen and servo motor for bag length control, this machine can produce different size paper bag.
FEATURES AT A GLANCE
* Full automatic adjustable roll feed square bottom paper bag making machine.
* Introduce PLC and In-touch screen human-machine interface centralized control system, with reliable performance, easy mforoperation and maintenance. English/Chinese language can be changed easily.
* Equipped with Yaskawa PLC for centralized control system and SICK photocell for correction, tracking the printed mmaterial accurately, minimize the adjustment and preset time, increase the production efficiency.
* Human oriented security protection, whole housing design, ensure the safety of operator.
* Physiosis shaftless roller hydraulic material loading system with chuck, hydraulic up/down system.
* Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, mminimize the adjustment time for web alignment.
* High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 100~220pcs/min, even higher, which increases the unit production capacity and gets higher profit.
* Imported of Italian SELECTRA brand of deviation rectification system.
* Original SCHNEIDE Relectric system, ensure better stability and reliability; perfect after sale service, trouble free for
customer.
* The machine can be stop automatically once out of material.
* Wheel type gusset unit with motor driving.
* Servo motors for main feeding and bag length control
* Closed type automatic glue application and forming system.
* Paper impress, bottom folding, gluing and bag formation can be completed automatically.
* Side lay working table, easy operation.
* Introduce PLC and In-touch screen human-machine interface centralized control system, with reliable performance, easy mforoperation and maintenance. English/Chinese language can be changed easily.
* Equipped with Yaskawa PLC for centralized control system and SICK photocell for correction, tracking the printed mmaterial accurately, minimize the adjustment and preset time, increase the production efficiency.
* Human oriented security protection, whole housing design, ensure the safety of operator.
* Physiosis shaftless roller hydraulic material loading system with chuck, hydraulic up/down system.
* Automatic constant tension control for unwinding, EPC web guider system, motor for material feeding with inverter, mminimize the adjustment time for web alignment.
* High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 100~220pcs/min, even higher, which increases the unit production capacity and gets higher profit.
* Imported of Italian SELECTRA brand of deviation rectification system.
* Original SCHNEIDE Relectric system, ensure better stability and reliability; perfect after sale service, trouble free for
customer.
* The machine can be stop automatically once out of material.
* Wheel type gusset unit with motor driving.
* Servo motors for main feeding and bag length control
* Closed type automatic glue application and forming system.
* Paper impress, bottom folding, gluing and bag formation can be completed automatically.
* Side lay working table, easy operation.

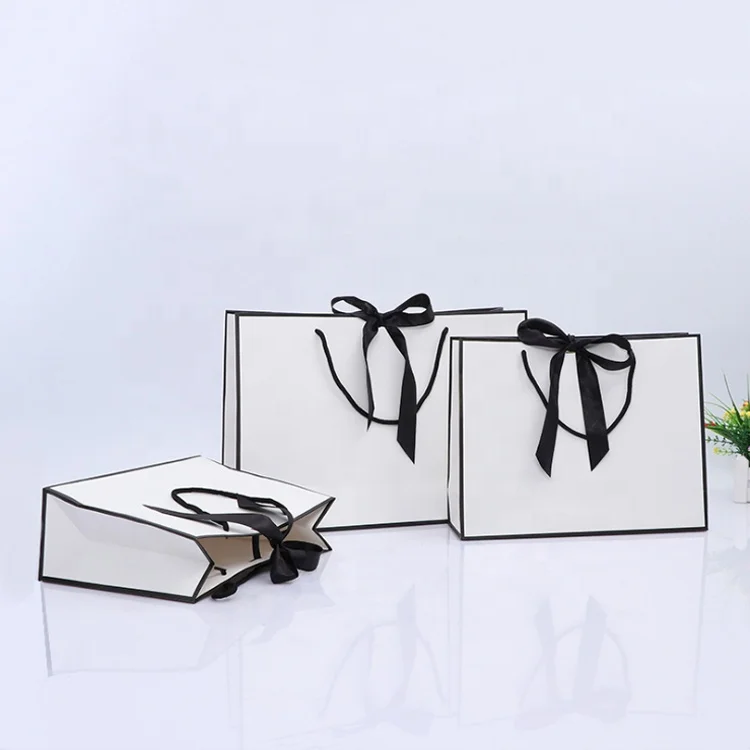

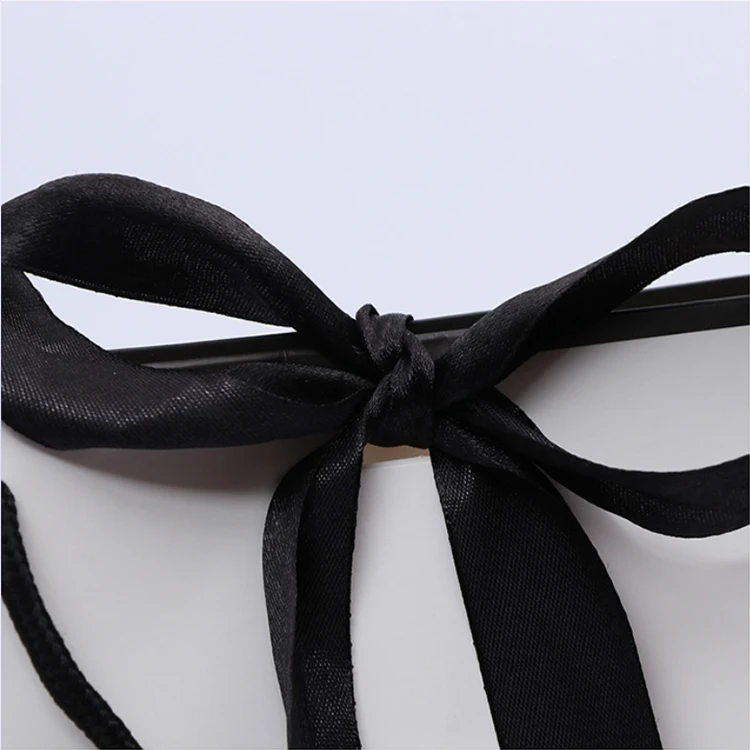

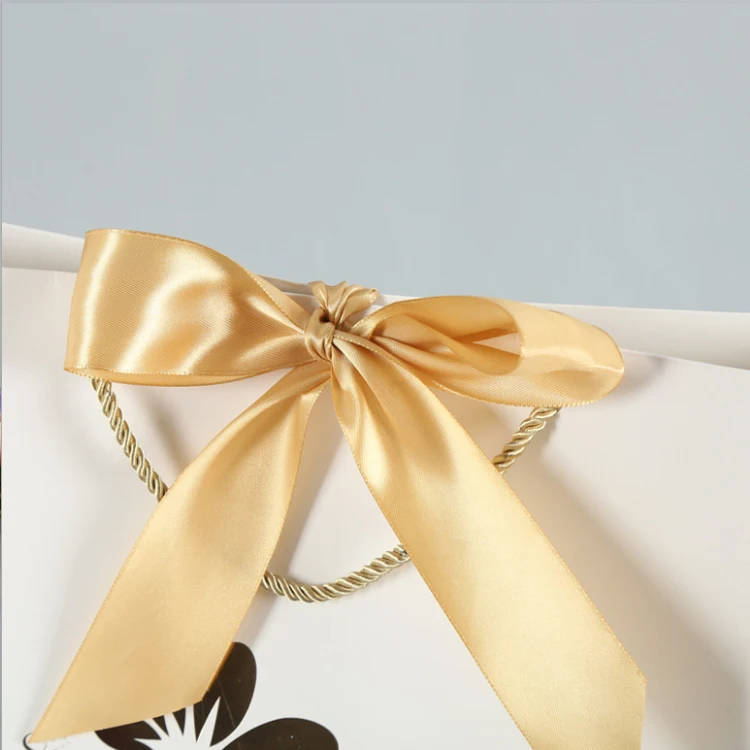

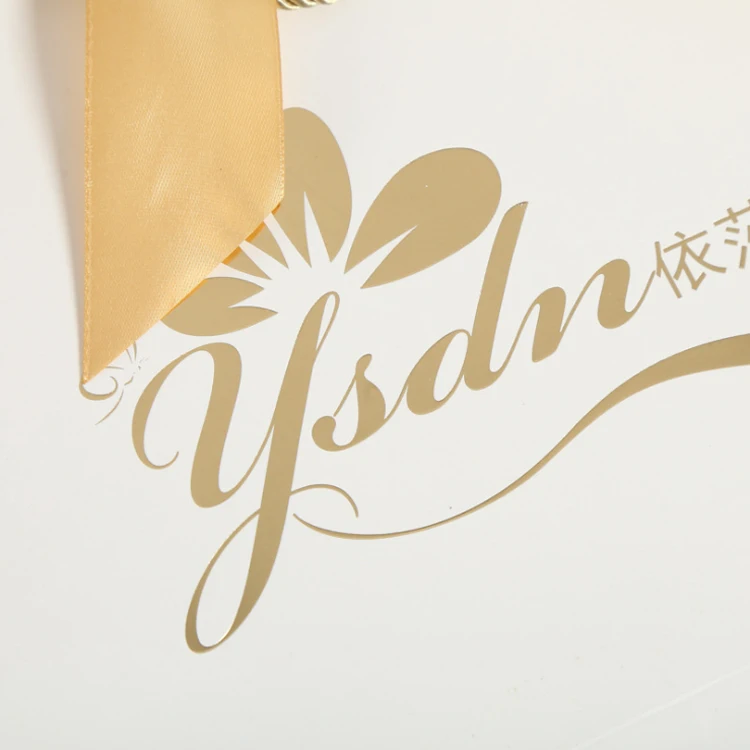

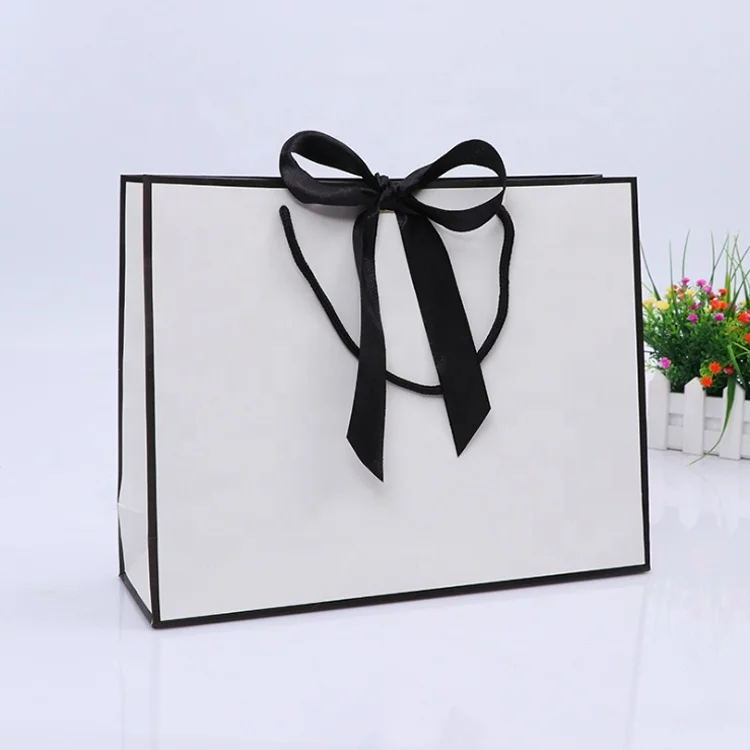

Product Sample 1
Product Sample 2
Product Sample 3
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Width of Paper roll | 320-930mm | ||
2 | Length of Bag | 225-470mm | ||
3 | Width of Bag | 100-280mm | ||
4 | Width of Bag Bottom | 60-160mm | ||
5 | Paper weight | 50-160g/m2 | ||
6 | Max. Diameter of Paper Roll | ф1500 mm | ||
7 | Internal Diameter of Roll Core | ф76 mm | ||
8 | Max.Speed | 180 pcs/min |
PRODUCT CONFIGURATION
feeding
Foaming
Finishing
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: What is the price of shipping?
A3: Depending upon the port of delivery, prices varies.
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: What is the price of shipping?
A3: Depending upon the port of delivery, prices varies.
A4: How many days will you finish installing ?
Q4: We will finish installation and training within 15 days.
A5: How long is your machine's warranty period?
Q5: All our machine have one year guarantee, starting from finished installation.
A6: How could we do if the parts broken within warranty?
Q6: Free replacement parts will be sent during the warranty date.
Q4: We will finish installation and training within 15 days.
A5: How long is your machine's warranty period?
Q5: All our machine have one year guarantee, starting from finished installation.
A6: How could we do if the parts broken within warranty?
Q6: Free replacement parts will be sent during the warranty date.
