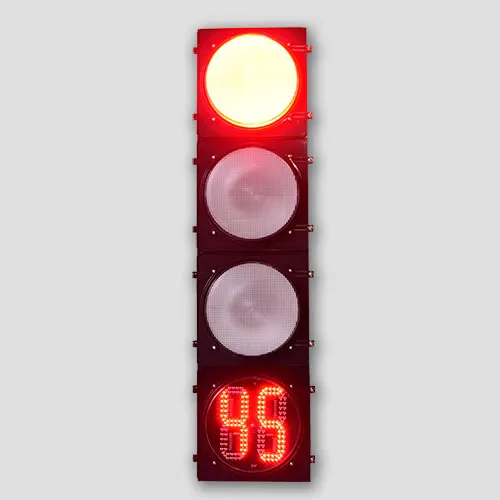

400mm 4 Aspects High Flux Red Yellow Green Traffic light with Countdown Timer

Product Overview

Description

400mm LED Red Yellow Green High Flux LED Traffic light with Countdown Timer



1.    Features:

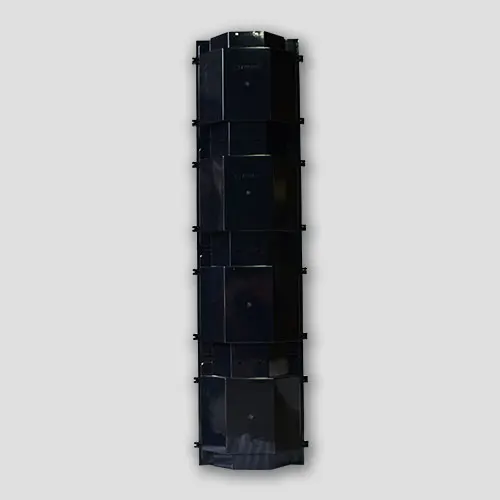

The housing is made of PC material, which can be open and be maintained without other special tools. It is characterized with high impact strength, dimension stability, electricity insulation, corrosion resistance and abrasive resistance.

Ø  Low power consumption

Ø  Operating at the temperature of -40℃ to +74℃

Ø  Wide viewing angles

Ø  Even brightness & standard chromatogram

Ø  Compatibility with most traffic controllers





 2 400mm LED Red Yellow Green High Flux LED Traffic light with Countdown Lamp

Product name	Product model	Product size	Housing material	Housing color
400mm traffic head	JD400-3-3 with CDT	1862X440x443mm	Polycarbonate housing	Black or yellow



Color	Emitting surface size	Lens features	Lens	Luminous intensity	Typical Wavelength	Voltage	Rated power	Power Factor
Red	Φ400mm	Fresnel lens	Clear	>600cd	626nm	90vac --240vac	20W	>90%
yellow	Φ400mm	Fresnel lens	Clear	>600cd	592nm		20W	>90%
Green	Φ400mm	Fresnel lens	Clear	>600cd	505nm		20W	>90%
Countdown Lamp	Φ400mm	Fixel Look	Clear	>200cd	626nm/592nm/505nm		20W	>90%

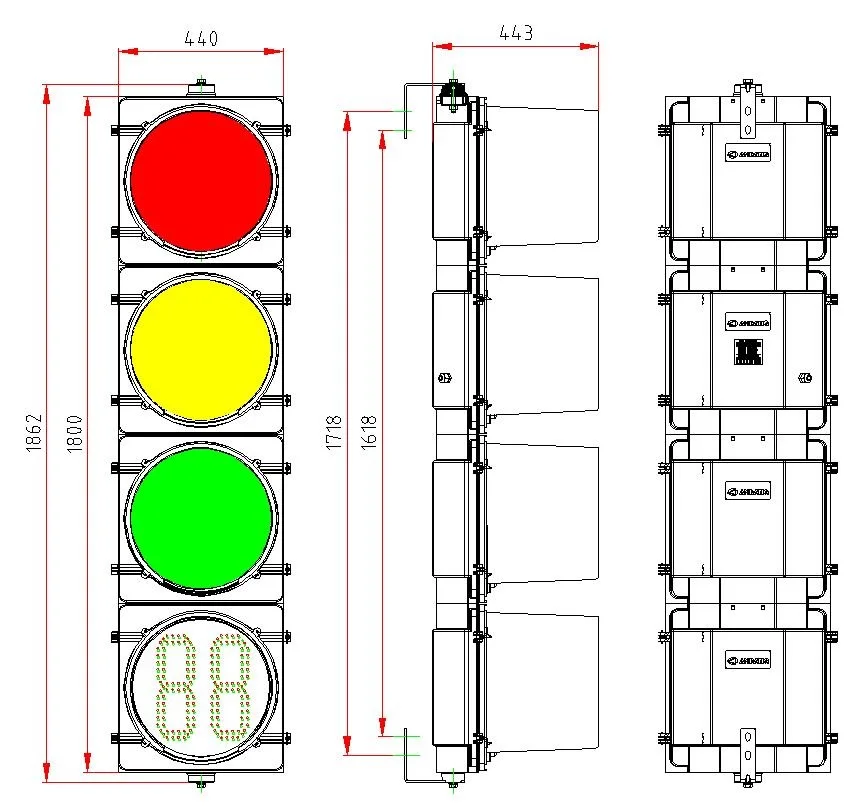

3 Dimension: 400mm LED Red Yellow Green High Flux LED Traffic light with Countdown Lamp



 4 Package and shipment

High Brightness Traffic Light Replacement For 300mm Full Ball Traffic Signal Light



Package Size (Carton)	Net Weight(kgs)	Gross Weight(kgs	Quantity(pcs)	Accessory
48*55*195CM	15	17	2 in 1 carton	Visor and bracket





We arrange the shipment according to our product quantity and weight



For samples, shipped by Express, DHL,UPS,EMS,Fedex available



For more quantity, we can shipped by air/sea to yours nearest port.

 5 This  IP65 Semaforo Led Vehicular 300mm Semaphore Led for South America applied to parking lot or traffic junction





6 Company information

 Wuxi Anbang Electric Co.,Ltd created 1998, is a high-tech enterprise specializing in researchi& develop led traffic light, include led traffic signal light(100mm/200mm/300mm), traffic signal light modules, pedestrian traffic signal light, traffic countdown, arrow traffic light, fullball solar traffic light, led street light of different Specifications.



All our traffic lights comply with ITE, EN12368, CE, RoHS, ISO9001: 2008 standards.
