TV101WUM NM0 10.1 inch MIPI DSI TFT LCD Display 1200x1920 WUXGA IPS Screen 10.1 Inch Display Modules
- Category: >>>
- Supplier: Shenzhen HCT Electronics Co. Ltd.
Share on (1600159466473):
Product Overview
Description

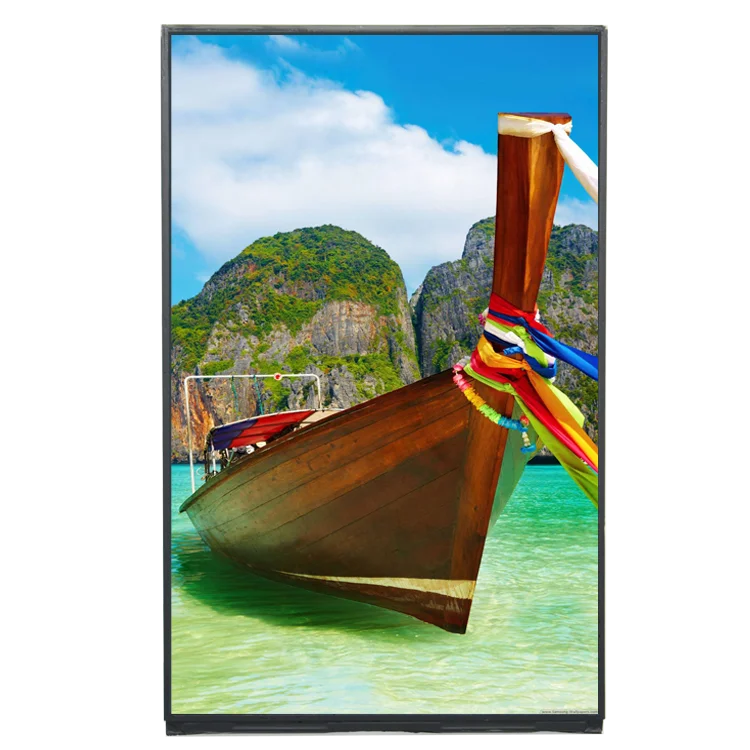

TV101WUM-NM0 10.1 inch MIPI DSI TFT LCD Display 1200x1920 WUXGA IPS Screen 10.1 Inch Display Modules
Product Description
WHY CHOOSE US?
1) More than 10 years' experience.
2) One-stop service (from design, manufacture to after-sale service).
- Wide color gamut/ Wide viewing angles/ Sunlight readability/ Extreme temperature functionality/ Industrial/ Custom high brightness TFT LCD up to 15.6".
- Bar Type TFT LCD Display up to 48".
- TN / IPS technology TFT LCD Display Modules.
- TFT LCD Controller Board with VGA / HDMI interface.
- Capacitive / Resistive / Waterproof touch screen up to 32" with custom flexibility.

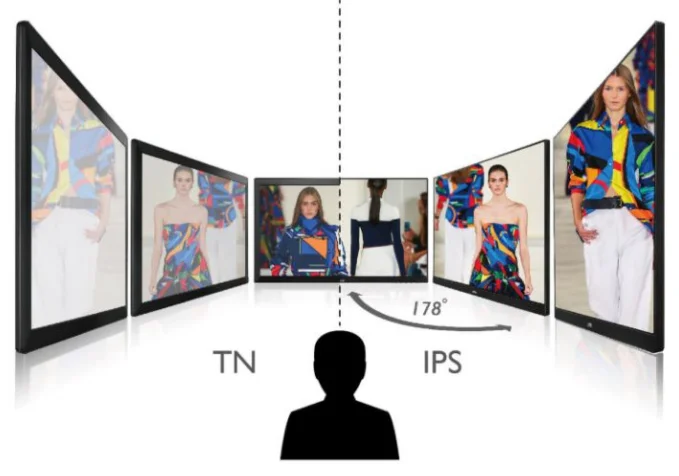

TN VS IPS
Comparing to TN TFT display, IPS LCD screen has below technologies,
- A wide viewing angle
- An improvement on pixel refresh timing
- High transmittance
- Reductions in response time
- Improved contrast ratio
- Advanced True White polarizing film that creates a more natural color of white
IPS TFT LCD technology is widely used for high-performance computers, laptops, tablets and smart phones
Product Feature

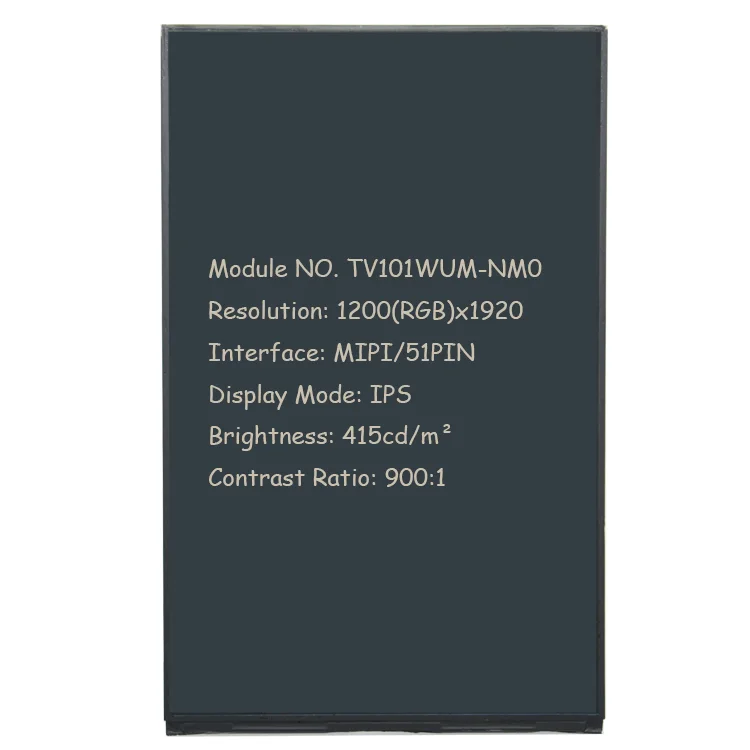

TV101WUM-NM0
10.1 inch 1200*1920 TFT LCD Modules
Interface: MIPI/51PIN
TV101WUM-NM0 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.1inch diagonally measured active area with WUXGA resolutions (1200 horizontal by 1920 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
Features:
- 1 Channel LVDS Interface with 1 pixel/clock
- Thin and lightweight
- Data enable signal mode
- Display 16.7M colors (Hi FRC)
- Low driving voltage and low power consumption
- RoHS Compliant
Technical Specification
ITEM | STANDARD VALUE |
LCD type | 10.1 inch TFT LCD Panel |
Dot arrangement | 1200(RGB)x1920 |
Color filter array | RGB vertical stripe |
Display mode | IPS/ Normally Black |
Viewing Angle | 85/85/85/85 (CR>10) |
Module size | 143.0(H)x227.926(V)x2.50mm(typical) |
Active area | 135.36(H)x216.576(V) |
Interface | 51 pin MIPI interface |
Backlight LED number | 32 LEDs |
Brightness(Typ.) | 415cd/m2 |
Backlight current(Typ.) | 80mA |
Backlight voltage(Typ.) | 24.0V |
Warranty | 12 months |
Pixel configuration | RGB stripe |
Surface treatment | Hard Coat |
FPC type | Solder type |
Color depth | 16.7M |
Operating temperature | 0 ~ +60 ℃ |
Storage temperature | -10 ~ +70 ℃ |

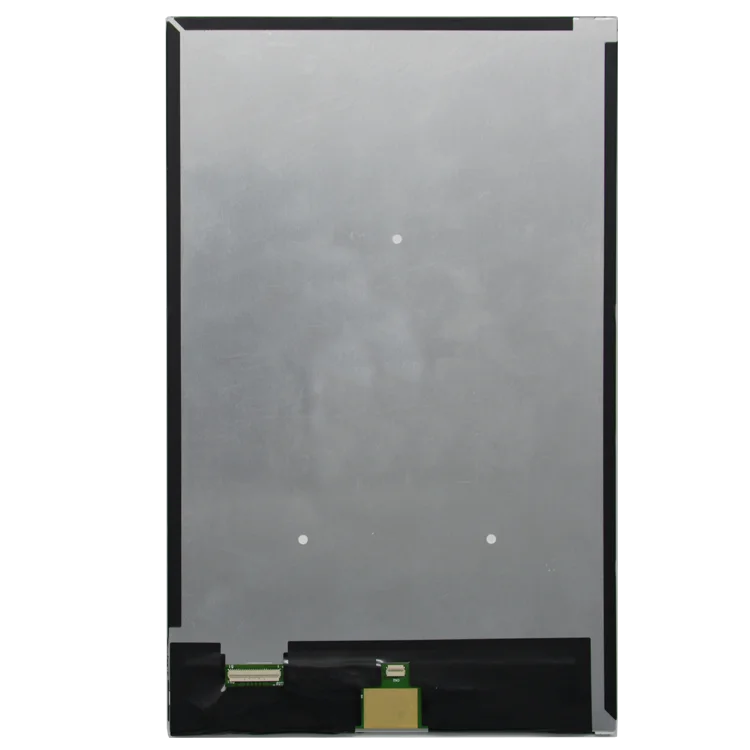

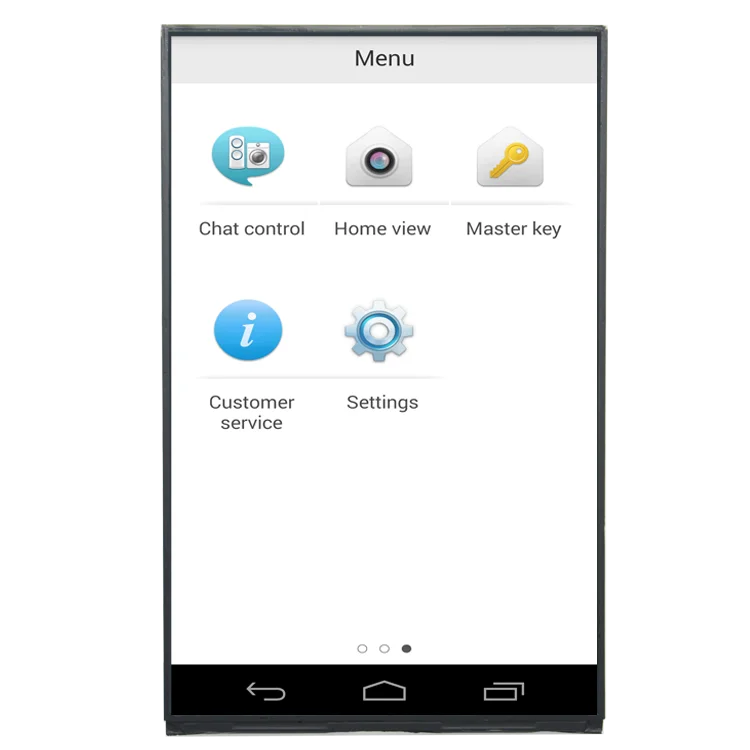

Detailed Images
MECHANICAL OUTLINE DIMENSION

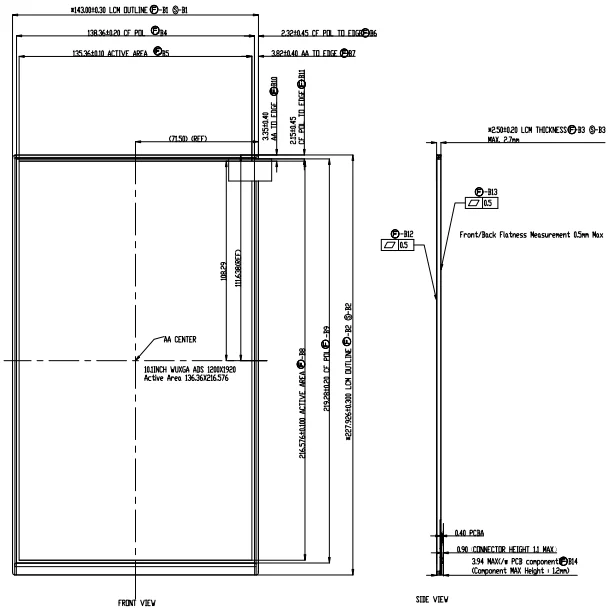

TFT-LCD Module Outline Dimension (Front View)

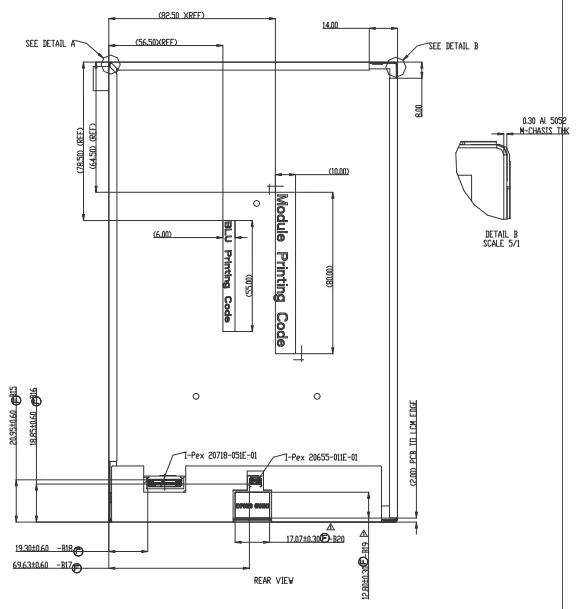

TFT-LCD Module Outline Dimensions (Rear view)

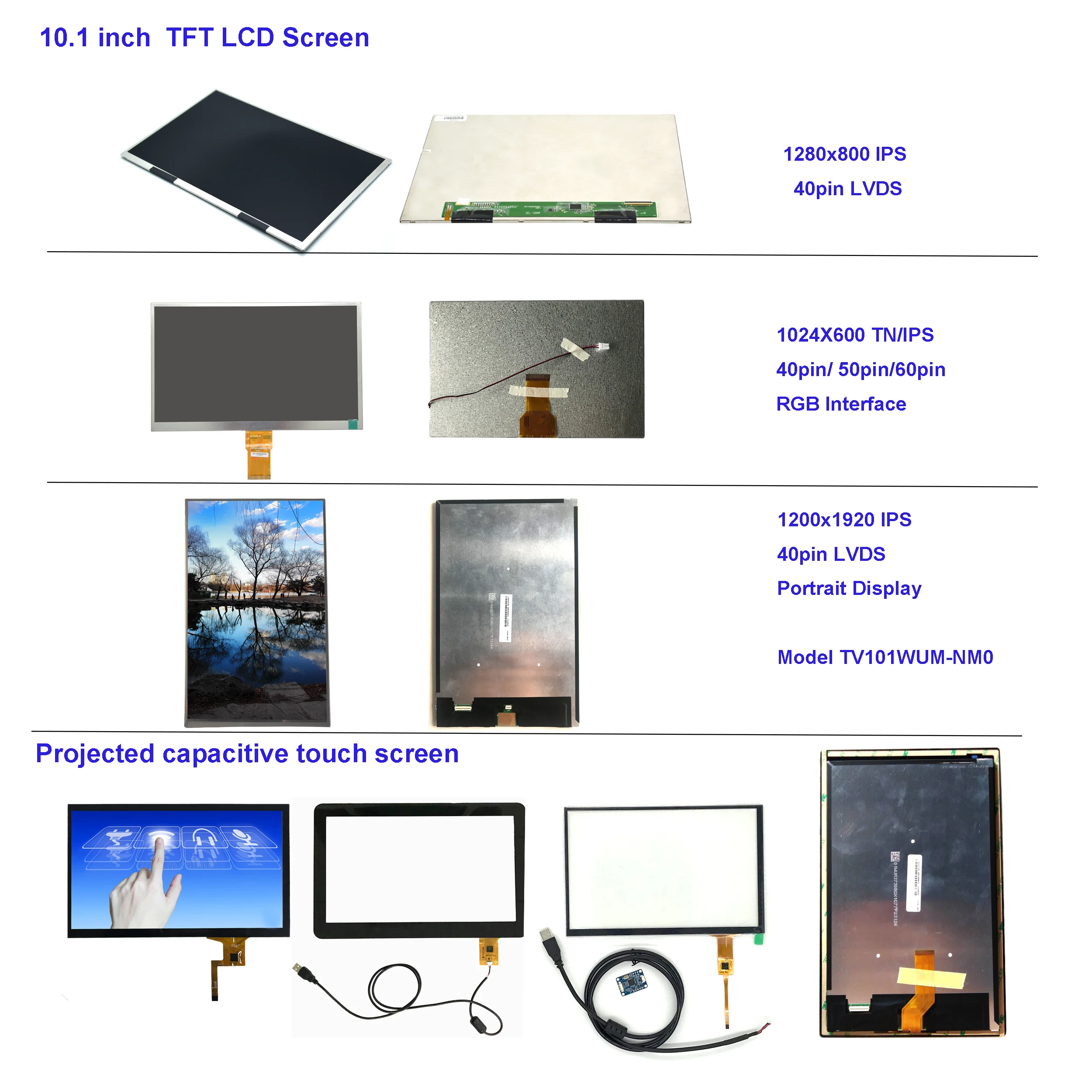

RELATED PRODUCTS
CLICK.
Free feel to contact us for more detail spec.
| Size | Model No. | Resolution | PIN | Interface | Brightness | Viewing Angle (T/B/L/R) | O.T | L.T |
| 10.1" | MX-B101HR50-TNX20 | WSVGA 1024x600 | 50pin | RGB | 230 nits | 40/50/50/50 | -20~70 °C | / |
| 10.1" | MX-B101HM30-TNX17 | WSVGA 1024X600 | 30pin | MIPI | 250 nits | 40/50/50/50 | -20~70 °C | / |
| 10.1" | MX-B101NL40-IS05 | WSVGA 1024X600 | 40pin | LVDS | 400 nits | 85/85/85/85 | -20~70 °C | / |
| 10.1" | MX-101HL60-TWW10 | WSVGA 1024X600 | 60pin | LVDS | 400 nits | 85/85/85/85 | -20~70 °C | 50K Hr. |
| 10.1" | MX-B101FL40-IT09 | WXGA 1280x800 | 40pin | LVDS | 400 nits | 85/85/85/85 | -20~70 °C | 30K Hr. |
| 10.1" | MX-B101FL40-IT21 | WXGA 1280x800 | 40pin | LVDS | 1000 nits | 85/85/85/85 | -20~70 °C | 50K Hr. |
| 10.1" | MX-B101FM40-IT19 | WXGA 1280x800 | 40pin | MIPI | 250 nits | 80/80/80/80 | -20~70 °C | / |
| 10.1" | MX-C101M31-27L16I | WXGA 800x1280 | 31 pin | MIPI | 200 nits | 85/85/85/85 | -10~50 °C | / |
| 10.1" | MX-B101HM40-IS07 | WUXGA 1200x1920 | 40pin | MIPI | 280 nits | 85/85/85/85 | -10~45°C | / |
| 10.1" | MX-B101HM40-IS08 | WUXGA 1200x1920 | 40pin | MIPI | 400 nits | 85/85/85/85 | -10~45°C | / |
| 10.1“ | MX-B101WUM-N20 | WUXGA 1920x1200 | 45pin | LVDS | 450 nits | 80/80/80/80 | 0~50°C | / |
Our Services
ODM&OEM SERVICE
⇒We provide custom LCD modules service on LCD brightness, FPC and PIN assignment.

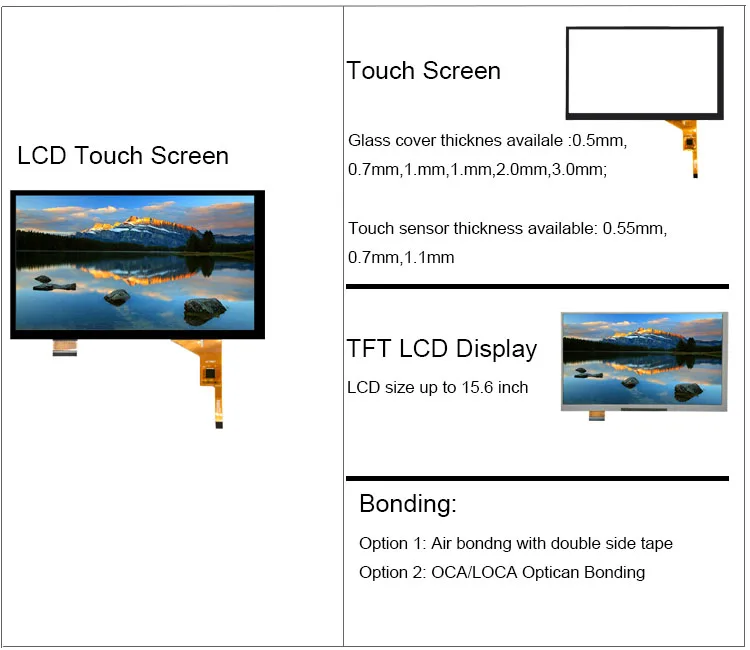

Meanwhile, this 10.1 inch LCD screen is available with 4 wire resistive touch screen and I2C/USB interface capacitive touch screen with customizing availability as well.
⇒If you need to custom touch screen, we can custom for you with your company LOGO, requested dimension shape, color and FPC interface.
-Up to 32 inch.
-Touch Cover glass thickness available.
0.55mm, 0.7mm, 1.1mm, 1.8mm, 3.0mm, 4.0mm, 5.0mm (Above 3.0mm needs sophisticated touch controller).

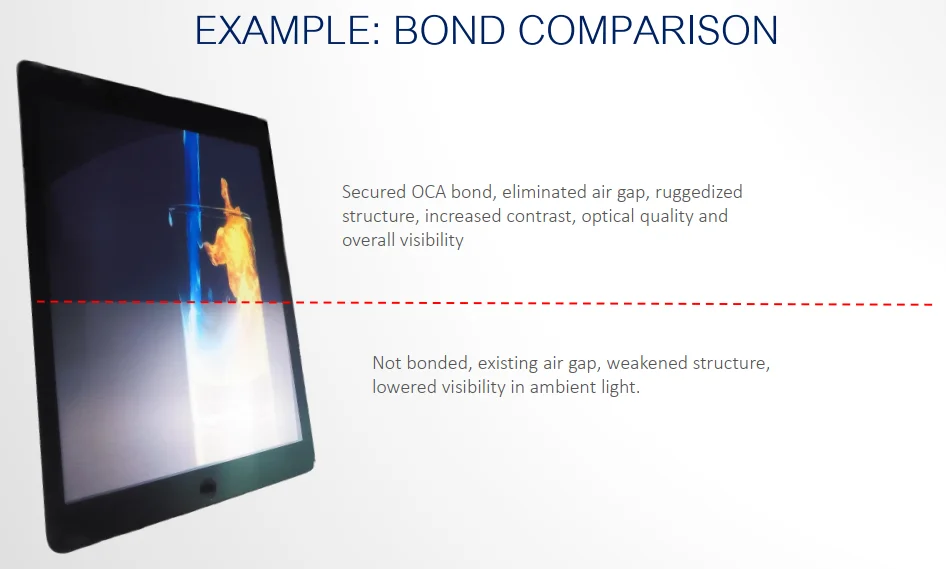

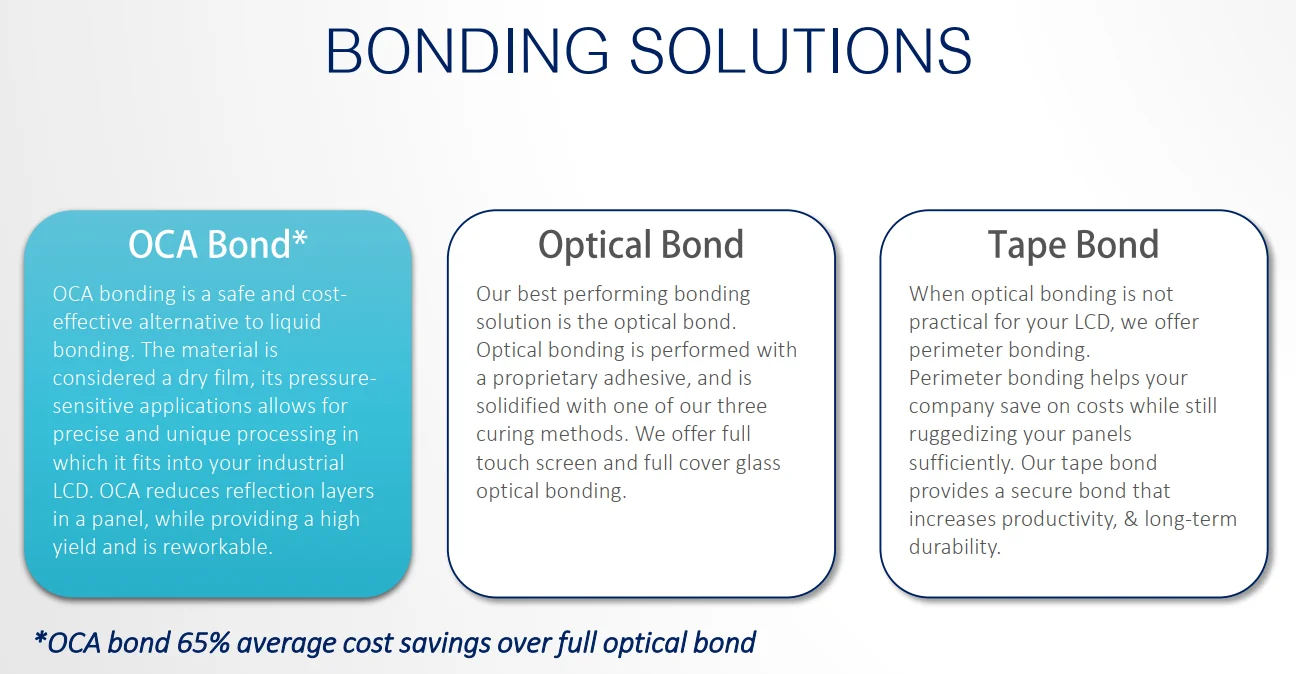

-We provide also tape bonding and OCA / LOCA optical bonding for the LCD screen and touch screen you choose with our suggestions.
Our Application
- AV application Products
Our Production
Having been in this field for more than 10 years, we are now mainly supplying below products:
PRODUCT RANGE | ||||
TFT LCD Panel | 2.4 inch to 15.6 inch Industrial TFT LCD IPS and TN technologies LCD Wide color gamut TFT LCD screen | |||
Touch Screen | Up to 32 inch Capacitive touch screen 4 wire resistive touch 5 wire resistive touch Touch controller board and cables accessories Custom size touch screen | |||
TFT LCD Module | 3.5 inch to 15.6 inch TFT with VGA / HDMI interface Custom controller board available | |||
TFT LCD Touch Screen | Up to 32 inch LCD touch screen Optical bonding OCR OCA LOCA Air bonding(double side tape) TFT with only glass optical bonding | |||
ASSOCIATED BRANDS
Currently we are working with international glass brands and controller IC brands
including Chimei/Innolux, BOE, Hanstar, AUO, GOODIX, ILITEK, EETI, FocalTech and etc.

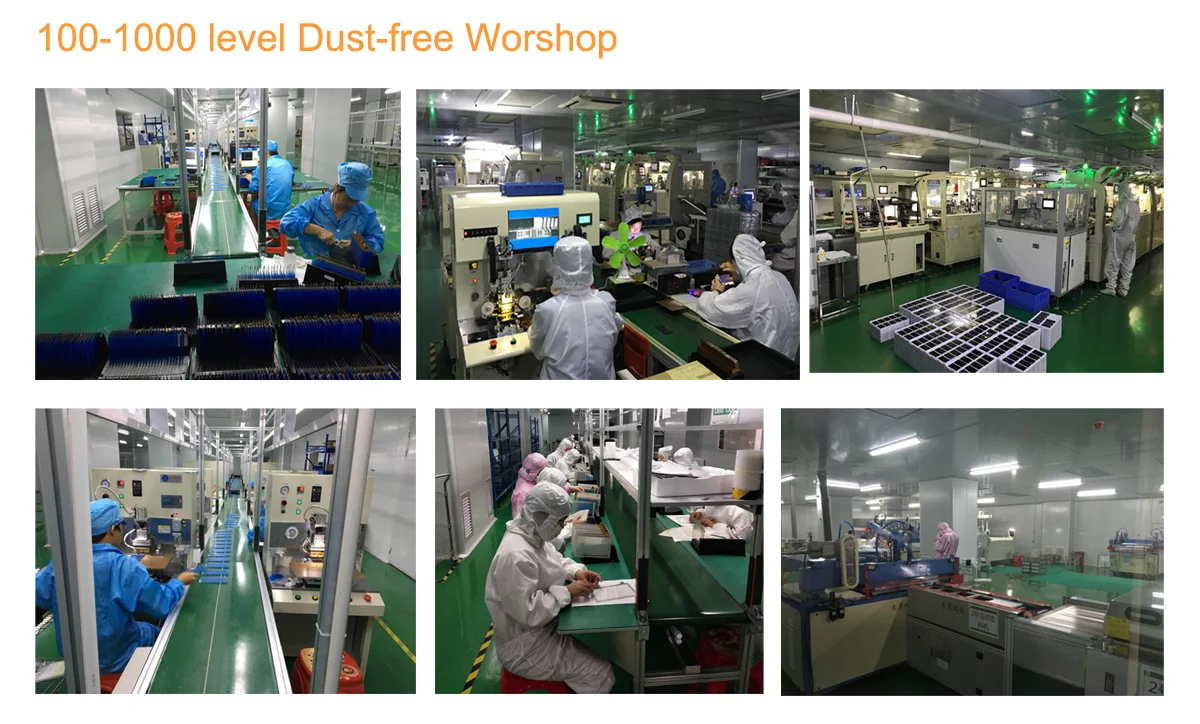

TFT WORKSHOP
TFT LCD Panel main production process:
- Mother Glass-cutting
- COG (Chip on Glass) assembling
- FOG (Flexible FPC on Glass) assembling
- Backlight assembling
Company Information
Shenzhen HCT Electronics Co., Ltd
Our Advantages
- 10 years’ experience on designing and manufacturing TFT LCD display and touch screens
- Flexible on customize products for diverse product requirements
- One-stop solution for touch screen and TFT LCD module assembled
- Big Capacity: 30k pcs TFT LCD per day, 8K pcs touch screen per day
- Fast in delivery: 1-4 weeks with regular stock for standard model
- High Quality: ISO9001 certified and TS16949 certified factory

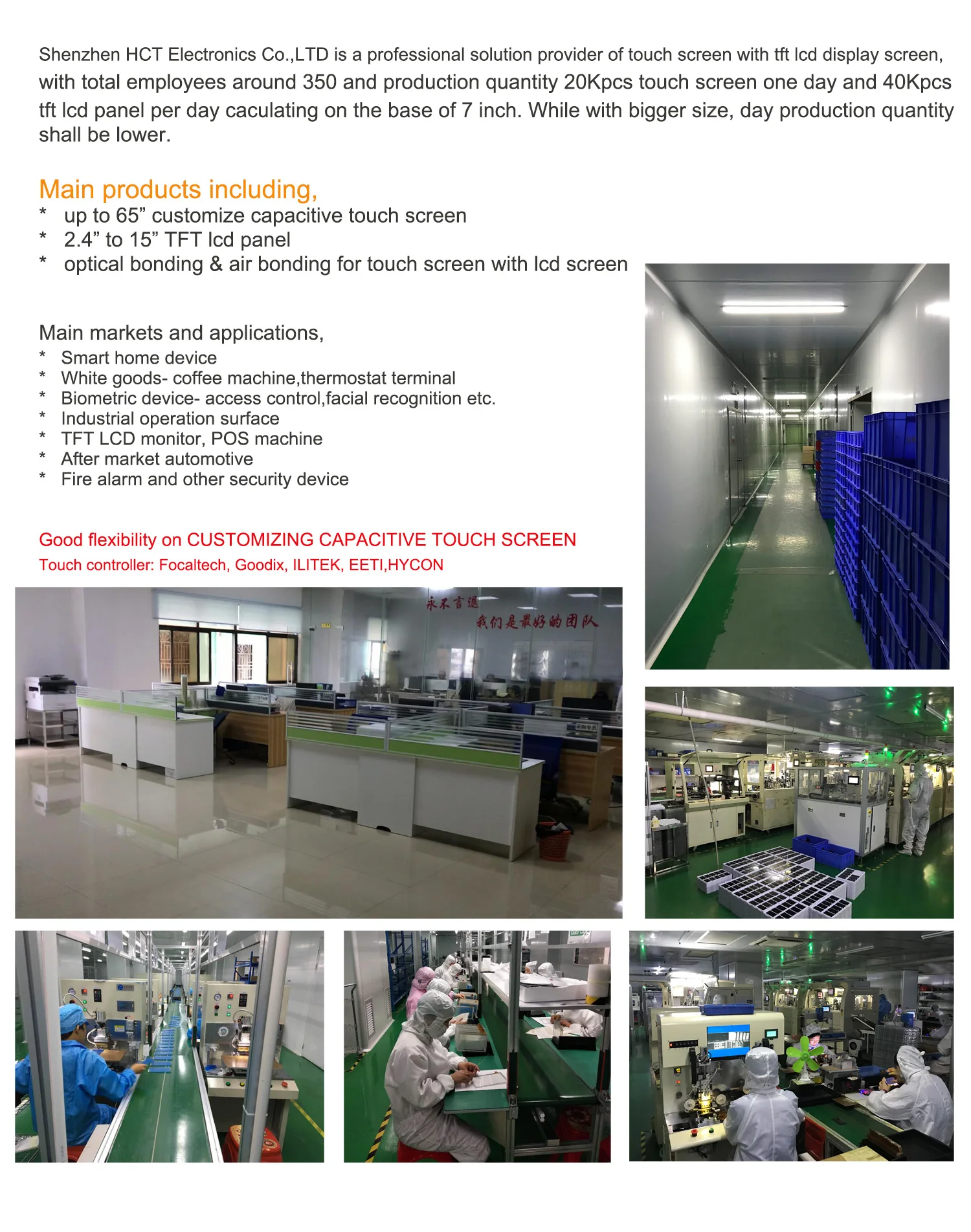

Our Factory
Shenzhen HCT Electronics Co., Ltd is a professional supplier of small and medium size TFT LCD panel and touch screen. Our products are produced in around 7,000 square meters production area, including 5,000 square meters 100 level to 1000 level dust-free workshop. Our Company is a ISO9001 and ISO14001 certified manufacturer and qualified producer of TS16949. Our well trained 2100 employees are having rich experience in producing touch screen and TFT LCD display with 10 years experience. Through modern management skills, by introducing constant updating newly automated technology and facilities into our production, contributing by our talented and innovative engineering human resources, Maxen can meet your diversified needs.
CUSTOM SIZE TFT LCD
As a TFT LCD manufacturer, we import mother glass from brands including BOE, INNOLUX, and HANSTAR etc. Then cutting into small size in house, to assemble with in house produced LCD backlight by semi-automatic and automatic machine. Those processes contains COF (chip-on-glass), FOG (Flex on Glass) assembling, Backlight design and production, FPC design and production. So our experienced engineers have ability to custom the characters of the TFT LCD screen according to customer demands, except cannot customize LCD panel shape (TFT sizes are fixed at the glass making stage), we can custom high brightness TFT LCD, Flex cable, Interface.
Packaging & Shipping
PACKAGE:
Standard export carton packin.
TFT packing:
DELIVERY TIME:
3-20 days after confirming the order, detailed delivery date should be decided according to production season and order quantity.
FAQ
A1. Who are we?
Q1: We are based in Guangdong, China, start from 2017, sell to South Asia(10.00%), Southern Europe(10.00%), Northern Europe(10.00%), Central America(10.00%), Western Europe(10.00%), Eastern Asia(10.00%), Mid East(10.00%), Southeast Asia(10.00%), Eastern Europe(10.00%), North America(10.00%). There are total about 201-300 people in our office.
A2. How can we guarantee quality?
Q2: Always a pre-production sample before mass production;
Always final Inspection before shipment;
A3. What can you buy from us?
Q3: TFT LCD Display Screen Panel, Capacitive Touch Screen, Resistive Touch Screen, LCD Touch Screen.
A4. Why should you buy from us not from other suppliers?
Q4: 10 Years manufacturing and exporting experience for capacitive touch screen & resistive touch screen up to 32 inch and TFT LCD display screen panels up to 15.6". We provide ONE-STOP service for TFT LCD with Touch screen production.
A5. What services can we provide?
Q5: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union;
Language Spoken:English, Chinese.
