WJ2427 Full Automatic Sheath Cable Inner And Outer Cable Cutting Wire Stripping Machine

WJ2427 Full Automatic Sheath Cable Inner And Outer Cable Cutting Wire Stripping Machine

Category: Cable Manufacturing Equipment >>>
Supplier: Kunshan,Weijiang,Automation,Equipment,Co.,Ltd.,[Jiangsu,China]Kunshan

Price:RUB 158,209.59 - RUB 248,615.07

Price in USD:Details

Quantity:

Product Overview

Description

WJ-8030H Automatic multicore wire stripping machine

Parameters

Model	WJ-805H	WJ-8030H	WJ-8070H
Available Wire	Round sheathed cable	Round sheathed cable	Round sheathed cable
Conductor Cross-Section	1-6mm²	4-30mm²	8-70mm²
Inner Core Numbers	Within 5 cores	Within 12 cores	Within 12 cores
Cutting Length	1-99999mm	1-99999mm	200-99999mm
Cutting Length Tolerances	≤(0.002*L) mm	*≤(0.002L) mm**	≤(0.002*L) mm
Jacket Stripping Length	Head 0.1-250mm; Tail 1-70mm	Head 10-120mm; Tail 1-120mm	Head 30-200mm; Tail 30-150mm
Inner Core Stripping Length	Head 0.1-30mm; Tail 3-30mm	Head 1-120mm; Tail 1-80mm	Head 1-30mm; Tail 1-30mm
Conduit Diameter	Φ6mm	Φ16mm	Φ25mm
Production Rate	One cores wire, 2300pcs/h Multi cores cable, 800pcs/h	One cores wire, 2300pcs/h Multi cores cable, 800pcs/h	One cores wire, 1800pcs/h Multi cores cable, 800pcs/h
Production Rate	One cores wire, 2300pcs/h Multi cores cable, 800pcs/h		One cores wire, 1800pcs/h Multi cores cable, 800pcs/h
Display Screen	4.3 inch LCD touch screen	7 inch touch screen	7 inch touch screen
Wire Feed Method	Belt feeding	Belt feeding	Belt feeding
Drive Method	4 wheels drive	16 wheels drive	32 wheels drive
Power Supply	220V/110V	220V/110V	220V/110V
Power	700w	1200W	1500W
Weight	40kg	95kg	240kg
Dimensions	474535cm	*605062cm*	12072146cm

WJ-8030H Features：

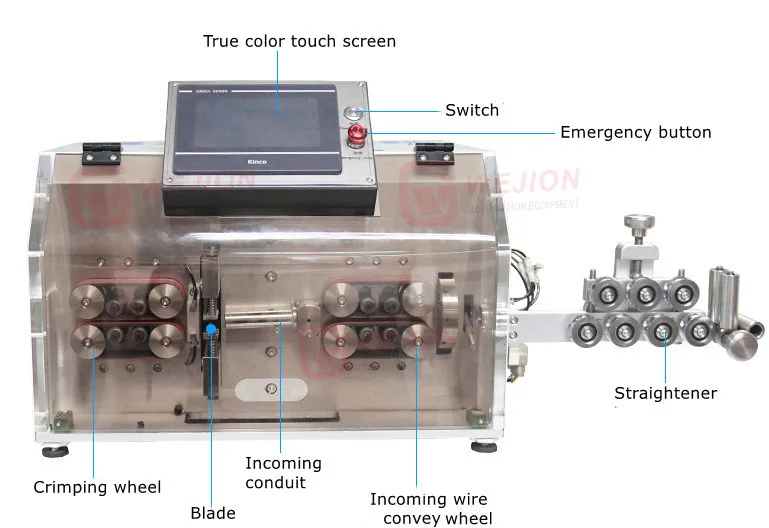

WJ-8030H is designed for multi-cores cable full-automatic cutting and stripping both jacket and inner cores. It supports max 12 cores sheathed cable processing.
1. One machine ok for different wire sizes
2. Long stripping length, max. 120mm

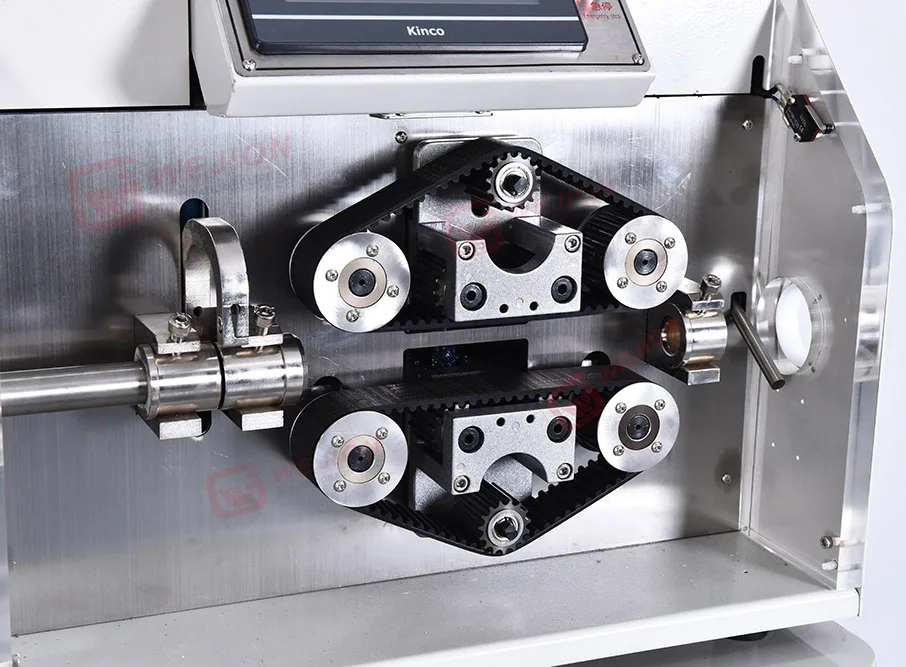

3. Belt feeding for wire, no press marks and no scratches

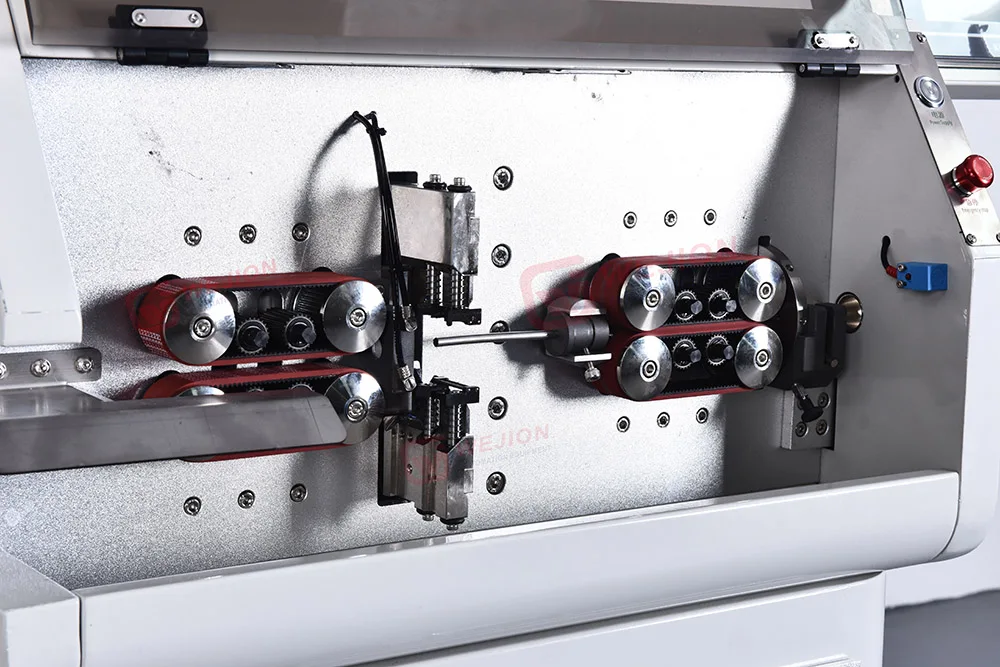

4. Adopts 16-wheels drive, silent hybrid stepper motor and servo tool holder, work stable

More machine please click here

wire stripping machine for 5 cores

cable stripping machine for 12 cores

cable stripping machine for 12 cores

Hot Sell Products

A. Small One Core Stripping Machine:

0.03–4.0 mm² (11–32 AWG)

electric wire stripping machine

2.5-35mm² (2-14 AWG)

electric wire stripping

0.1-4mm² (11-27AWG)

wire cutting stripping machine

one core wire stripping samples：

B. Large One Core Wire Stripping Machine：

4-30mm²(2-11AWG)

automatic wire cutting stripping maching

1-70mm²(2/0-17 AWG)

automatic wire cutting stripping maching

large suqre wire cutting stripping machine

big one core wire stripping samples：

C. Multi-Core Wire Stripping Machine:

1-6mm²(9-17AWG)

multicore jacket cable stripping machine within 5 cores

1-30mm²(2-17AWG)

multicore jacket cable stripping machine within 12 cores

1-30mm²(2-17AWG)

automatic stripping machine middle stripping

multi cores wire stripping samples:

Company Introduction

Kunshan Weijiang Automation Equipment Co., Ltd is a modern technology enterprise specializing in the research,development, production and sales of intelligent equipment for processing, cutting and wiring harnesses. The company's core products include: large square computer stripping machine, automatic terminal machine,corrugated pipe cutting machine, rotary pneumatic stripping machine, hexagonal crimping machine, and so on. Fully automatic heat shrinkable sleeve terminal machine, automatic sheath terminal machine, automatic waterproof bolt terminal machine, automatic rubber shell terminal machine, automatic cable terminal machine, new energy automation equipment, etc. In addition, the company undertakes R&D and manufacturing of non-standard automation equipment.

Our Services & Strength

We are one of the most professional Chinese wire cable process machine manufacturers and leaders.

* Best products and factory price. * On-time delivery and the shortest delivery time.
* 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to
pay for the delivery.
* OEM and customized service.

* User manuals will go with relative machines.

QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples

4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
