1. High speed, low noise, high reliability, and convenience to maintainance.
2. Max. production speed up to 50 cycles per minute, definitely can be named as high speed thermoforming machine.
3. DW series high speed thermoforming machine can work perfectly for PP, PS, OPS, PVC, APET, or CPET, due to the advanced automatic servomotor control system.
4. By adopting the intelligent heating system shows quick response rate, short processing time, high efficiency and low power consumption.

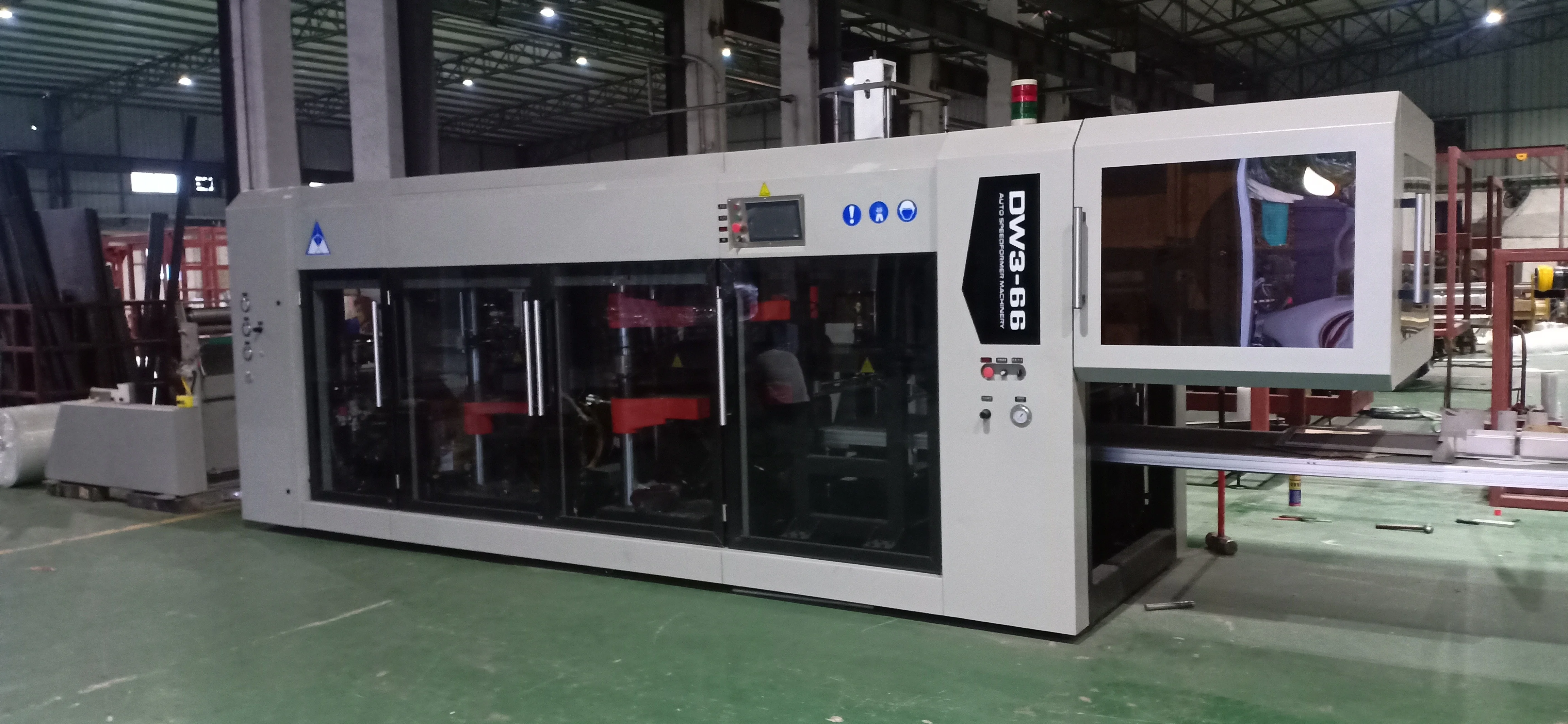

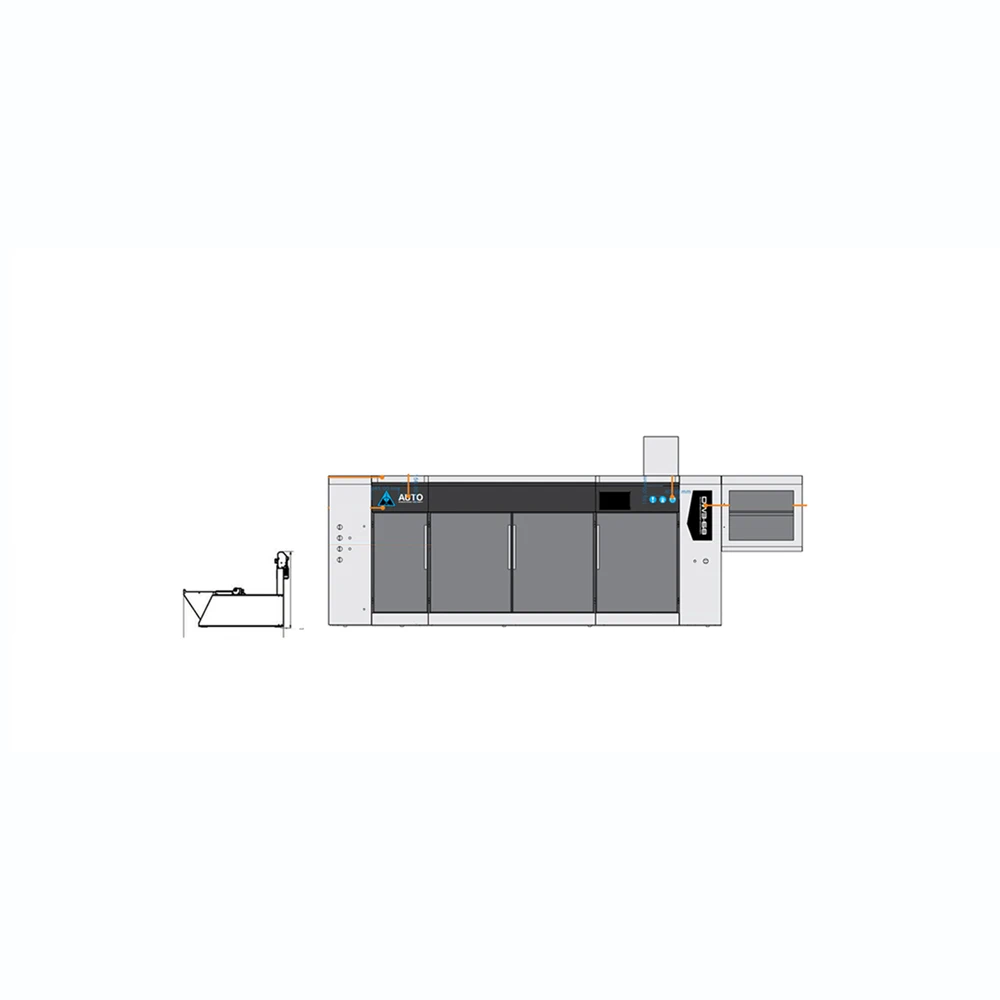

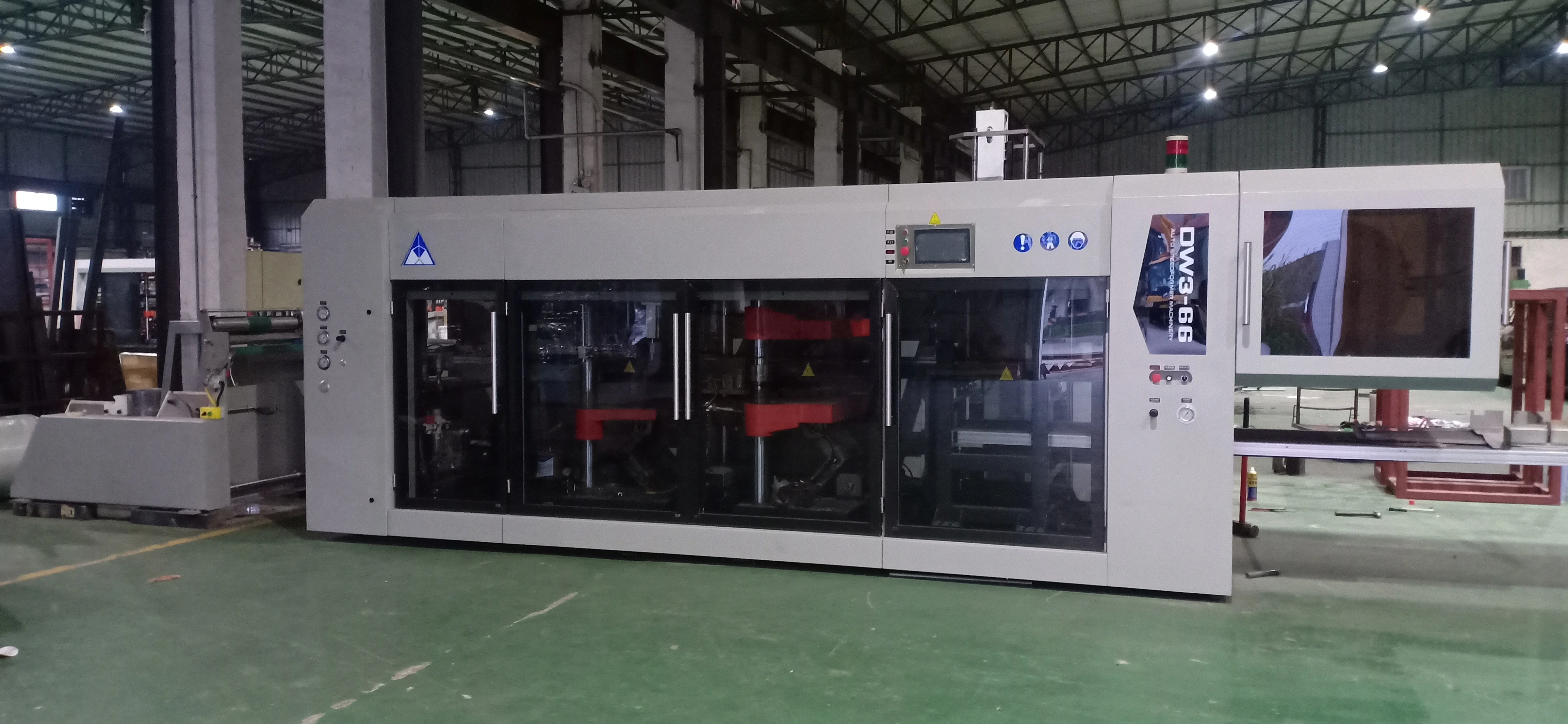

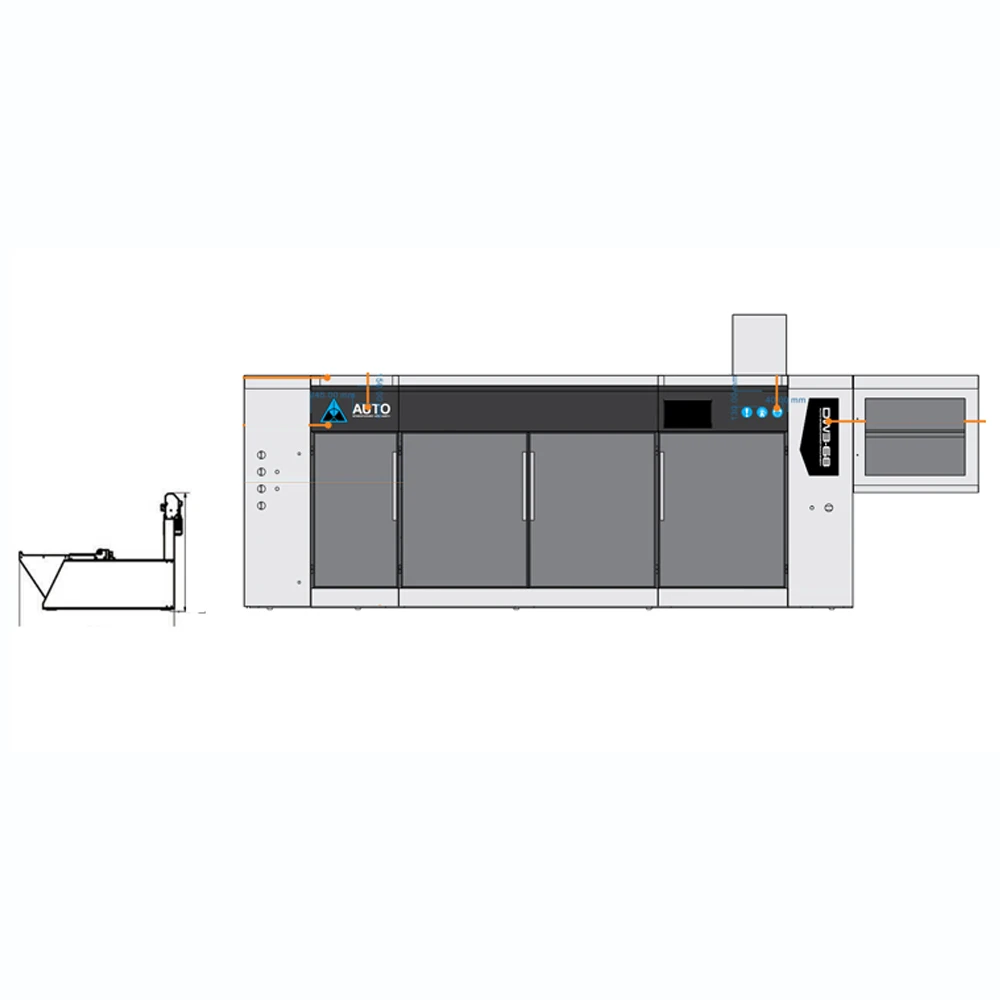

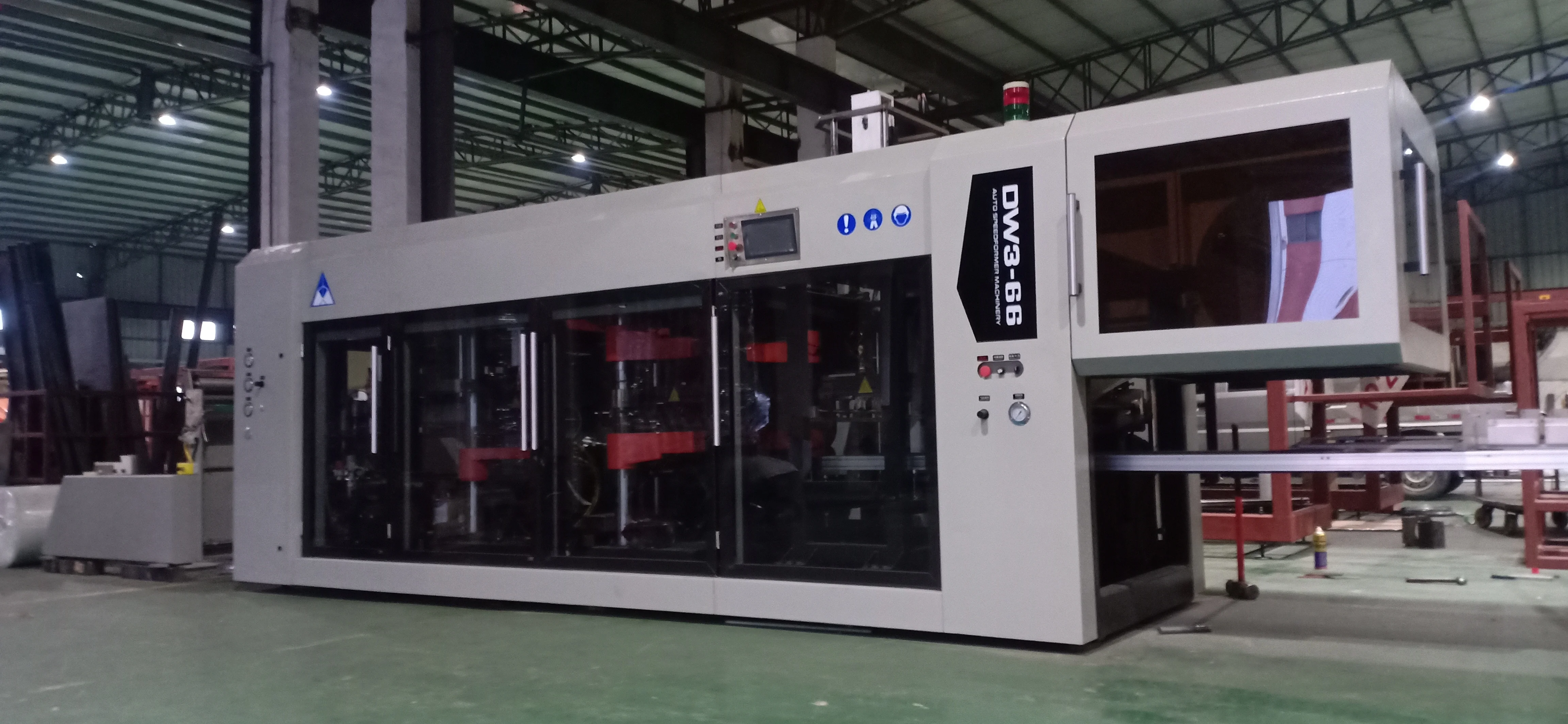

Model
DW3-66
Suitable Material
PP, PS, PET, PVC
Sheet Width
340-710mm
Thickness of Sheet
0.16-2.0mm
Max. Formed Area
680×340mm
Min. Formed Area
360×170mm
Formed part height
100mm
Work Efficiency
≤30pcs/min
Heating Power
40kw
Main Motor power
3.5kw
Winding Diameter(Max)
Φ800mm
Suitable Power
380V, 50Hz
Air Pressure
0.6-0.8Mpa
Air Consumption
4500-5000L/min
Water Consumption
20-25L/min
Machine Weight
6000kg
Dimension
8×2.4×2.5m
Used Power
33kw
Installed Power
55kw
More Products
About Us
Exihibitions
Certifications
Assembly Line
Packaging & Shipping
FAQ
1. Q: Are you a factory or trading company? A: We are a factory.
2. Q: How does your factory do regarding quality control? A: We have a special QC department in charge of products' quality.
3. Q: How long is the warranty period? A: All of our machiner have one year warranty.
4. Q: What's the main market of your company? A: We have customers all over the world.
5. Q: How much production capacity of your company one year? A: This depends on your needs.
6. Q: Can we visit your machine operation in your factory? A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located? How can we visit there? A: Our factory is located in Shantou City, Guangdong Province, China, about 50 minutes from Guangzhou by air. We offer transportation service.
