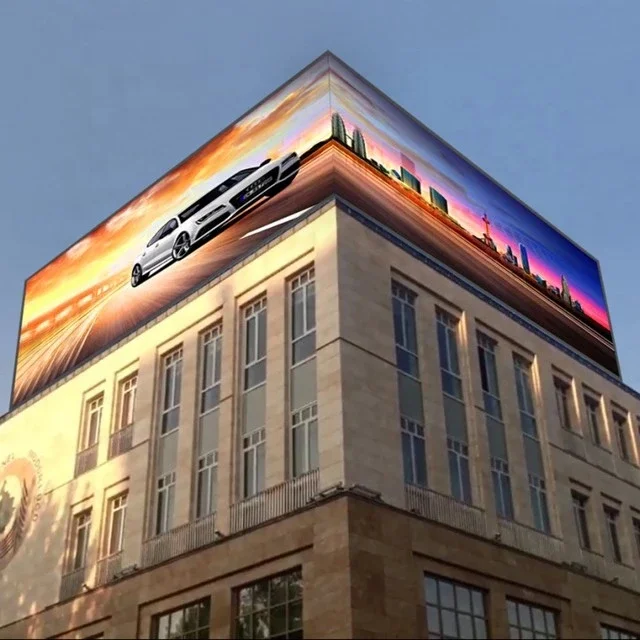

3D Naked Eyes Led Display Billboard Hot Video 90 Degree P10 Full Color Outdoor Led TV Screen For Advertising
- Category: >>>
- Supplier: Chipstar Led Co. Ltd.
Share on (1600159758464):
Product Overview
Description
Application
Building Top
Shopping Mall
Exhibition Hall
Retail Store
Hotel
Product Description
Specification
Module Number | PH6.67 | PH8 | PH10 | PH10 |
Pixel Pitch | 6.67 mm | 8 mm | 10 mm | 10 mm |
Physical Density | 224778 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 | 10000 pixels/m2 |
Led Arrangement | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | DIP |
Module Resolution | 48*48 pixels | 40*40 pixels | 32*32 pixels | 32*32 pixels |
Module Dimensions | 320*320 mm | 320*320mm | 320*320mm | 320*320mm |
Cabinet Resolution | 384*192 pixels | 320*160 pixel | 256*128 pixel | 256*128 pixel |
Cabinet Dimensions | 2560*1280 mm | 2560*1280 mm | 2560*1280 mm | 2560*1280 mm |
Cabinet Weight | 180 kg | 180 kg | 180 kg | 180 kg |
Brightness | ≥6000 nits | ≥6000 nits | ≥6000 nits | ≥7500 nits |
Max Power Consumption | 500w/m² | 500w/m² | 500w/m² | 500w/m² |
Ave Power Consumption | 170w/m² | 170w/m² | 170w/m² | 170w/m² |
Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
Refresh Rate | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
IP Rating | IP65 | IP65 | IP65 | IP65 |
Signal Input Source | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI |
Certificate | ETL, FCC, CCC, RoHS, CE | ETL, FCC, CCC, RoHS, CE | ETL, FCC, CCC, RoHS, CE | ETL, FCC, CCC, RoHS, CE |

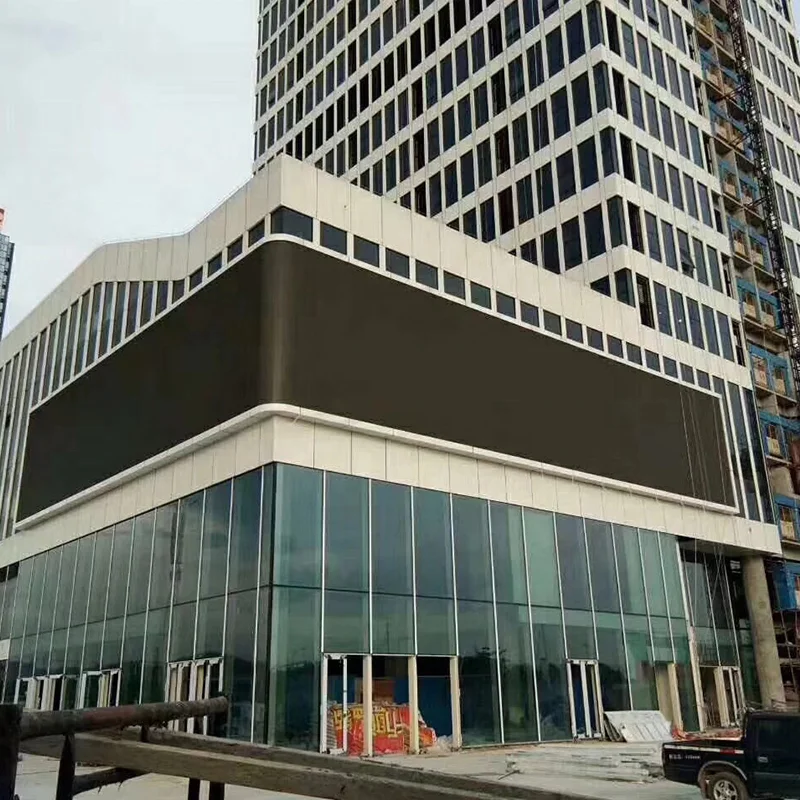

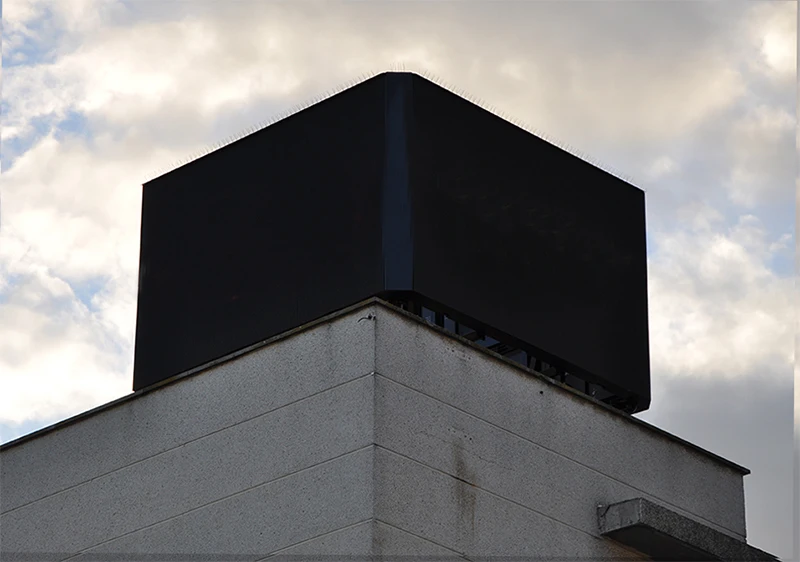

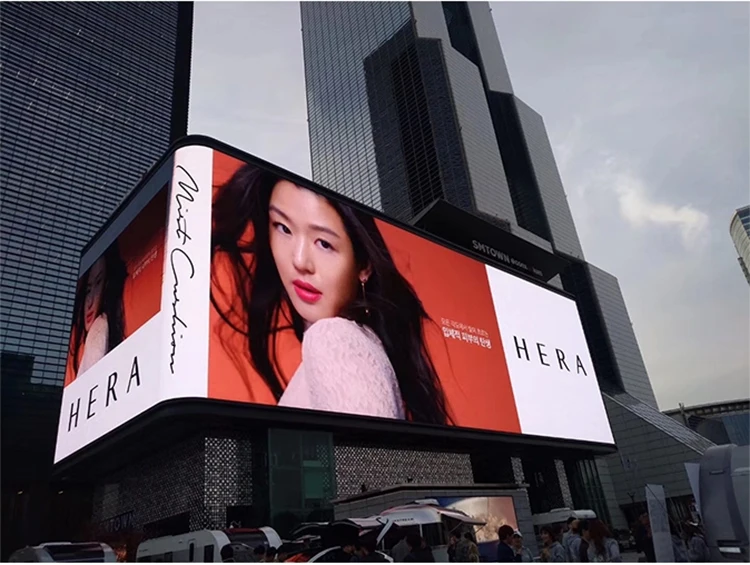

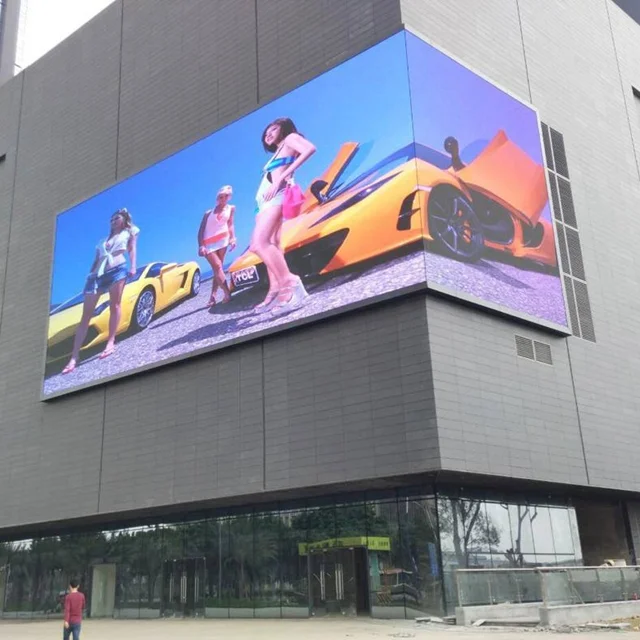

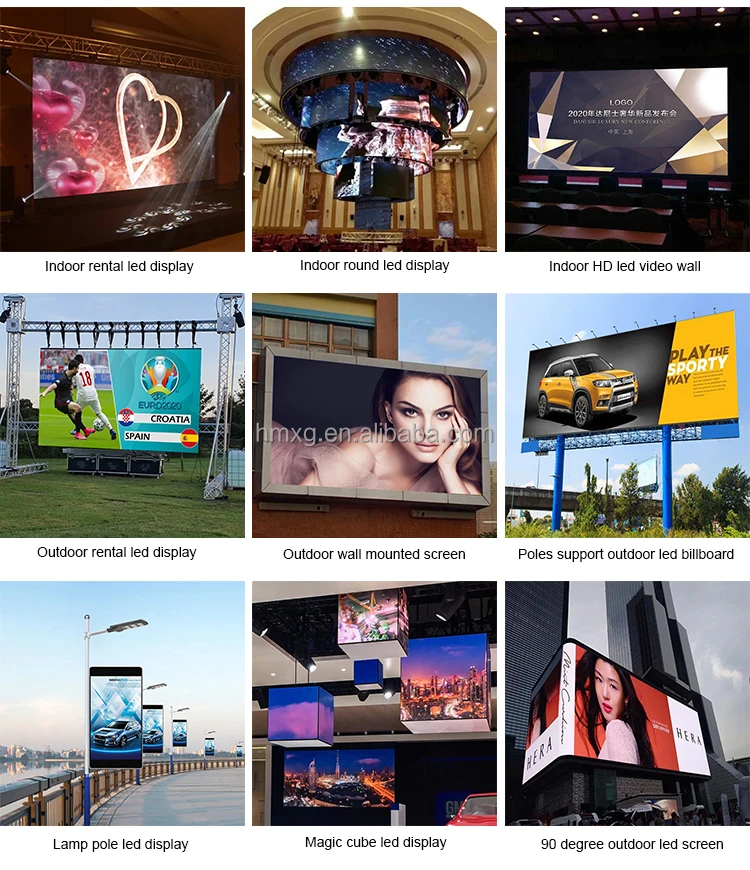

Project Cases

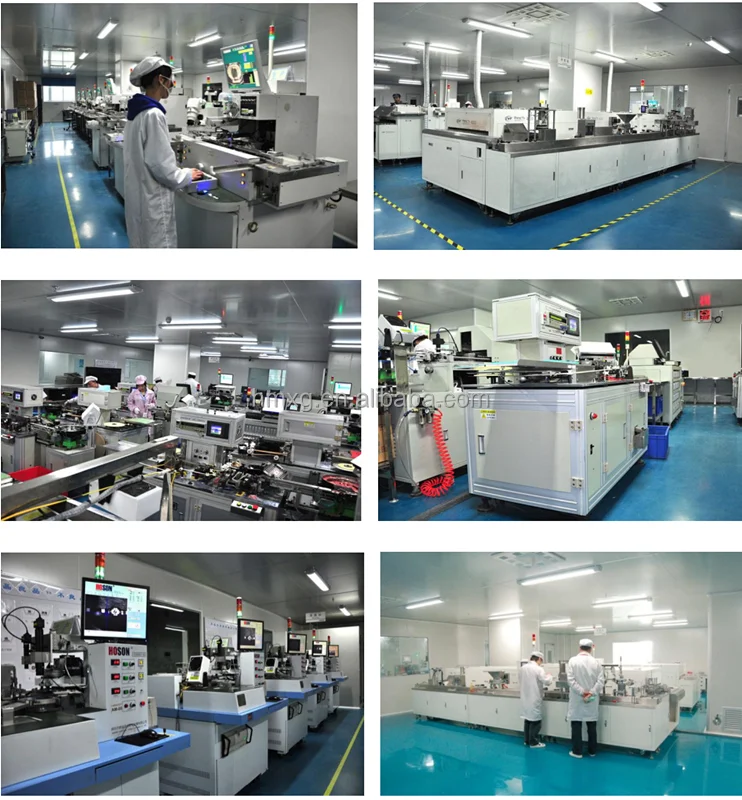

Company Profile
Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display.
Our products has passed CE, ETL, FCC, CCC and RoHS ceritificate. Reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Russia, Canada, Singapore, Japan, etc.
Our products has passed CE, ETL, FCC, CCC and RoHS ceritificate. Reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Russia, Canada, Singapore, Japan, etc.
Why Choose Us
Packing &Delivery
Packaging and Shipment.
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing
Shipping Method:
by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and seaport name if you want we check the shipping cost for you!
Shipping Method:
by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and seaport name if you want we check the shipping cost for you!
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty.
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty.
