Factory supply ultra thin 12v 100ah lifepo4 battery for off road vehicle/soalr energy system
- Category: Batteries >>>
- Supplier: Shenzhen,Cyclen,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Item | General Parameter | Remarks | |
1 | Battery type | Lithium iron phosphate battery | |
2 | Retad voltage | 12.8V | 4S1P |
3 | Battery working voltage | 10～14.6V | Single cell voltage：2.5V-3.65V |
4 | Rated capacity | 100Ah | |
5 | Total energy | 1.28 KWh | |
6 | SOC range | 20%-100% | |
7 | Charge /discharge capacity efficiency | ≥96% | |
8 | Max Charge current | 50 | 0.5C |
9 | Peak discharge current | 200 | 5S |
10 | Max Continuous discharge current | 100 | |
11 | Battery cycle life | ≥3000 | |
12 | Battery weight | About:16.8kg | |
13 | Relative ambient humidity | 10%-90% | |
14 | Waterproof rate | IP55 | |
15 | Battery construction | 4S1P | |
16 | Battery charging/discharging ambient temperature range | -20℃-60℃ |
Main Features
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.
3. Max discharge continuous current 175A, peak 320A.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. Bluetooth function and heated function can be added.
2. Use a grade prismatic cells. More than 3000 cycle times.
3. Max discharge continuous current 175A, peak 320A.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. Bluetooth function and heated function can be added.
Built In Bms Overall Protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection

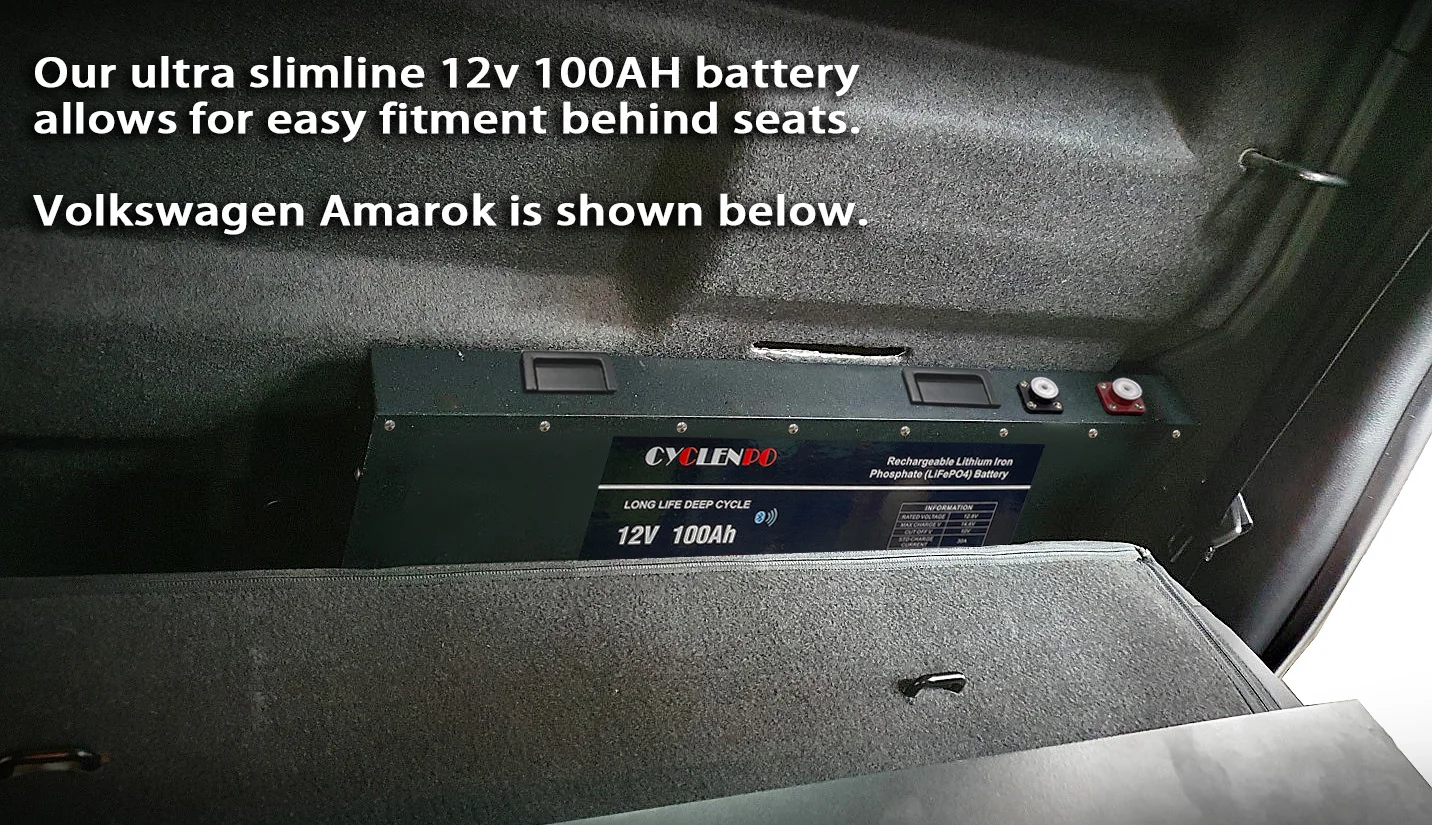

Application
Professional Packing
If you don't know what you want,please contact usand we can customized upon your requiement.
