LORAWAN IOT Development Kit Board MKL62ST DT
- Category: >>>
- Supplier: Shenzhen Moko Technology Ltd.
Share on (1600160154745):
Product Overview
Description
Product Description
LORAWAN®-Based Development Kit
MKL62ST-DT is a small and open source IoT development board specially designed for MOKO LoRaWAN module MKL62BA. The low-power SMT32 chip is used as the external MCU,and it integrated Sensirion STH30 temperature and humidity sensor on board.By running a demo application firmware provide by MOKO can quickly familiarize the working of LORA network and see the temperature and humidity sensor data on the LoRawan network server.Users also can connect different external sensors through a rich peripheral interface to quickly start design and validate a LORA node device. And the Aduino NANO connection is compatible, it will be easy to start a LORA application design.
* its designed, developed & manufactured in-house.
Product Specification | ||
Items | Parameters | |
MCU | STM32L151C8T6A | |
Flash | 64KB | |
RAM | 32KB | |
Powerr Supply | 3.7V rechargeable Li-battery or Type-C USB | |
Output Voltage | 5V or 3.3V | |
Output Current | Max. 500mA | |
LORAWAN Module | MKL62BA SX1262 | |
Protocol | LORAWAN V1.0.2 and BLE V4.2 | |
LORA Frequency Band | 868MHZ/915MHZ(setable by AT Command) | |
LORA TX Power | Max.22dB | |
LORA Antenna | IPEX interface antenna | |
Peripheral Interface | UART,GPIO,ADC,I2C,SPI,NFC | |
On-board Peripheral | SHT30 Sensor,4xLED,2xswitch | |
Dimension | 80x36X12mm | |
Support standard LoRaWAN protocol
Power supply interface with a complete anti - surge, ESD, anti - reverse connection and other protective design Provide Li-battery connection interface, integrated lithium battery charge and discharge management circuit
CP2102 USB-UART chip provides serial port function to facilitate program download and debugging information printing
Provide SMT32 and LoRaWAN module serial port program interface
Compatible with Arduino NANO interface
Offers a variety of on-board peripheral SHT30 sensor, button, and LED
Details Images
System Block and Interface Instruction

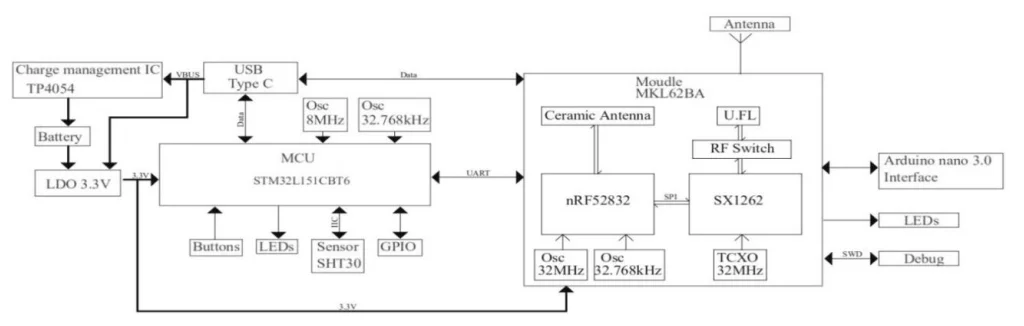

Function Block Diagram

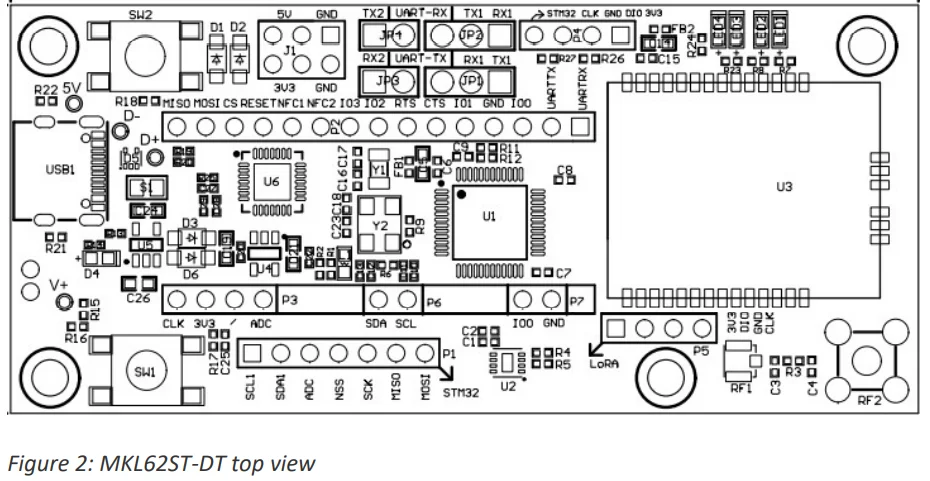

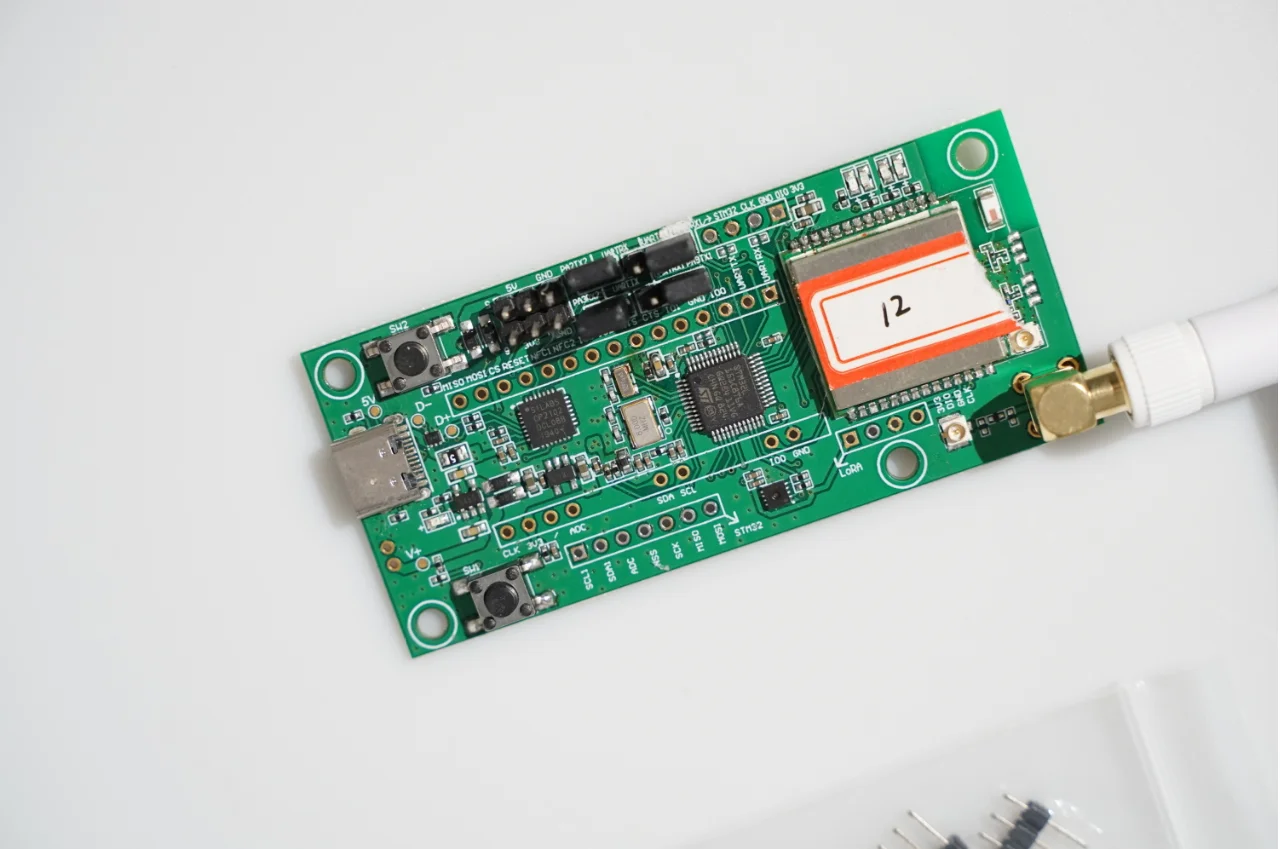

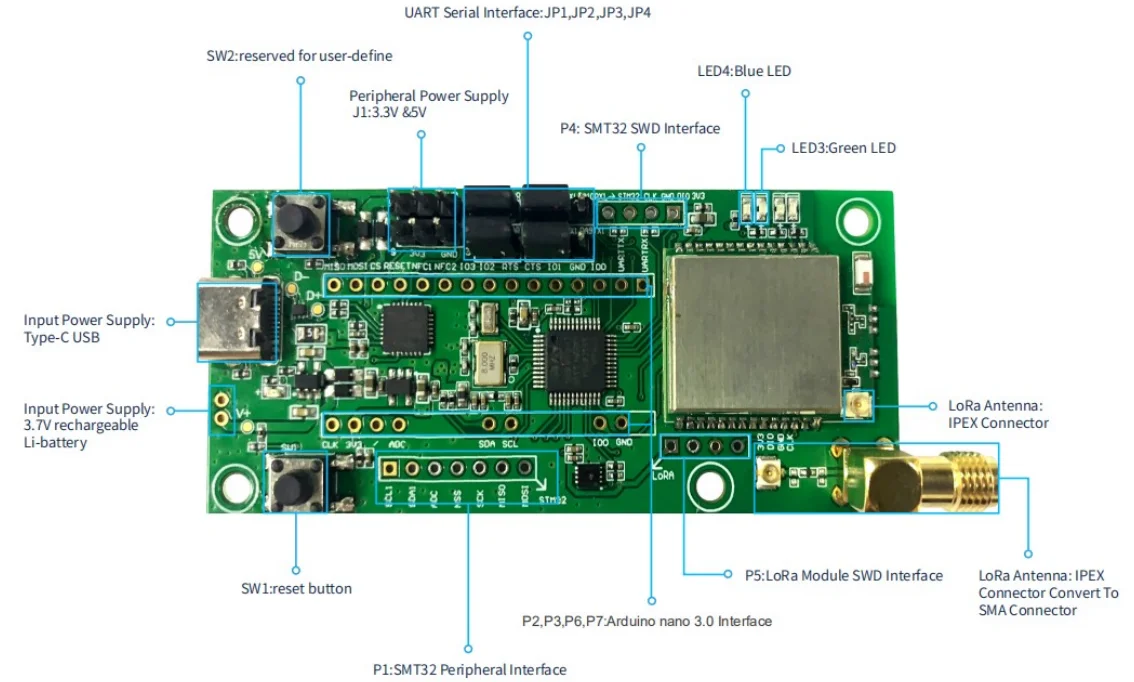

Development Board Overview
Interface overview

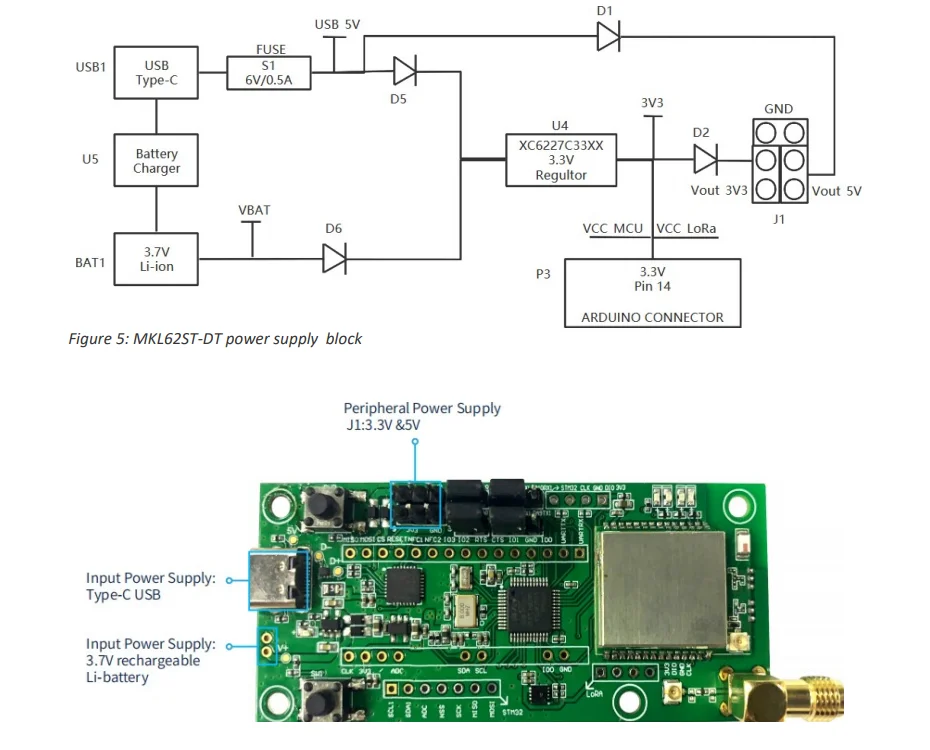

Power Supply
Input power supply: optional 5V type-C USB power supply or 3.7V rechargeable Li-battery Power supply VCC 3.3V for on-board MCU SMT32, MKL62BA module and Arduino Power supply 3.3V or 5V for peripheral
Related Products
Company Introduction
MOKOSmart is a professional manufacturer dedicated to the research, development and manufacturing of smart devices. We offer a range of programs for our potential partners which include electronic engineering, firmware customized, wholesale program, white-label solution, EMS(Electronics Manufacturing Service) and ODM program. Basically, we can offer mature products for you to directly sell, and additionally provide you with a custom-made service to meet your requirement. Currently, our company has over 400+ employees, of which over 70 engineers concentrate on smart fitness bands, Bluetooth beacon, smart plug switch, etc. Our one-stop service includes design, development, production, and after-sales service. We have built sophisticated production lines for smart fitness band, Bluetooth beacon, and smart plug switch business, lorawan devices, which is equipped with advanced manufacturing technology to ensure high quality.

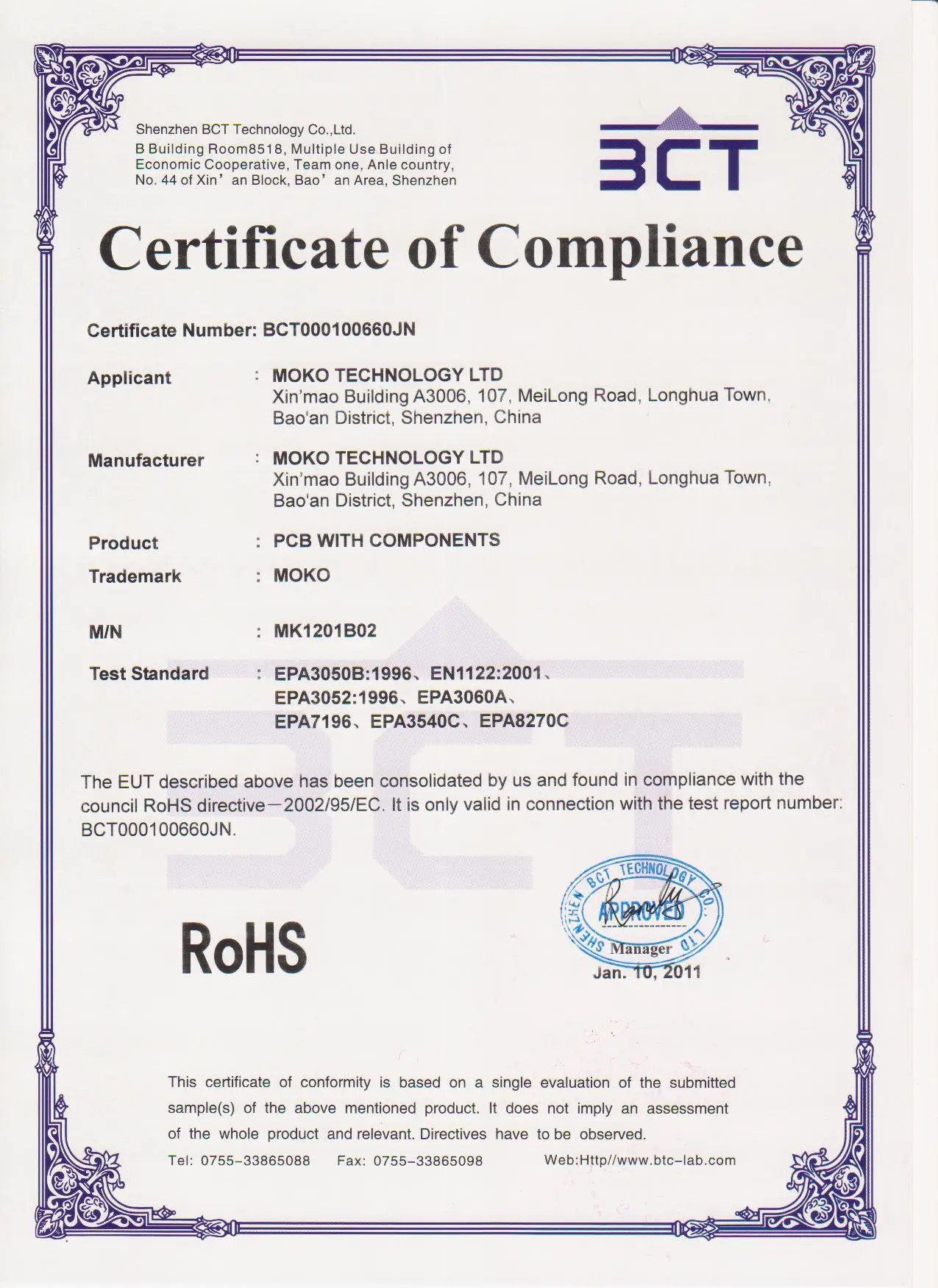

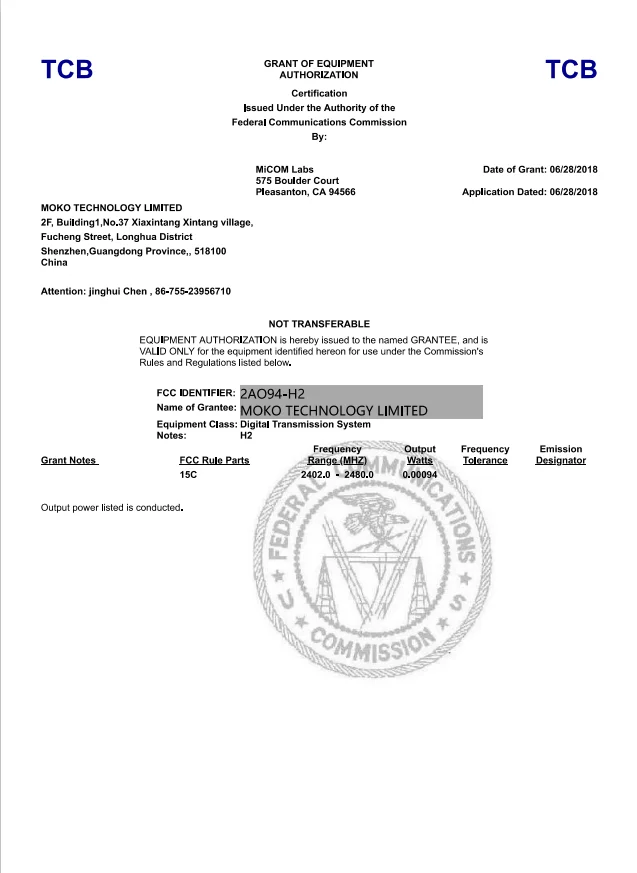

MOKO Certifications
Packing&Shipping
Payment Terms:
T/T, West Union, Money gram and L/C are accepted, for samples paypal or Alibaba trade assurance. FOB, CIF, DDU and Ex-work are accepted.Shipping Terms:
By air, By sea. Express delivery - Door to Door ( DHL , UPS, TNT, FEDEX , CHINA POST EMS).
DeliveryTime:
We will send the sample order about 3~5 days lead time, within 2 weeks for the big order.
Packaging:

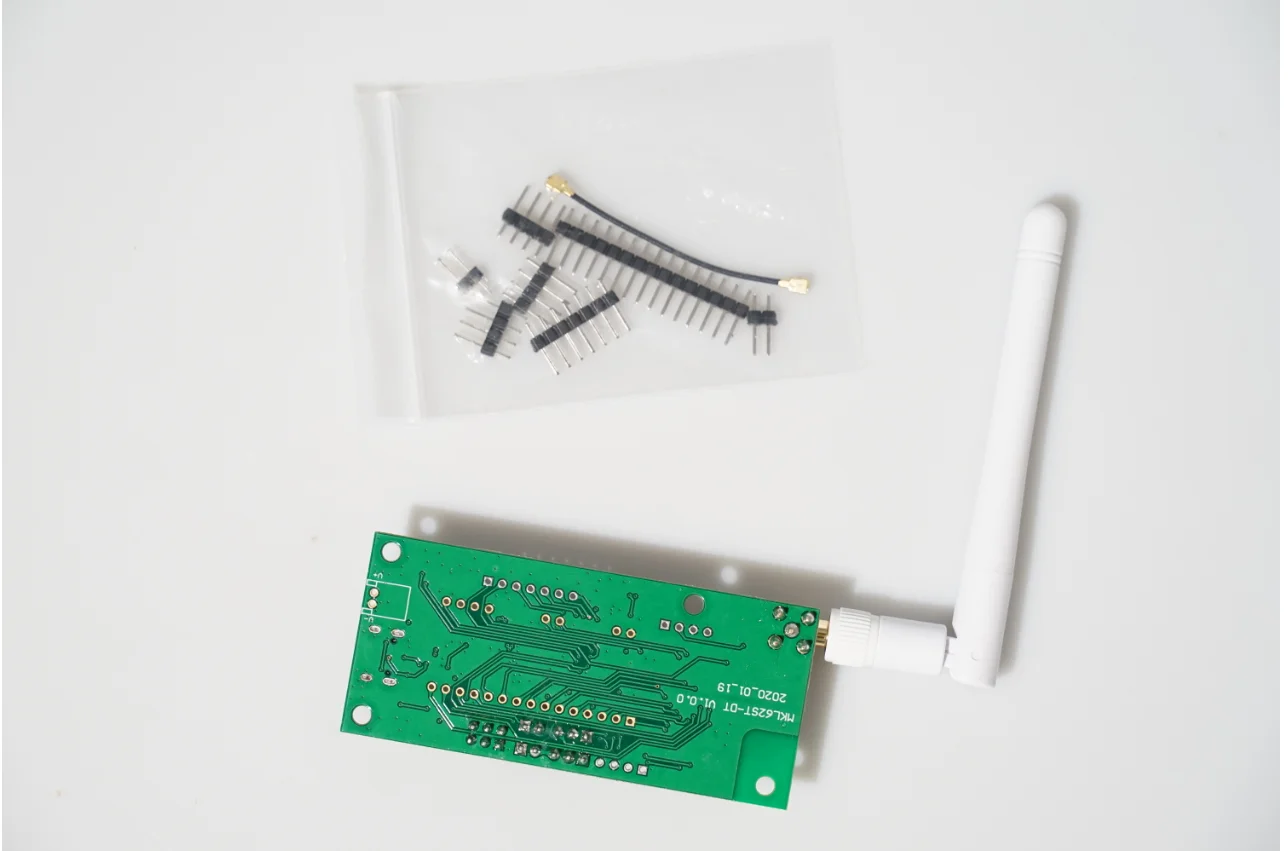

Development Board | The development board has been welded with the required MKL62BA module, and has all available hardware interfaces. |
