Product Overview
Description
Product Overview

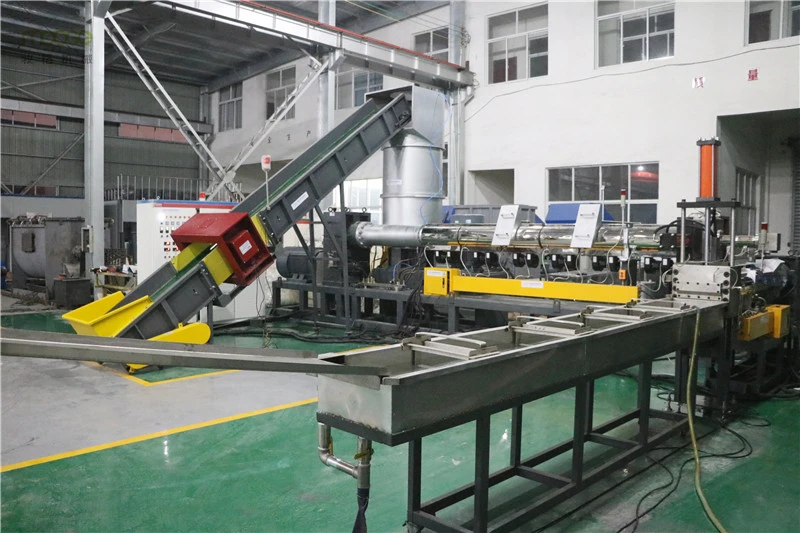

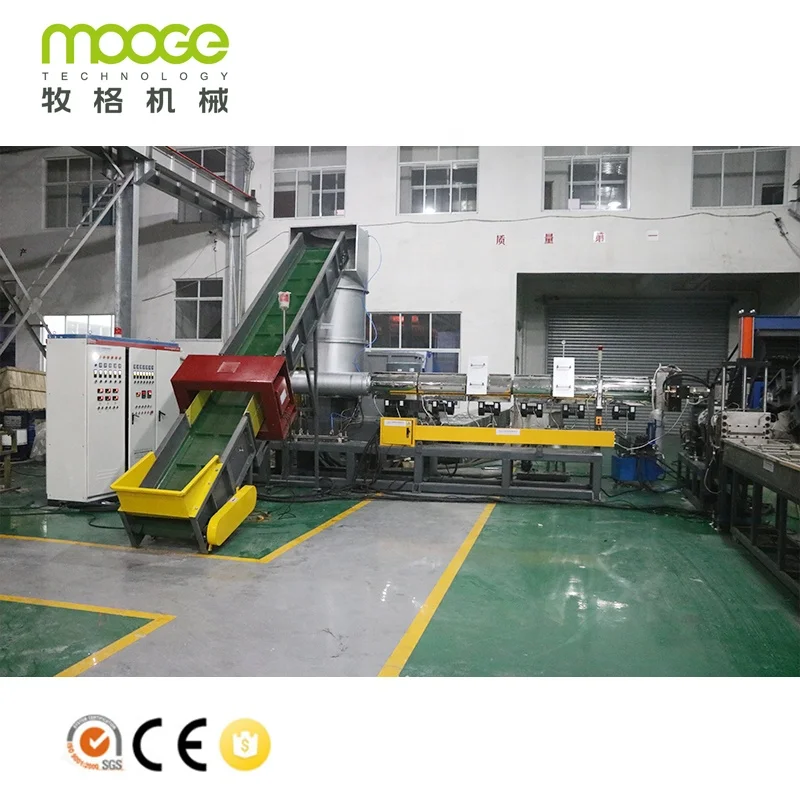

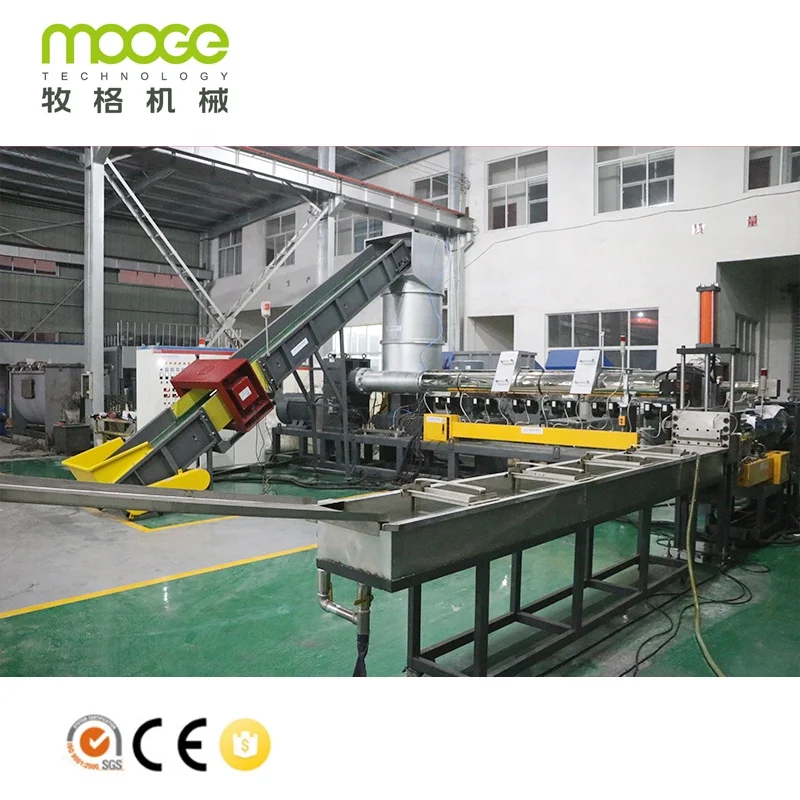

BOPP LLDPE HDPE LDPE PE PP recycling granulating machine is special equipment for the plastic film/bags recycling granulating, it equipped with compacting machine which pre-compact the film into smaller granules, then easily feed into screw barrel extruder, high efficiency improve production capacity
it has vacuum exhausting system on extruder barrel which can fully vent the moisture in the material,hence the final granule quality will be very perfect.
end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer which can efficiently filter out the dirty in the plastic melt.
the pelletizing adopts water cooling pelletizing which is easier to operate, and the shape and appearance of granule is good.
it has vacuum exhausting system on extruder barrel which can fully vent the moisture in the material,hence the final granule quality will be very perfect.
end of screw barrel, it equipped with double station fast speed hydraulic non -stop screen changer which can efficiently filter out the dirty in the plastic melt.
the pelletizing adopts water cooling pelletizing which is easier to operate, and the shape and appearance of granule is good.
Product Specification
RDL Series Single Stage Compacting Pelletizing Line(Noodle Type Cutting)
Model | Screw Diameter:mm | Screw L/D | Main Power:KW | Capacity:Kg/h |
RDL-SJ 85 | 85 | 28-33:1 | 55 | 150-200 |
RDL-SJ 100 | 100 | 28-33:1 | 75 | 200-300 |
RDL-SJ 130 | 130 | 28-33:1 | 90 | 300-400 |
RDL-SJ 150 | 150 | 28-33:1 | 110 | 400-500 |
RDL-SJ 160 | 160 | 28-33:1 | 132 | 500-600 |
RDL-SJ 180 | 180 | 28-33:1 | 160 | 600-800 |
RDL-SJ 200 | 200 | 28-33:1 | 200 | 800-1000 |
RSL Series Double Stage Compacting Pelletizing Line ( Noodle Type Cutting)
Model | Screw diameter:mm | Screw L/D | Main Power:KW | Capacity:kg/h |
RSL-SJ 85 | 85 | 28-33:1 | 55 | 150-200 |
RSL-SJ 100 | 100 | 28-33:1 | 75 | 200-300 |
RSL-SJ 130 | 130 | 28-33:1 | 90 | 300-400 |
RSL-SJ 150 | 150 | 28-33:1 | 110 | 400-500 |
RSL-SJ 160 | 160 | 28-33:1 | 132 | 500-600 |
RSL-SJ 180 | 180 | 28-33:1 | 160 | 600-800 |
RSL-SJ 200 | 200 | 28-33:1 | 200 | 800-1000 |
Details Images
Compacting Force Feeder
Compacting hopper opening by hydraulic system. With glass window and light to check inside working. Barrel base with the water cooling system controlled by magnetic valve by temperature The barrel touched material all made by stainless steel.

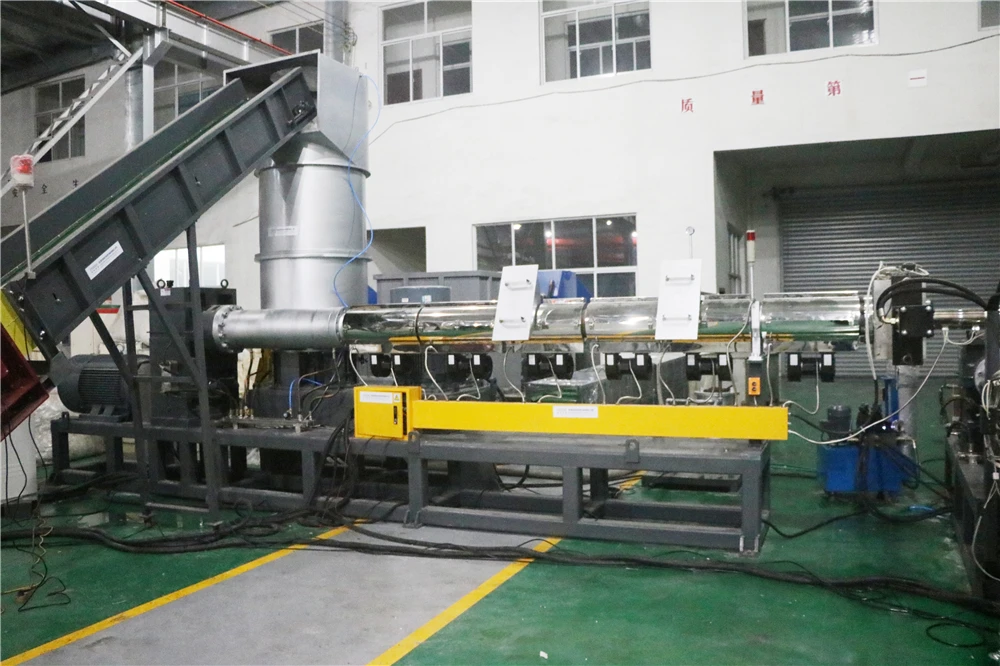

Mother stage
Single screw Extruder made by sturdy frame, heavy. No vibrating when machine running
Use 38CrMoAL made the screw
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.

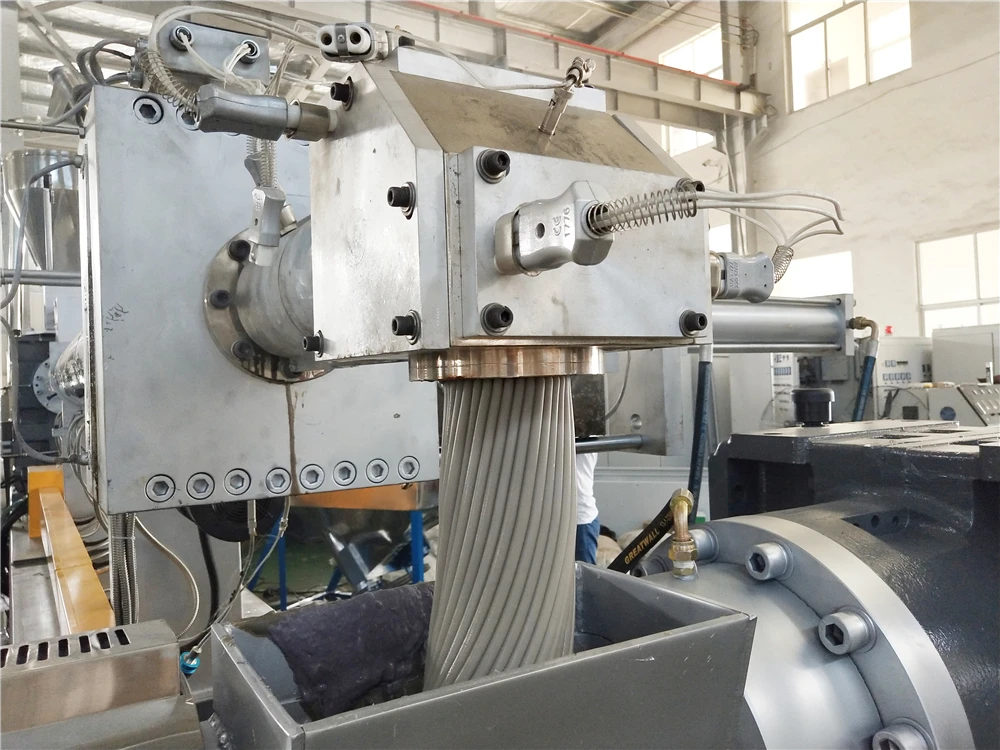

Hydraulic Screen Changer
Double position board model
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.
Vacuum degassing die head
remover the waste air,moisture for plastic before go to baby stage
Baby stage
Single screw Extruder made by sturdy frame, heavy. No vibrating when machine running
Use 38CrMoAL made the screw
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.
Use 38CrMoAL made the screw
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.

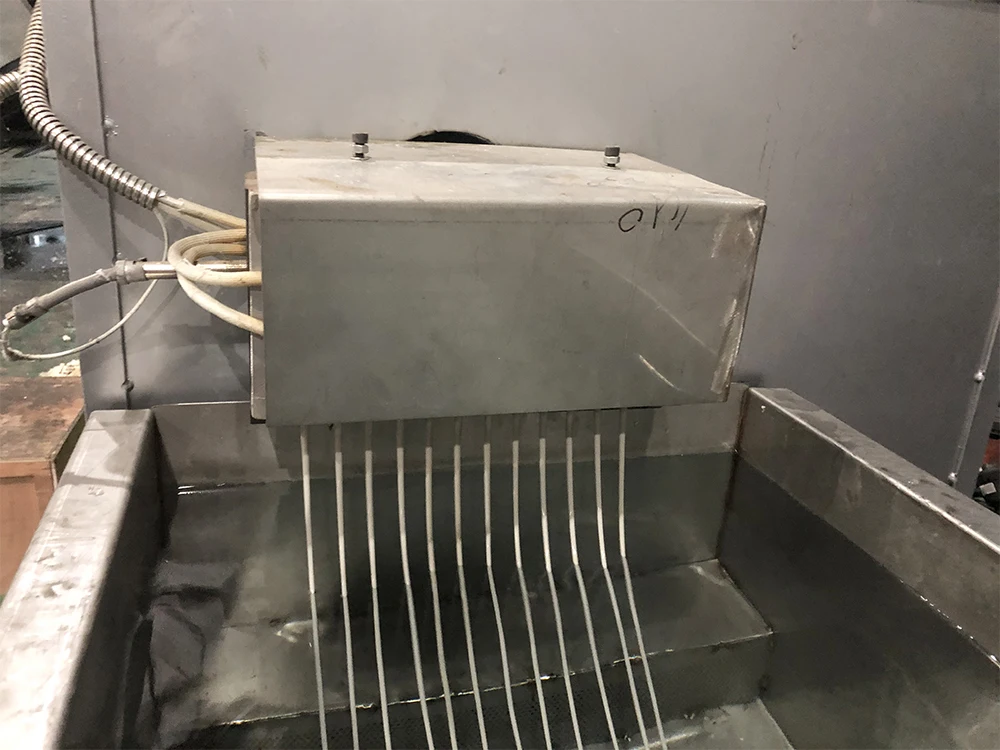

Noodle Die head
Die mold made by the 40Cr material with forging treatment, surface been nitriding treatment and manufacturing by CNC

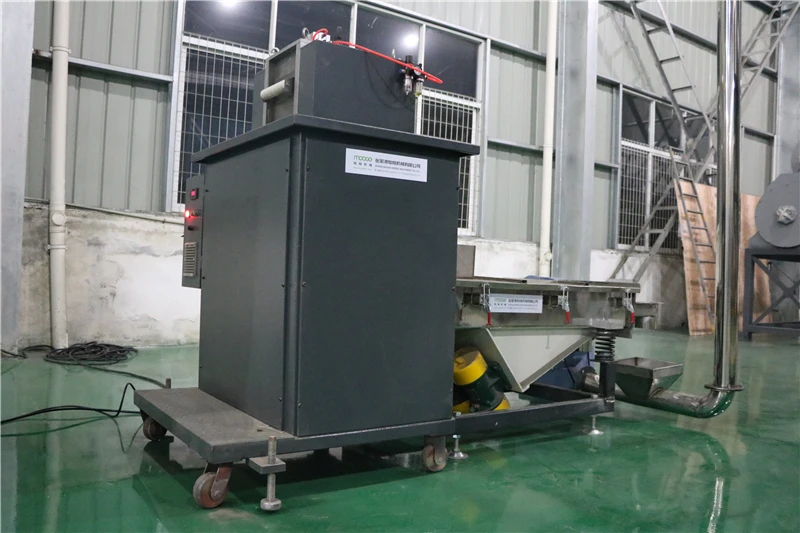

Pelletizer Cutter
Speed adjust by inverter
Pellet size:Φ3*3mm
Noodle Number:25PCS

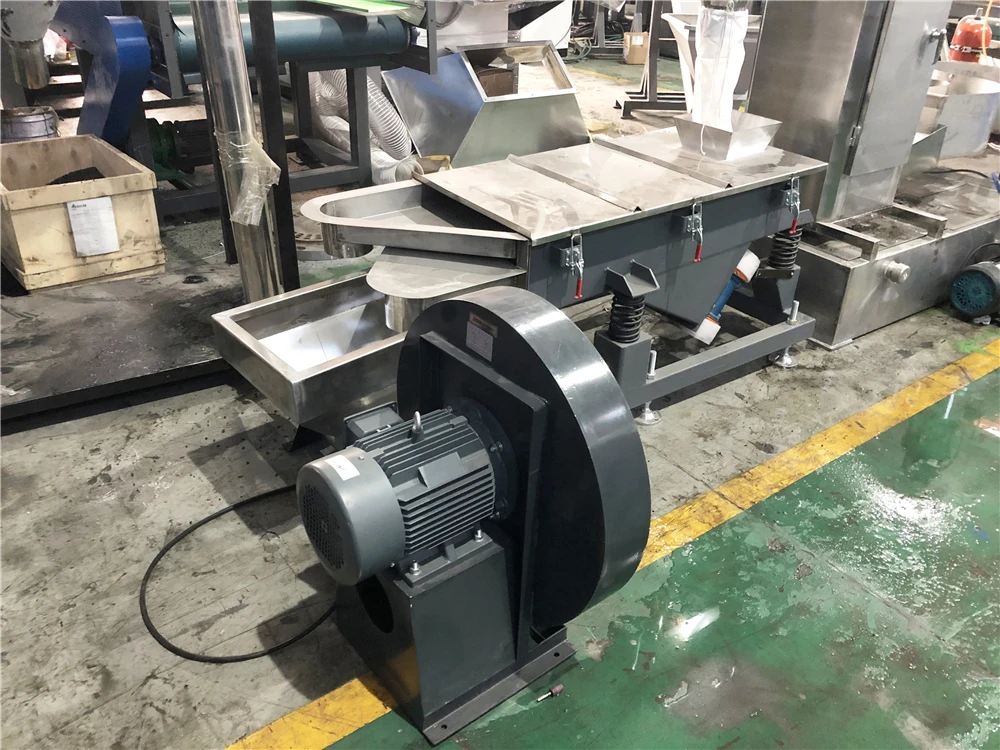

Vibrator
by vibrator and screen choose different size granules

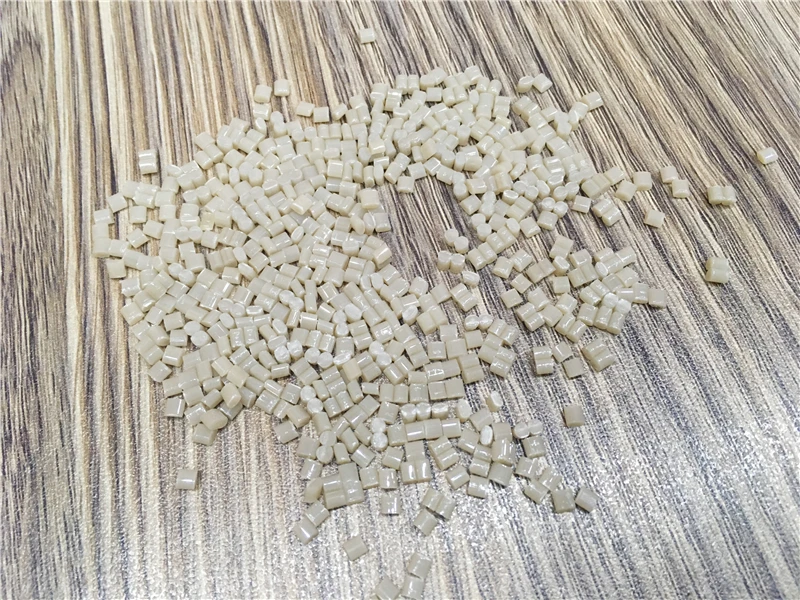

Plastic granules
size: Φ 3X3mm
the size can be adjsut by the dic face cutter speed
Product Video
Recommend Products

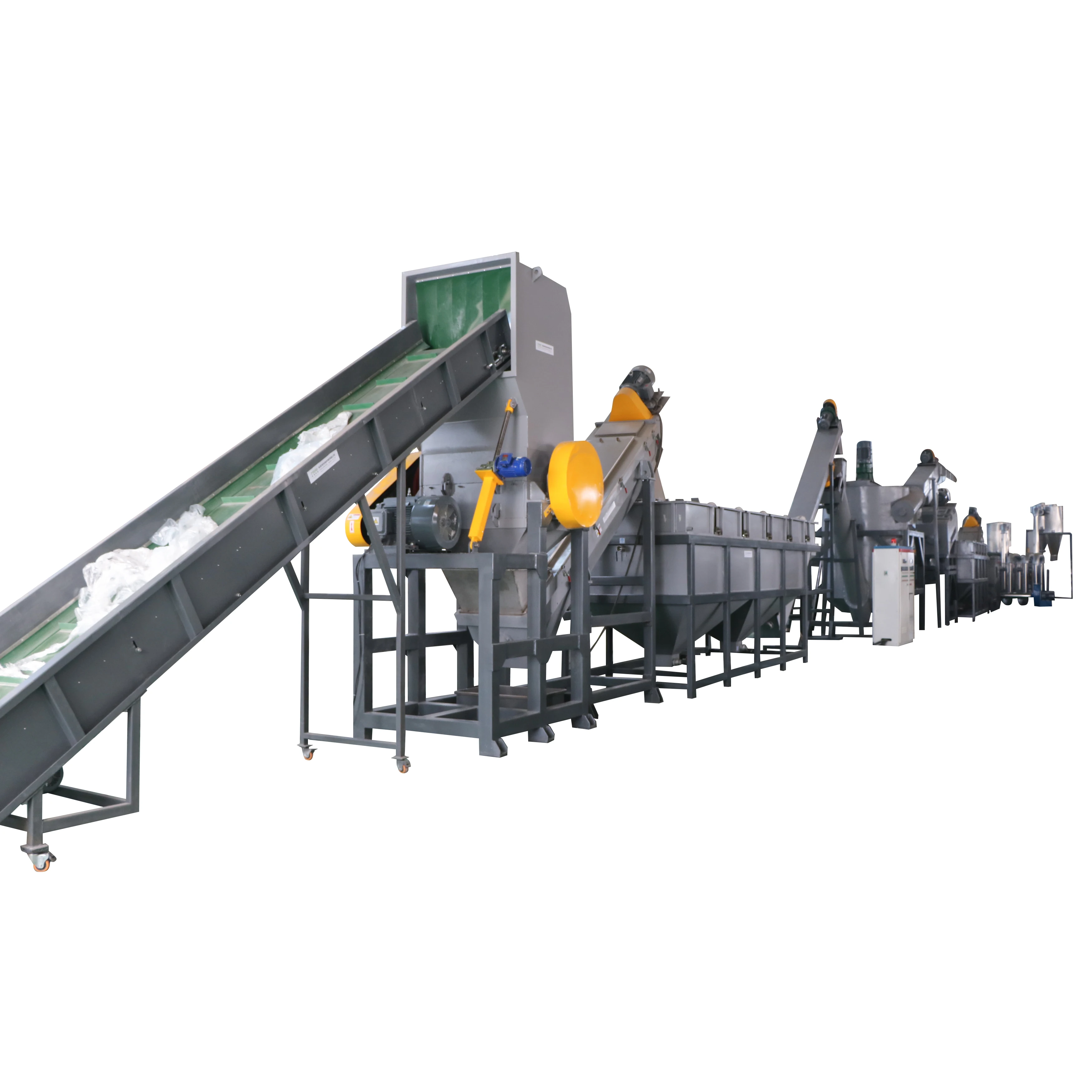

Plastic film/bags washing recycling line
(300-2000kg/h)

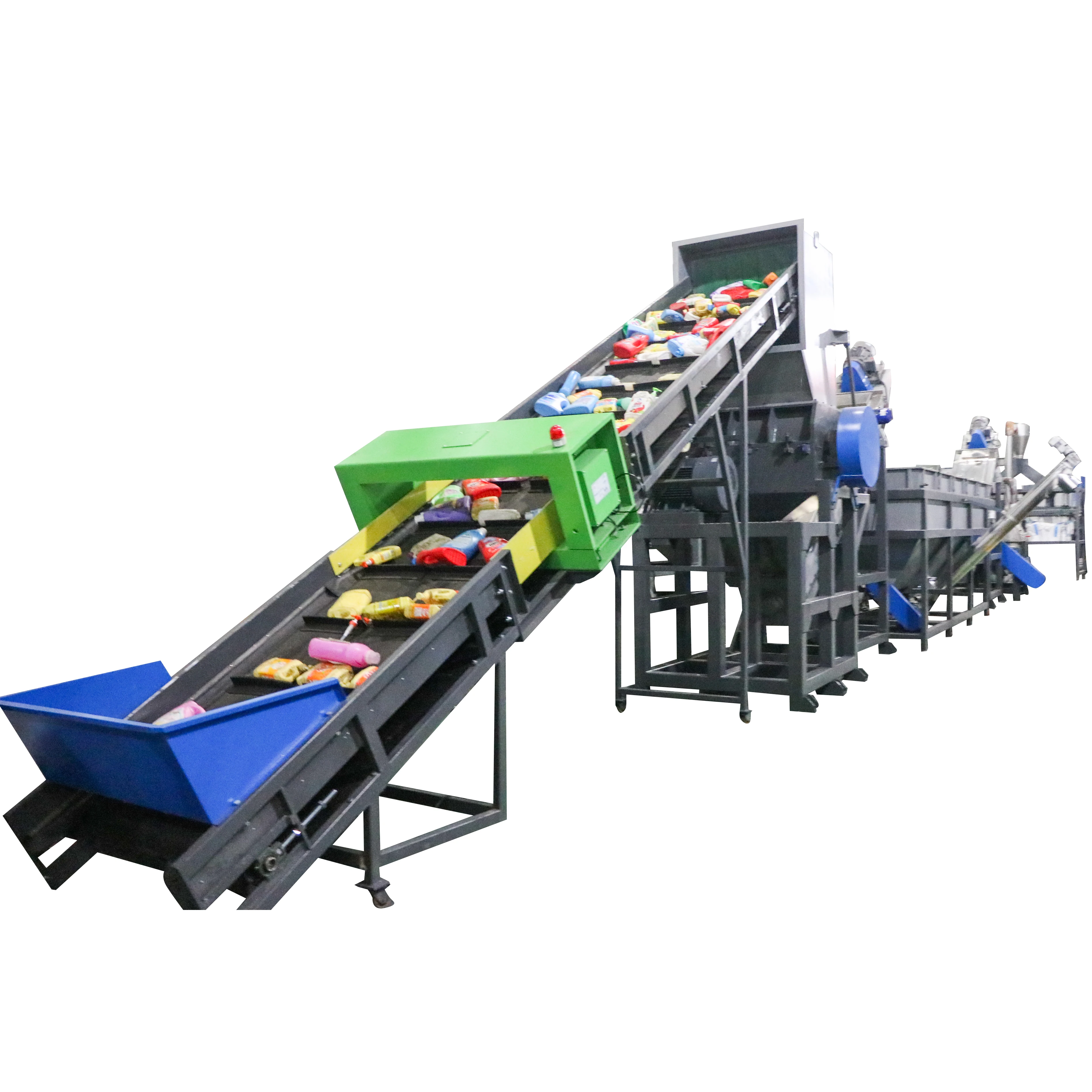

Plastic bottle washing recycling line
(300-2000 kg/h )

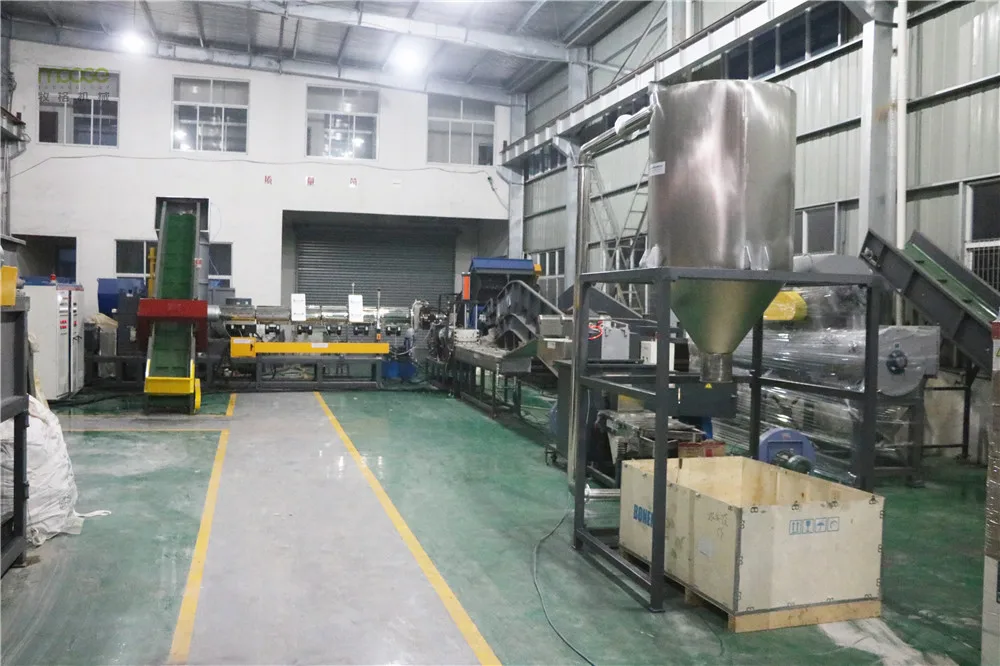

Customer factory
