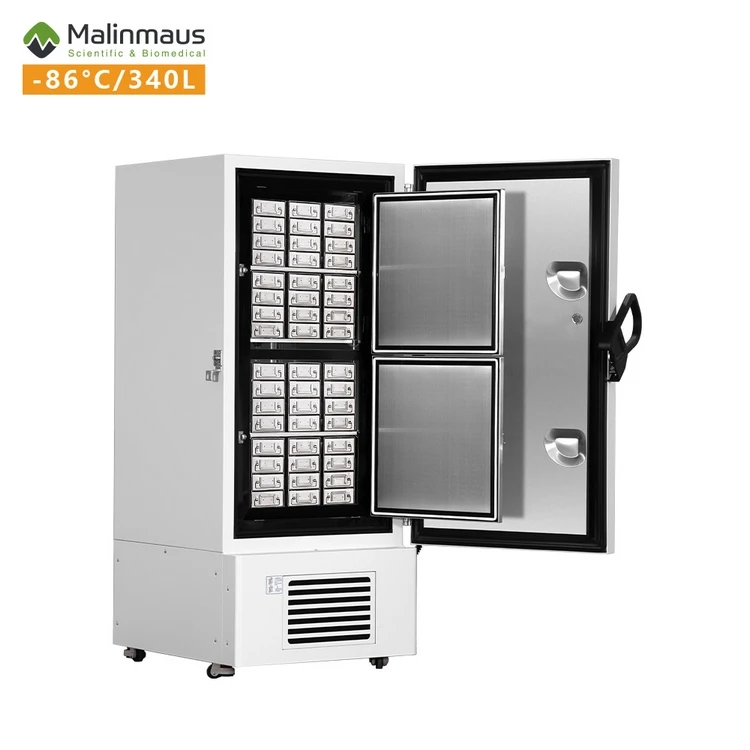

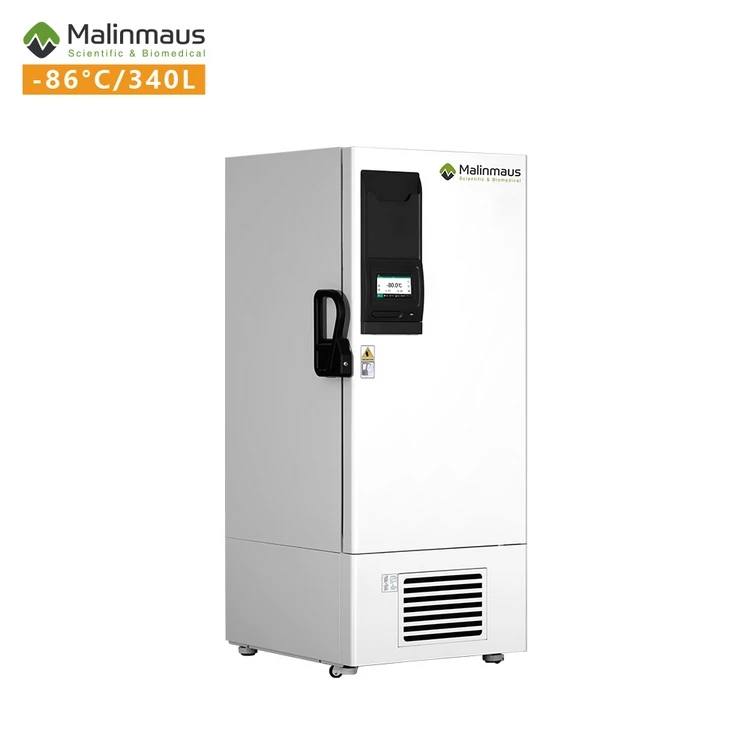

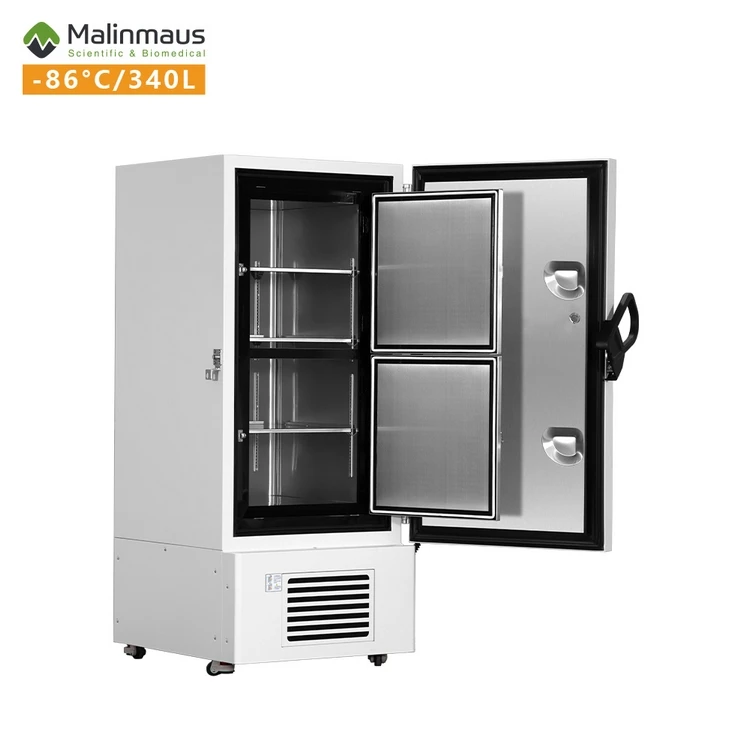

Malinmaus 340L 86 Ultra Low Temperature Freezer for medical hospital lab vaccine biological use
- Category: >>>
- Supplier: Mether Scientific Co. Ltd.
Share on (1600160464321):
Product Overview
Description
Products Description
Application
-86°C ultra-low temperature freezers are designed for long term preservation of virus, germs, vaccines, biological tissues and organs, special food, medicines, reagents, etc.
Features
■ Accurate temperature controller, setting temperature range is -40 ~ -86°C, accuracy is 0.1 °C.
■ Suggested ambient temperature: +10~32°C.
■ Insulated inner door to ensure good temperature uniformity.

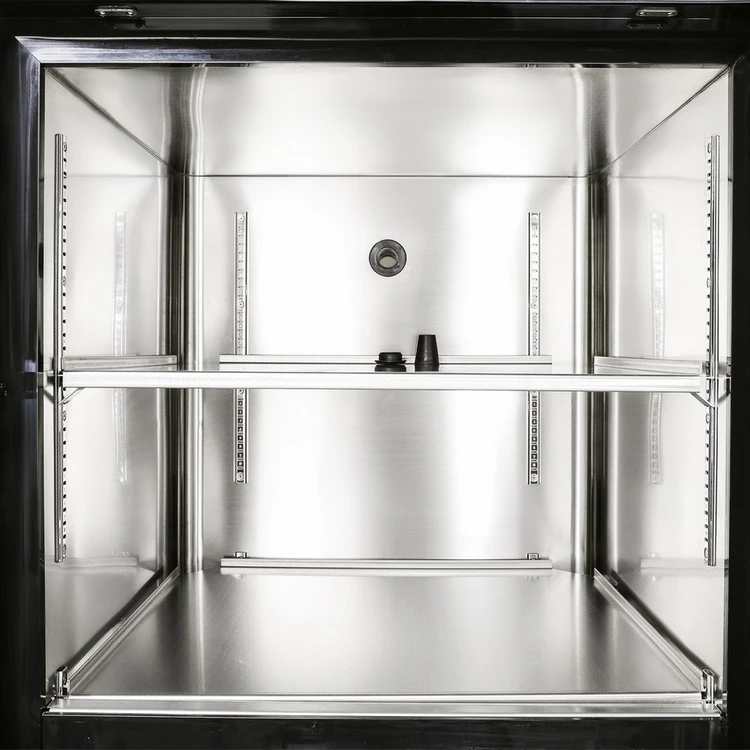

■ 304 SS inner chamber and round corner for friendly using and easy cleaning.
■ Special designed structure for sample storage.
■ Wide available voltage range: 187V~242V.
Security
■ Safety door lock and controller setting password to prevent unauthorized access.
■ Build-in back-up battery to power control system for 72 hours when power failure.
■ Visual and audible alarm system: High/low temperature, power failure, sensor failure, door ajar, condenser clean, high ambient.
■ Power failure protection: turn on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensors failed.
Humanized design

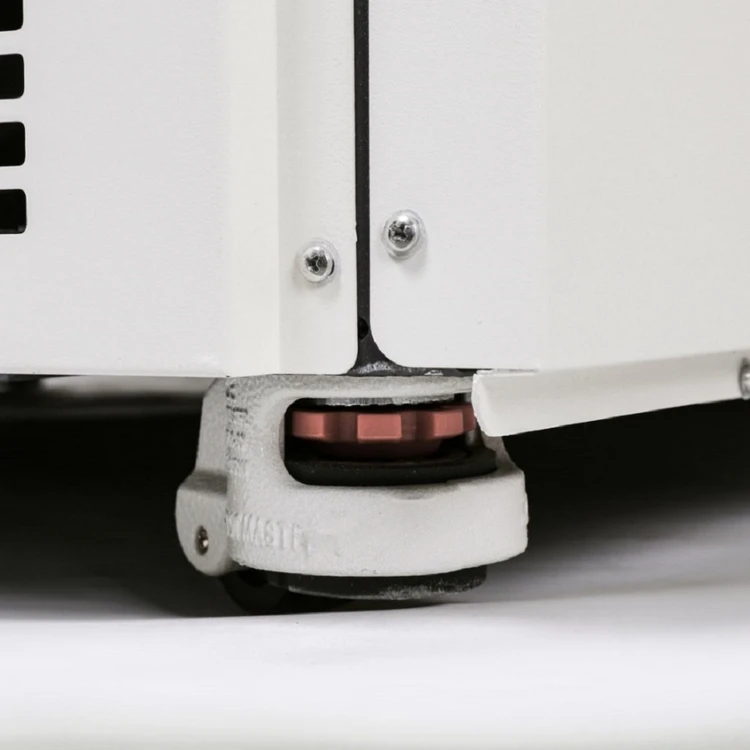

■ Casters with stopper for easy moving and fixation.
■ Adjustable shelves for easy storing.
■ Special designed service-free drainage system.
■ Condenser clean alarm to remind the user to clean the freezer regularly.
Optional parts
■ Test hole, Data logger, Chart recorder, LN2 back-up system, cold storage rack & box.
-86°C ultra-low temperature freezers are designed for long term preservation of virus, germs, vaccines, biological tissues and organs, special food, medicines, reagents, etc.
Features
■ Accurate temperature controller, setting temperature range is -40 ~ -86°C, accuracy is 0.1 °C.
■ Suggested ambient temperature: +10~32°C.
■ Insulated inner door to ensure good temperature uniformity.
■ 304 SS inner chamber and round corner for friendly using and easy cleaning.
■ Special designed structure for sample storage.
■ Wide available voltage range: 187V~242V.
Security
■ Safety door lock and controller setting password to prevent unauthorized access.
■ Build-in back-up battery to power control system for 72 hours when power failure.
■ Visual and audible alarm system: High/low temperature, power failure, sensor failure, door ajar, condenser clean, high ambient.
■ Power failure protection: turn on delay of the cooling system after power failure.
■ Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensors failed.
Humanized design
■ Casters with stopper for easy moving and fixation.
■ Adjustable shelves for easy storing.
■ Special designed service-free drainage system.
■ Condenser clean alarm to remind the user to clean the freezer regularly.
Optional parts
■ Test hole, Data logger, Chart recorder, LN2 back-up system, cold storage rack & box.
Specification
Model NO. | UFV-86-340E | |
Main Specifications | ||
Temperature Range | -40 ~ -86 ℃ | |
Ambient Temperature | 10~32℃ | |
Capacity (L/Cu. Ft.) | 340 / 12 | |
Interior Dimensions (W×D×H) mm | 488×607×1140 | |
Exterior Dimensions (W×D×H) mm | 854×1006×1907 | |
Weight | 268 kgs | |
Noise | 50 dB | |
Storage | ||
Cold Rack (pcs) | 4×4 / 12 | |
2' Cold Box (pcs) | 192 | |
0.5~2ml Cryo Vails (pcs) | 19,200 | |
Control and Power | ||
Controller | Microprocessor | |
Display | 7' Touch Screen | |
Sensor | PTC | |
Voltage and Frequency | 187~242V, 50/60Hz | |
Power | 810 W | |
Electric Current | 5.13 A | |
Power Consumption (kWh/24h) | 13.09 | |
Audible and Visual Alarms | ||
High / Low Temp. Alarm | Yes | |
Power Failure Alarm | Yes, 72h | |
Sensor Error Alarm | Yes | |
Controller Error Alarm | Yes | |
Door Ajar Alarm | Yes | |
Abnormal Voltage Alarm | Yes | |
Abnormal Ambient Temp. Alarm | Yes | |
Battery Error Alarm | Yes | |
Filter Net Clean Alarm | Yes | |
Condenser Error Alarm | Yes | |
Refrigeration | ||
Refrigeration Type | Direct Cooling | |
Defrost | Manual | |
Compressor (Brand/pcs) | SECOP / 1 | |
Refrigerant / Weight (kgs) | R4001 / 320g | |
Cabinet | ||
Door (pcs) | Foamed Solid Door / 1 | |
Inner Door (pcs) | 304SS Foamed Solid Door / 2 | |
Fixed / Adjustable Shelf (pcs) | 0 / 3 | |
Interior Cabinet Material | 304 Stainless steel | |
Exterior Cabinet Material | Coated Steel | |
Insulation Material | PURF (δ150mm) | |
Door Lock | Yes | |
Test Hole (pcs) | Φ25mm / 1 | |
Fixed / Levelling Castors (pcs) | 0 / 4 | |
Accessories | ||
Voltage Stabilizer | Optional | |
USB Data Download Port | Yes | |
Remote Alarm Port | Yes | |
RS232 / RS485 Port | Optional | |
Temperature Datalogger | Optional | |
Temperature Printer | Optional | |
Protective Gloves | Optional | |
LN2/CO2 Backup System | Optional | |
LN2 Filling Tank for Backup System | Optional | |
Shipping | ||
Package | Plywood box with pallet | |
Shipping Weight | 318 kgs | |
Shipping Size (W×D×H) | 935×1070×2128 | |
Shipping Volume | 2.13 CBM | |
