Automatic Kitchen Towel And Small Toilet Paper Bundle Packing Machine
- Category: >>>
- Supplier: Fujian Xinyun Construction Development Co. Ltd.
Share on (1600160799786):
Product Overview
Description
Product Overview
XY-AI-398D

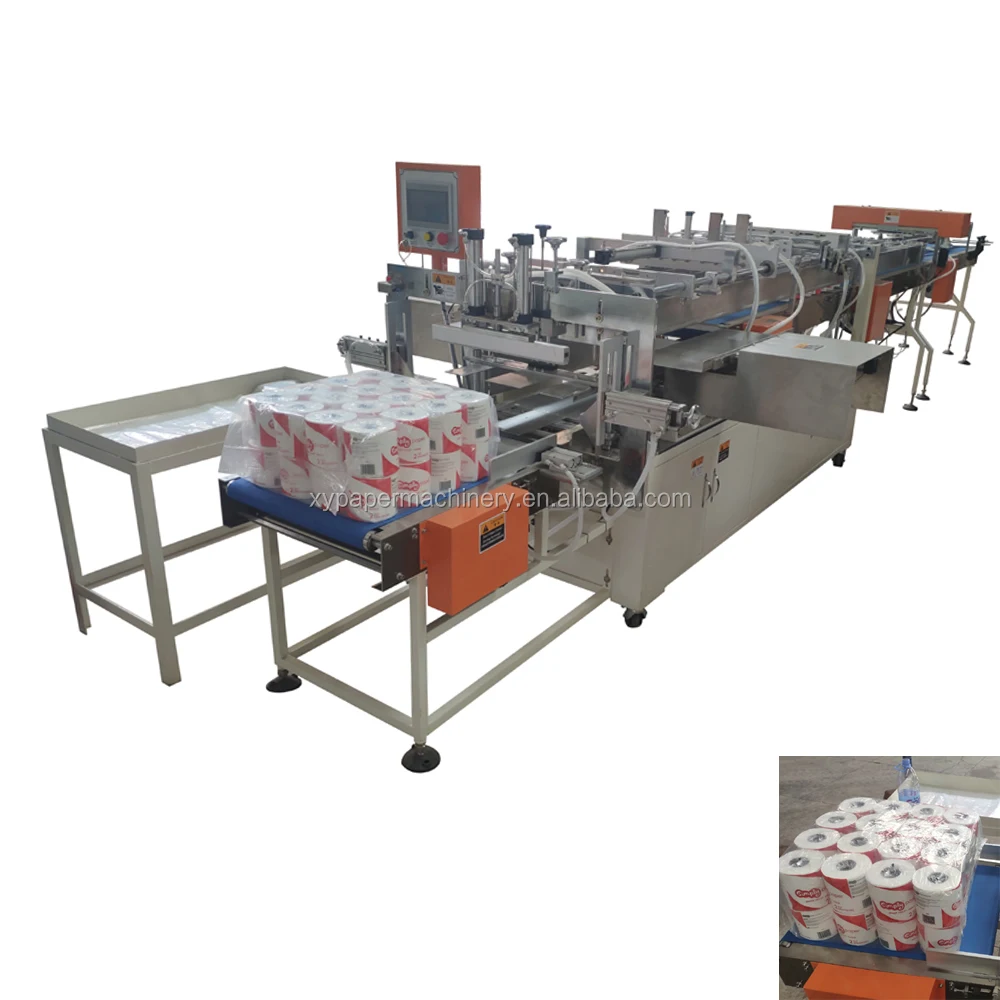

Full Automatic Kitchen Towel And
Small Toilet Paper Bundle Packing Machine
FEATURES AT A GLANCE
This machine uses pre-made plastic bag to pack multi-rolls of kitchen towel and small toilet paper rolls.
1. It adopts servo motor driving, touching screen and PLC controlling system. Parameter setting is convenient and quick. Machine automatically completes product from the automatic feeding, arranging, opening the bag, filling into the bag, inserting angle and sealing
2. Various kinds of different specifications can be changed freely and quickly
3. Fault self-diagnosis function, clear failure display
4. Temperature by the independent PID control, better suited to a variety of packaging materials
5.All the controls are achieved by software, convenient for function adjusting and upgrading
6.All the products are made by themselves, applied for the national invention patents, with full independent intellectual property rights. On behalf of the advanced technology level in the field of bag packaging, with a better price.
1. It adopts servo motor driving, touching screen and PLC controlling system. Parameter setting is convenient and quick. Machine automatically completes product from the automatic feeding, arranging, opening the bag, filling into the bag, inserting angle and sealing
2. Various kinds of different specifications can be changed freely and quickly
3. Fault self-diagnosis function, clear failure display
4. Temperature by the independent PID control, better suited to a variety of packaging materials
5.All the controls are achieved by software, convenient for function adjusting and upgrading
6.All the products are made by themselves, applied for the national invention patents, with full independent intellectual property rights. On behalf of the advanced technology level in the field of bag packaging, with a better price.
VIDEO LINK : https://youtu.be/9A5jswu-FKU
PRODUCT SPECIFICATIONS
Technical Parameters:
1)Packaging Specifications(MAX): L600mm*W360mm*H250mm
2)Color:White or customized
3)Output: 18 bags/min

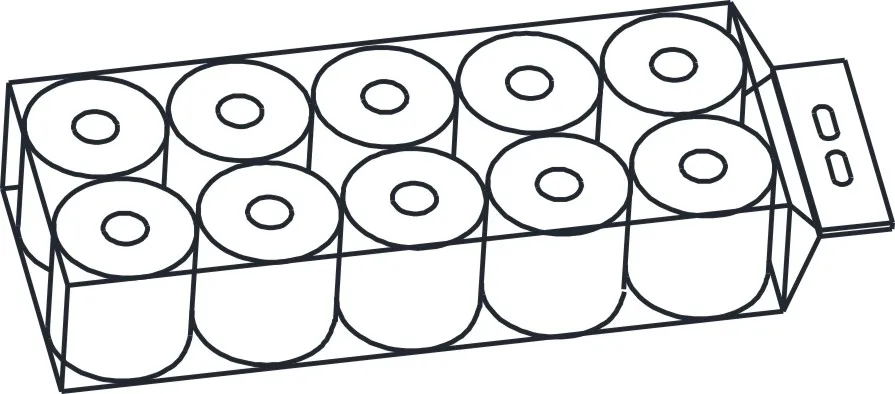

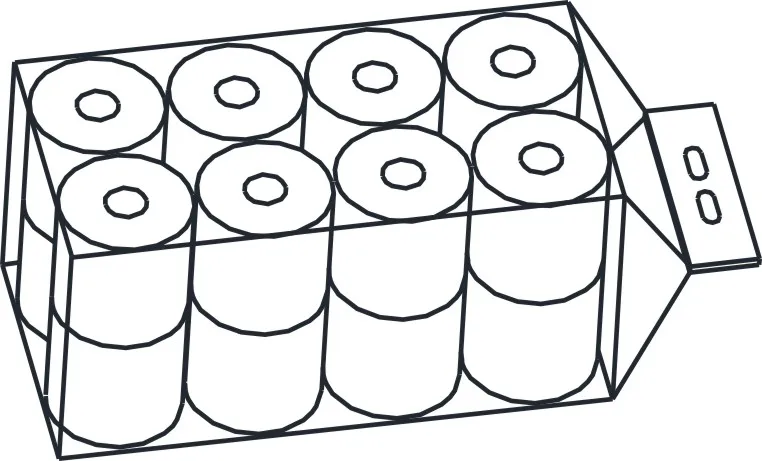

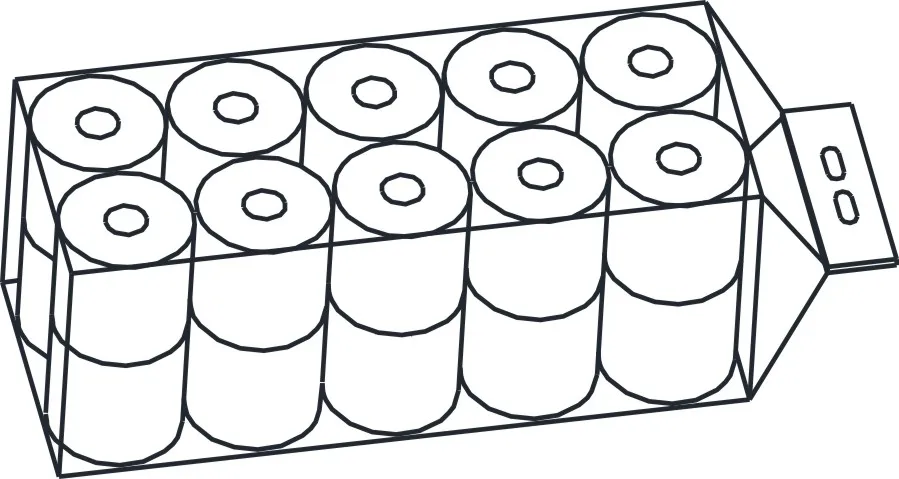

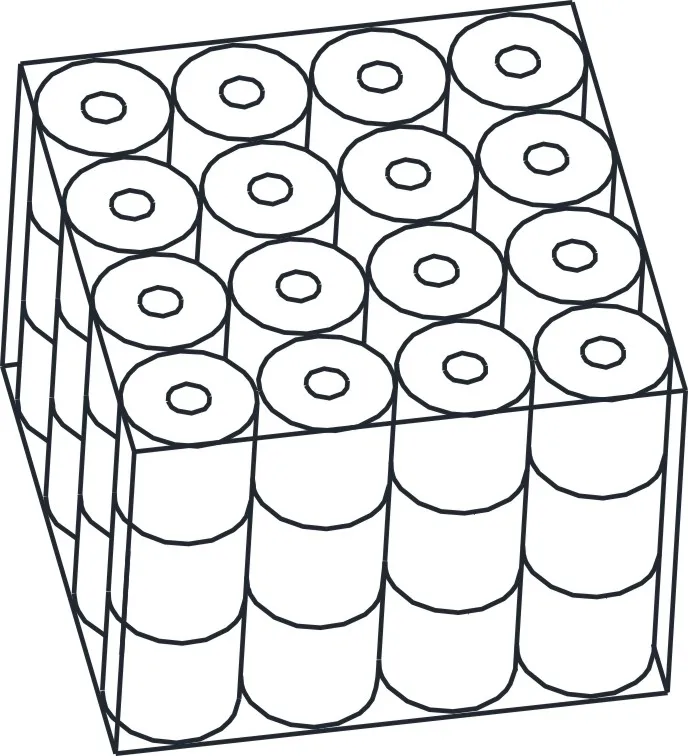

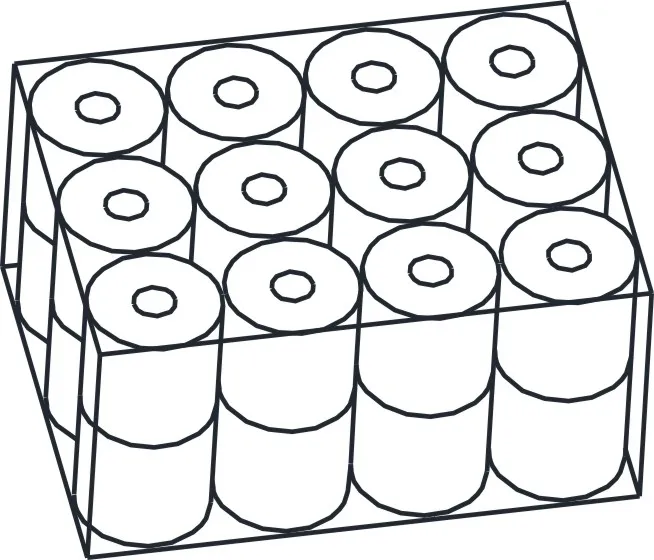

4)Packing Size:
Double layer:4、6、8、12 rolls of kitchen towel
Single layer:8、10rolls of toilet tissue.Double layer:12、16、18、20、30 rolls of toilet tissue
5)Packing Film: PE precast bag
6)Surface: carbon steel
7)Total Power Supply: 11kw
8)Mini air pressure requirement: 5Mpa
9)Power Supply: 380V 50HZ
10)Weight: 2500kg
11)Machine Size: L3500mm*W1800mm*H1950mm
1)Packaging Specifications(MAX): L600mm*W360mm*H250mm
2)Color:White or customized
3)Output: 18 bags/min
4)Packing Size:
Double layer:4、6、8、12 rolls of kitchen towel
Single layer:8、10rolls of toilet tissue.Double layer:12、16、18、20、30 rolls of toilet tissue
5)Packing Film: PE precast bag
6)Surface: carbon steel
7)Total Power Supply: 11kw
8)Mini air pressure requirement: 5Mpa
9)Power Supply: 380V 50HZ
10)Weight: 2500kg
11)Machine Size: L3500mm*W1800mm*H1950mm
SIMILAR PRODUCTS

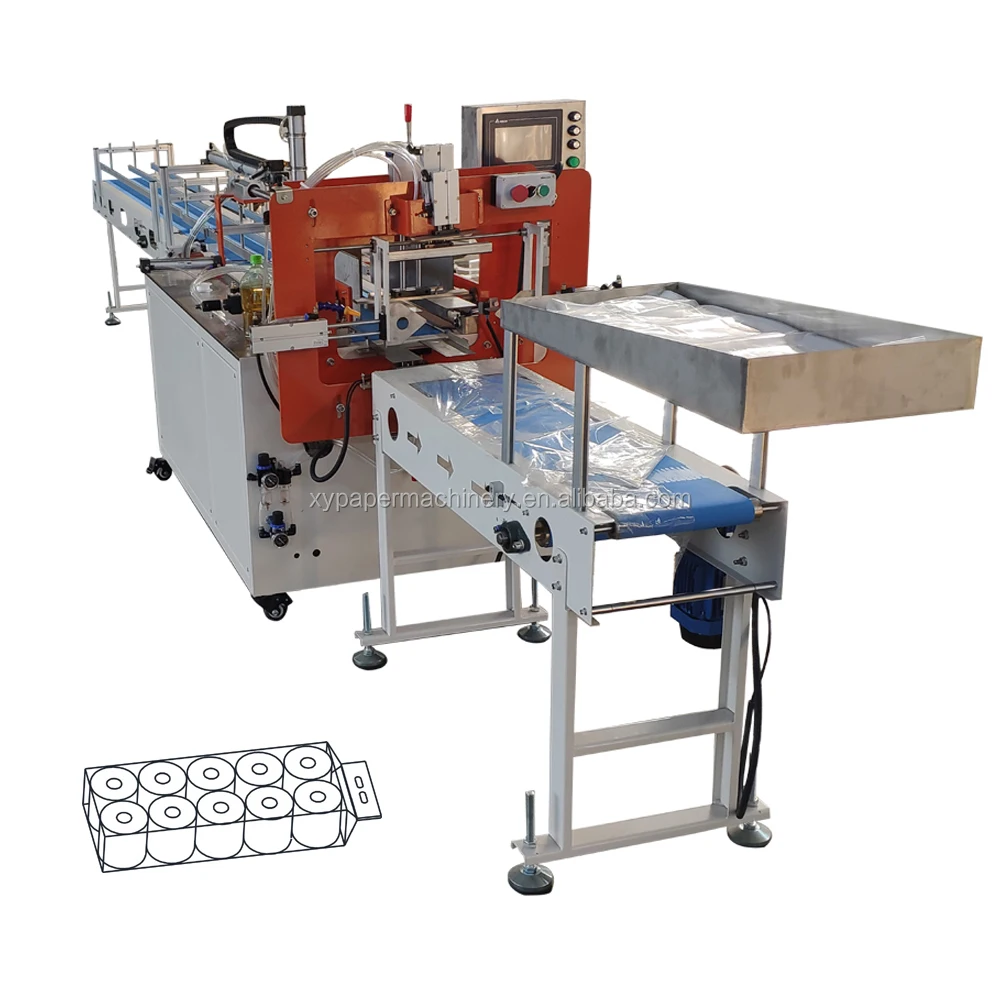

XY-AI-398A
Semi automatic multi rolls toilet paper packing machine

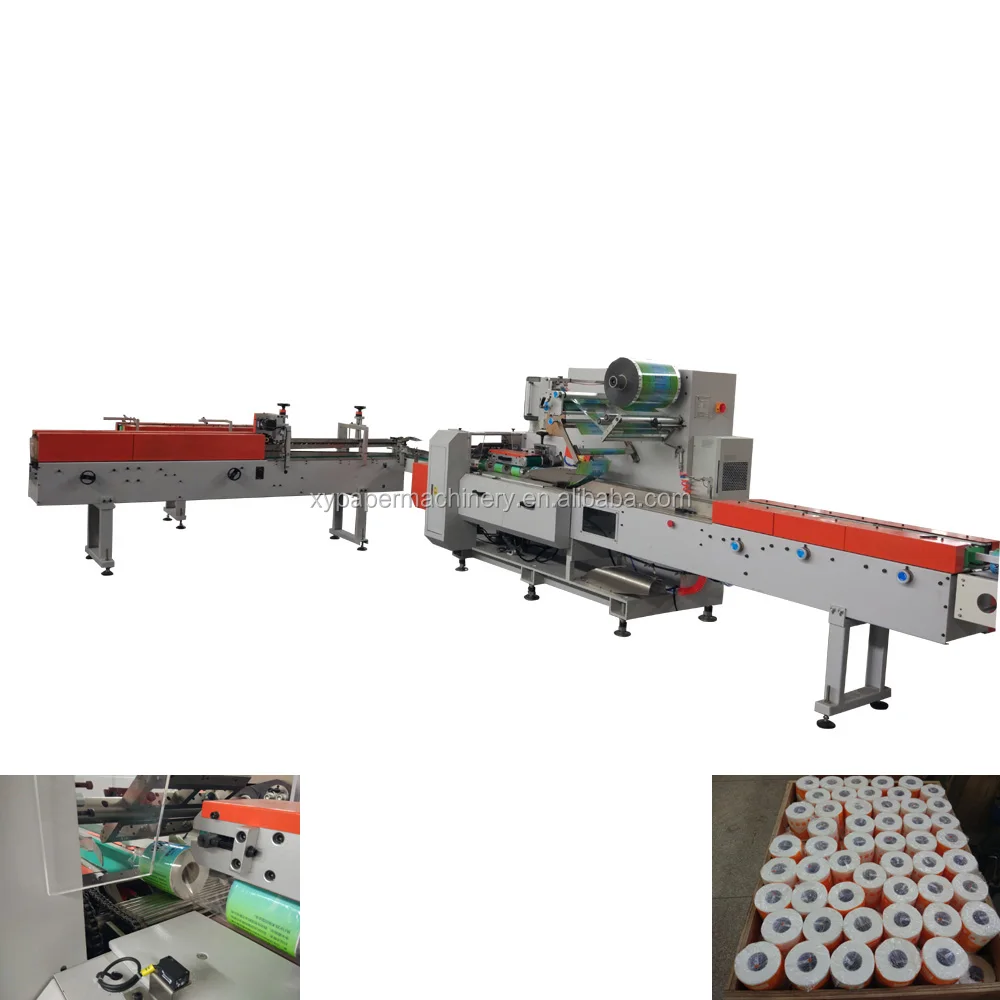

XY-AI-398E
Low price toilet paper packing machine
(2 LANE, 2 LAYER)

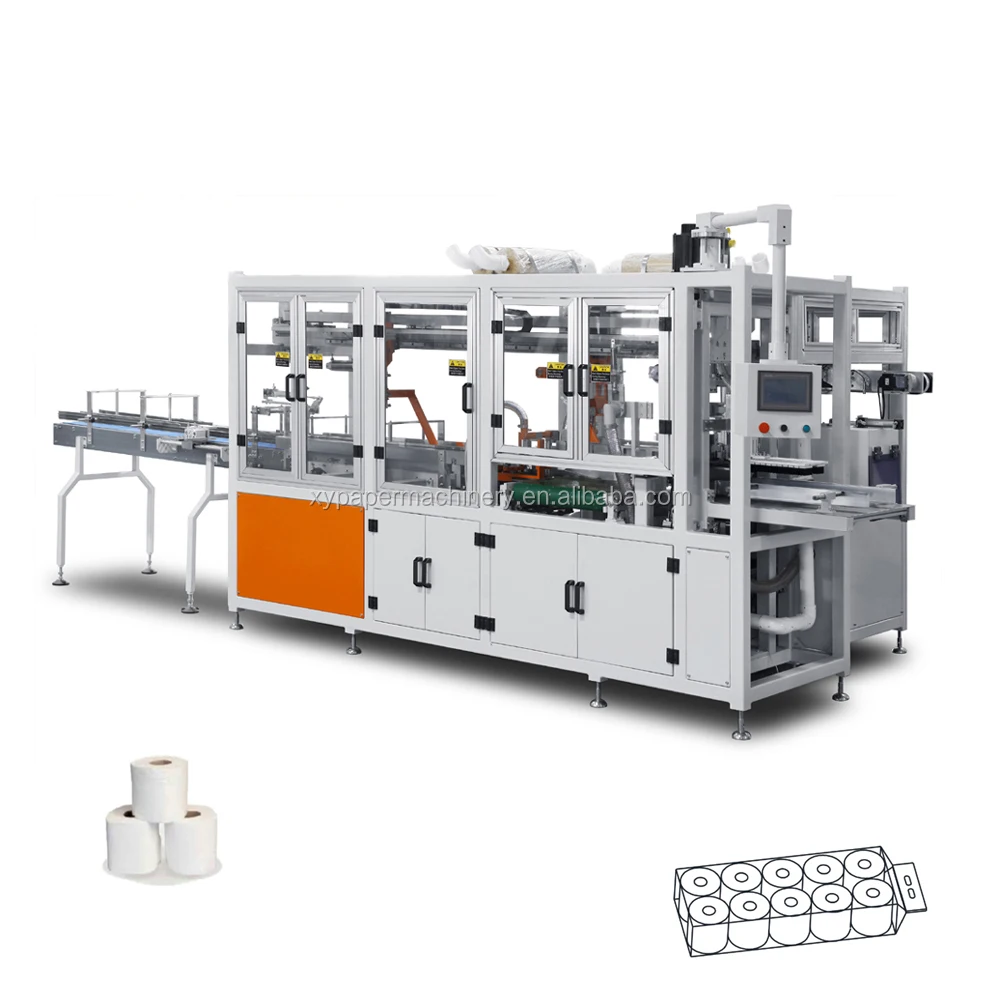

XY-503IZ
High speed automatic single roll toilet paper packing machine

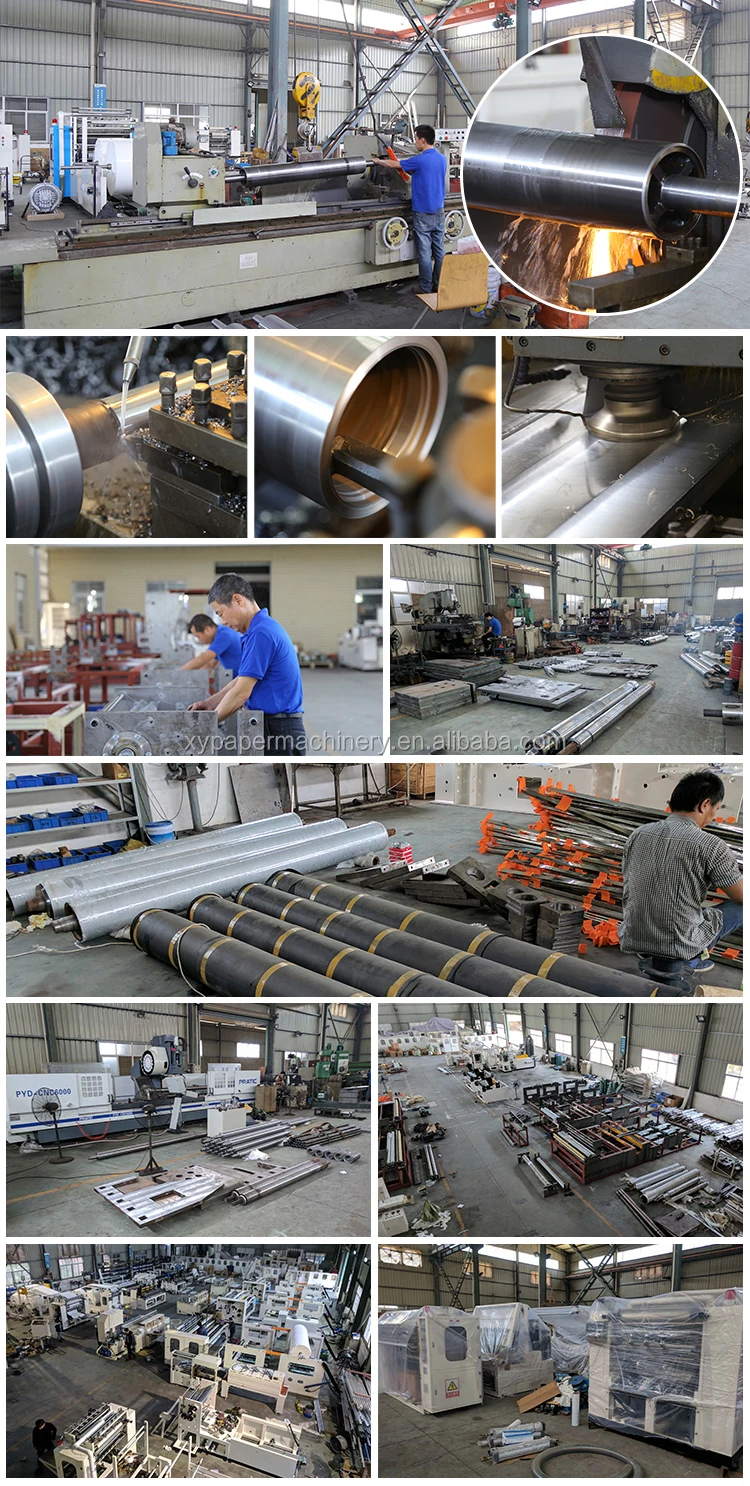

Workshop
