off Grid wall mounted inverter solar air conditioner
US $2200-$4500
Factory Price Heating and Cooling Central Air Conditioning Units
- Category: Other Air Conditioners >>>
- Supplier: Zero,Technologies,Co.,Ltd.
Share on:
Product Overview
Description
ZERO VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
We offer one stop solution includes VRF drawing design, model selection, instalation material calculation, start up guidance etc, equipments, installation material and other parts will be loaded all together in the same containers directly ship to your job site, we make your VRF projects never been so easy.
WHY CHOOSE US ?
1.Experience
More than 15 years of overseas HVAC project experience，with deep understanding of global markets.
2.Professional design
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint, we will advise the
most suitable solution.
3.Professional selection
We can select the most suitable model for your project according to the drawings.
4.One-stop solution
The necessary installation material and other parts can be collected and loaded them all together directly ship to your job site,
which is truly one-stop solution.
5.Technical support
Professional technical support, worry-free after sales.
More than 15 years of overseas HVAC project experience，with deep understanding of global markets.
2.Professional design
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint, we will advise the
most suitable solution.
3.Professional selection
We can select the most suitable model for your project according to the drawings.
4.One-stop solution
The necessary installation material and other parts can be collected and loaded them all together directly ship to your job site,
which is truly one-stop solution.
5.Technical support
Professional technical support, worry-free after sales.
1.Project Drawing, building layout, equipment BOQ.
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.

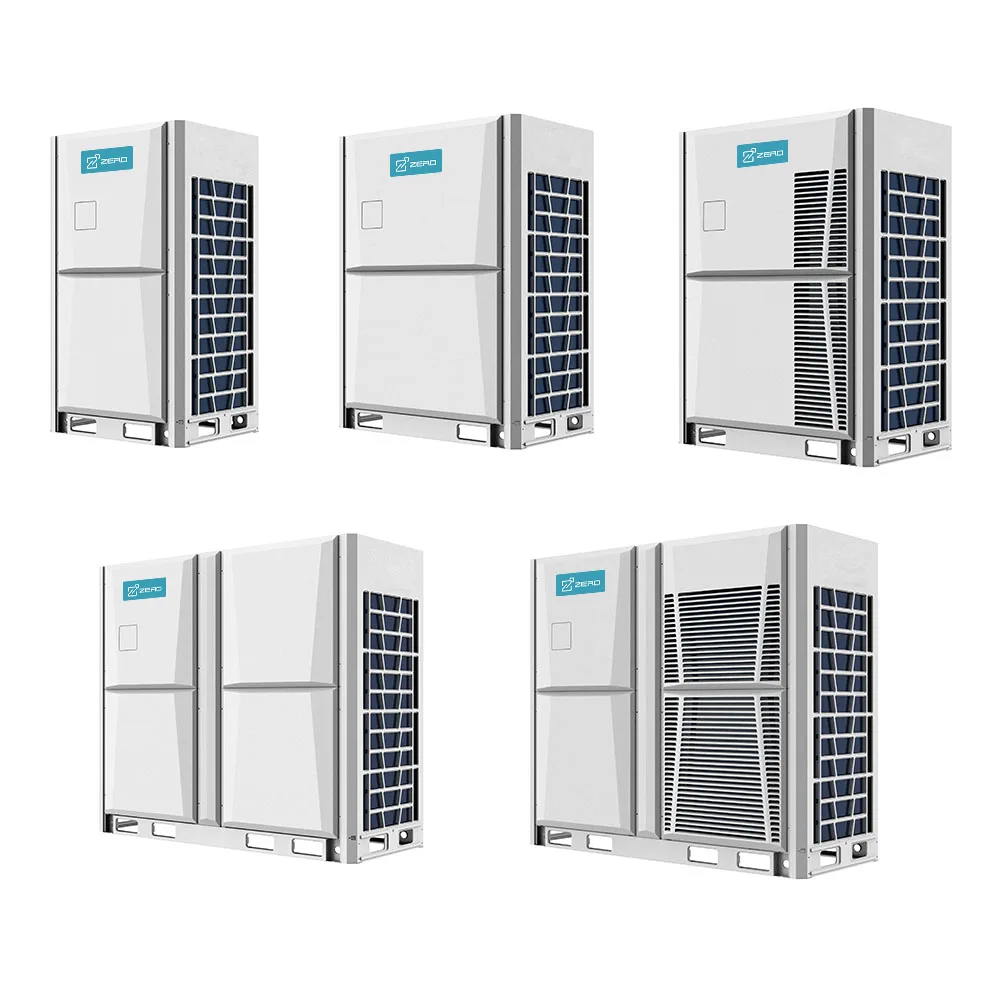

Products Line
HP | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | ||||||
Dimension (mm) | 990*1740*845 | 1340*1740*845 | ||||||||||||
Fan quantity | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | ||||||
Compressor quantity | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | ||||||
HP | 24 | 26 | 28 | 30 | 32 | ||||
Dimension (mm) | 1990*1740*845 | ||||||||
Fan quantity | 2 | 2 | 2 | 2 | 2 | ||||
Compressor quantity | 2 | 2 | 2 | 2 | 2 | ||||
One-way Cassette
2.2-7.1kW
Two-way Cassette
3.6-8.0kW
4-way Cassette
2.2-16kW
Round-flow cassette
5.6-16kW
Wall-mounted
2.2-7.1kW
Floor Ceiling
3.6-16kW
Short ducted
2.2-7.1kw
Medium ESP ducted
7.1-15kw
High ESP ducted
7.1-56kw
Fresh air processor
14-56kw
Spectification

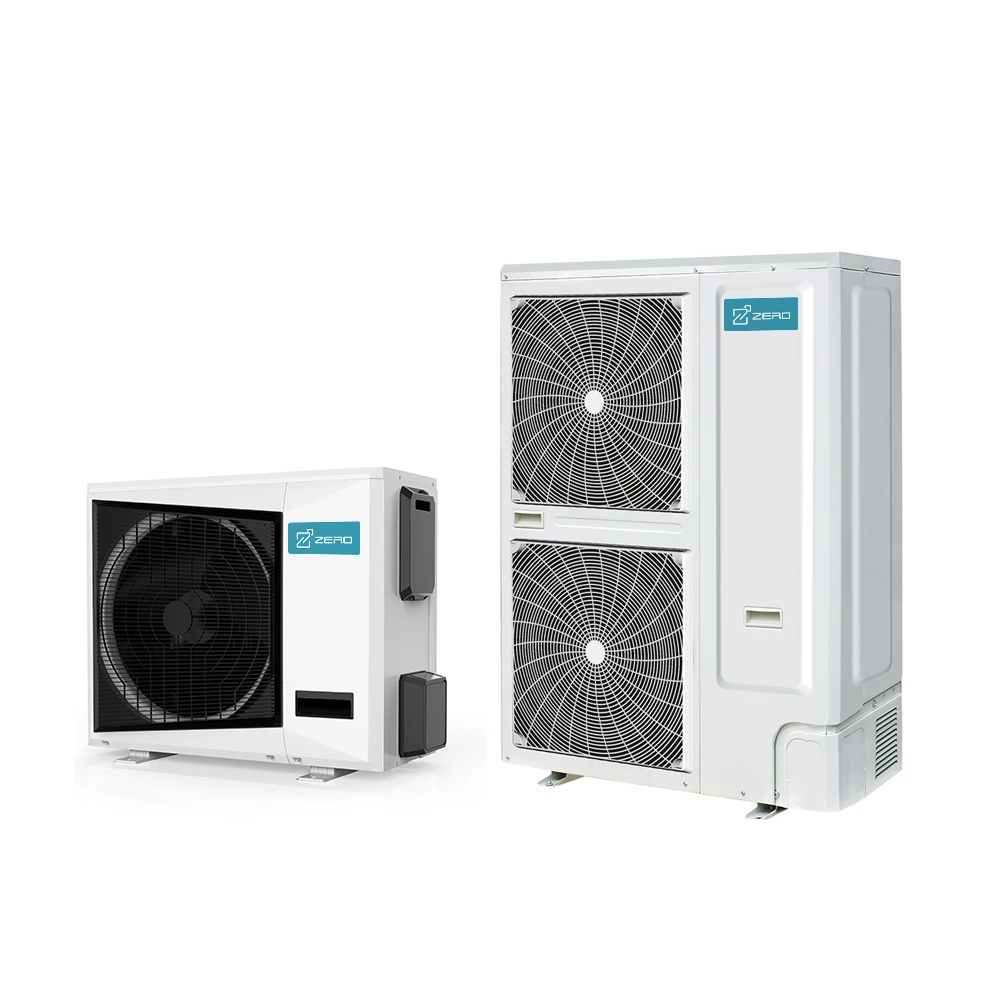

Type | Mini VRF | Large VRF | ||||
Capacity | HP | 3HP-12HP | 8HP-22HP | |||
Power supply | V/Ph/Hz | 220-240V/1PH/50Hz 208-230V/1PH/60Hz 380-415V/3PH/50Hz & 60Hz | 208-230V/3PH/60Hz 380-415V/3PH/50Hz & 60Hz | |||
Cooling | Capacity | kW | 8KW~33.5KW | 25.2KW-61.5KW | ||
kBtu/h | 27.3-60kBtu/h | 86-209.8kBtu/h | ||||
Power input | kW | 5.78-14.4KW | 17-27.65KW | |||
EER | kW/kW | 3.32-3.69 | 3.02-4.72 | |||
Heating | Capacity | kW | 9KW-37.5KW | 27.4KW-69KW | ||
kBtu/h | 92-191kBtu/h | 215-341kBtu/h | ||||
Power input | kW | 5.41-14KW | 15.8-26.08KW | |||
COP | kW/kW | 3.56-4.27 | 4.11-5.5 | |||
Comperssors | Type | - | DC inverter | |||
Fan motors | Type | - | DC inverter | |||
Max.ESP | Pa | 85 | 85 | |||
Refrigerant | Type | R410A | ||||
Aiflrow rate | m³/h | 3300-8000 | 15000-17000 | |||
dB(A) | 45-60 | 58-63 | ||||
Ambient temp | Cooling | ℃ | -5-50℃ | -5-55℃ | ||
Heating | ℃ | -20-30℃ | -30-30℃ | |||
Our Advantages
LONG PIPE & HEIGHT DIFFERENCE
1.The total pipe length: 1000 m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
CONTROLLERS AND SOFTWARESIMPLIFY CENTRALIZED CONTROLLER
Easy to install.Controller connects to outdoor units only.
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
INDOOR UNITS QUANTITY
Max. 100 Indoor units can be connected in ONE system.
WIRELESS REMOTE CONTROLLERS
Indoor unit address inquiry
Indoor unit address setting
Temperature setting
Operation mode setting
Fan speed setting
Timer function
Indoor unit address setting
Temperature setting
Operation mode setting
Fan speed setting
Timer function
WIDE OUTDOOR OPERATION RANGE(380V)
Max.cooling operating temperature is up to 55°C.
Low ambient temperature of cooling mode can be downto-10℃.
DC INVERTER COMPRESSOR
High efficiency Oilseparate structure,High efficiency DC Fan Motor,Middle partition Improve the efficiency;Reduce quality.High
efficiency Gas-liquid separater,Low noise design of cylinder to reduce noise when exhaust high pressure gas,Low deformation
cylinder design to improve the lifetime,High efficiency Movement oil supply mechanismto Ensure oil supplyand reduce noise
SERVICE WINDOW ON FRONT COVER
Thanks to the service window, checking outdoor unit's status and setting is now easy, no need to remove the front cover
Certifications and Authorization
Product packaging
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
PRESTIGIOUS PROJECTS IN OVERSEAS MARKET
FAQ
1.Can you provide drawing design service?
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which
includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
3.What is your delivery time?
For the standard unit, about 35-40days.
4.What is your VRF guarantee?
Our products has strict quality control, lifespan for proper use can be 5-10 years.
Also we provide 1% free spare parts for your maintenance and aftersales services.
5.Do you have technical support?
We have professional technical team to answer technical question at 24x7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.
6.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.
7.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which
includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
3.What is your delivery time?
For the standard unit, about 35-40days.
4.What is your VRF guarantee?
Our products has strict quality control, lifespan for proper use can be 5-10 years.
Also we provide 1% free spare parts for your maintenance and aftersales services.
5.Do you have technical support?
We have professional technical team to answer technical question at 24x7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.
6.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.
7.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
