Hengyu shrink sleeve applicator Cups Cans Bottle automatic bottle labeling machine
- Category: >>>
- Supplier: Zhangjiagang Hengyu Beverage Machinery Co. Ltd.
Share on (1600161053788):
Product Overview
Description
Product Description

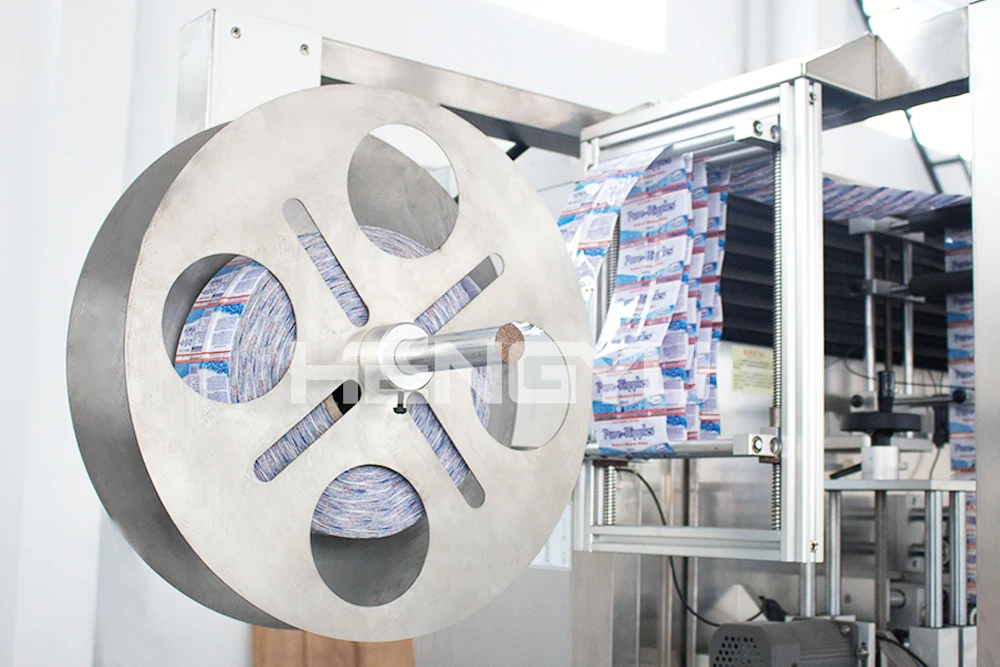

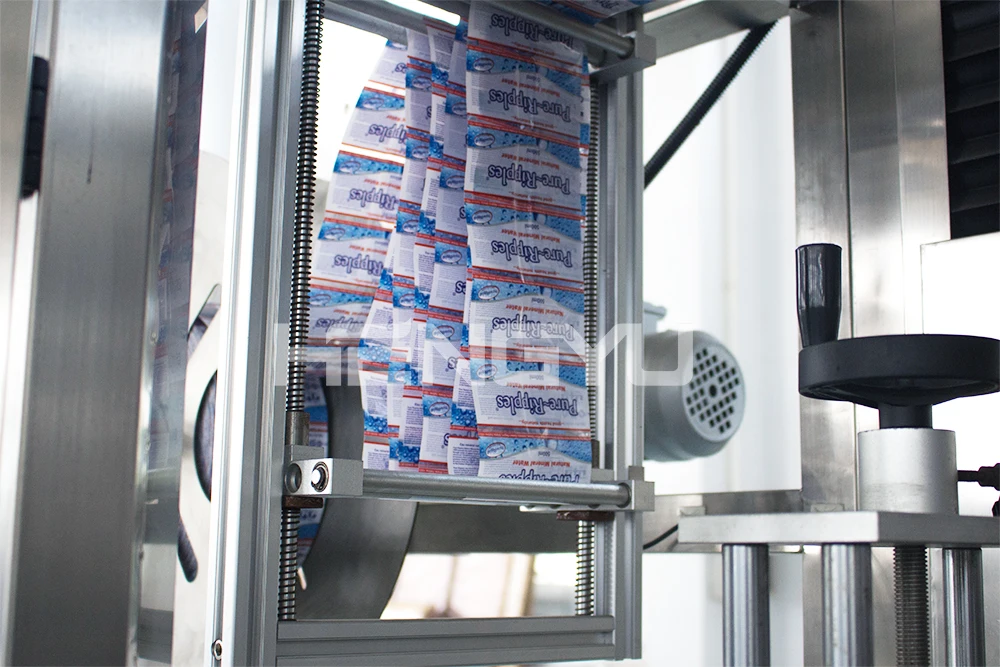

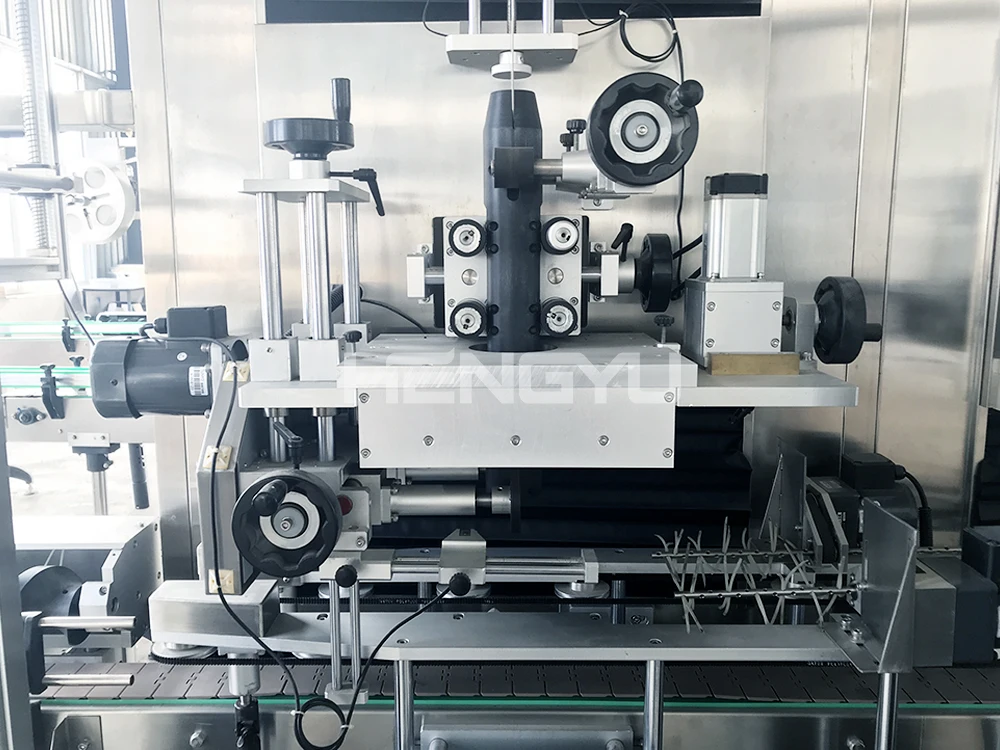

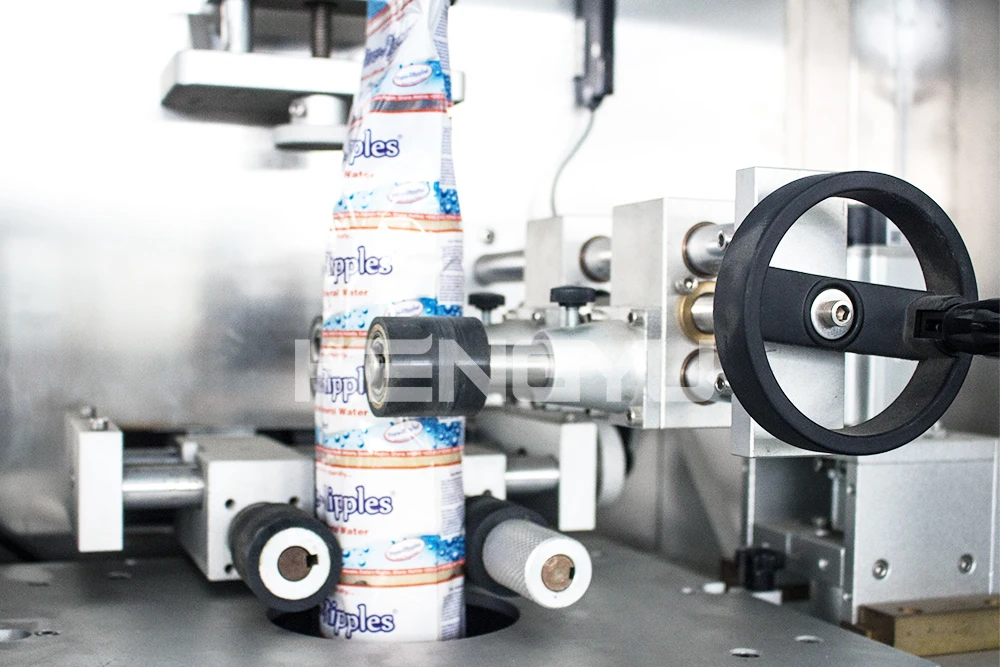

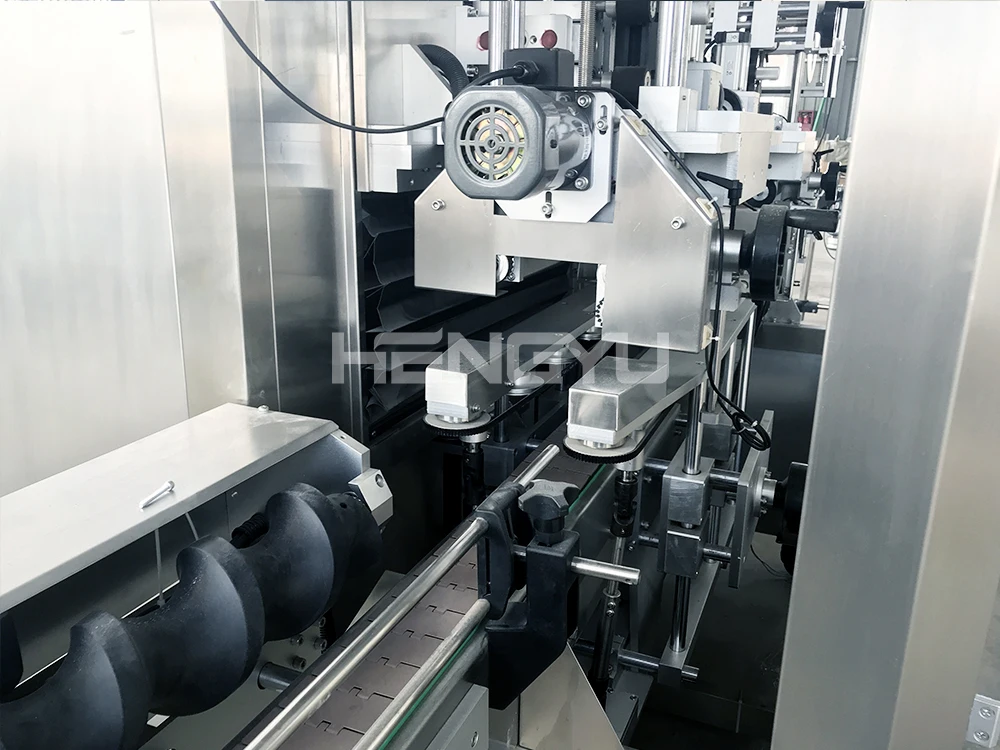

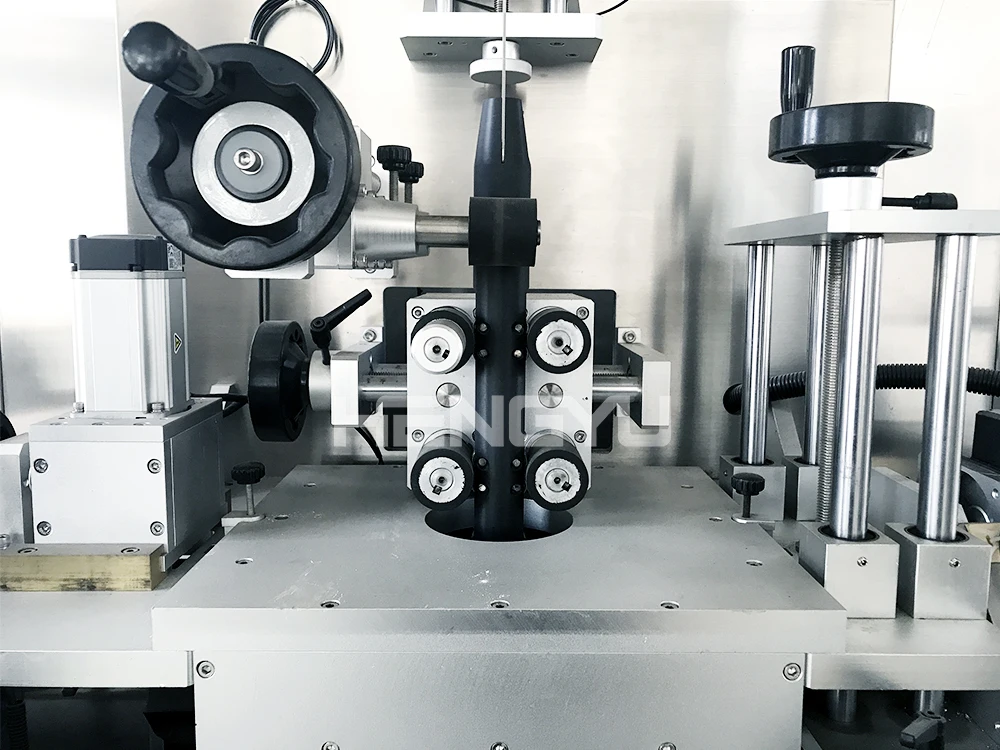

Single head shrink sleeve labeling machine.
This machine adopts international advanced technology;cover the circle label on the PET bottle.And then hot shrinking to fix on the position which bottle body designated.
The machinery part adopts combination designing of modularization,and makes the machine reasonable.The height adjustment adopts motor fluctuating;it is convenient replace the material.The special cutter head designing,make the film-rolling cut more exactly and reliably.
Functions
The machine applys to single side ,double and siding facade labeling of all kinds of quardrate & flat bottle in pharmacy ,food beverage ,daily chemical industry etc.
The machine adopts PLC process control , photo-electricity bottle checking and label delivery, it composes of high production efficiency ，labeling precise and reliablity, operation convenience ,and wide adaptive scope etc.
Start-up system: depend on 3-5 pole motor driving ,electronic control speed, full automatic transmission device, electricity
source place combine with high precise density stell star gear ,including automatic suited machinery safety device.
This machine adopts international advanced technology;cover the circle label on the PET bottle.And then hot shrinking to fix on the position which bottle body designated.
The machinery part adopts combination designing of modularization,and makes the machine reasonable.The height adjustment adopts motor fluctuating;it is convenient replace the material.The special cutter head designing,make the film-rolling cut more exactly and reliably.
Functions
The machine applys to single side ,double and siding facade labeling of all kinds of quardrate & flat bottle in pharmacy ,food beverage ,daily chemical industry etc.
The machine adopts PLC process control , photo-electricity bottle checking and label delivery, it composes of high production efficiency ，labeling precise and reliablity, operation convenience ,and wide adaptive scope etc.
Start-up system: depend on 3-5 pole motor driving ,electronic control speed, full automatic transmission device, electricity
source place combine with high precise density stell star gear ,including automatic suited machinery safety device.
Other Products

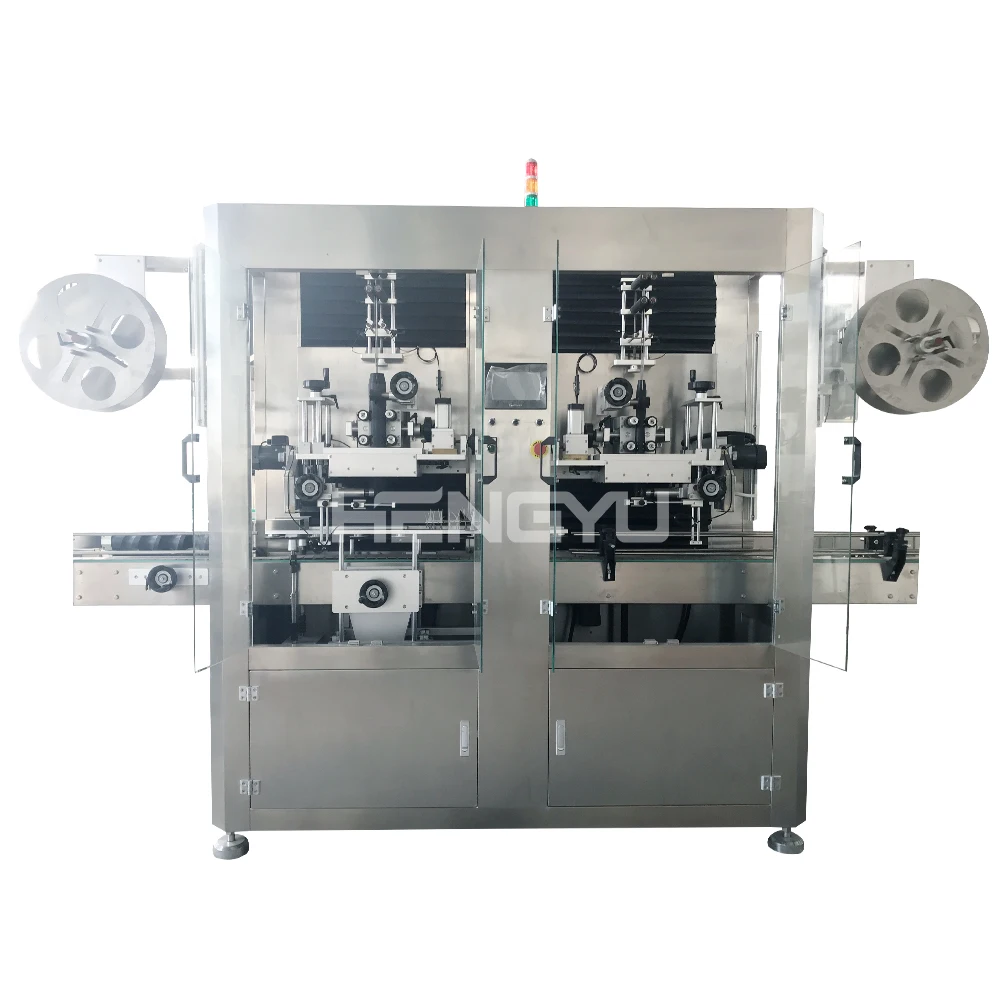

Double head shrink sleeve labeling machine.
1.Whole machine adopt qualified stainless steel and good-quality of aluminum alloy , compact and reasonable fracture,convenient to adjust;
2.The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5″~10″paper
tube.
3.Simply installation, then can convenient for square and round bottle.
1.Whole machine adopt qualified stainless steel and good-quality of aluminum alloy , compact and reasonable fracture,convenient to adjust;
2.The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5″~10″paper
tube.
3.Simply installation, then can convenient for square and round bottle.
Technical Parameter | ||||
Model | HY-TBJ-150B | HY-TBJ-250B | ||
Capacity (on the base label length :500ml) | 3000BPH-6000BPH | 6000BPH-10000BPH | ||
Label size | Diameter 50-110mm | Diameter 30-125mm | ||
Bottle heights | Heights 50-200mm | |||
Bottle diameter | Diameter 40-120mm | Diameter 28-125mm | ||
Label sleeve length | 40-150mm | 30-250mm | ||
Thickness | > 0.035mm | > 0.035mm | ||
Label material | PVC/ PET | PVC/ PET | ||
Electrical power | 2.5KW (380V 50HZ) | |||
Overall diameter | 2440*890*2200mm | |||
Weight | Approximate 750KG | Approximate 950KG | ||
Steam generator for shrink sleeve labeling machine
The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to
automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.
The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to
automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.
Model | HY-1200 |
Input Power Supply | 3PHASES 380V |
Input Power | 18KW/36KW |
Steam Pressure | 0.25-0.4Mpa |
Vapor Generation | 24kg/h; 48kg/h |
External Dimension | L600*W550*H1200mm |
Weight | 96Kg |

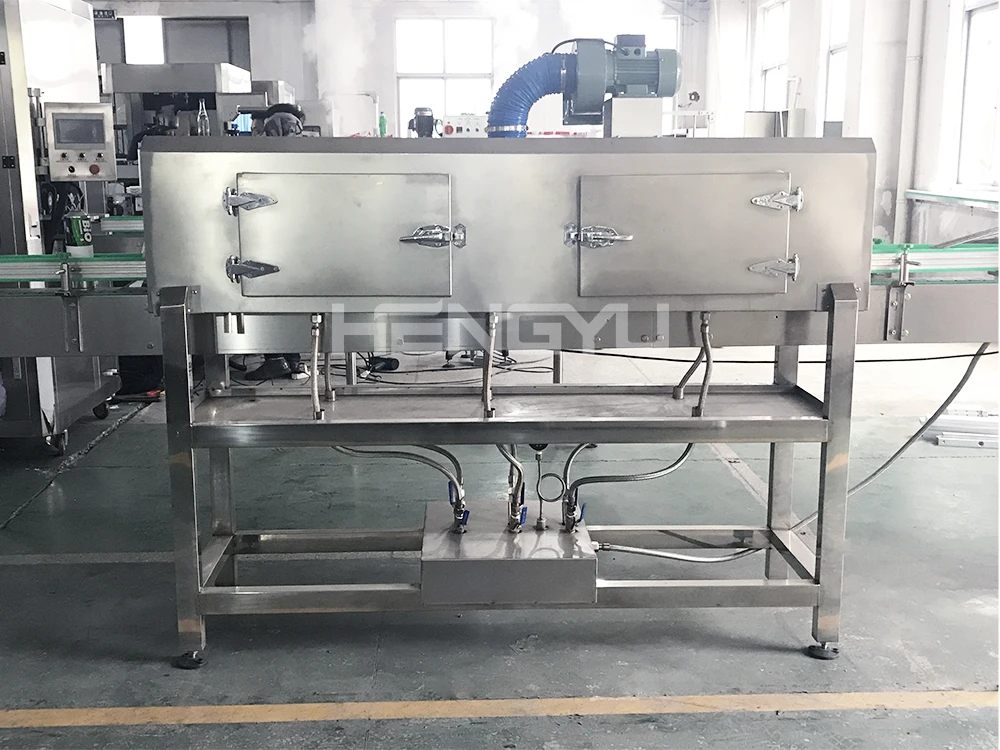

Shrink tunnel for shrink sleeve labeling machine.
In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is
easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are
uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam
output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.
In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is
easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are
uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam
output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.

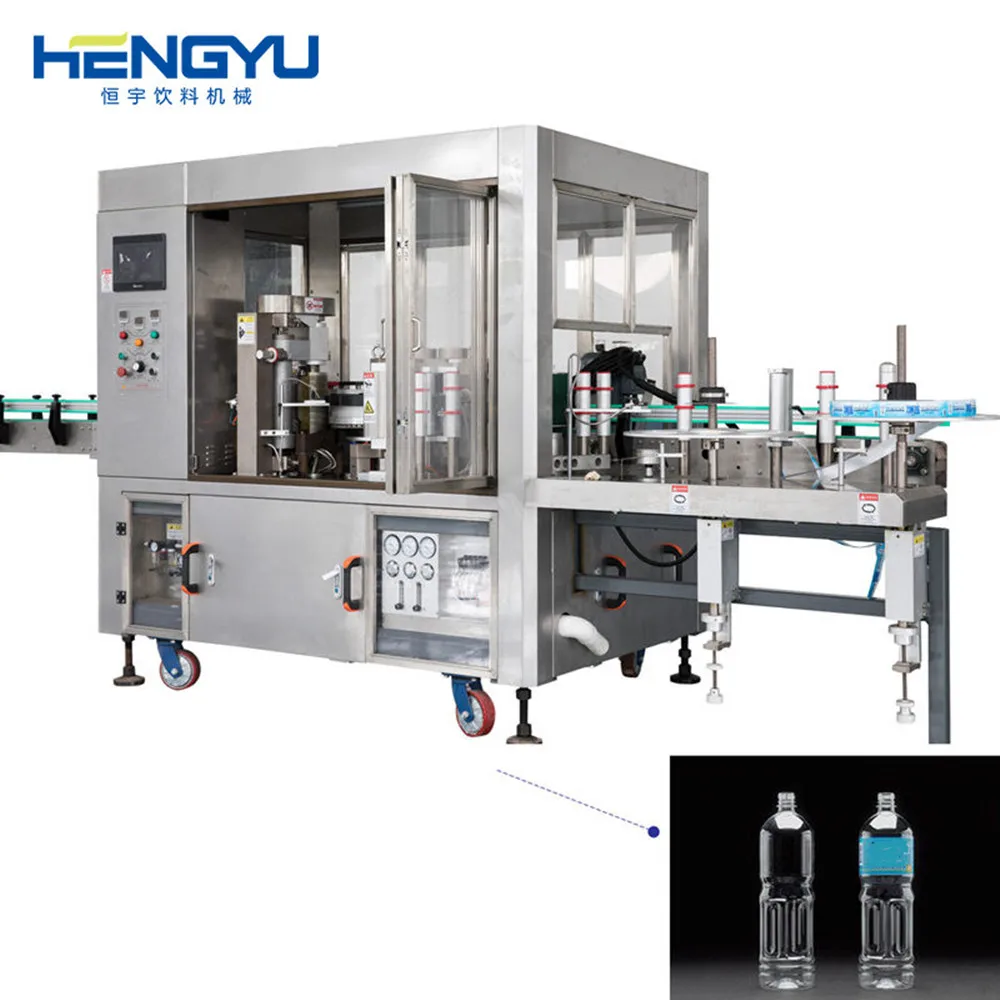

OPP hot melt labeling machine.
OPP Hot Melt Labeling Machine is suitable for labeling round, square and other shape of PET/PP/PP bottle for mineral water,
beverage, detergent etc. The label is roll type OPP, paper or paper-plastic lamination material, which is suitable for correctly
labeling under high speed. With centerilized melt glue feeding and recycling system, the damage of label and consumption of melt
glue is small; the glue strip is beautiful, suitable for transparent label. The machine is PLC controled, easy operation and
maintenance.
OPP Hot Melt Labeling Machine is suitable for labeling round, square and other shape of PET/PP/PP bottle for mineral water,
beverage, detergent etc. The label is roll type OPP, paper or paper-plastic lamination material, which is suitable for correctly
labeling under high speed. With centerilized melt glue feeding and recycling system, the damage of label and consumption of melt
glue is small; the glue strip is beautiful, suitable for transparent label. The machine is PLC controled, easy operation and
maintenance.

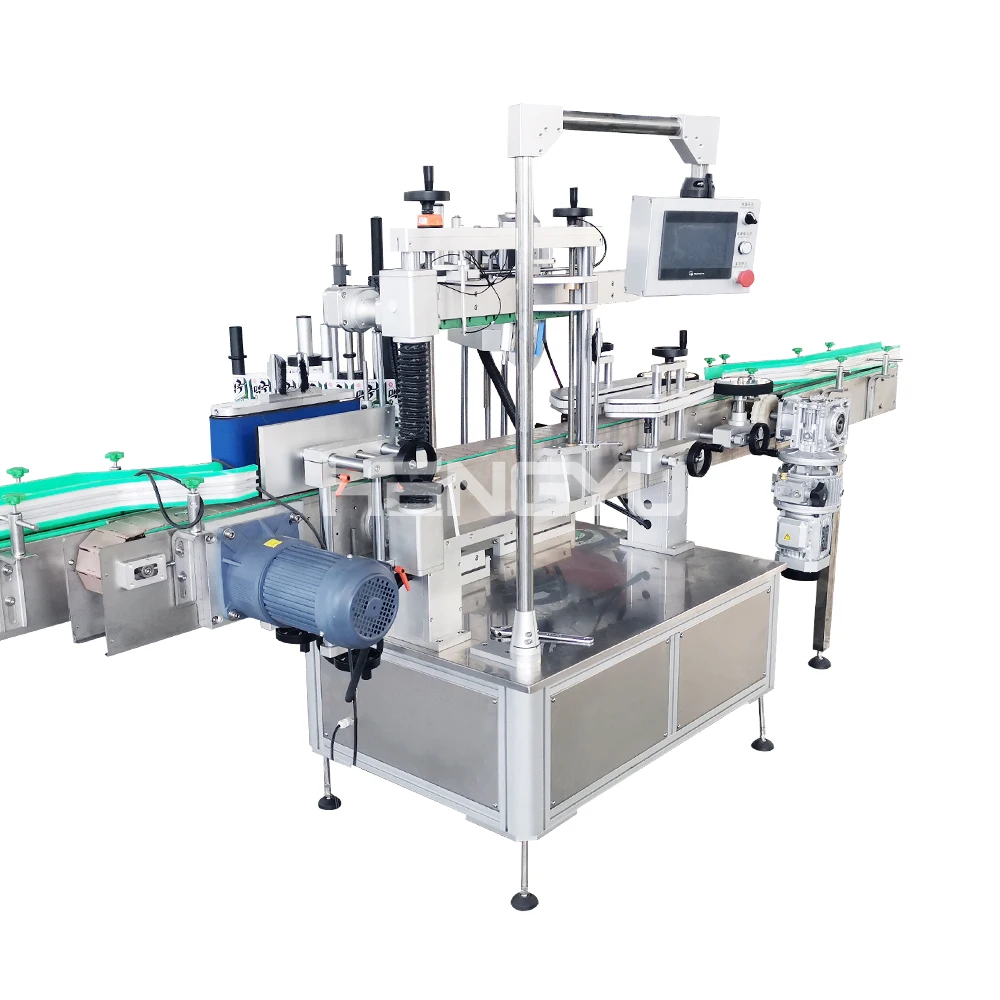

Self-adhesive labeling machine.
As the machine uses a combination of cutting-edge technologies,and high-performance components-ultra small inertia servo motor,the
system by Siemens programmable logic controller professionl closed-loop control of servo motors,the use of advanced human-computer
interface system implement human and computer's conversation, During the host was rushed to the label speed control process, it
can reach 0.01m/min accuracy class, rather than the general machinery of 1m/min.
As the machine uses a combination of cutting-edge technologies,and high-performance components-ultra small inertia servo motor,the
system by Siemens programmable logic controller professionl closed-loop control of servo motors,the use of advanced human-computer
interface system implement human and computer's conversation, During the host was rushed to the label speed control process, it
can reach 0.01m/min accuracy class, rather than the general machinery of 1m/min.
Different Labels for Different Labeling Machine
1/PVC/PET shrink film label.
Widely used in food, beverages, mineral water and daily products.
Material: PVC heat shrinkable film, PET heat shrinkable film.
PVC shrinkage: longitudinal shrinkage 1%-4%, transverse shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1% -3%, transverse contraction 70%;
PVC/PET heat-shrinkable labels printed flattened folding diameter: not more than 270mm;
Height: according to customer requirements;
Thickness: 3 wire to 5.5 wire, according to customer requirements, roll or cut sheet can be;
Color: Up to 9 colors
2/Sticker label.
Material: Coated paper, Synthetic paper, BOPP.
Color: Up to 9 colors.
3/OPP label.
Material: PVC heat shrinkable film PET heat shrinkable film;
PVC shrinkage: longitudinal shrinkage 1%-4% lateral shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1%-3% lateral shrinkage 70%
1/PVC/PET shrink film label.
Widely used in food, beverages, mineral water and daily products.
Material: PVC heat shrinkable film, PET heat shrinkable film.
PVC shrinkage: longitudinal shrinkage 1%-4%, transverse shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1% -3%, transverse contraction 70%;
PVC/PET heat-shrinkable labels printed flattened folding diameter: not more than 270mm;
Height: according to customer requirements;
Thickness: 3 wire to 5.5 wire, according to customer requirements, roll or cut sheet can be;
Color: Up to 9 colors
2/Sticker label.
Material: Coated paper, Synthetic paper, BOPP.
Color: Up to 9 colors.
3/OPP label.
Material: PVC heat shrinkable film PET heat shrinkable film;
PVC shrinkage: longitudinal shrinkage 1%-4% lateral shrinkage 55%;
PET shrinkage: longitudinal shrinkage 1%-3% lateral shrinkage 70%
