China new arrival cement batching factory mobile concrete mixing plant Portable batching plant 35 m3/hr
Features of YHZG Mobile Concrete Batching Plant
1. Aggregate batching and transferring is automatic and precise; 2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging; 3. The whole plant chassis can be moved easily, don't need to be separated and assembled; 4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo; 5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.
Advantages of YHZG mobile concrete batching plant
1.Quick disassembly:Except for the connecting equipment such as screw conveyor and cement silo. All the wiring of the mixing station need not be removed.
2. High degree of automation: The control room uses the microcomputer control system to automatically feed the material. The mixing station operator can set the ratio and complete the rated mixing times.
3. Stir well :With a compulsory twin shaft concrete mixer, uniform mixing can be achieved with the shortest mixing time.
Details Images

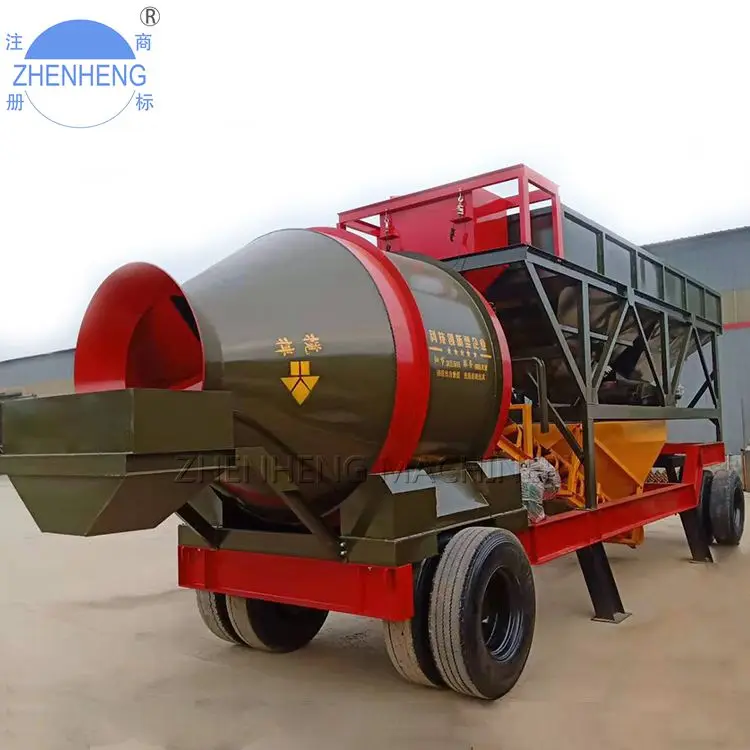

Drum Type of Mobile concrete batching plant:
Electric Power Mobile Concrete Batching Plant With Drum Type Concrete Mixer as one of the YHZG Series mobile concrete batching plant is a new type mixing plant adapt to the fast installation and movement. It is designed and manufactured by our factory based on the practical construction projects. The whole design is with convenient installation, stable and reliable operation convenient transportation. It has the advantages of flexible movement, quick and easy assembly and disassembly, and stable performance. It is the preferred choice for field construction projects such as railways, highways, ports, bridges, and hydropower projects.
The drum type mixing plant is introduced in detail:
b. Support leg: Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.
c. Universal Steering wheel: can be dragged by a medium-sized forklift directly, ensure the direction changing stably.
d. Storage hopper base: moved from the middle to the front generating two advantages:
a).remaining space can be used for the generator, control cabinet, water tank, tool box, etc.;
b). shorten the length of the feeding belt and the feeding time, thereby shortening the single mixing cycle by 10s, and improving the working efficiency.
e. Support steel: Increase the bearing capacity of the chassis and extend the service life. Compact structure: Movable completely, work on the supporting legs, No foundation needed.
Specification
Model
JZM500-2
JZM750-2
JZM1000-2
JZM1000-3
JZM1500-2
JZM1500-3
Theory capacity
25m³/h
35m³/h
50m³/h
50m³/h
75m³/h
75m³/h
Discharging height
1600mm
1600mm
1600mm
1600mm
1600mm
1600mm
Total power
44kw
50kw
58.9kw
58.9kw
66.9kw
66.9kw
Dimension(L * W * H)
8 X 2.2m X3.8m
8m X 2.2m X3.8m
10m X 2.3m X4.2m
13.5m X 2.3m X 4.2m
12m X 2.3m X 4.2m
14.5m X 3.9m X 4.2m
Mixing System
Model of Mixer
JZM500
JZM750
JZM1000
JZM1000
JZM1500
JZM1500
Mixing motor
2*5.5kw
2*7.5kw
2*11kw
2*11kw
2*15kw
2*15kw
Discharging volume
500L
750L
1000L
1000L
1500L
1500L
Aggregate System
Model of Batcher
PLD800-2
PLD1200-2
PLD1200-2
PLD1200-3
PLD1600-2
PLD1600-3
Aggregate bin volume
5m³×2
6m³×2
7m³×2
7m³×3
8m³×2
8m³×3
Max. Aggregate Dia
60/80mm
60/80mm
60/80mm
60/80mm
60/80mm
60/80mm
Measurement System
Cement weighing hopper
500KG
500KG
560KG
560KG
900KG
900KG
Water weighing support
220KG
220KG
220KG
220KG
330KG
330KG
Additive weighing support
30KG
30KG
30KG
30KG
40KG
40KG
Trailer Speed
40-60Km/h
40-60Km/h
40-60Km/h
40-60Km/h
40-60Km/h
40-60Km/h
Optional cement silo
50/100T
50/100T
50/100T
50/100T
50/100T
50/100T
Packing & Delivery
Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)
Product Recommend
Company Profile
The factory video
our team
Exhibitions&Projects
FAQ
Q1. Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type.However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
