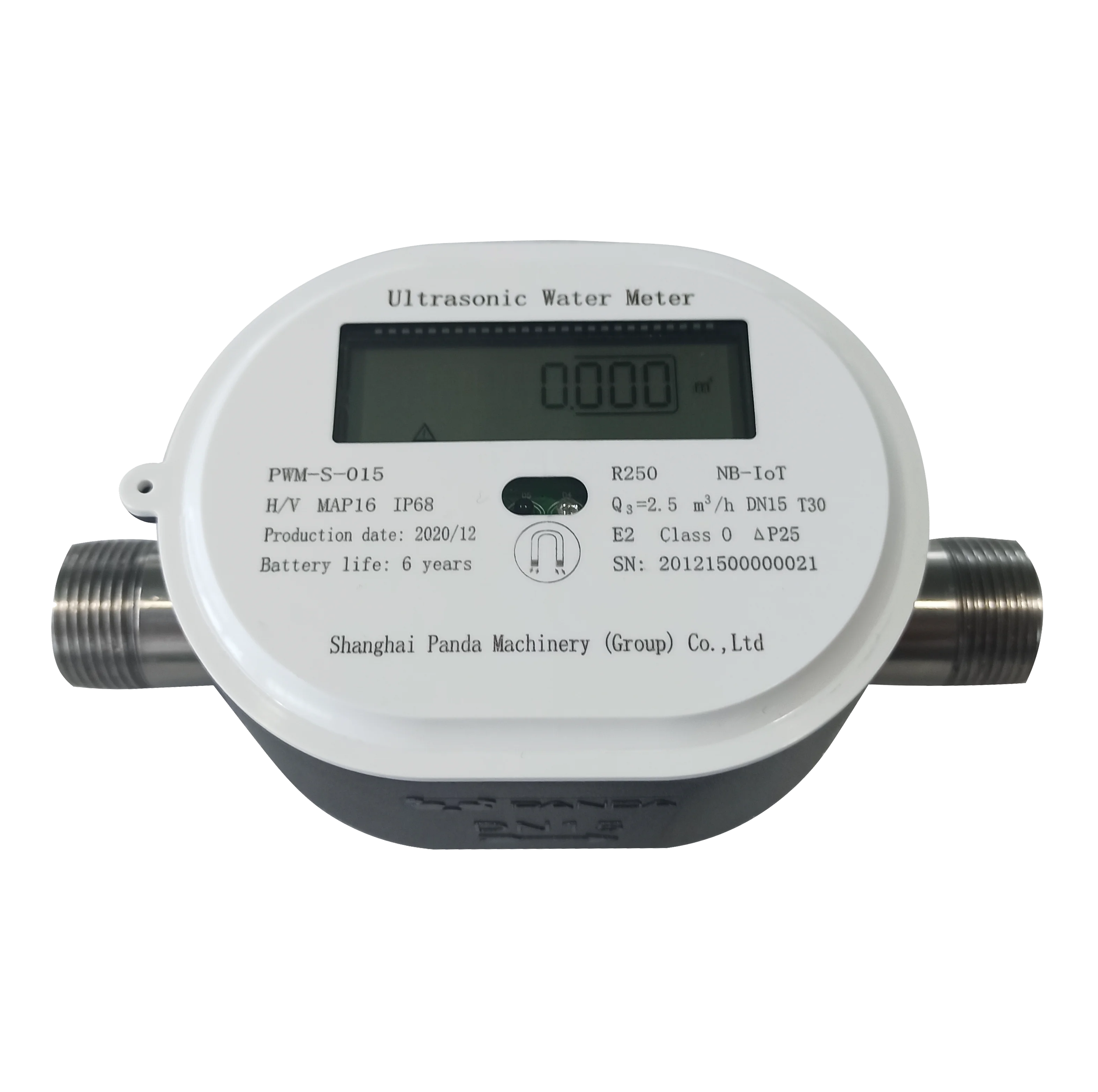

Residential Ultrasonic Water Meter Lora 15mm

Max. Working Pressure

1.6Mpa

Temperature Class

T30

Accuracy Class

ISO 4064, Accuracy Class 2

Body Material

Stainless SS304(opt. SS316 or SS316L)

Battery Life

6 Years (Consumption<0.6uA)

Protection Class

IP68

Environmental Temperature

-40~+70℃,≤100%RH

Pressure Loss

ΔP16, ΔP25

Climatic And Mechanical Environment

Class O

Electromagnetic Class

E2

Communication

RS485(ModBus), M-bus, NB-IoT,

Opt. OCT Pulse

Display

8 digits LCD display volume(m³,L,GAL), flow rate(m³/h,L/min,GPM), low battery power alarm, flow direction, output.

Connection

Thread Connection

Flow Profile Sensitivity Class

U5/D3

Data Storage

Store the data of Day, Month and Year.

The data can be permanently saved even power off.

Frequency

1-4times/second
