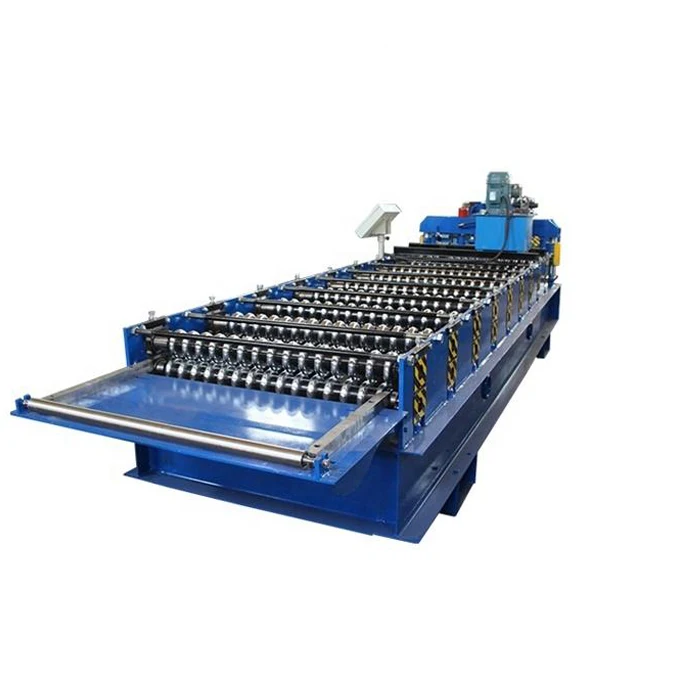

Corrugated and trapezoid roof wall sheet making machine aluminium zinc roofing tile roll forming machine

Share on (1600161662841):


Price:$9,800.00 - $10,000.00

Quantity:


Product Overview

Description



Product Description






 This roofing sheet roll forming machine is widely used in many kinds of industrial factory, civilian buildings, It has advantage of pretty appearance, durable using and so on.


corrugated and trapezoid roof and wall sheet making machine


corrugated and trapezoid roof and wall sheet making machine


corrugated and trapezoid roof and wall sheet making machine









specification






 corrugated and trapezoid roof and wall sheet making machine


Plc Control Systerm Metal Rofing Sheet Cold Roll Forming Machine









































































Raw material






 PPGI GI






Production speed



8 - 15m / min



Drving



Chain drive



Shaft diameter



75mm



 shaft material



high grade 45# steel



Roller material



45 # steel hard chrome plated






Forming part



manual decoiler +feeding platform.+pre-cutting +roll forming machine body+cutter+receiving table +plc control systerm +pump station



PLC control systerm



Delta plc control syeterm ,touch screen operate






Forming step



16 or 18 station



Cutter material



high grade GR12



Main power



5.5kw



Pump power



4kw



Voltage



380V 50Hz or as customer requirement



Weight



5tons



Warranty period



18months



Decoiler



5ton decoiler

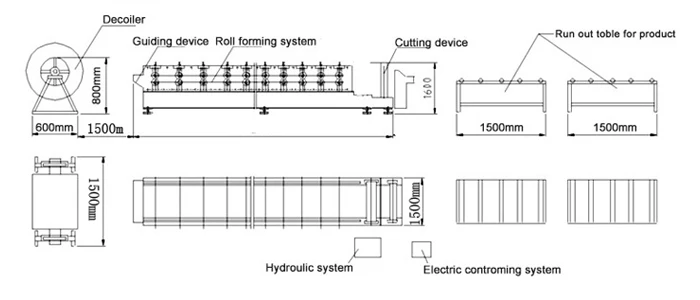

Product process




 corrugated and trapezoid roof and wall sheet making machine







Related Products






corrugated and trapezoid roof and wall sheet making machinecorrugated and trapezoid roof and wall sheet making machinecorrugated and trapezoid roof and wall sheet making machinecorrugated and trapezoid roof and wall sheet making machinecorrugated and trapezoid roof and wall sheet making machinecorrugated and trapezoid roof and wall sheet making machine















Packaging & Shipping






- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.corrugated and trapezoid roof and wall sheet making machinecorrugated and trapezoid roof and wall sheet making machine


After sale service


corrugated roofing sheet machine details





1. This producing line is maintained free of charge for 18 months. when the machine need install ,we will send the professional technician to debug for customer.Buyers should take all the fees for
technicians travelling abroad.

- 2.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for
exchanged the broken part,if more than 24 month,we also free to maintain the broken parts,but for send the new parts,the buyer need bear the express cost.

- 3.When shipping the roll forming machine,We will also send one set CD and specification(Chinese and English or other language) to you with the machine,they can teach you how to operater the machines,it is easy to operat the machine ,i am online to service 24hours .









FAQ









Q:Are you a manufactuer or trading company?
A:We are a manufacturer specialized in producing all kinds of roll forming machines.


 Q:Do you have after sales support?


A: Yes, we are happy to give advice and we also have skilled technicians available across the world.


Q:What is the payment terms?


A:T/T (30% by TT in advance, the rest 70% to be payed by TT after you inspect the machine in sell s factory before delivery)and T/C.


Q: What can you do if the machine broken?


A: Our machine's quality is very good. And we supply the technical support for the whole life. Because the warranty is 18month, if the broken parts can't repair, we will send you the new parts freely. But you need pay the express cost yourself. Thanks for your understanding. If after the warranty period, we can solve the problems through negotiation.


Q:How to visit your factory
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.


 Q: How does your factory do regarding quality control?


A: Quality is priority. TY People always attach great importance to qulity control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment. Be reassured please.


 Q: Can you be responsible for transport?


A: Yes. Please tell me the destination port or address. We have rich experience in transport.
