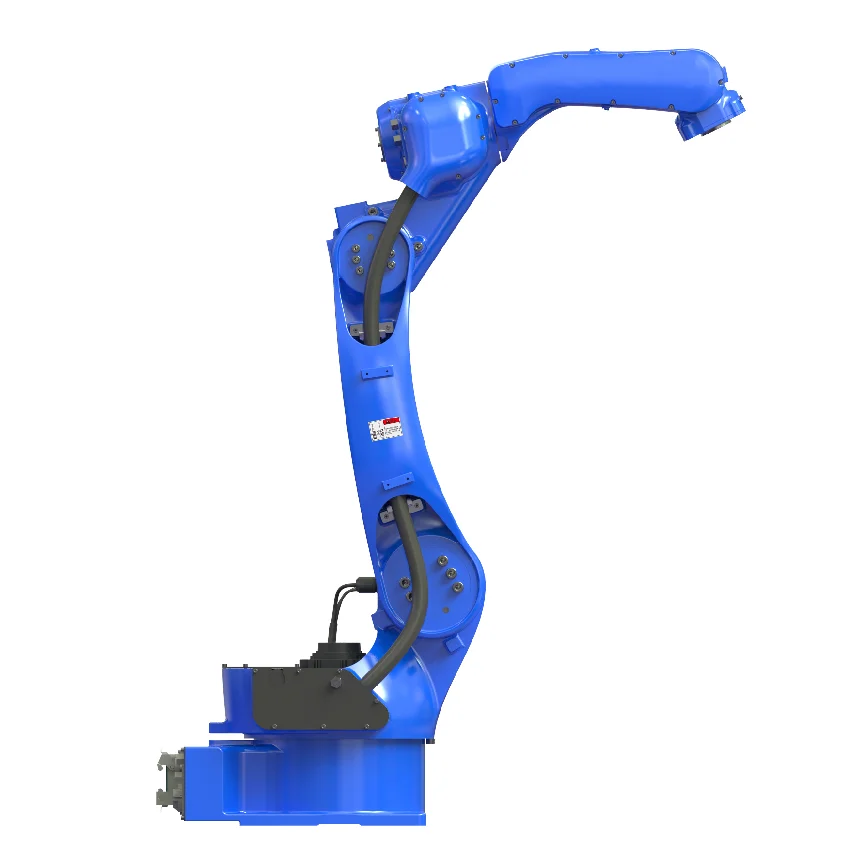

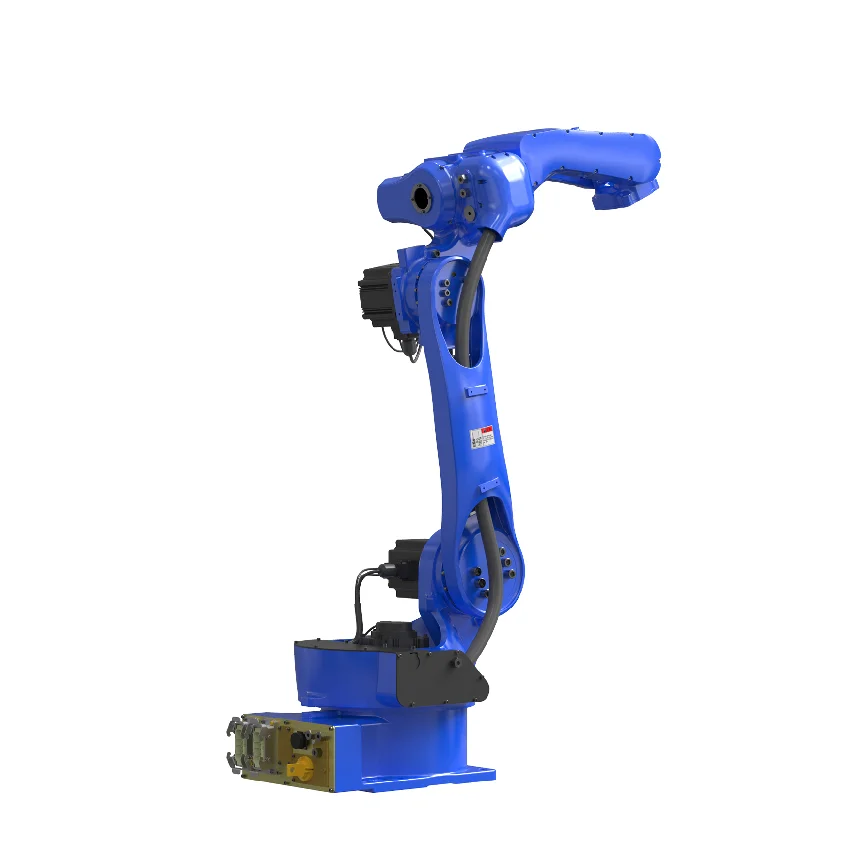

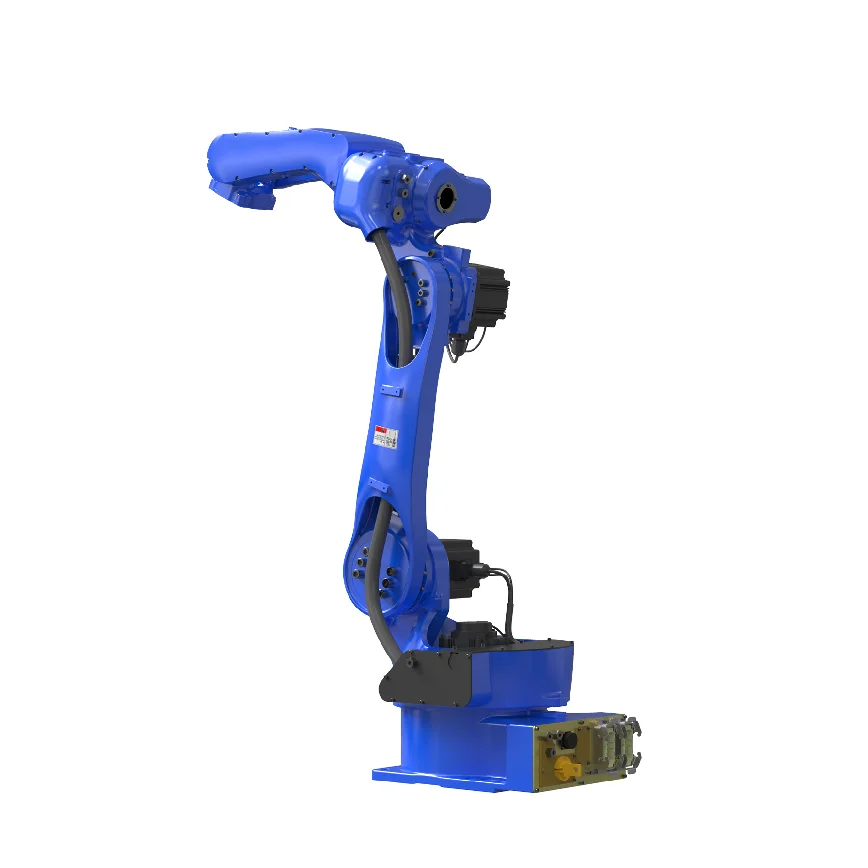

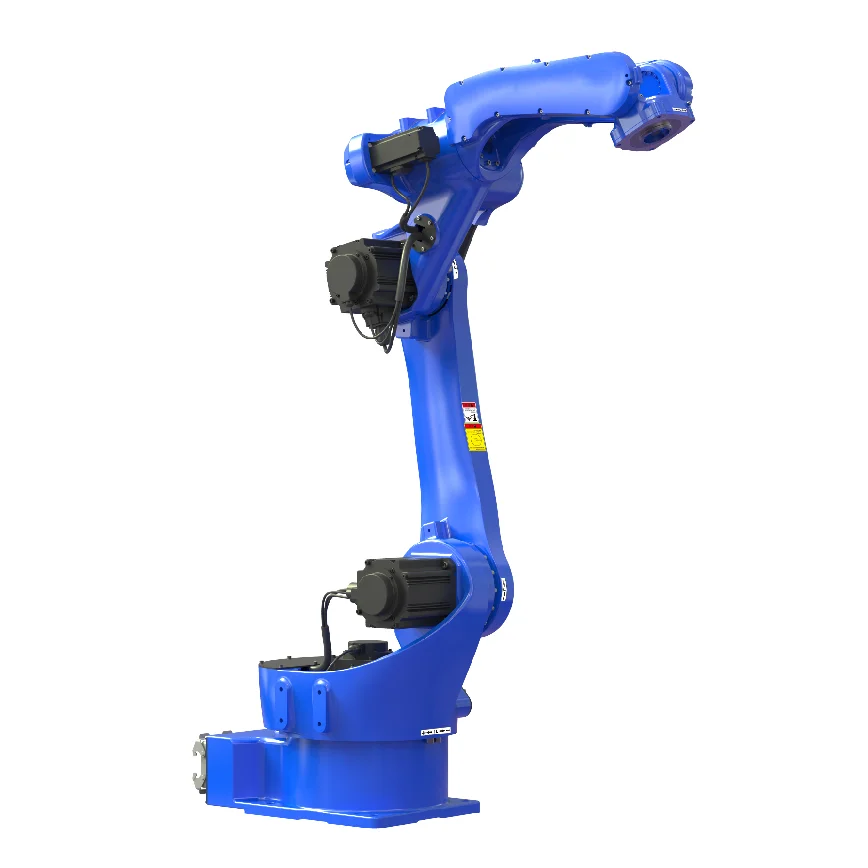

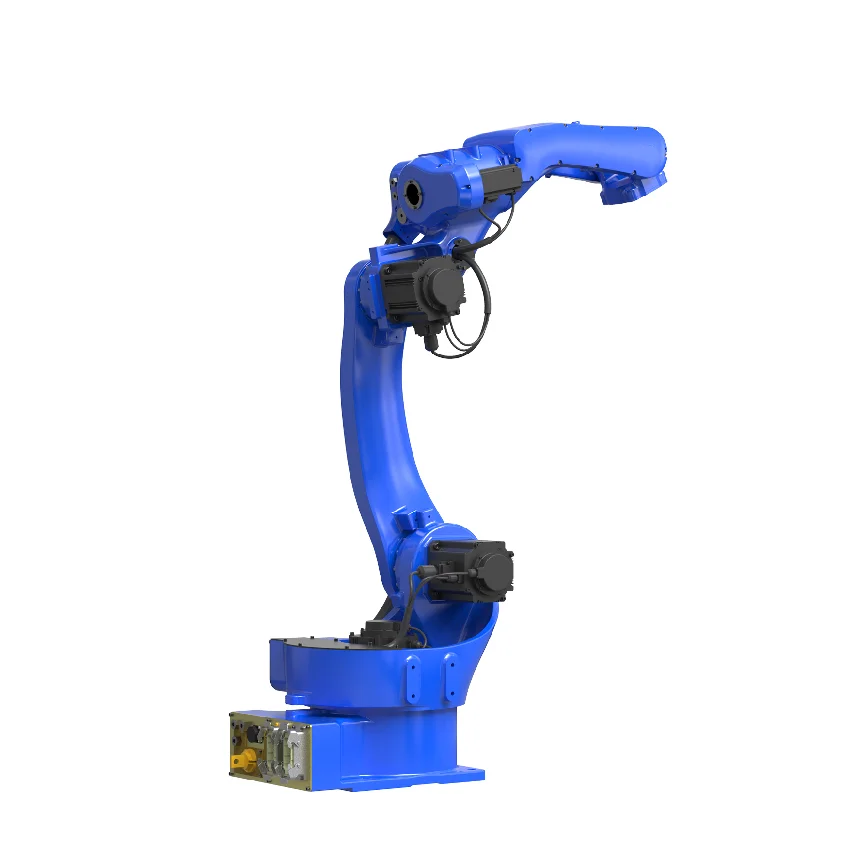

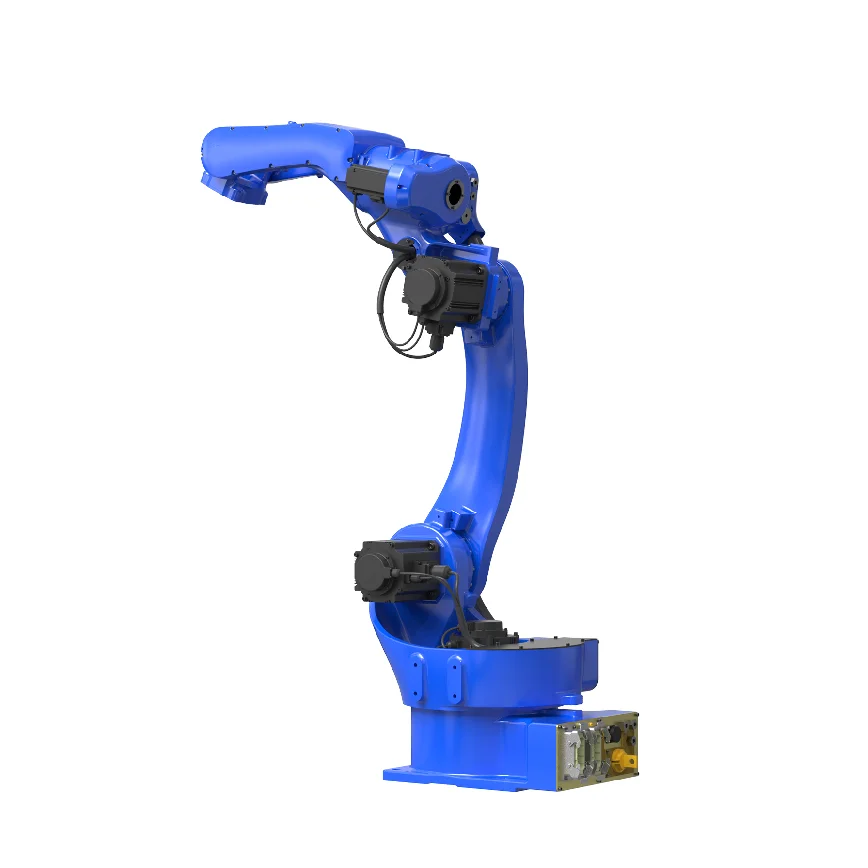

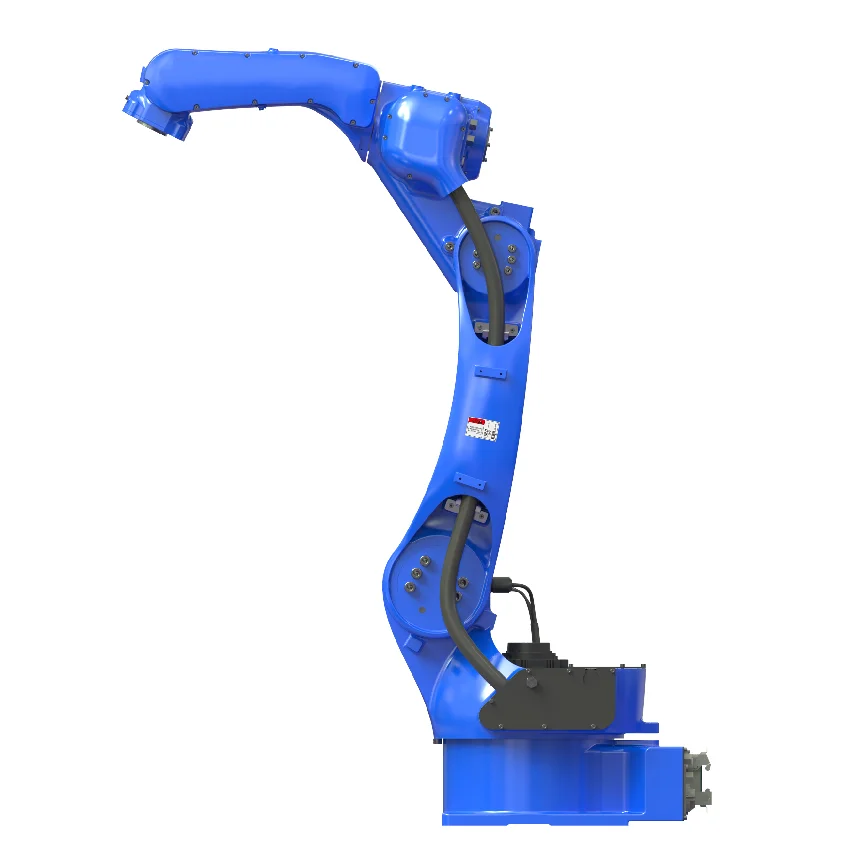

Best CNC Industrial Automated 6 Axis CRP RH14 10 Affordable Robotic Arm
- Category: >>>
- Supplier: Zhida Yuanfang (chengdu) Technology Co. Ltd.
Share on (1600161900404):
Product Overview
Description
Product Description
| Model | CRP-RH14-10 | |||
| Arm Form | Vertical Multiple Joints | |||
| Free Degree of Action | 6 Axis | |||
| Maximum Load | 10KG | |||
| Max Travel | 1 | 1 Axis | -167°-167° | |
| 2 | 2 Axis | 0°-175° | ||
| 3 | 3 Axis | -80°-150° | ||
| 4 | 4 Axis | -190°-190° | ||
| 5 | 5 Axis | -105°-130° | ||
| 6 | 6 Axis | -210°-210° | ||
| Maximum Speed | 1 | 1 Axis | 169°/S | |
| 2 | 2 Axis | 169°/S | ||
| 3 | 3 Axis | 169°/S | ||
| 4 | 4 Axis | 280°/S | ||
| 5 | 5 Axis | 240°/S | ||
| 6 | 6 Axis | 520°/S | ||
| Allowable Moment of Force | 4 Axis | 10N.m | ||
| 5 Axis | 10N.m | |||
| 6 | 6 Axis | 3N.m | ||
| Allowable Moment of Inertia | 4 | 4 Axis | 0.25kg.m2 | |
| 5 | 5 Axis | 0.25kg.m2 | ||
| 6 | 6 Axis | 0.05kg.m2 | ||
| Repeat Positioning Accuracy | ±0.08mm | |||
| Maximum Coverage | 1440mm | |||
| Body Weight | 170KG | |||
| Installation Mode | Ground, Top Mounting | |||
| Installation Environment | Ambient Temperature | 0~45℃ | ||
| Relative Humidity | No Condensation | |||
| Vibration | Below 0.5G | |||
| Others | Must be away from the robot installation site: Flammable or corrosive liquid, gas or electrical interference source | |||
| IP Rating | IP56 | |||
| Features | Compact structure; High Speed; High Precision; High Expansibility; Easy to Operate | |||
| Application Occasion | Cutting; Assembly; Handling; Marking; Grinding | |||
 |
 |
 |
 |
Company Information
Certifications
Packaging & Shipping
FAQ
1. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
2.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
3. How's about the transportation?
Tell us which one you don't like, we will keep that in mind.
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you,it will show you how to do it step by step.
