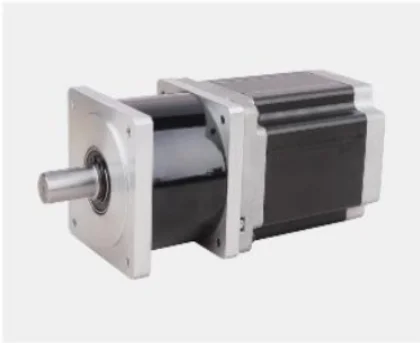

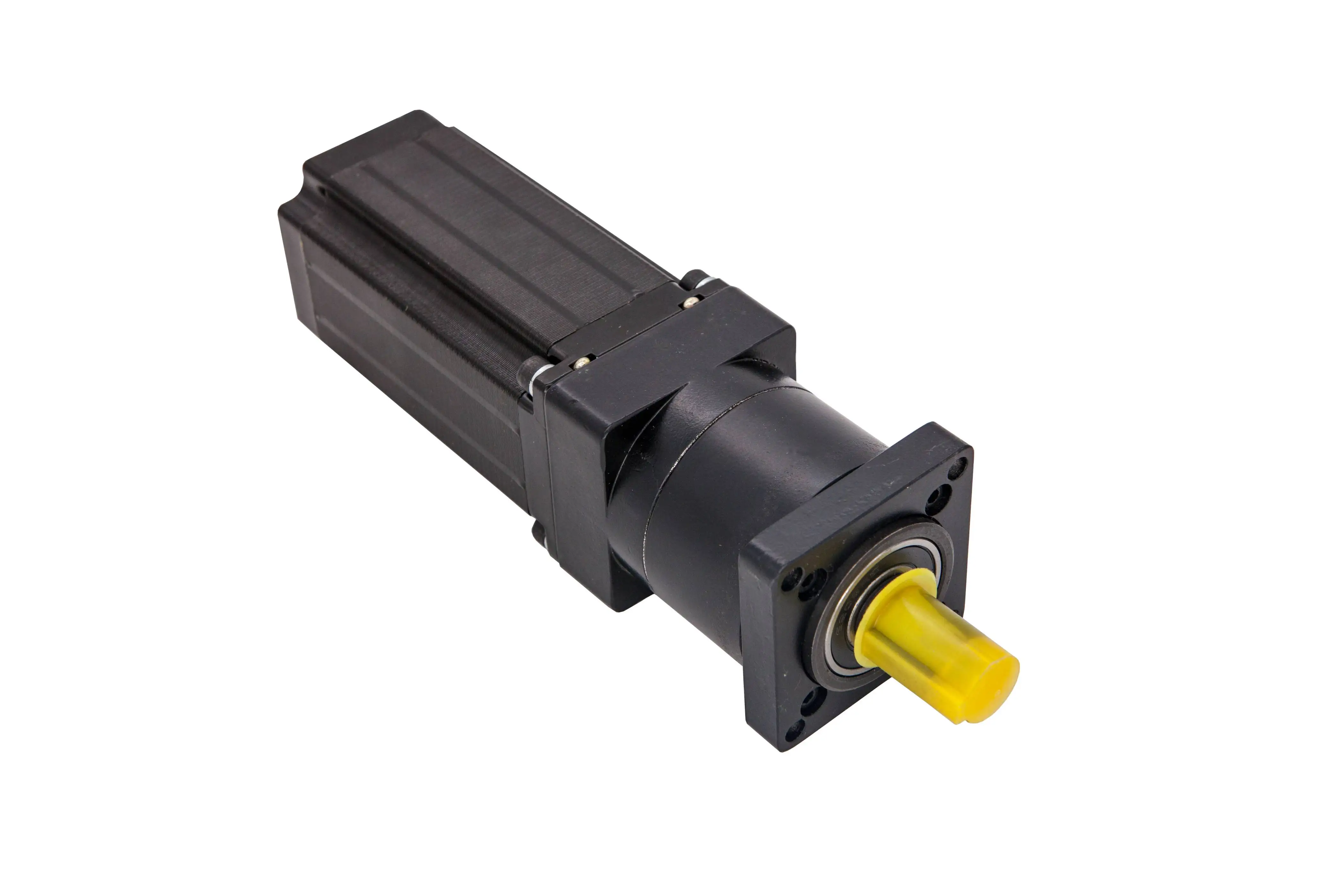

NEMA 34 Planetary Geared Stepper Motor planetary gear stepper gearbox reducer slew drive stepper motor
- Category: >>>
- Supplier: Changzhou Songya Electromechanical Co. Ltd.
Share on (1600161978392):
Product Overview
Description
Product information
NEMA 34 Planetary Geared Stepper Motor | ||||
Specifications | 1st Stage | 2nd Stage | ||
Gear Ratio | 4; 5; 7; 9; 10 | 16; 20; 25; 28; 35; 36; 40; 45; 49; 50; 63; 70; 81; 90; 100 | ||
Length (mm) | 73 | 78 | ||
Rated Load (N.m) | 50 | 80 | ||
Max Load (N.m) | 100 | 160 | ||
Effiency (%) | 96 | 94 | ||
Blancklash (acr min) | ≤15 | ≤25 | ||
Weight (kg) | 2 | 2.5 | ||
Rated Input Speed (RPM) | 3000 | 3000 | ||
Max Input Speed (RPM) | 5000 | 5000 | ||
Protection Class(IP) | 65 | 65 | ||
Lubrication | Grease | Grease | ||
Noise (dB) | ≤45 | ≤45 | ||
Lifaspan (h) | 20000 | 20000 | ||
Remark: L1 is Stepper motor Length, L2 is gearbox length. | ||||
Company profile
Partner
Product transport
FAQ
1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
Sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
