Dc Motor and Ac Motor Optional High Traffic Sliding Gate Opener With Remote&Control board
- Category: >>>
- Supplier: Chisung,Intelligence,Technology(shenzhen),Co.,Limited
Share on:
Product Overview
Description
Specification
Model | CSPY-S1-DC500 | CSPY-S1-AC500 | CSPY-S1-AC700 |
Material | Copper turbine | Copper turbine | Copper turbine |
IP Rating | IP45 | IP45 | IP45 |
Max.gate weight (KG) | 500kg | 500kg | 700kg |
Max.gate width (m) | 6m | 6m | 7m |
Rated Absorbed power of motor(w) | 80W | 250W | 380W |
Working Frequency | 90% | 30% efficiency / 18 minutes per hour | 30% efficiency / 18 minutes per hour |
eletric motor | DC12V,7.5A | 110VAC | 110VAC |
DC24V,3.5A | 220VAC | 220VAC | |
Limit switch | Spring limit | Spring limit | Spring limit |
Limit switch quantity | 2,Open door limit and close door limit | 2,Open door limit and close door limit | 2,Open door limit and close door limit |
Teeth gear | 12 Teeth gear | 12 Teeth gear | 12 Teeth gear |
Motor Speed | 2500RPM/MIN | 1450RPM/MIN | 1450RPM/MIN |
Push force (N) | 500N | 500/600N | 800N |
Max linear load free speed(m/sec) | 12M/MIN | 12M/MIN | 12M/MIN |
Capacitor (uF) | / | 8uf | 8uf |
Built in battery （battery Optional, and the standard packing list doesn't include the back-up battery and solar panel.） | not support | not support | not support |
not support | not support | not support | |
External battery （battery Optional, and the standard packing list doesn't include the back-up battery and solar panel.） | DC12V：One or more 12v7 / 9ah batteries in parallel | not support | not support |
DC12V：Two 12V, 7/9ah batteries in series | not support | not support | |
Remote control | 30-50meters,433.92 MHz | 30-50meters,433.92 MHz | 30-50meters,433.92 MHz |
Thermal Protection(℃) | 140℃ | 140℃ | 140℃ |
Recovery temperature(℃) | -20℃-50℃ | -20℃-50℃ | -20℃-50℃ |
Product Description

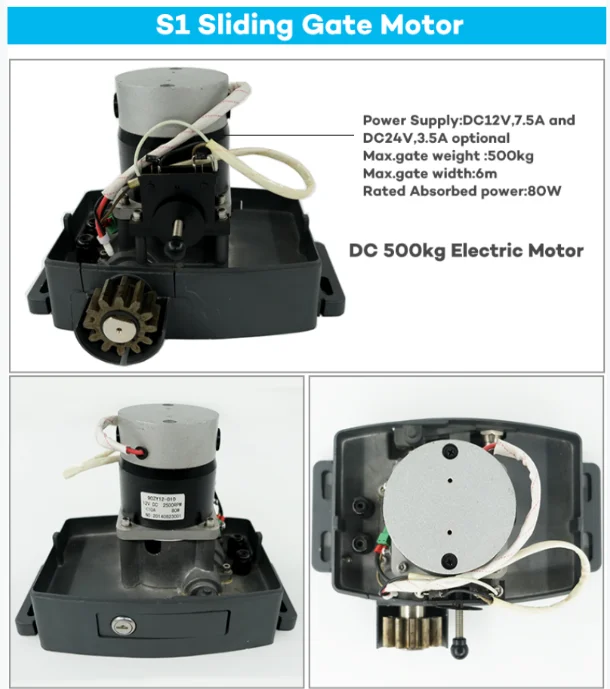

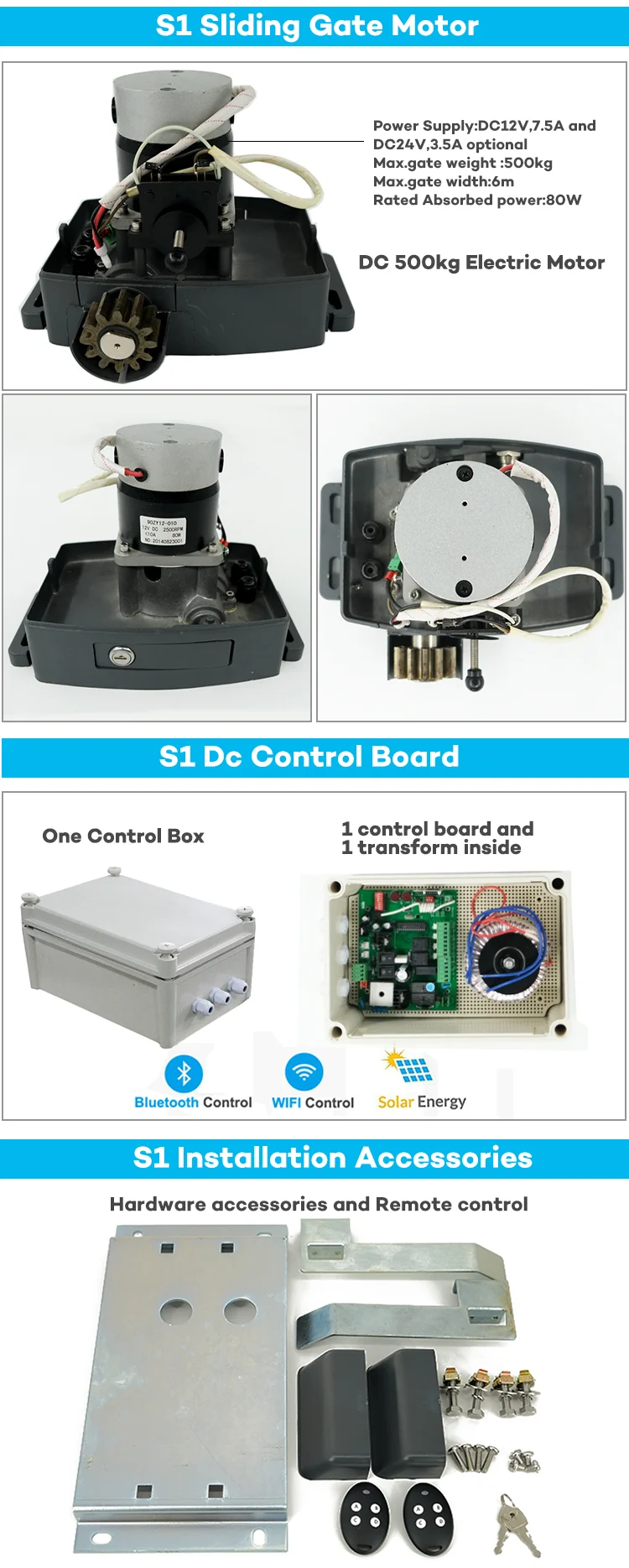

DC 500kg Motor
Ac500kg Motor/700kg Motor
Recommend Products

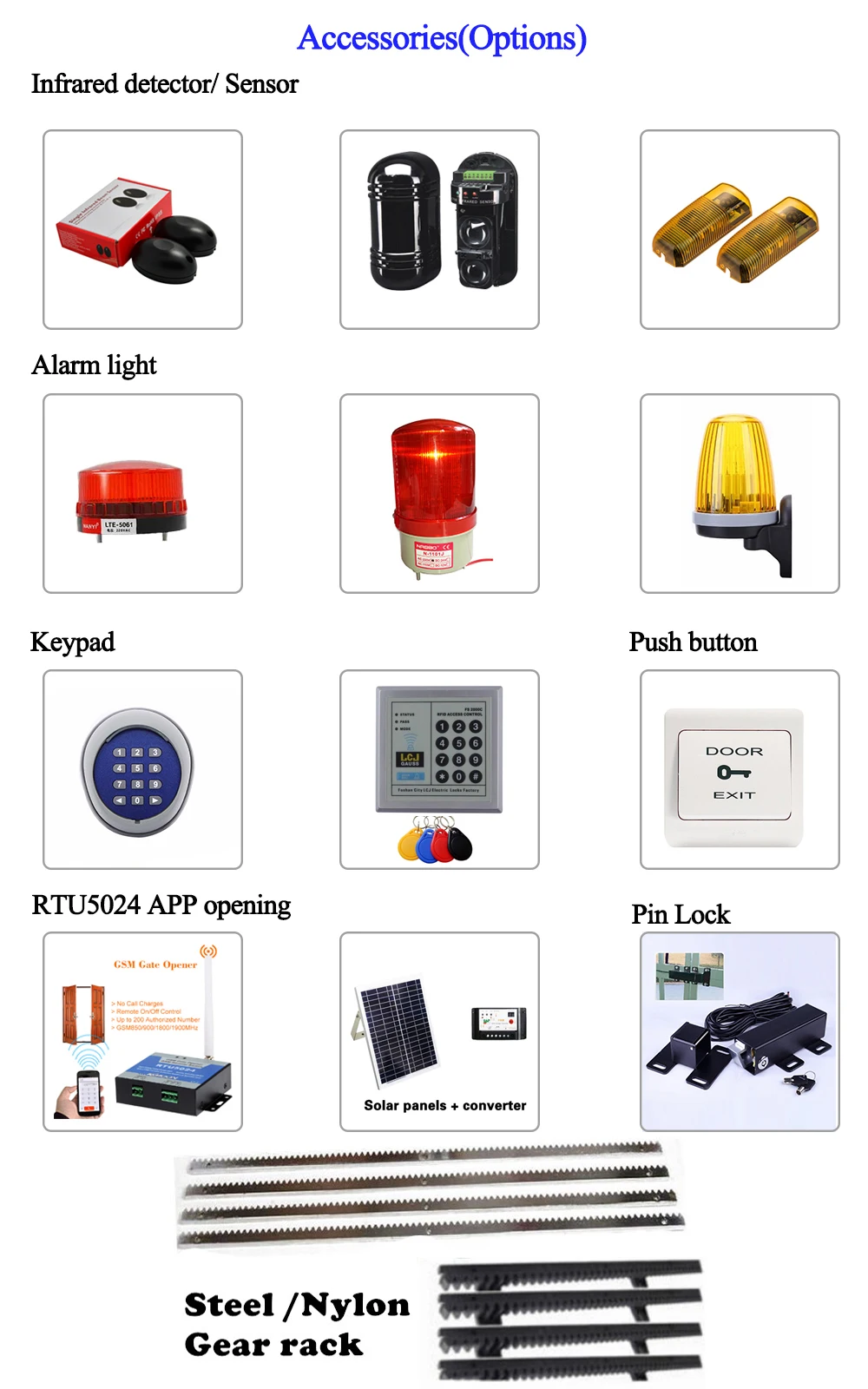

Accessories Optional
Packing & Delivery
Company Profile
Chisung(Chisung Intelligence Technology Co., Limited), is one of the enterprises integrating intelligent machinery and electronic technology in road safety machines.
Our main products are automatic barrier gates(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, ) for car parking lot, turnstile, automatic turnstile, tripod turnsiltes, sliding gate operators, swing gate operators, flap barriers, swing barriers, speed gates, parking locks, parking curbs, parking guard and full height turnstiles.
Since established, our company has always adhered to the business principle of "Quality is the first, Customer is the supreme", and we aim to become the top one as a world-known hi-tech enterprise in China, even in the world.
During the years of rapid development, we become one of the leading designer and manufacturers of intelligent gate control security machines in China,with spelization of security and protection products. Many of our technologies and innovations have got patent rights.
Chisung has established comprehensive and wide sales and after sales network, due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world.
Meanwhile, we provide the OEM service for many companies, and the products meet their demand of high quality facilities for the business, that make our customers more competitive.
Our main products are automatic barrier gates(barrier, barrier gate, boom barrier, automatic barrier, traffic barrier, car park barrier, ) for car parking lot, turnstile, automatic turnstile, tripod turnsiltes, sliding gate operators, swing gate operators, flap barriers, swing barriers, speed gates, parking locks, parking curbs, parking guard and full height turnstiles.
Since established, our company has always adhered to the business principle of "Quality is the first, Customer is the supreme", and we aim to become the top one as a world-known hi-tech enterprise in China, even in the world.
During the years of rapid development, we become one of the leading designer and manufacturers of intelligent gate control security machines in China,with spelization of security and protection products. Many of our technologies and innovations have got patent rights.
Chisung has established comprehensive and wide sales and after sales network, due to our advanced producing equipments and scientific management, our series of products with excellent quality are selling well not only in China but also all over the world.
Meanwhile, we provide the OEM service for many companies, and the products meet their demand of high quality facilities for the business, that make our customers more competitive.
