12V 4 Pin Relay Switch Harness 6 Pack, 30A Fuse Auto SPST Bosch Style Relay 12 Volt 30 Amp Relays for Automotive Marine Boats
- Category: Auto Relays >>>
- Supplier: Dongguan,Andu,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Name | 12V Fuse Relay Switch Harness Set - 30A ATO ATC Blade Fuse, 5 Pin SPST Automotive Electrical Relays with Heavy Duty 14 AWG Wires |
* Upgraded Version - Automotive relays built in fuse socket with included 30A blade fuse, no need of a separate fuse holder,
saving space and money. Heavy duty 14AWG wires for main contact* Easy Wiring - The relay sockets come with color-labeled wires for loads/accessories convenient wiring. Black - Ground (85), Red
- VDC (30), White - Trigger (86), Blue - Output N/O (87),Green-87a Output Closed Contact
* Neat Mounting Design - The interlocking design of unique male-female slot on each socket edge, easy to connect all relays
together, offering clean and neat installation

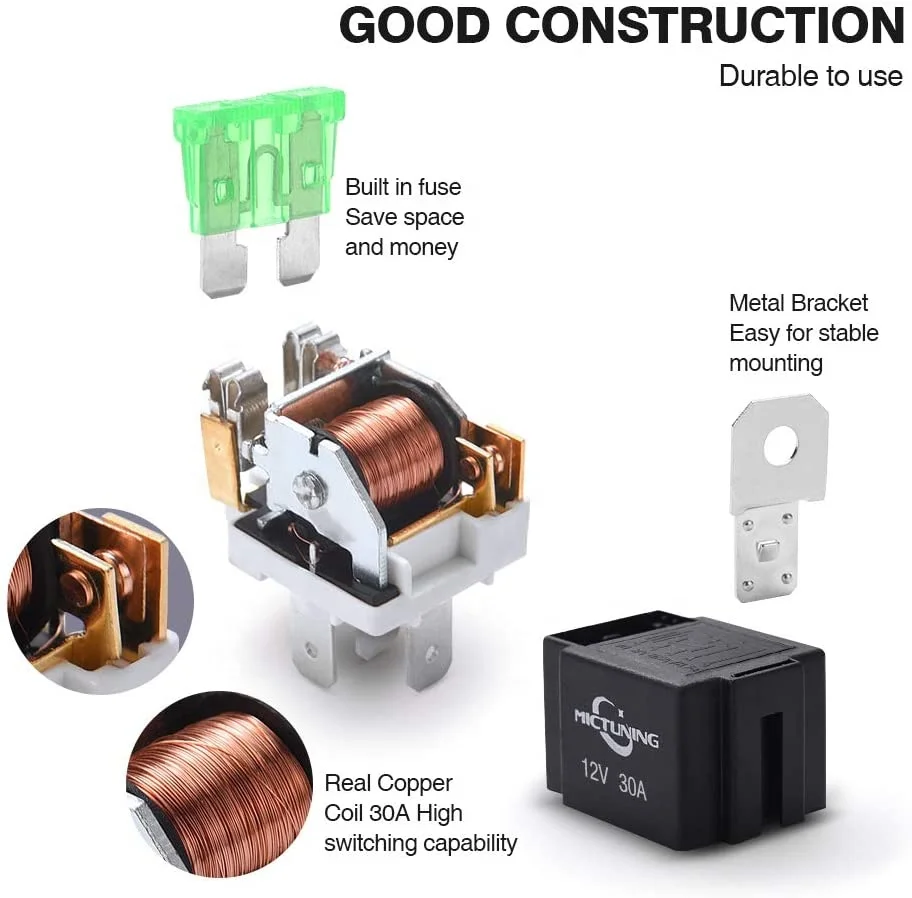

* Good Construction - 12V DC (Max@14V DC) and 30A High Switching Capability. Bosch style 4-Pin SPST (Single Pole Single Throw)
Relay. Metal mounting bracket on the electrical relay promotes easy installation
* Wide Application - Wide range of use, greatly used for car lights, fog lamps, wiper, starter, fans, speakers, traction control
systems, etc
Detailed Images
Contact parameters | |
Contact form | 1H(1A), 1Z(1C) |
Contact resistance | 100mΩ (1A 6VDC) |
Contact material | Silver Alloy |
Contact load (resistive) | 40 A 14VDC |
Maximum switching current | 40 A |
Maximum switching power | 640 W |
Maximum switching voltage | 75 VDC |
Mechanical life | 1×107 times |
Electrical life | 5×104times |
Performance parameter | |
Insulation resistance | 100MΩ,500VDC |
Dielectric Strength | Between contact and coil:750VAC 1min |
Between open contacts:500VAC 1min | |
Action time | Max: 12ms |
Release time | Max: 10 ms |
Coil temperature rise (at rated voltage) | Max: 60℃ |
Temperature range | -40℃～+85℃ |
Stability | 98m/s2 |
Strength | 980m/s2 |
Vibration | 1.5mm 10～55Hz |
Humidity | 35%～85%RH |
Temperature range | -40% +85℃ |
Rated voltage VDC | Action voltage VDC | Release voltage VDC | Maximum voltage VDC | Coil resistance VDC |
6 | 4.2 | 0.6 | 7.2 | 23±10% |
9 | 6.3 | 0.9 | 10.8 | 51±10% |
12 | 8.4 | 1.2 | 14.4 | 90±10% |
24 | 16.8 | 2.4 | 28.8 | 360±10% |
36 | 25.2 | 3.6 | 43.2 | 810±10% |
48 | 33.6 | 4.8 | 57.6 | 1440±10% |
