Automatic Brick force Wire Mesh Welded Machine

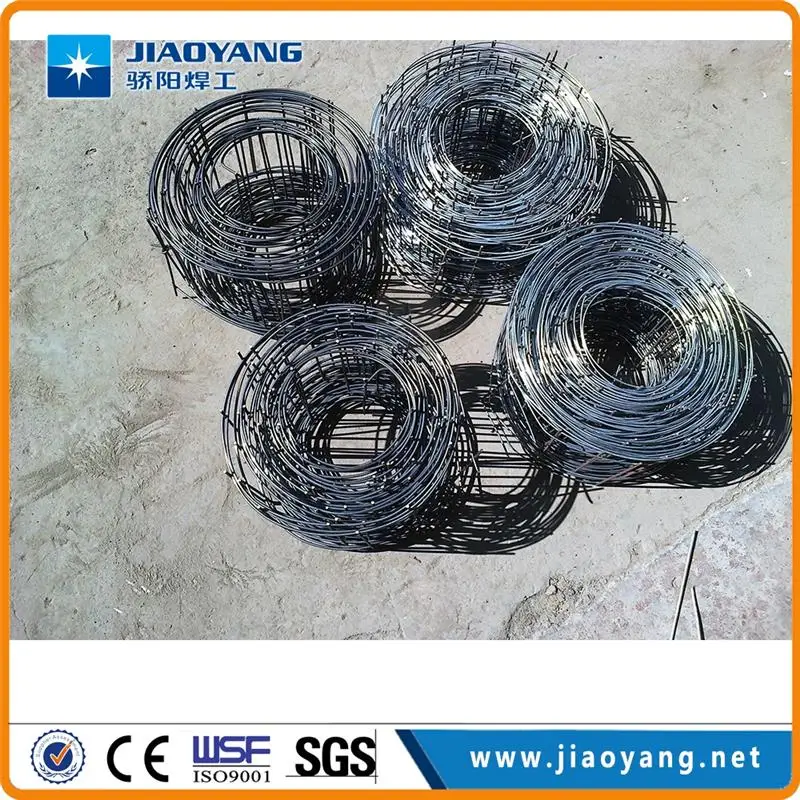

  Brick force  mesh making machine is mainly used to produce brick force meshes. Brick force mesh is widely used in construction, hollow wall reinforcement, increase the elasticity, to prevent wall cracks, is a good building auxiliary material.







This machine is used to produce the brickforce mesh roll from 1.6-3.5mm wire . This brickforce mesh is very popular in Africa, South Africa, Malawi,Zamiba





Parts of product

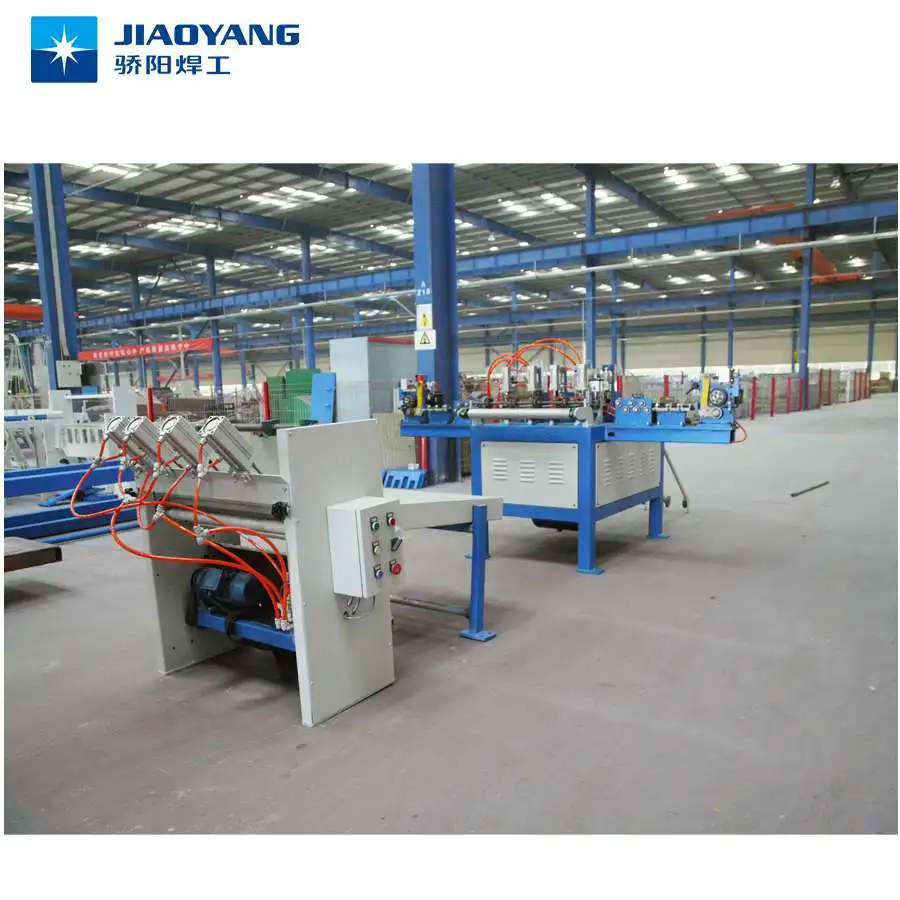

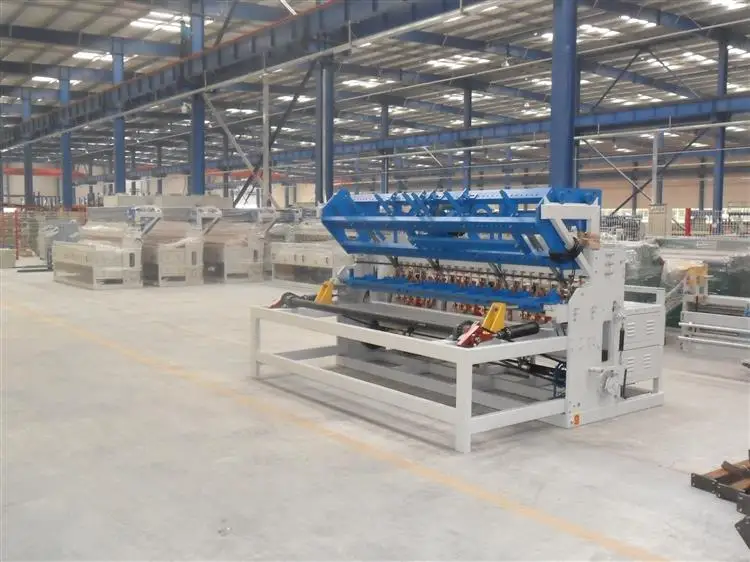

A. Main welding machine

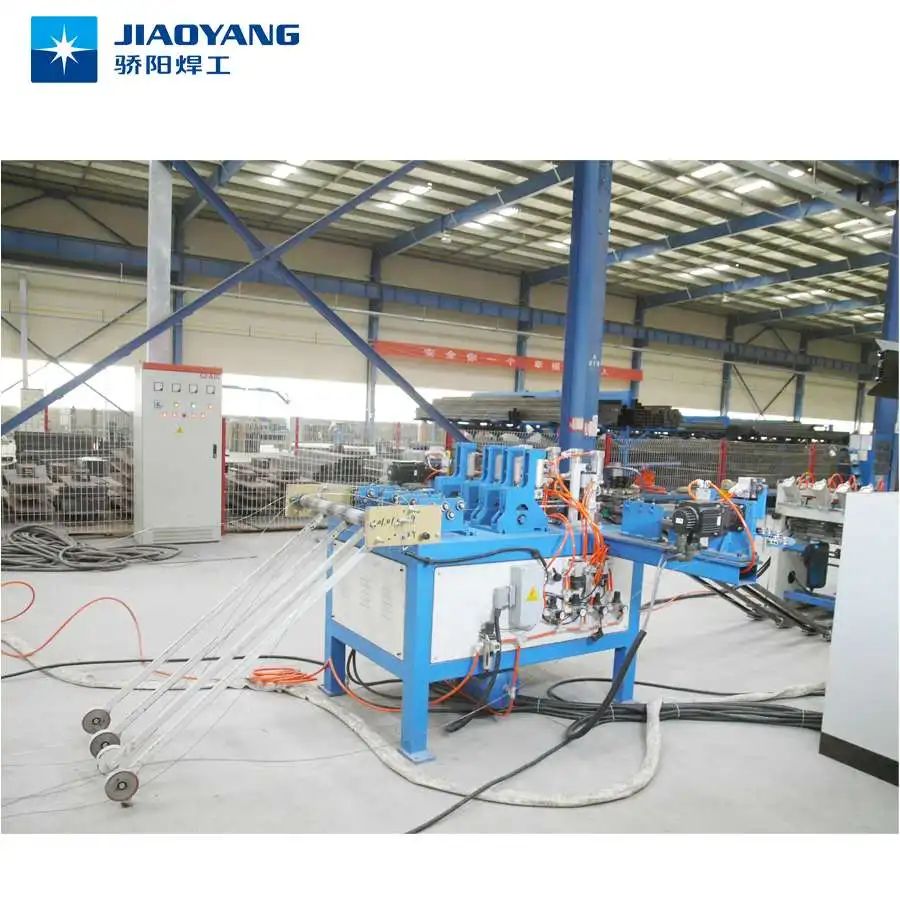

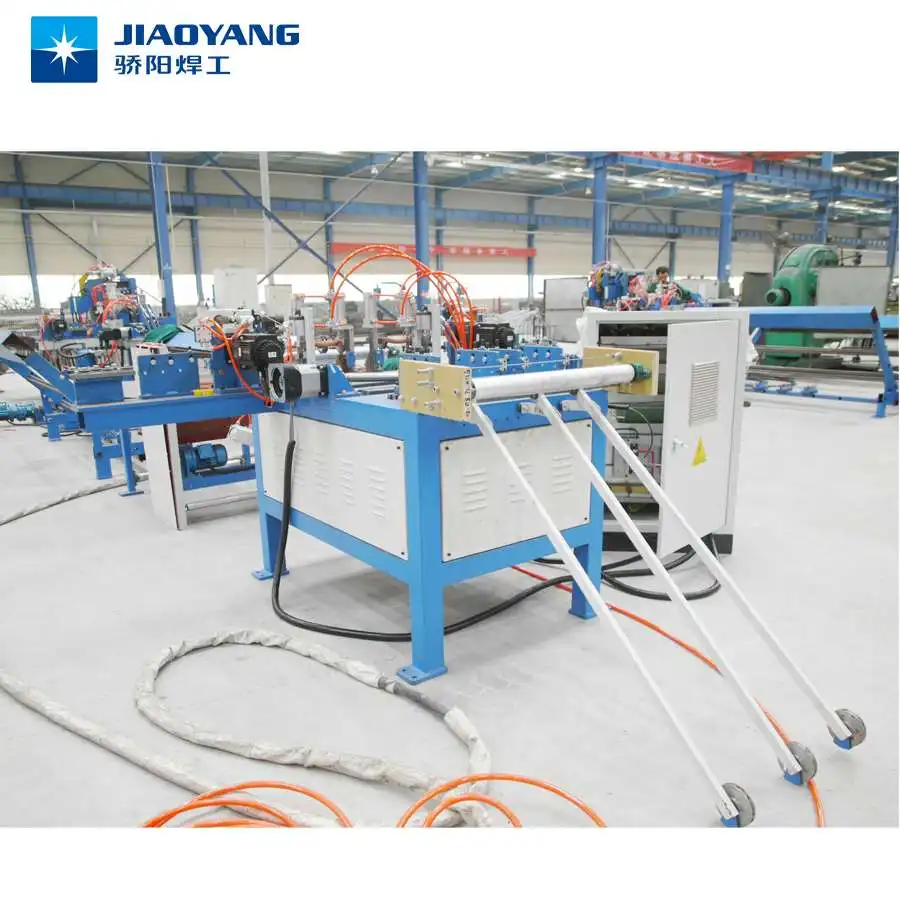

B. Wire payoff and shelf

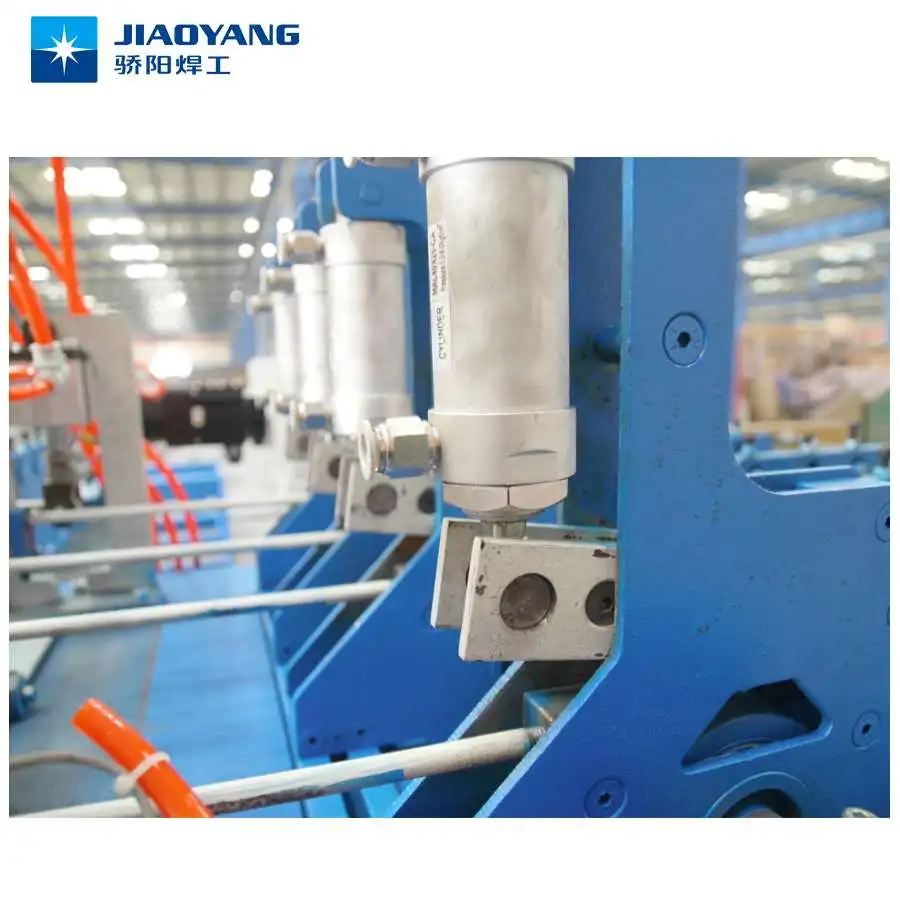

    The sensors are also equiped to monitor the line wires.  It has 6 springs between the yellow device and blue frame,which can regulate 6 wire payoffs are included.





C. Control cabinet



1.Taiwan famous brand PLC and touching screen



2.pneumatic testing, servo alarm



3.mesh size is set from PLC , welding current and welding time is also set from PLC









Basic information



1.specification

Items	Parameter
Mesh width	75mm, 115mm, 230mm (50-230mm adjustable )
Electrode no.	4
Wire diameter	1.6-3.5mm
Cross wire space	≥20mm
Material	Low carbon wire ( carbon contains ≤0.2%,tensile strength ≤550MPa
Welding speed	60-90 times/min.
Transformer	36KVA×1set
Line wire feeding	Coils wire feed from coil by servo motor
Cross wire feeding	Coils wire feed from coil by servo motor
Welding pressure	Pneumatic
Welding method	Controlled by SCR
Mesh pulling	Automatic rolling machine, one time making two coils
Controller	PLC with touch panel
Mesh length setting	Automatic cut



2.function features

    1.The automatic brick force mesh welding production line is a new research and development  project designed for some  countries in Africa.

    2. It works with coil wire feeding ,the double work position welding and automatic centerless grinding roll and shear mesh .

    3. Rolling mesh device is mainly composed of the mesh tension ,guide rolling mesh ,cutting and dial the mesh devise ,which has greatly improve the work efficiency ,eliminating the need of  for manual downtime cut mesh rewinding.



3.application

    1.it is mainly used to produce brick force meshes

    2.Brick force mesh is widely used in construction ,hollow wall reinforcement ,increase the elasticity ,to prevent wall cracks ,is a  good building auxiliary material

    3.Brick force mesh is used for the foundation ,wall ,ect. It has higher request for strength and stability of place and the local  stress  where it is reinforced in the brick and block

    4.Brick force mesh is used in  the reinforcement of the brick and block construction  every key points of the cement mortar ,so  that brick and cement mortar to form an intergral whole structure ,the maximum absorption stress and vibration ,excellent and  anti-crack performance
